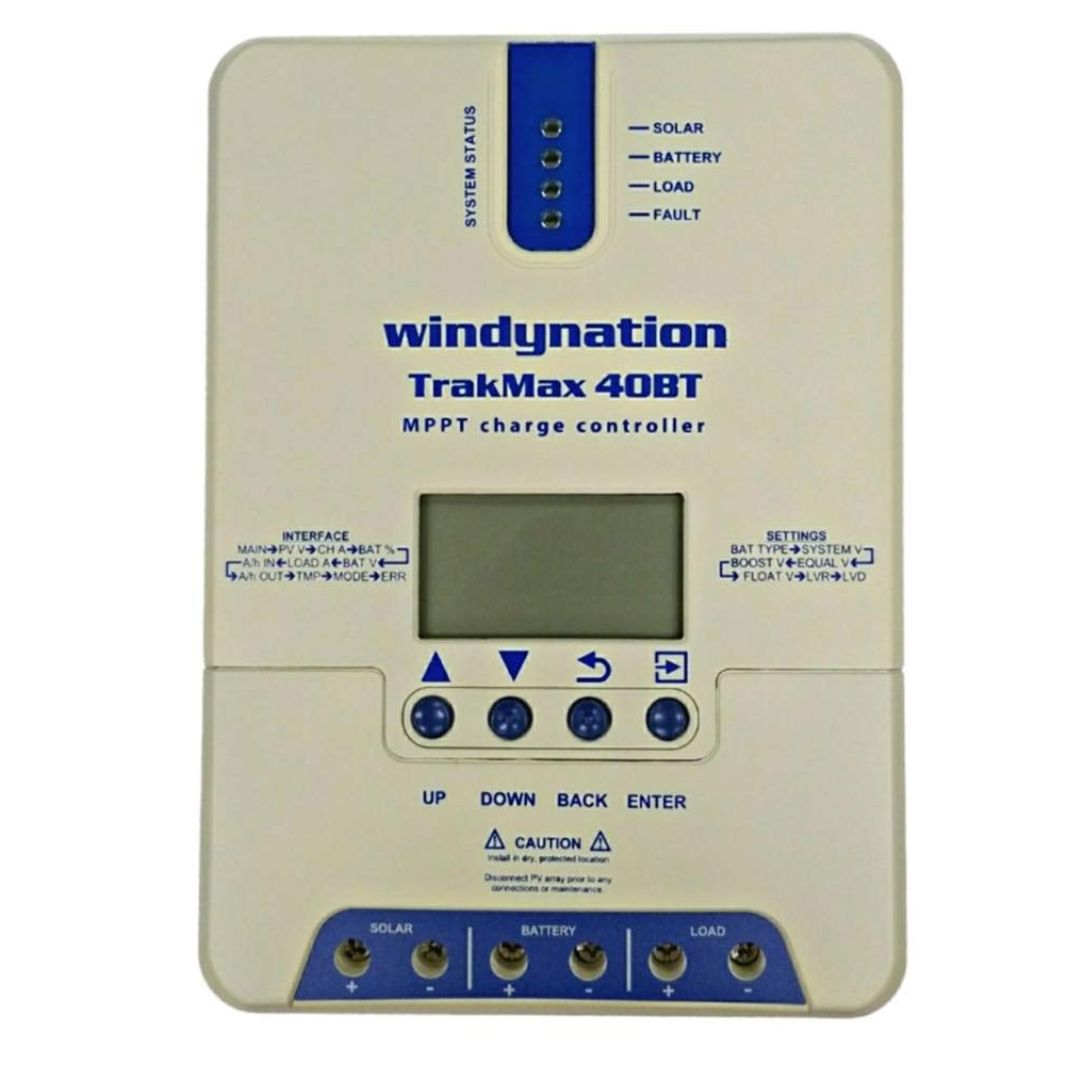

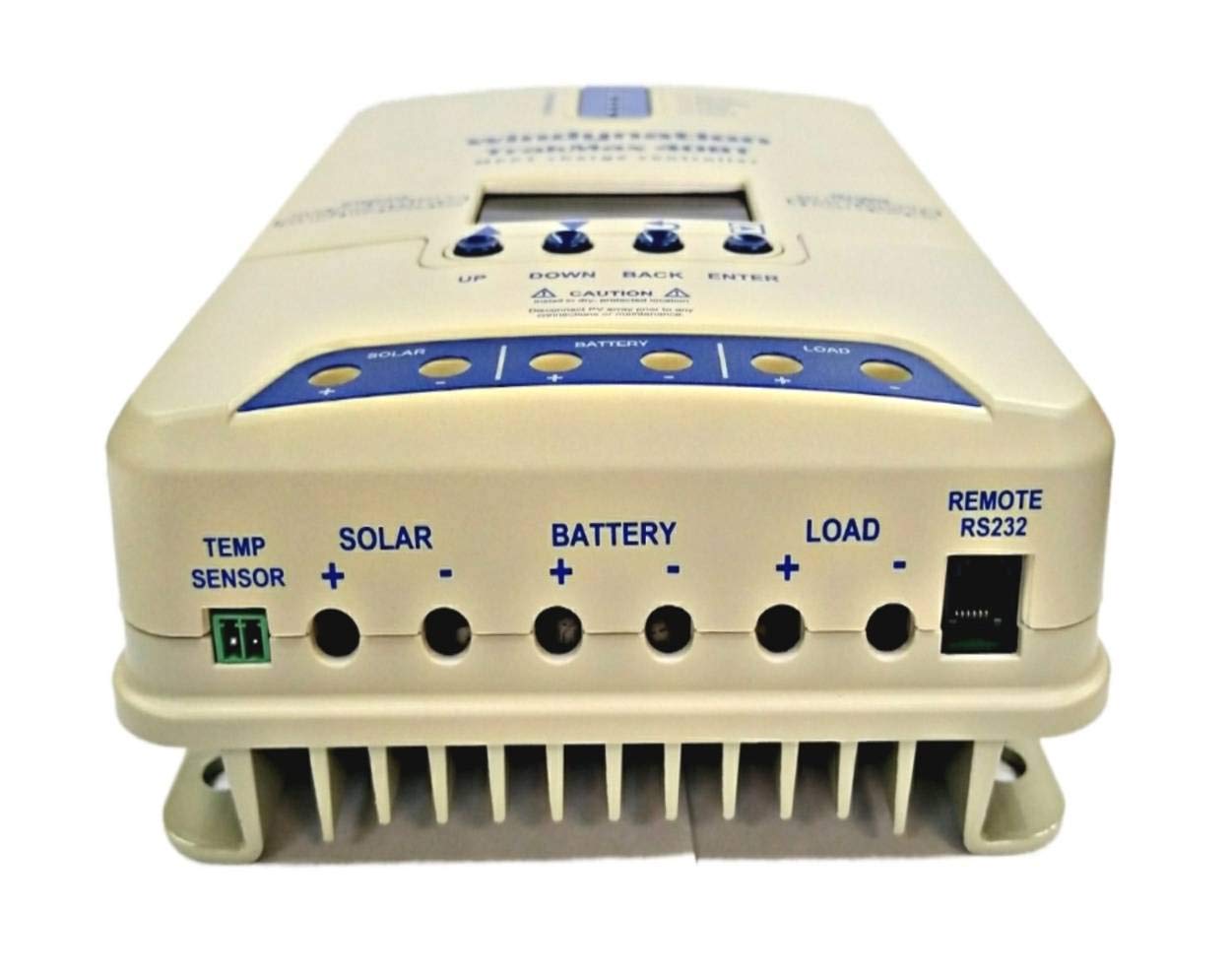

WindyNation’s TrakMax 40BT utilizes a state of the art maximum power point tracking (MPPT) software algorithm to maximize solar panel power production. With the TrakMax 40BT, up to 98.5% of a solar panel’s power production can be transferred to the battery bank. The end result is that the TrakMax 40BT can increase solar power battery charging by up to 30-35% compared to conventional pulse width modulated (PWM) charge controllers!
User adjustable settings
Provides up to 30% power increase in battery charging

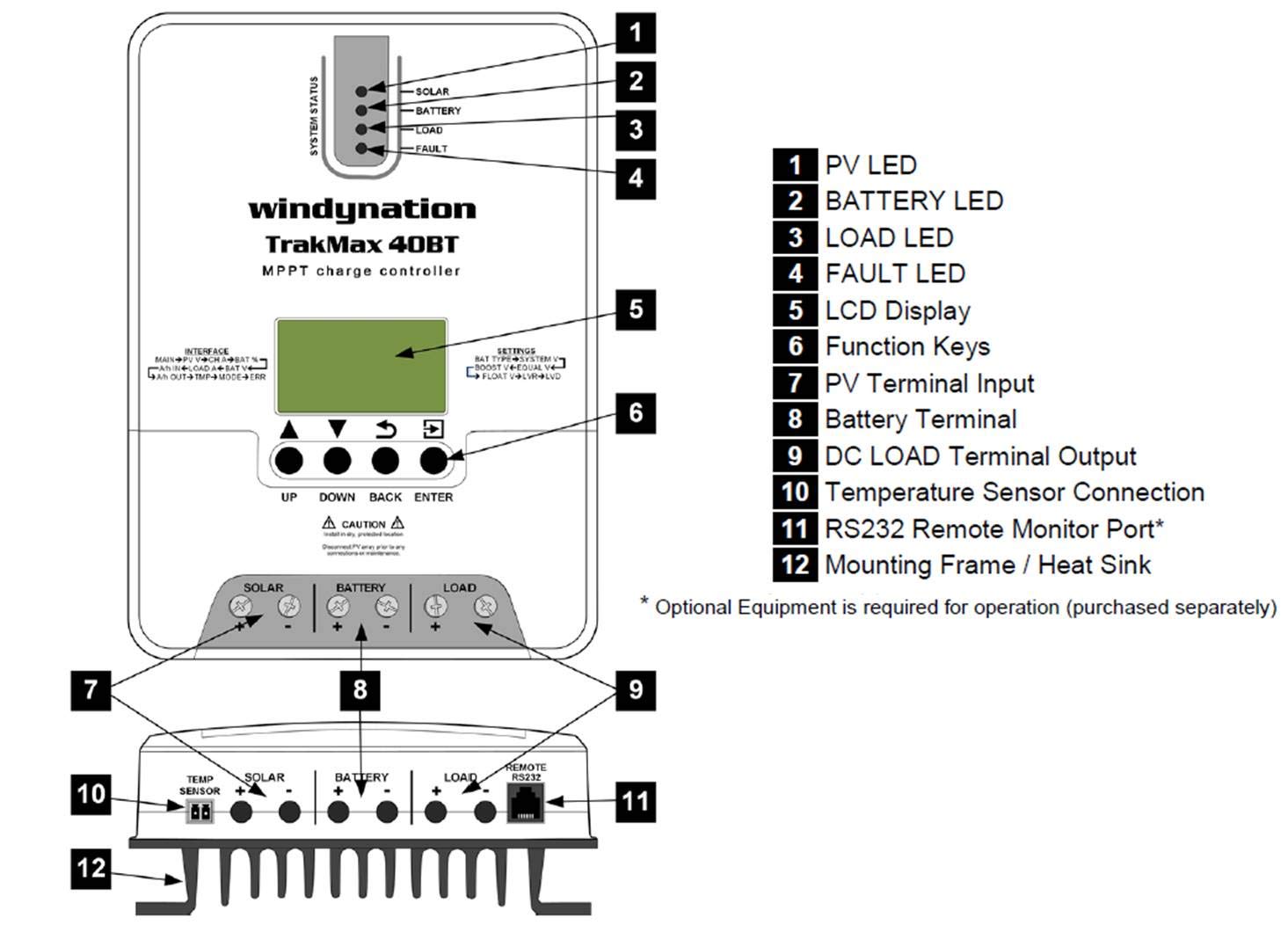

LCD screen and LED's provide all system information
Over voltage, reverse polarity, over current, excessive temperature and short circuit protected.
Optional Accessories

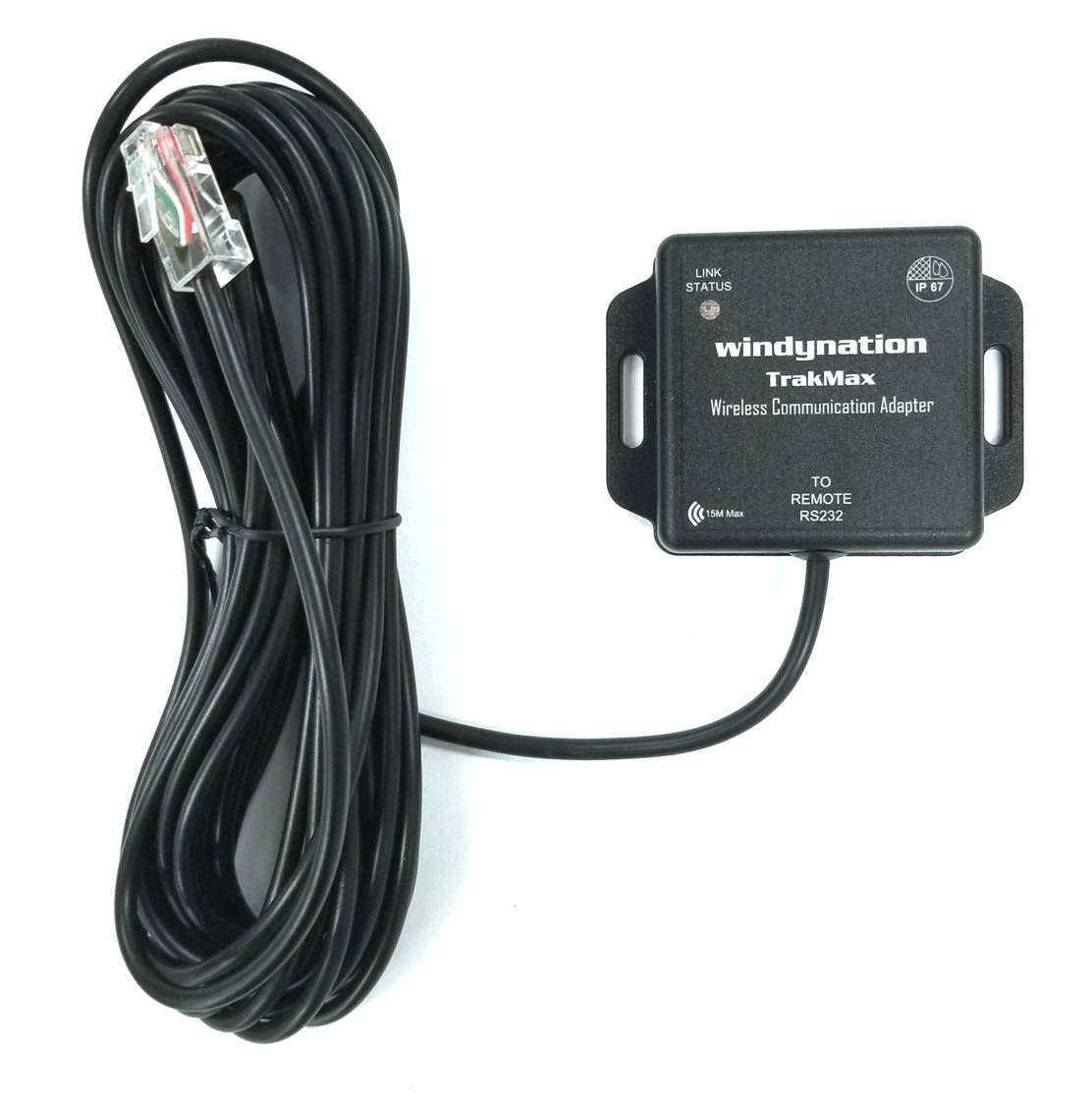

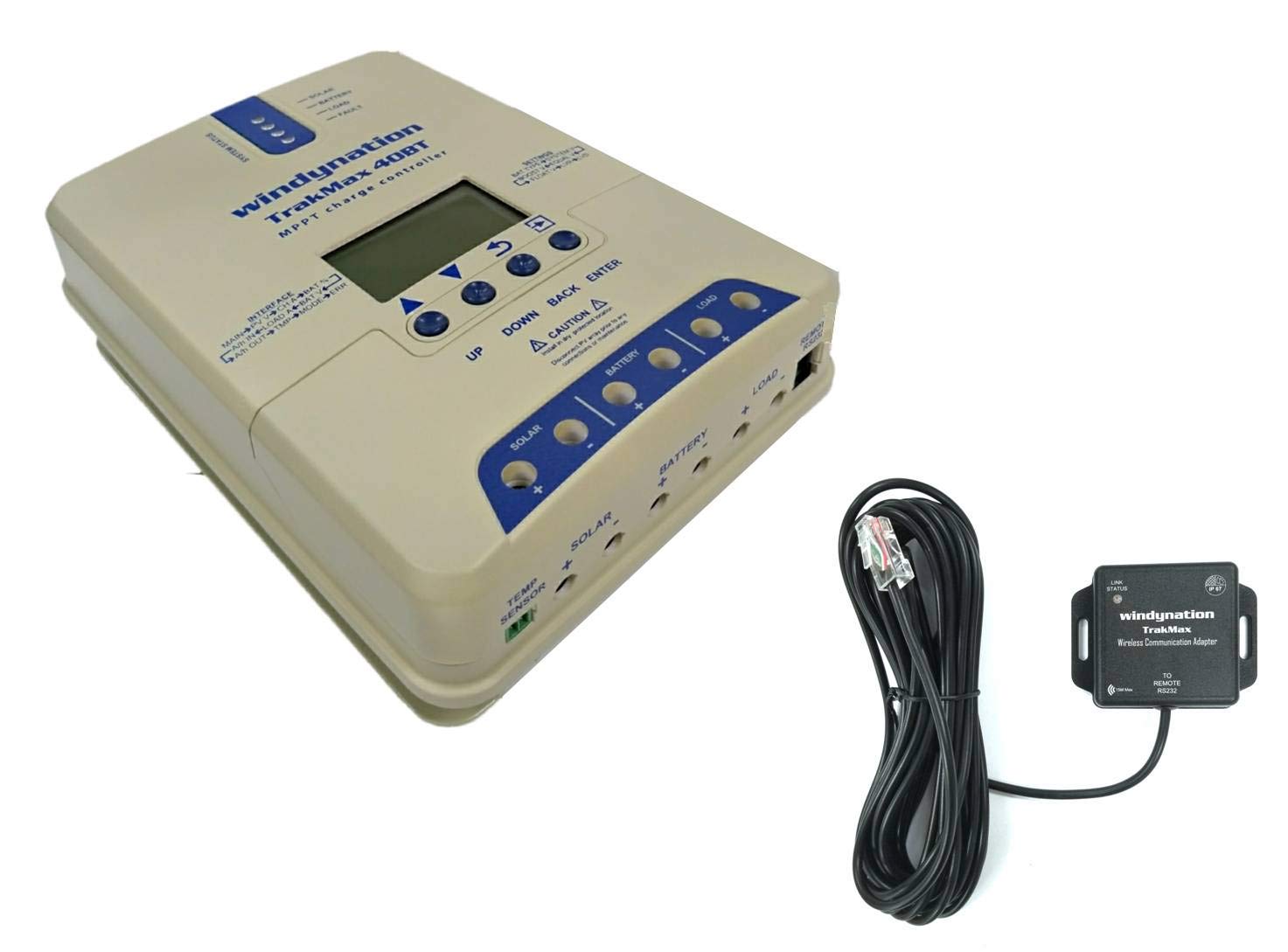

Wireless Communication Adapter

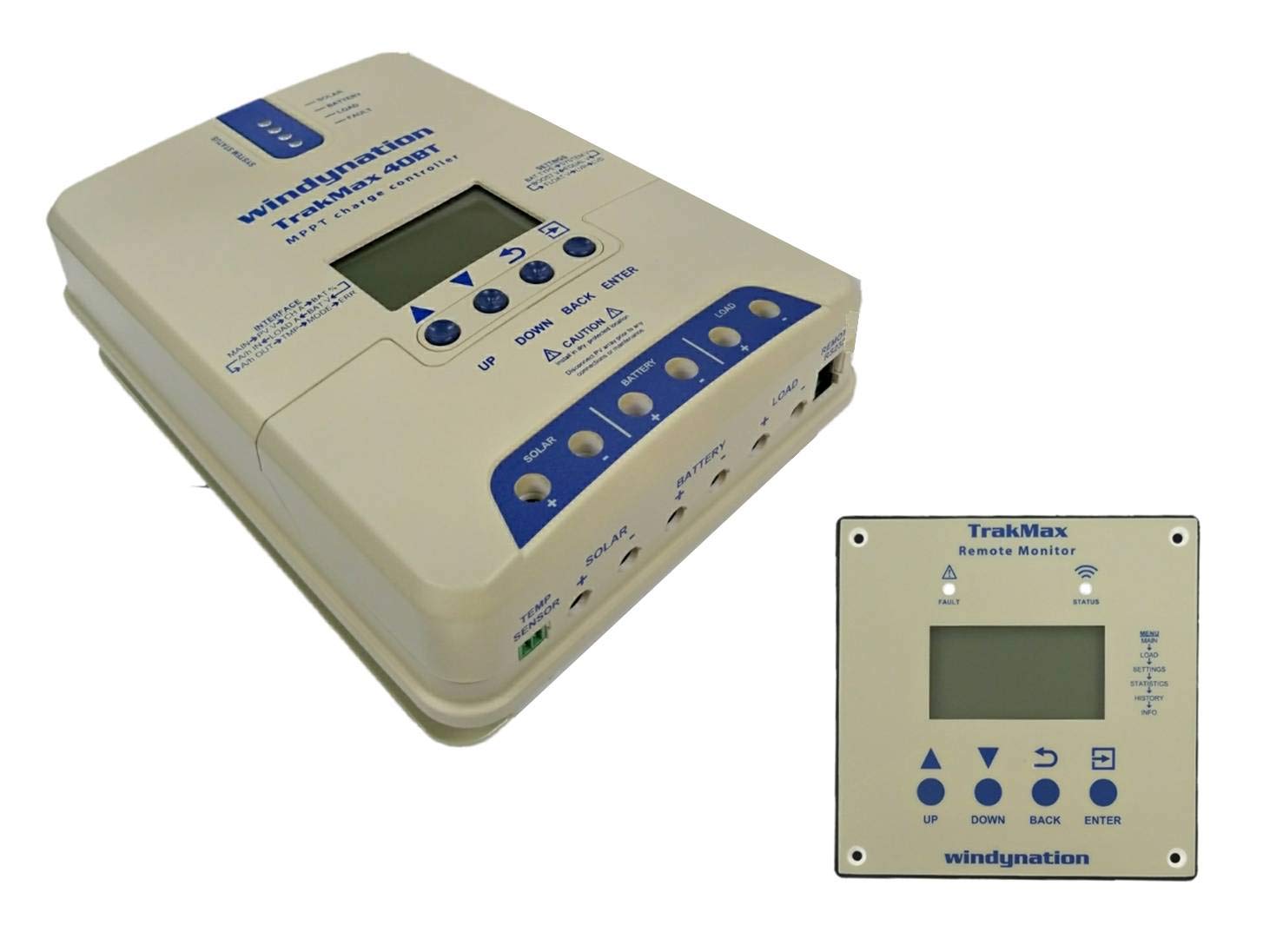

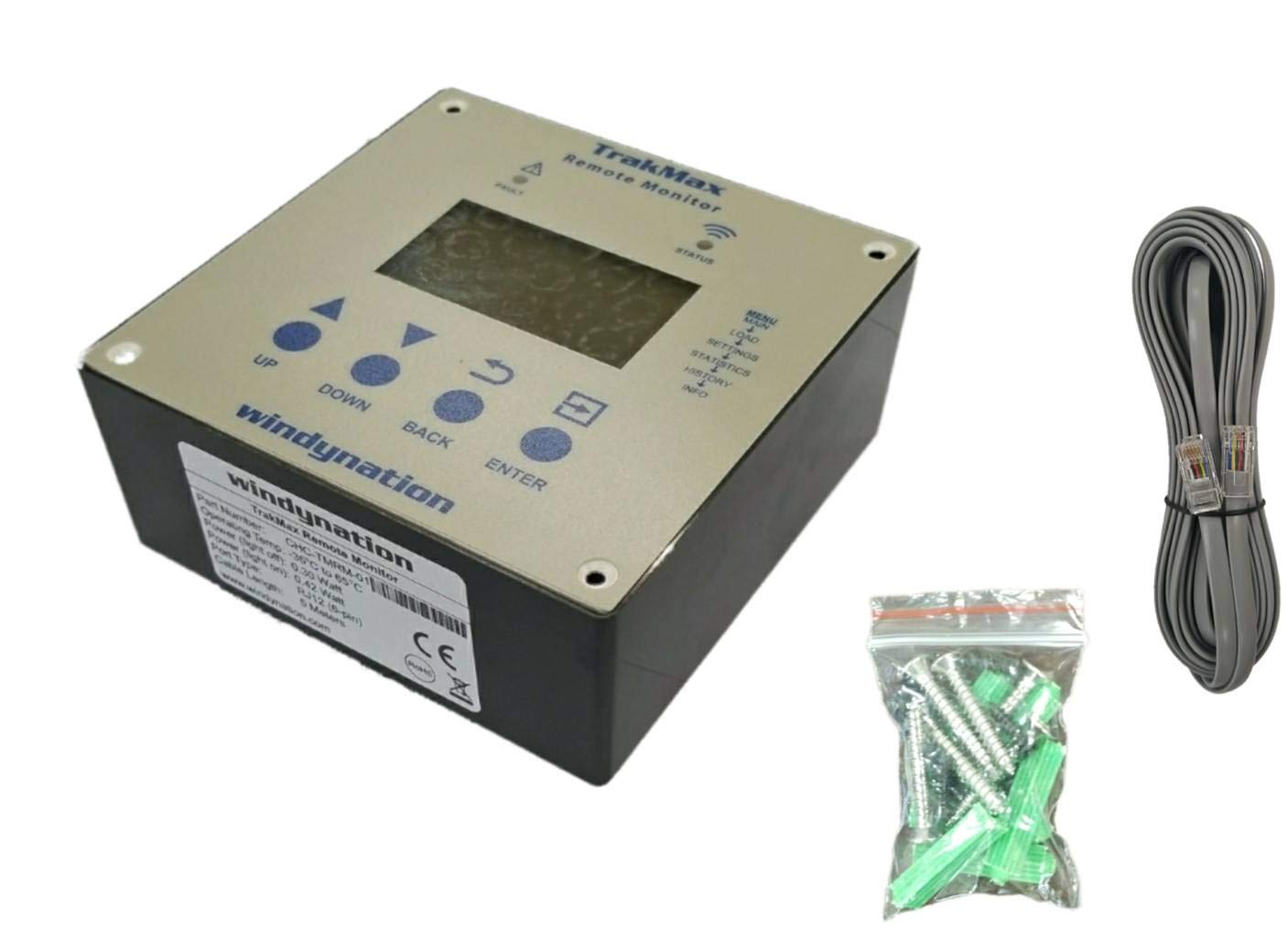

Remote Meter

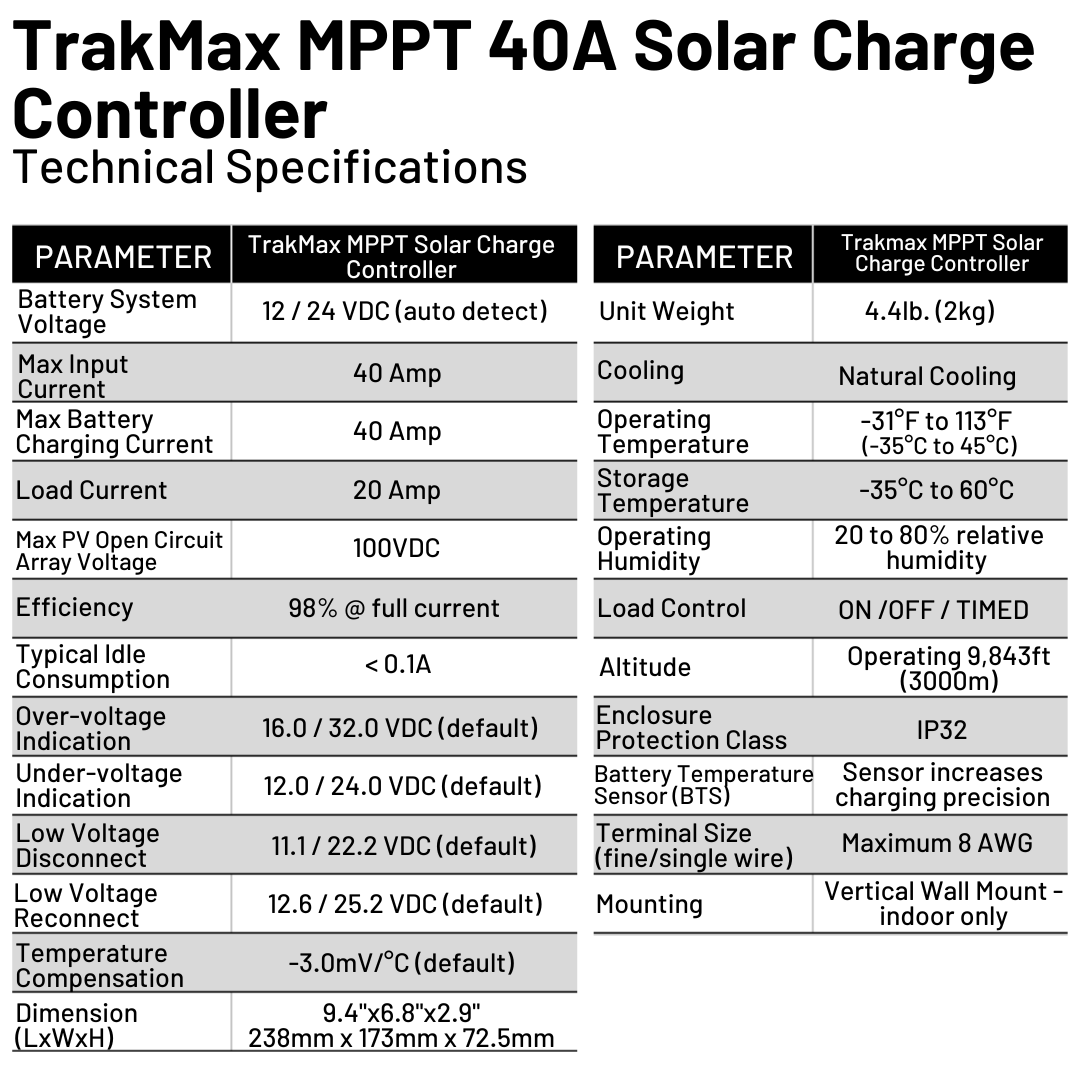

Use the drop-down tab options to add a Wireless Communication Adapter or a Remote Meter. Remote Meter can be mounted up to 20 feet from controller and optional Wireless Communication adapter allows the TrakMax MPPT Controller to sync with a smart phone or tablet. Free App available for Android and Apple IOS. See photo gallery for additional technical information (product dimensions, weight, etc.)
