How does the Tetravan In-Floor Shower Pan work?

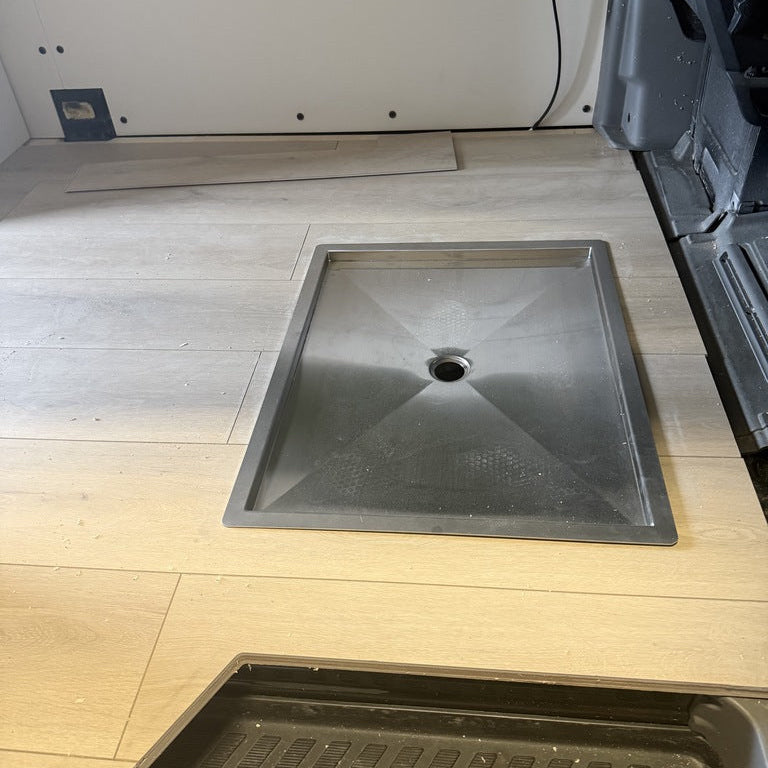

The pan recesses flush into the van floor, sitting just over 1" below floor level. A magnetic curtain attaches directly to the pan edge for showering, and the pan is walked over the rest of the day — zero headroom or floor space lost.

What are the dimensions of the Tetravan In-Floor Shower Pan?

Overall 30" × 24" with a 28" × 22" recessed interior, 1.31" deep, 1" flange, 2.01" center drain opening, and 24.6 lb weight. Minimum 1.3" of subfloor depth is required.

Which shower curtain works with the In-Floor Shower Pan?

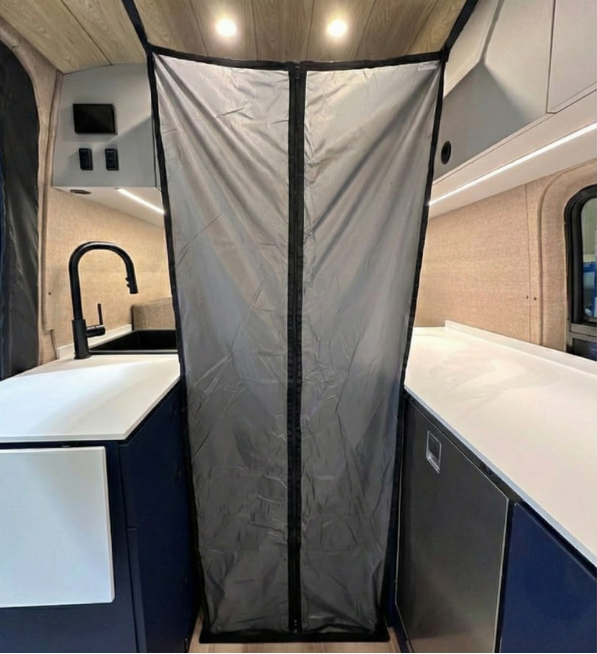

The Tetravan Universal Shower Curtain: 3/8" magnets seal to the inside pan edges, zippered front entry, 30"+ width at shoulder height, 71" tall, extendable to roof height with 6" extenders.

Where can the drain be positioned on the In-Floor Shower Pan?

Center drain is standard with a cross-break bottom directing water to it; additional drain positions are available. A 1-1/2" threaded straight drain fitting is included.

How is the In-Floor Shower Pan installed?

Cut the floor opening, apply adhesive to the underside of the flange, secure with at least 1" countersunk screws through the flange into the subfloor, and route the drain to a grey tank.

Should I choose the In-Floor Shower Pan or the Tetravan Folding Shower?

The In-Floor Pan suits builds with a dedicated shower spot — permanent, low-profile, full headroom. The Folding Shower suits builds where floor space is precious, stowing into 3.5" of wall depth.

Does the In-Floor Shower Pan ship internationally?

It ships to the contiguous US, Canada, and select European countries. Other countries can email contact@pundmann.de for a shipping quote. International orders may incur customs duties.

1 11

GoCode

Tetravan In-Floor Shower Pan STAINLESS STEEL

Q: Does the In-Floor Shower Pan work in a Ram ProMaster?

Yes, but ProMasters sit stock-sloped nose-down, so a leveling kit is required for proper drainage. Sprinters and Transits install without modification when level.

$616.25 USD

~~$725.00 USD~~ $616.25 USD

Sale Sold out

Magnetic Zipped Shower Curtain Add Shower Curtain No Shower Curtain

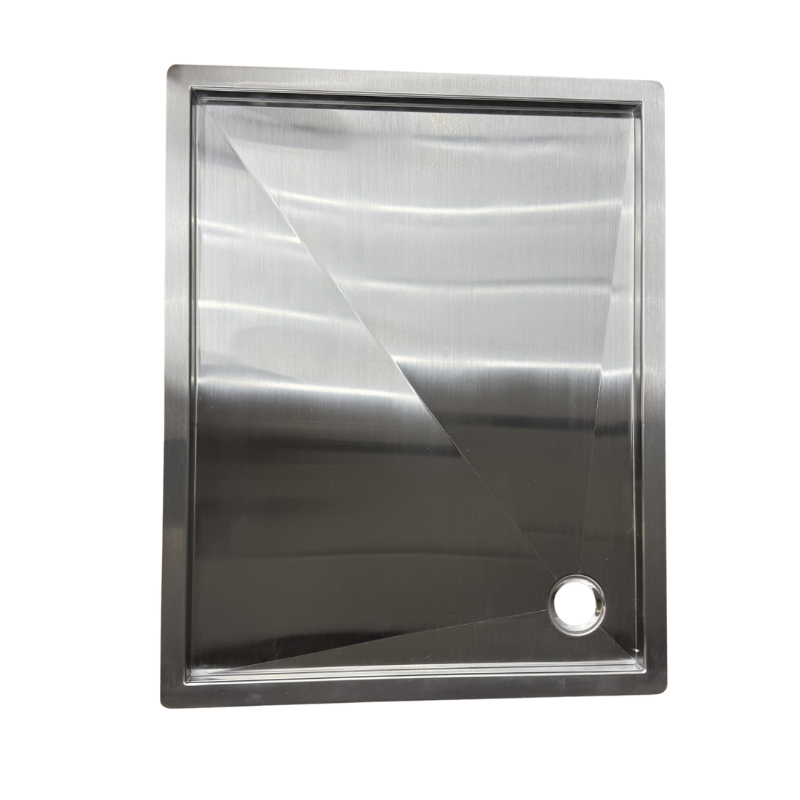

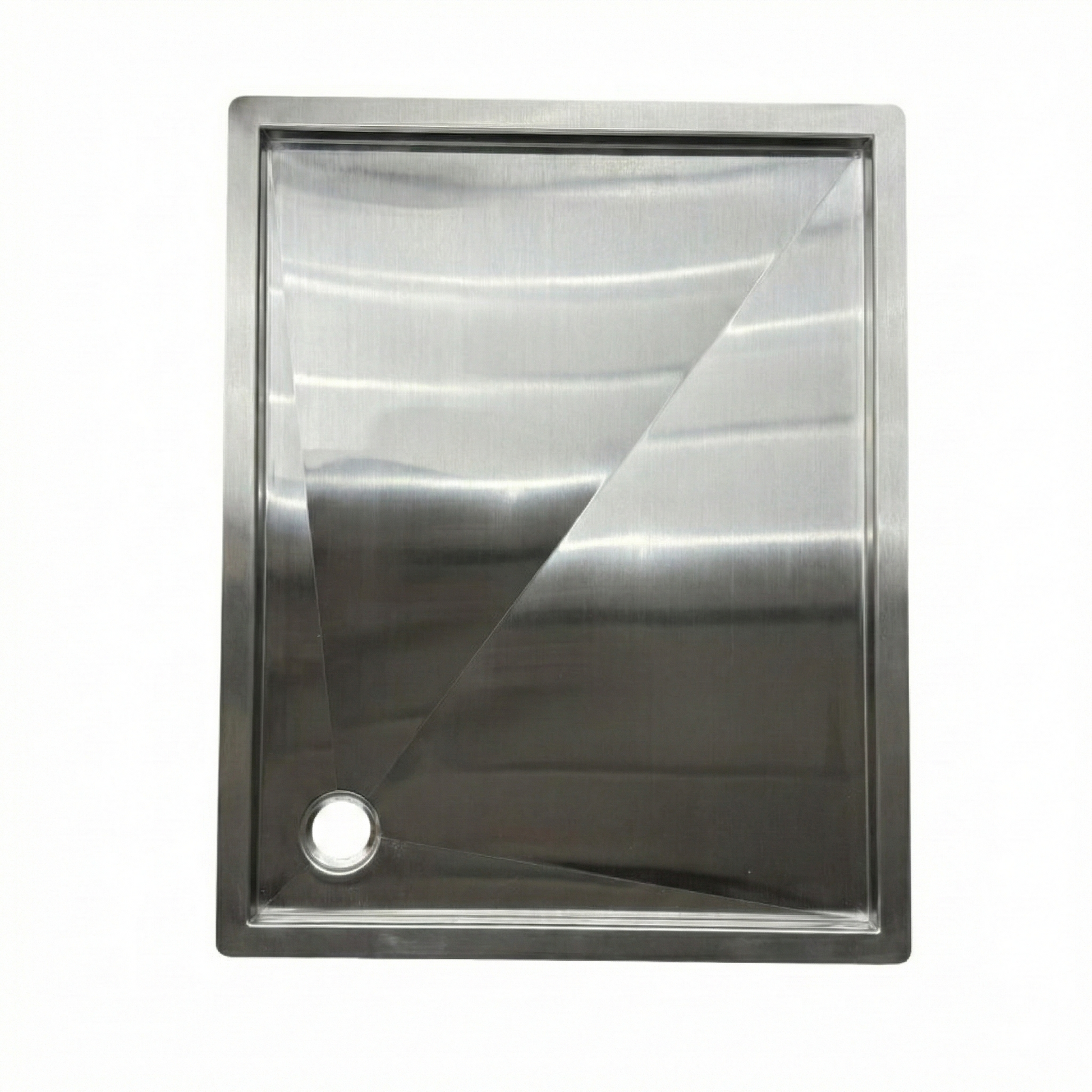

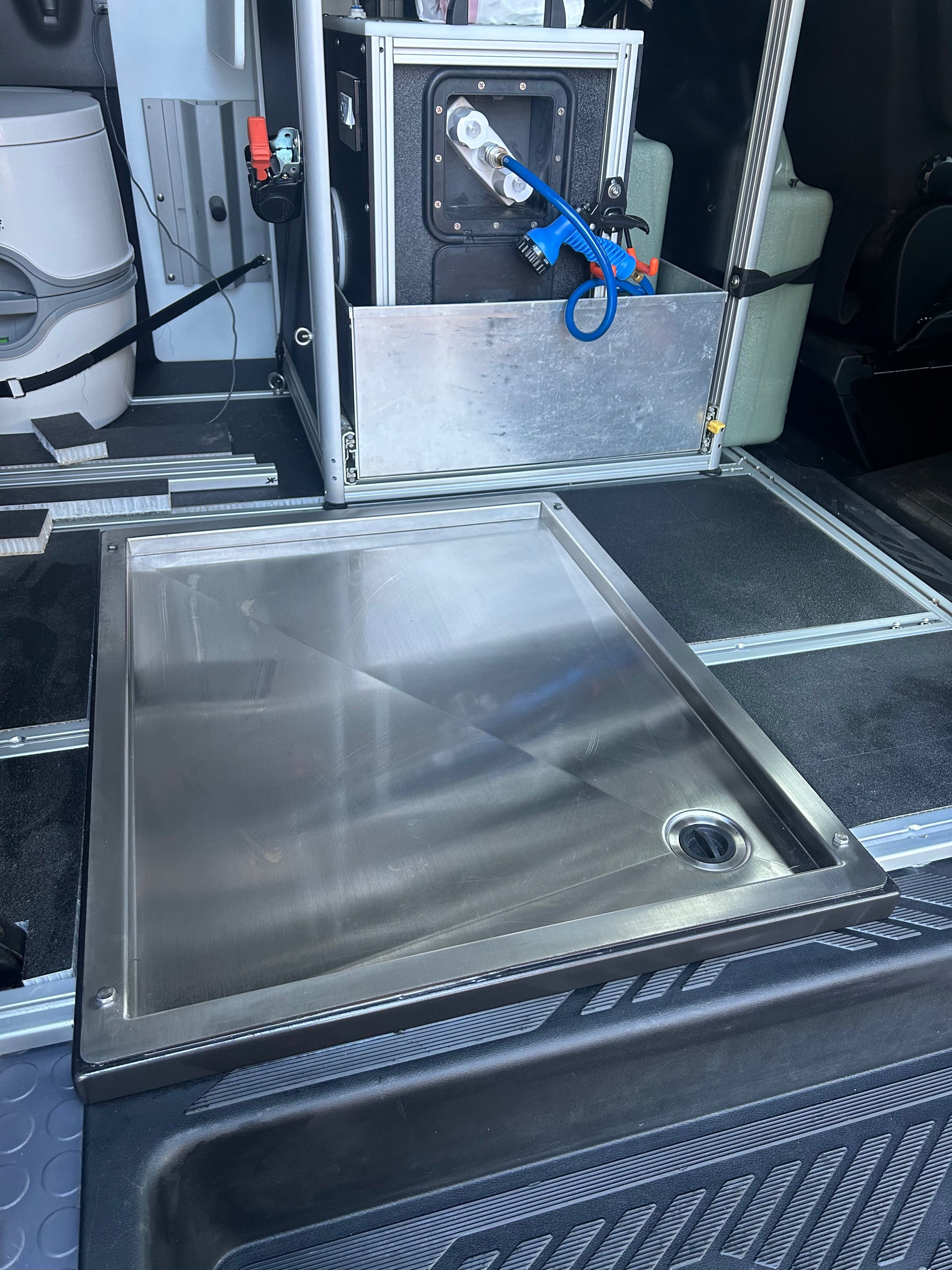

Drain Hole Location Center Bottom Right / Top Left Bottom Left / Top Right

Product variants

Quantity

About the Product

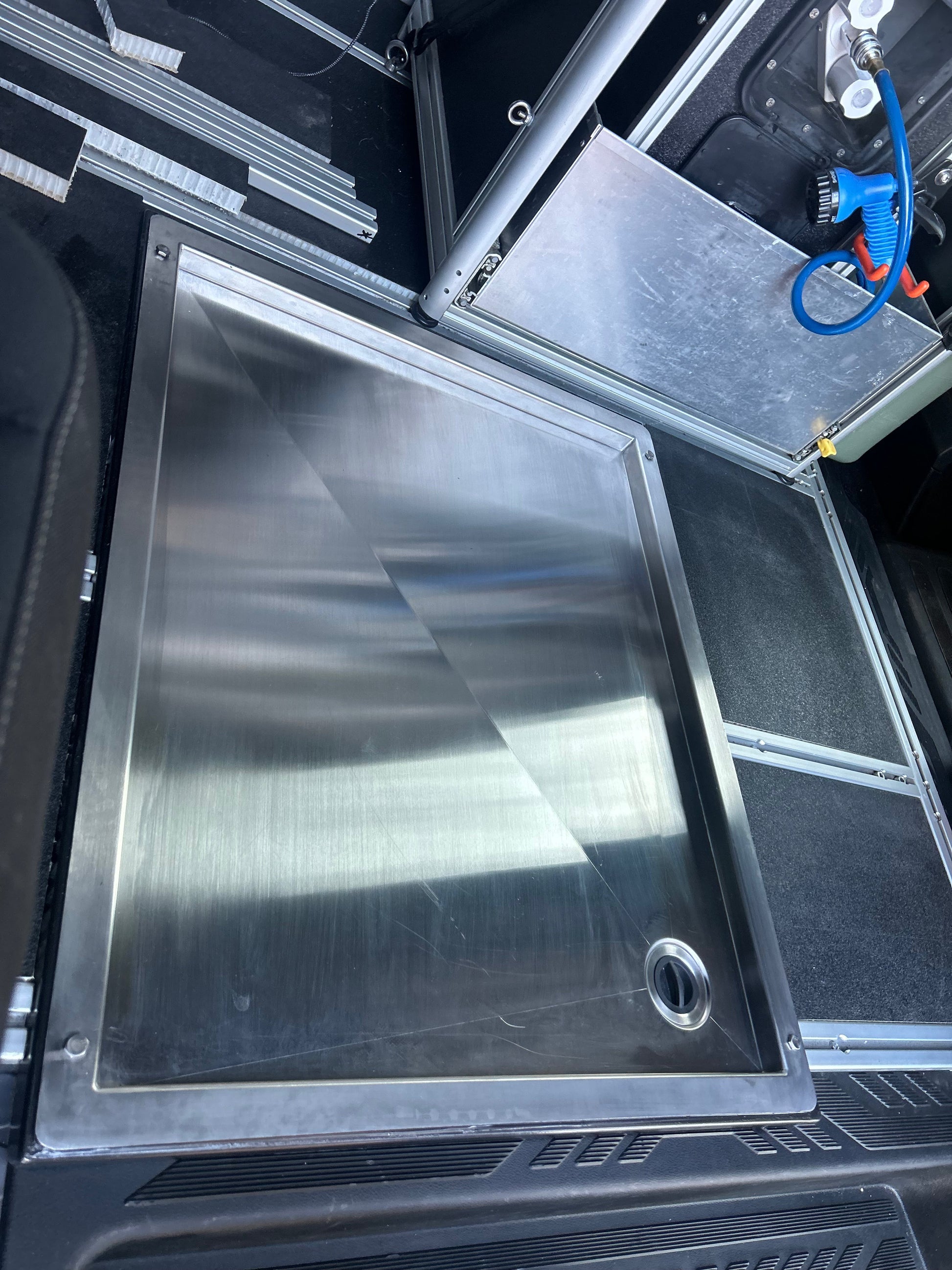

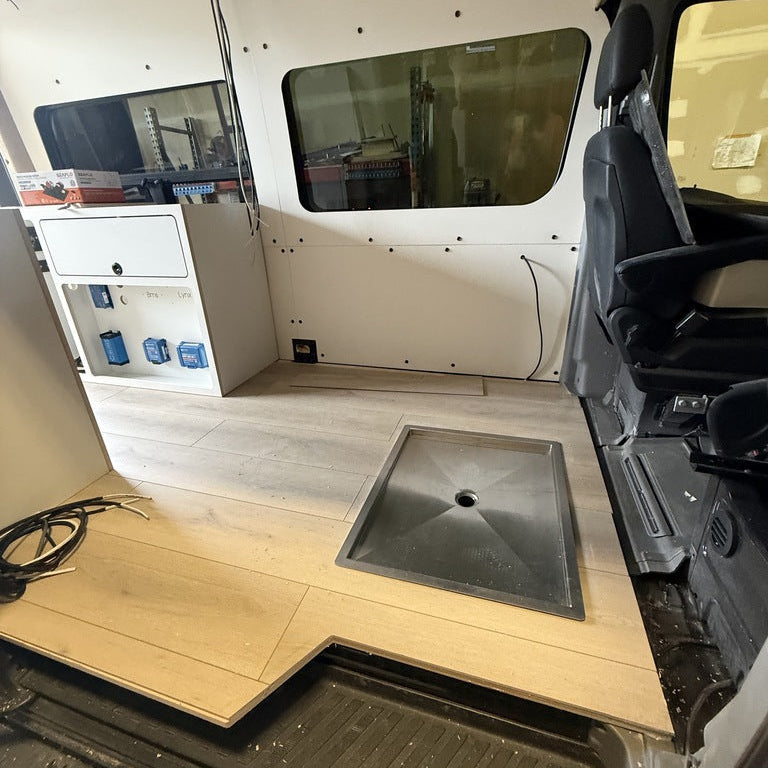

The Tetravan In-Floor Shower Pan recesses flush into your van floor — out of the way and hidden in plain sight until you need it. A cross break in the bottom directs water to the center drain, and the magnetic brushed stainless steel construction means your shower curtain seals directly to the pan edge without clips or tracks. A straightforward alternative to the Tetravan Folding Shower for builders who want a permanent, low-profile shower footprint.

Features

Recesses into your floor surface — sits just over 1" below floor level, maximizing headroom

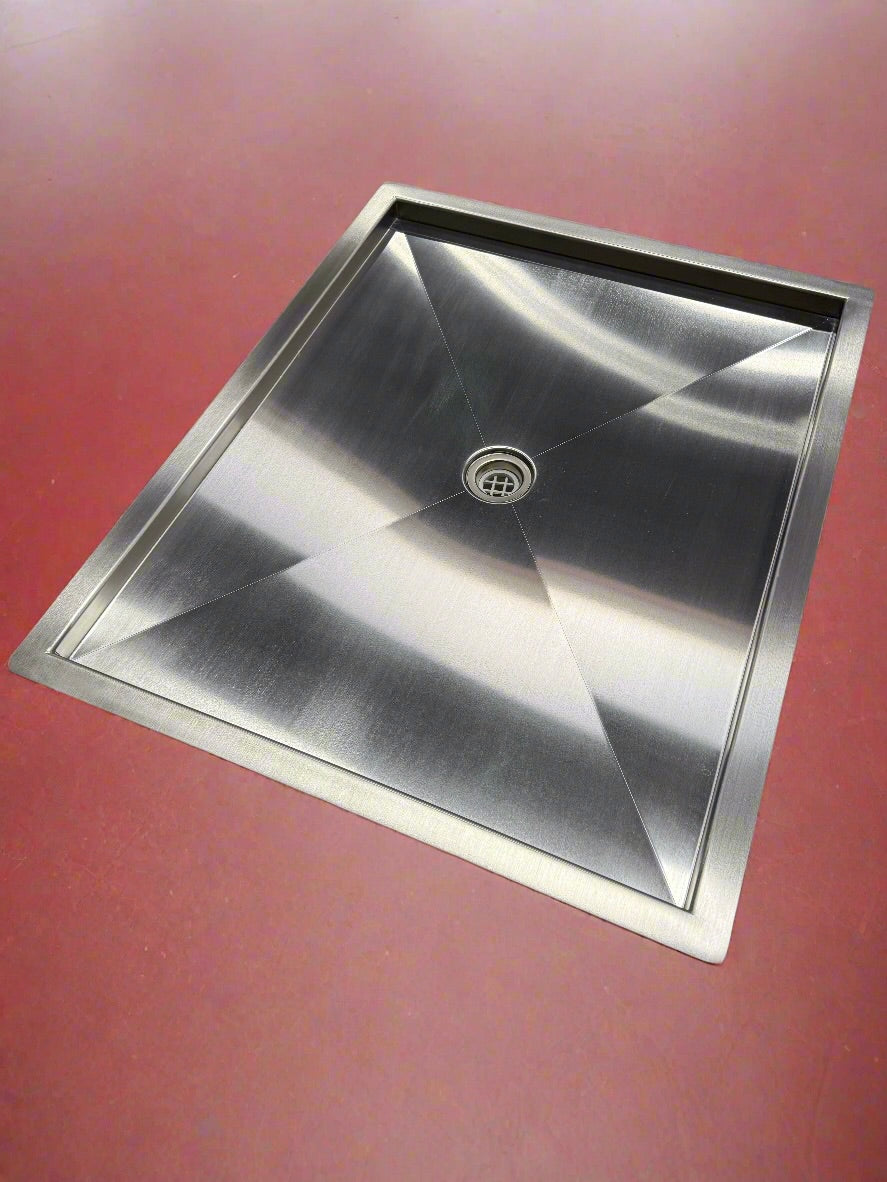

Cross break bottom directs water to center drain
Brushed magnetic 2205 stainless steel — shower curtain magnets attach directly to pan edge

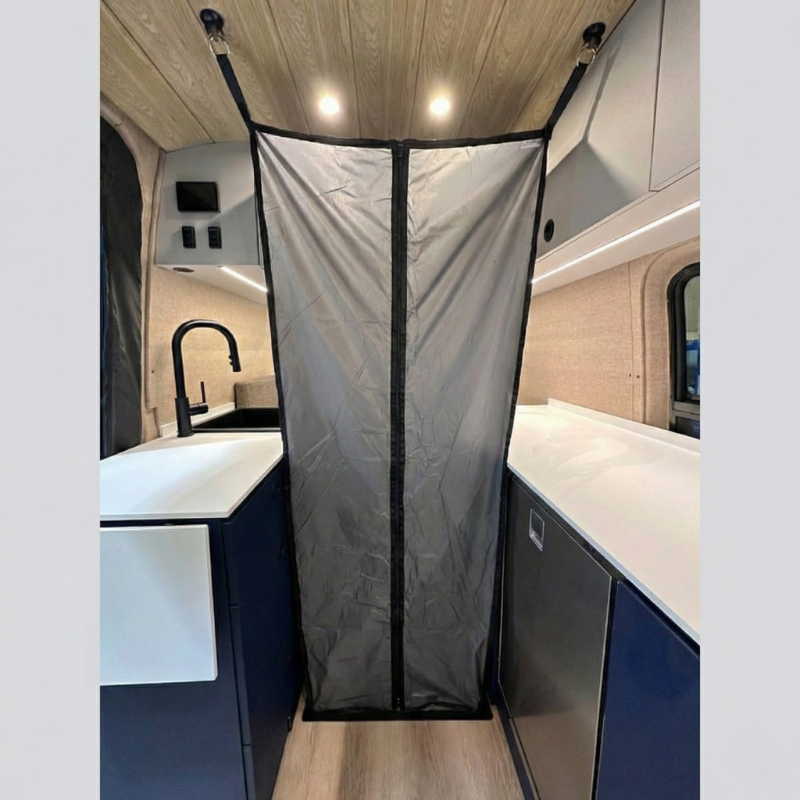

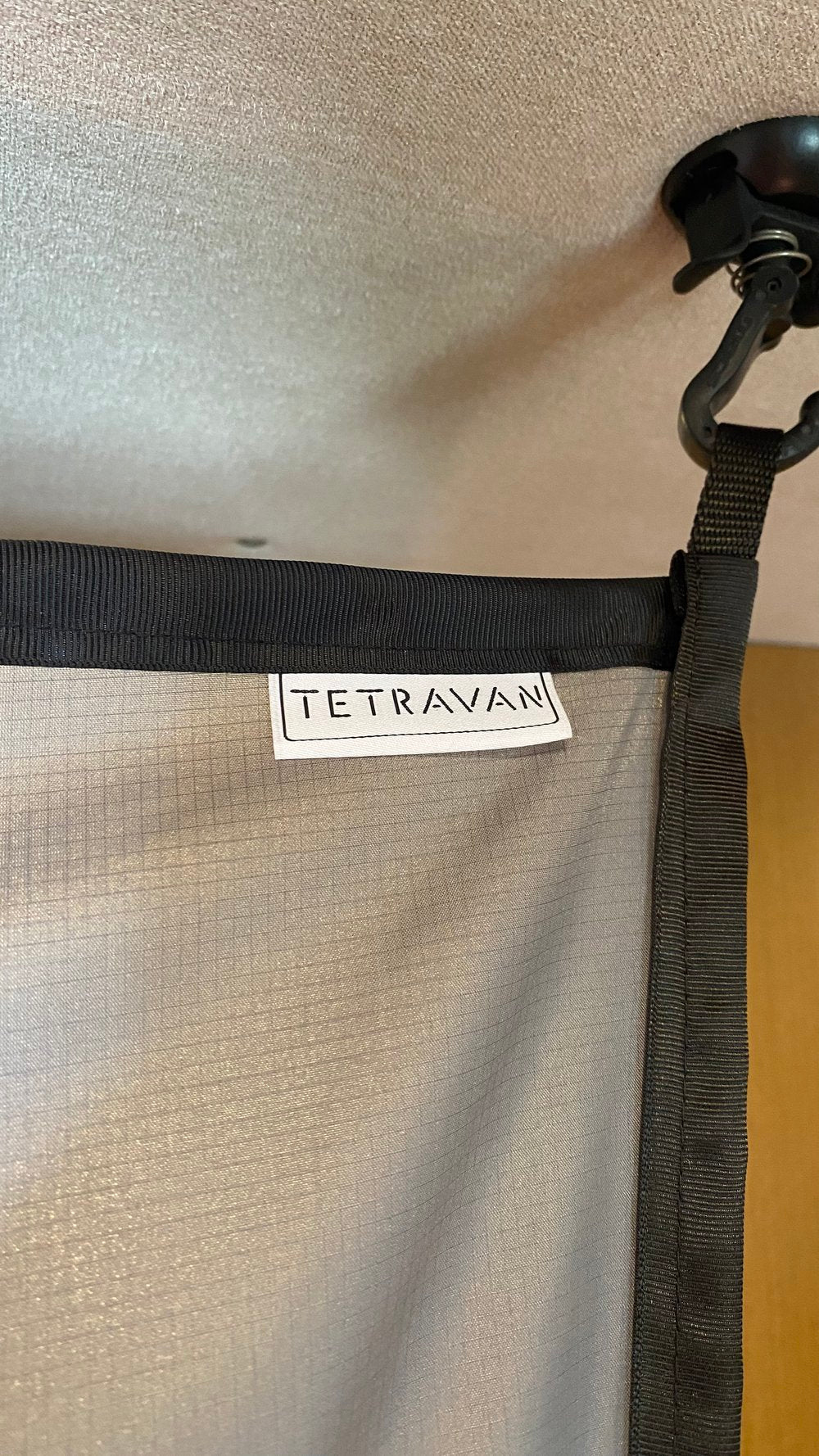

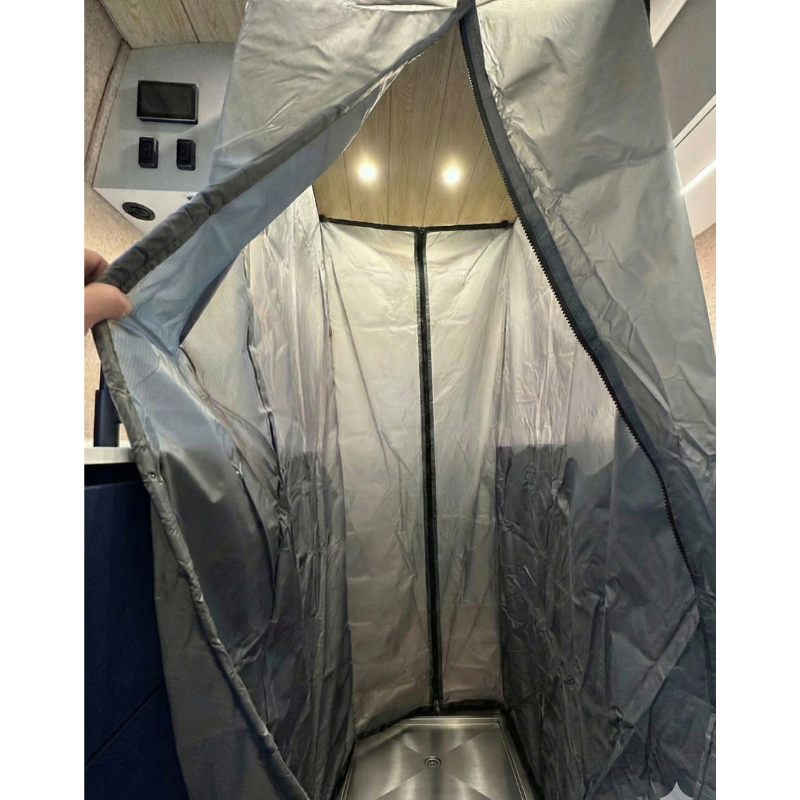

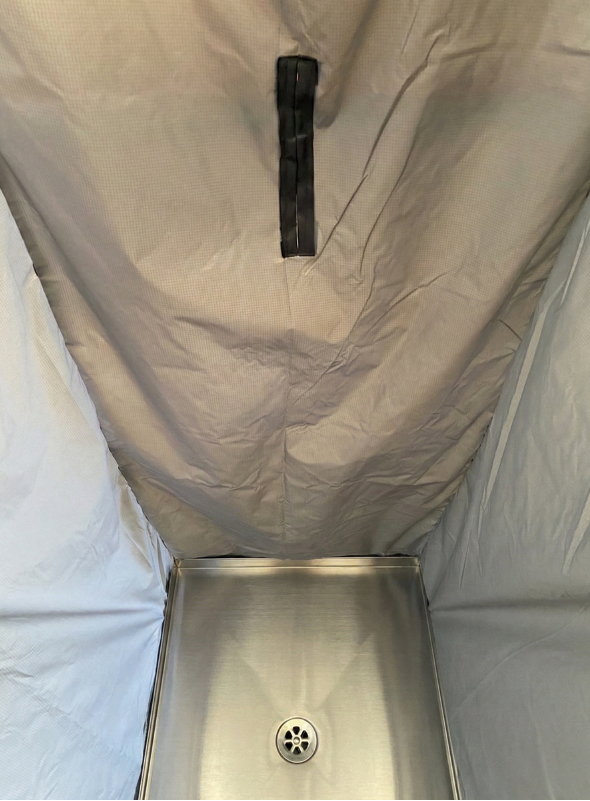

Compatible with the Tetravan Universal Shower Curtain — 3/8" tall magnets seal to inside pan edges, zippered front entry, widens to 30"+ at shoulder height, 71" tall
Curtain height extendable to roof height with 6" extenders

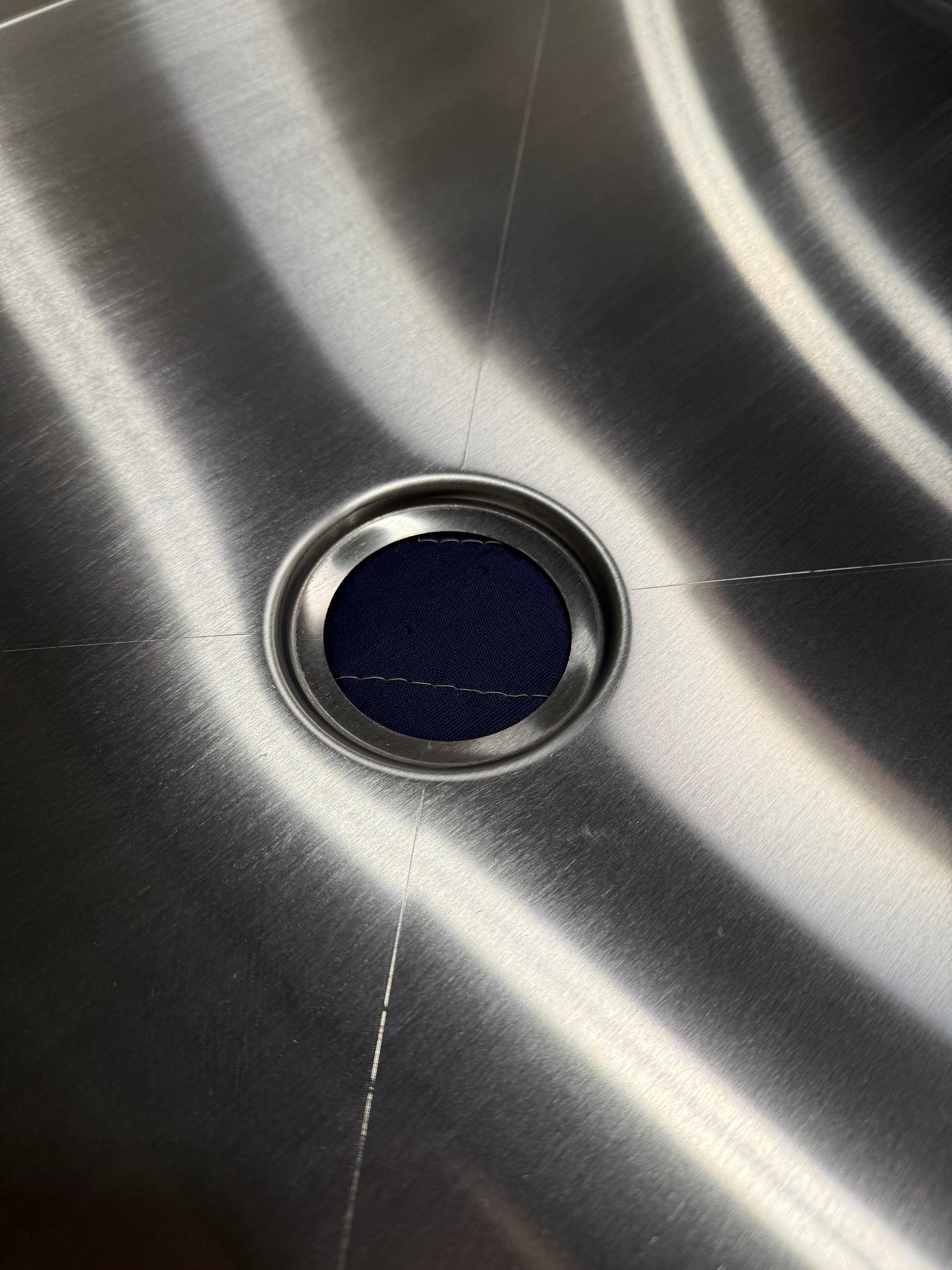

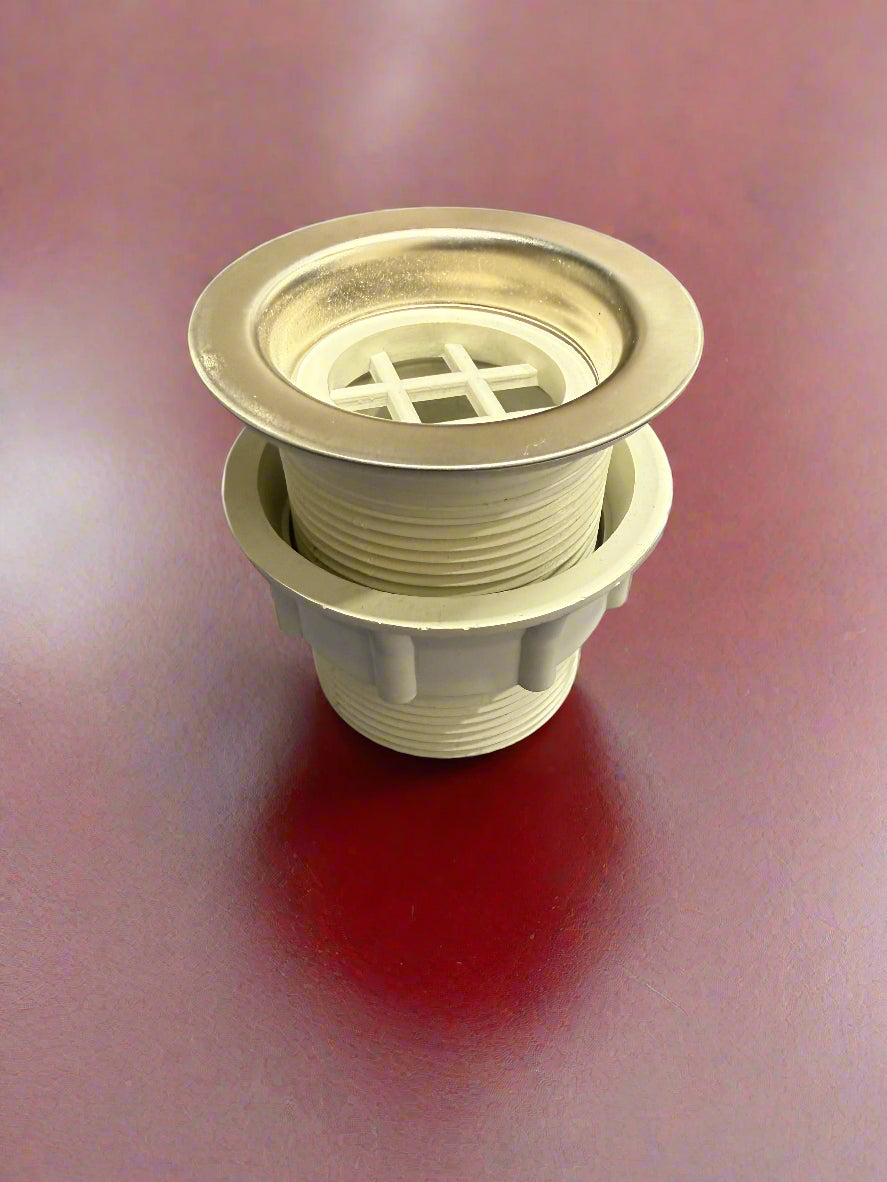

Center drain with included 1-1/2" threaded straight drain fitting
Additional drain position options available

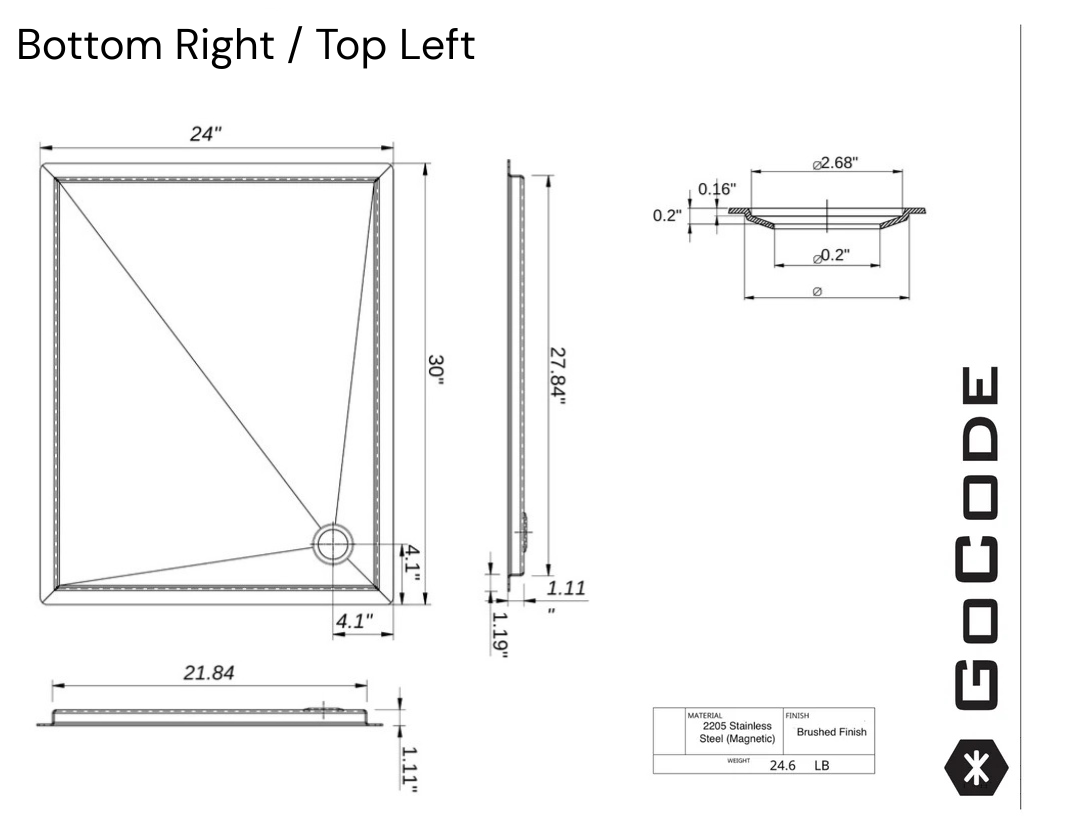

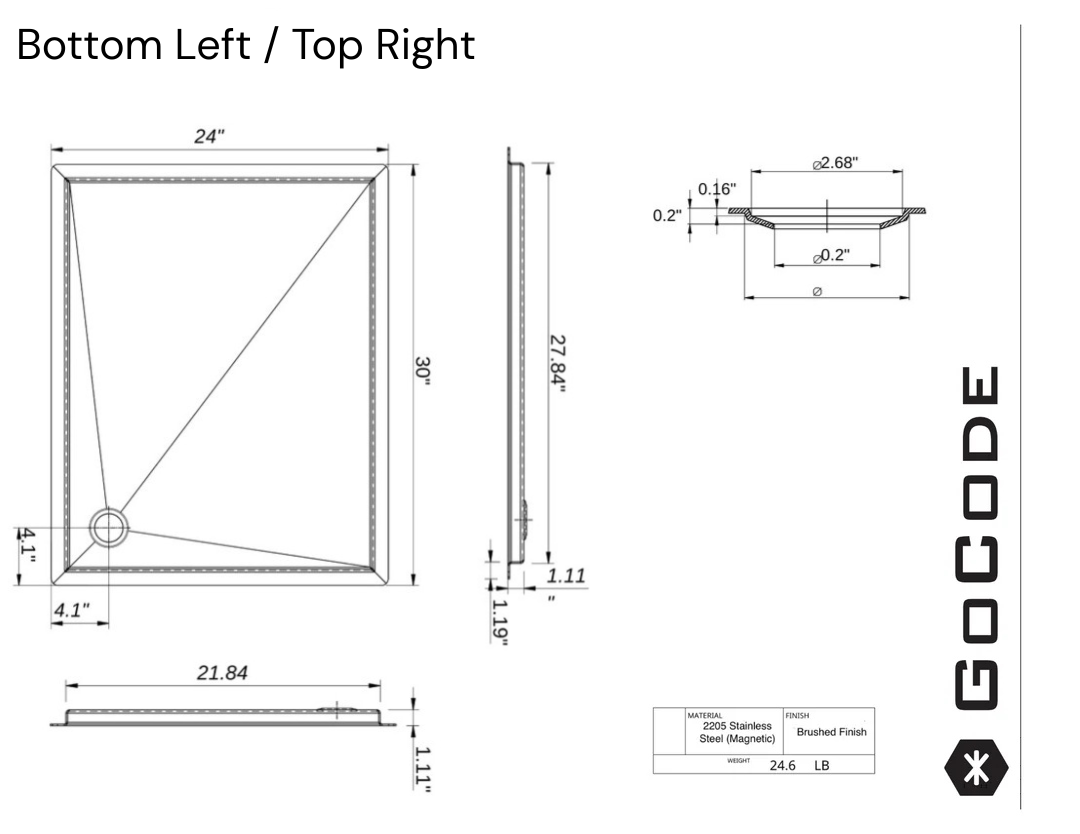

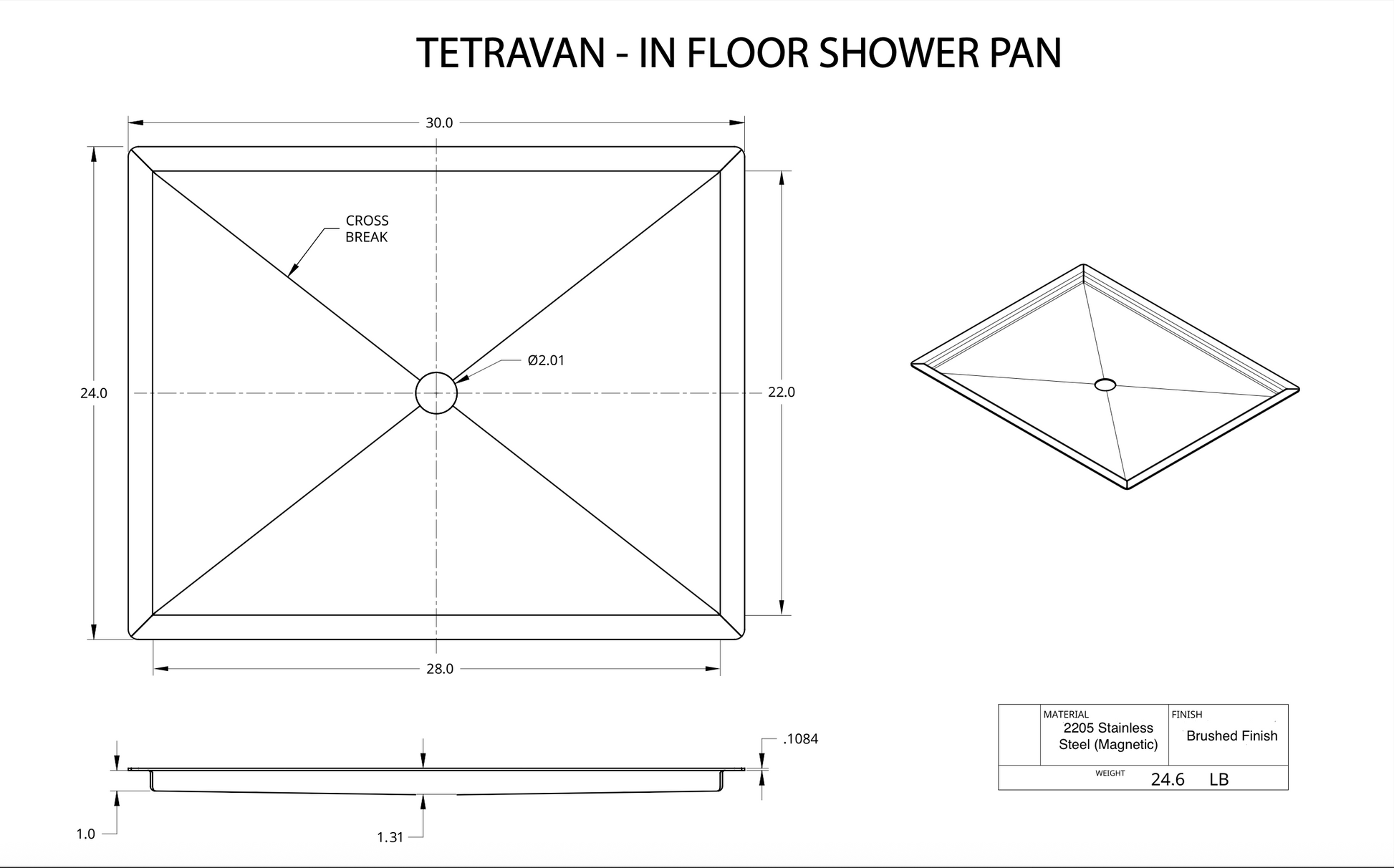

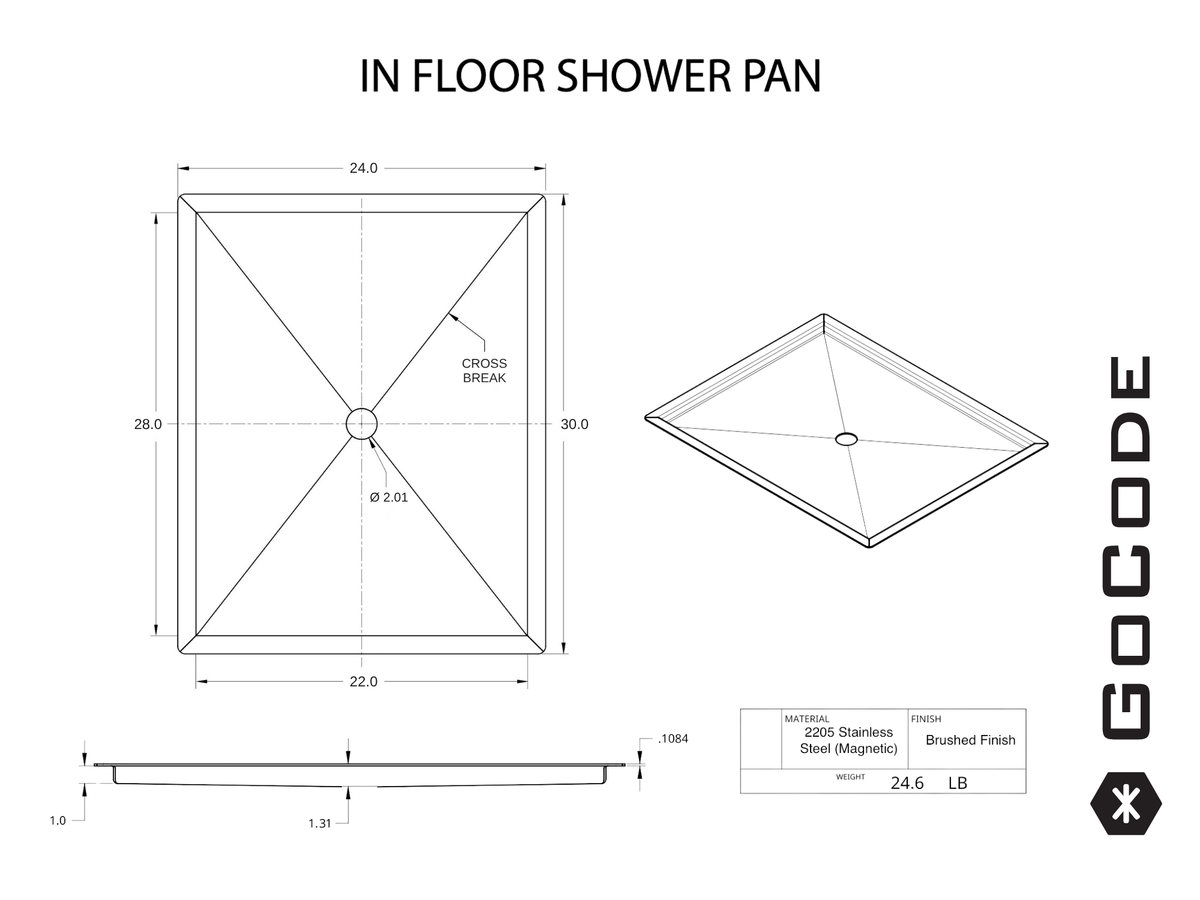

Dimensions

Overall: 30" x 24"
Interior (recessed area): 28" x 22"
Depth: 1.31"
Flange Width: 1"
Center Drain Diameter: 2.01"
Weight: 24.6 lb
Material: 2205 Stainless Steel (Magnetic), Brushed Finish

What's Included

Tetravan In-Floor Shower Pan (brushed stainless steel)
1-1/2" threaded straight drain fitting

Compatibility

Compatible with any van, trailer, or RV build with adequate subfloor depth
Requires minimum 1.3" subfloor depth
Compatible with Tetravan Universal Shower Curtain (sold separately)
ProMaster builders: the ProMaster sits stock-sloped downward in the front — a leveling kit is required for proper drainage

Installation Notes

Van must be level for proper drainage. ProMaster owners will need a leveling kit before install.
Recommended install: adhesive on underside of flange plus at least 1" countersunk screws through flange into subfloor.

Shipping & Lead Times

Ships in 1 business day

Resources

Need Help? Not sure about your van's configuration or want to order individual pieces? Contact us, we're happy to help.

For UK orders please reach out to hello@projectyonder.co.uk

Frequently Asked Questions

How does an in-floor shower pan work?

The pan recesses flush into your van floor, sitting just over 1" below floor level — invisible underfoot until shower time. Attach the magnetic curtain to the pan edge, shower, then walk right over it the rest of the day. You lose zero headroom and zero floor space.

What are the dimensions and cutout requirements?

Overall 30" × 24" with a 28" × 22" recessed interior, 1.31" deep, 1" flange, and a 2.01" center drain opening. You need a minimum 1.3" of subfloor depth. Weight is 24.6 lb.

What is it made of?

Brushed 2205 duplex stainless steel — anti-corrosive and magnetic, so shower curtain magnets seal directly to the pan edge with no clips, tracks, or hardware.

Which shower curtain works with it?

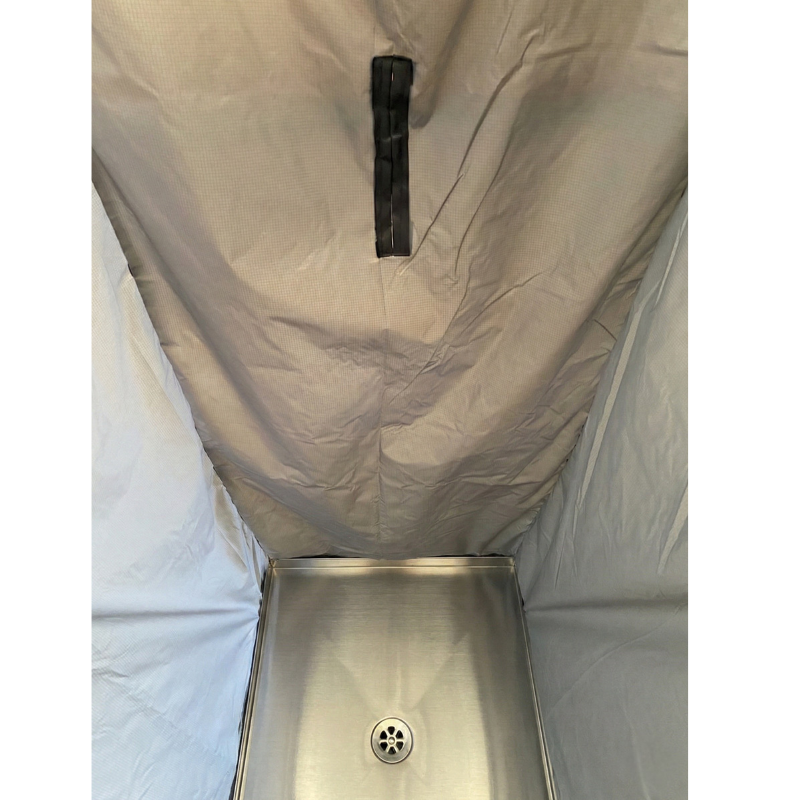

The Tetravan Universal Shower Curtain: 3/8" magnets seal to the inside pan edges, zippered front entry, widens to 30"+ at shoulder height, and stands 71" tall. Six-inch extenders can take it to roof height.

Where can the drain go?

Center drain is standard, with a cross-break bottom that directs water to it. Additional drain positions are available — including corner-drain configurations — if your build routes plumbing differently. A 1-1/2" threaded straight drain fitting is included.

Does it work in a ProMaster?

Yes, with one caveat: ProMasters sit stock-sloped nose-down, so a leveling kit is required for proper drainage. Sprinters and Transits install without modification as long as the van is level.

How is it installed?

Cut the floor opening, apply adhesive to the underside of the flange, and secure with at least 1" countersunk screws through the flange into the subfloor. Route the drain to your grey tank.

In-floor pan vs. Folding Shower — which should I choose?

The In-Floor Pan is for builds with a dedicated shower spot: permanent, low-profile, full headroom. The Folding Shower is for builds where floor space is precious — it stows into 3.5" of wall depth. Many builders use the pan in the entryway and rely on the same water system for both.

Do you ship internationally?

We ship to the contiguous US, Canada, and select European countries. For other countries, email contact@pundmann.de for a shipping quote. International orders may owe customs/duties on delivery.
