STANDARD VERTICAL CABLE ENTRY

STANDARD VERTICAL CABLE ENTRY

Regular price $25.00 USD
Regular price Sale price $25.00 USD
Sale Sold out
Number of Cables:
Cable Diameter & Connector Size:
Select Color & Material:
  • Description

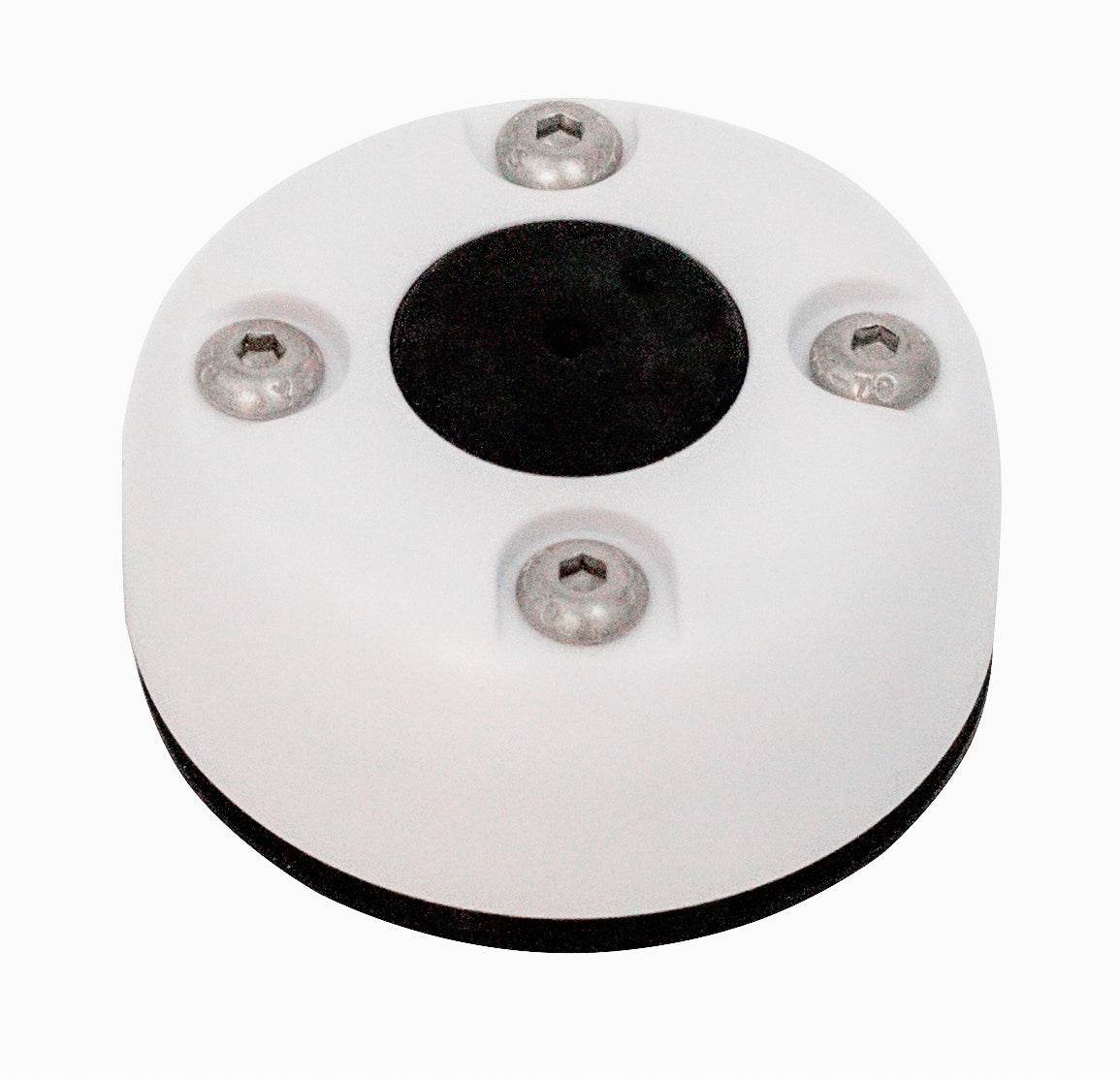

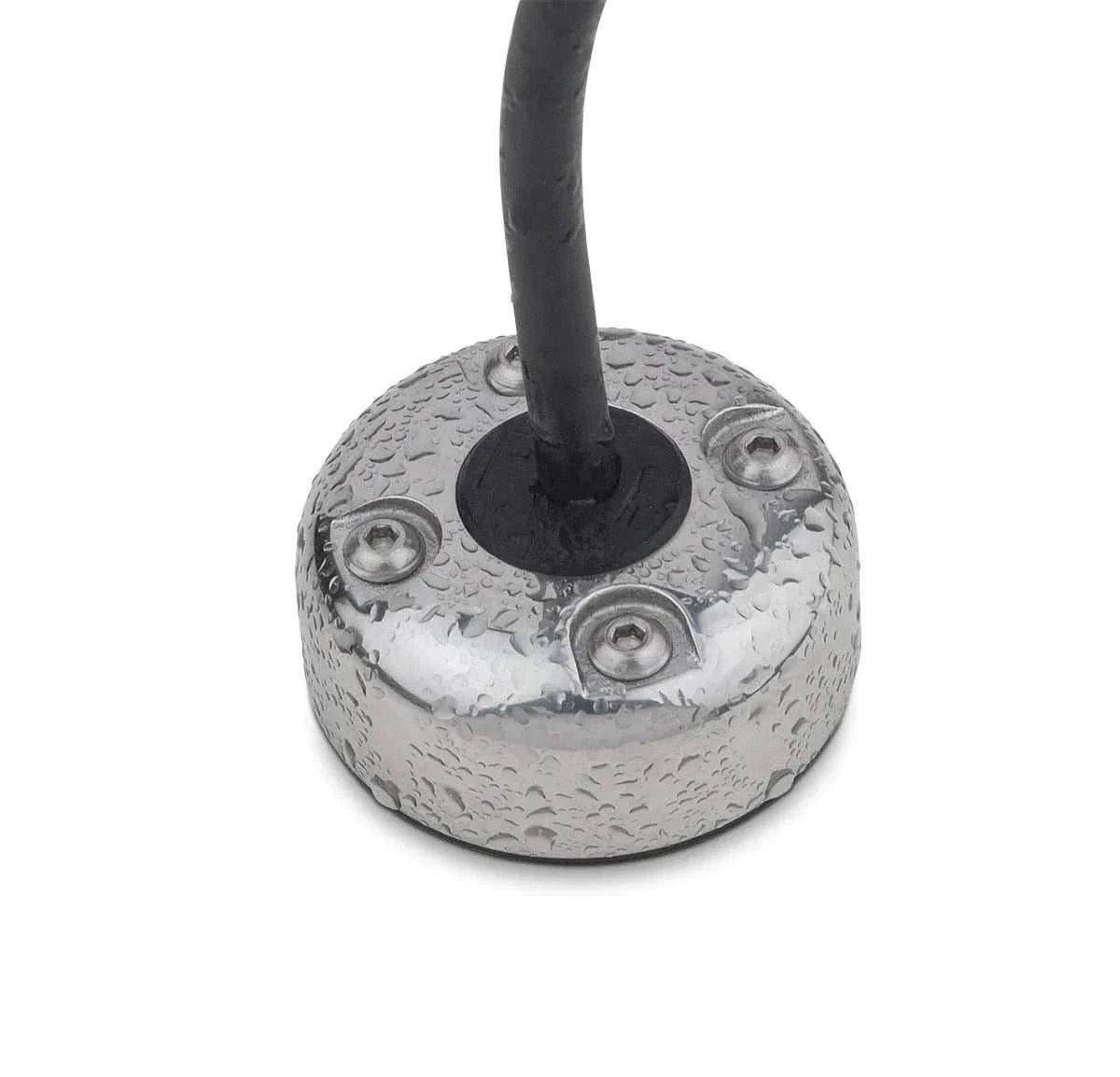

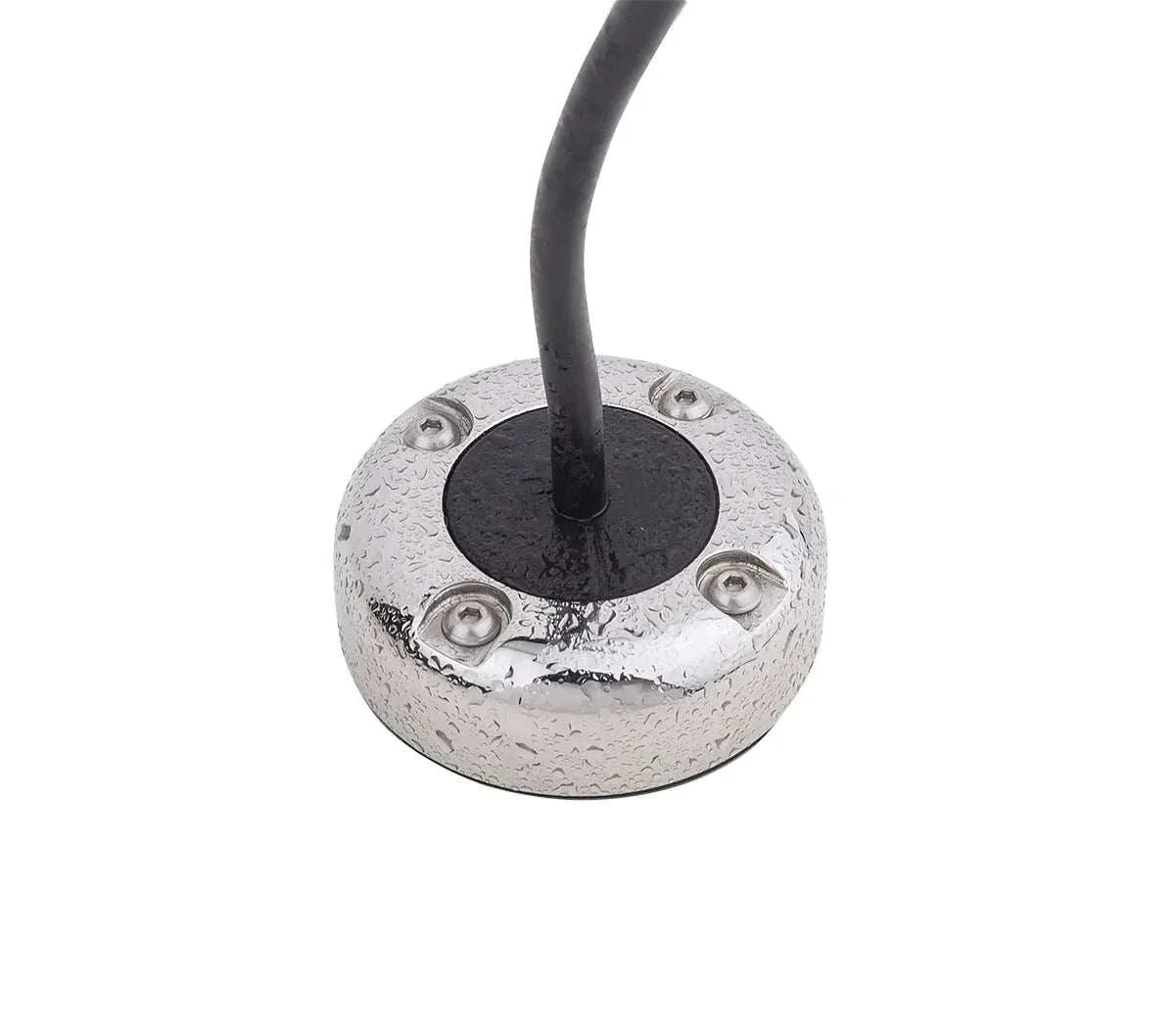

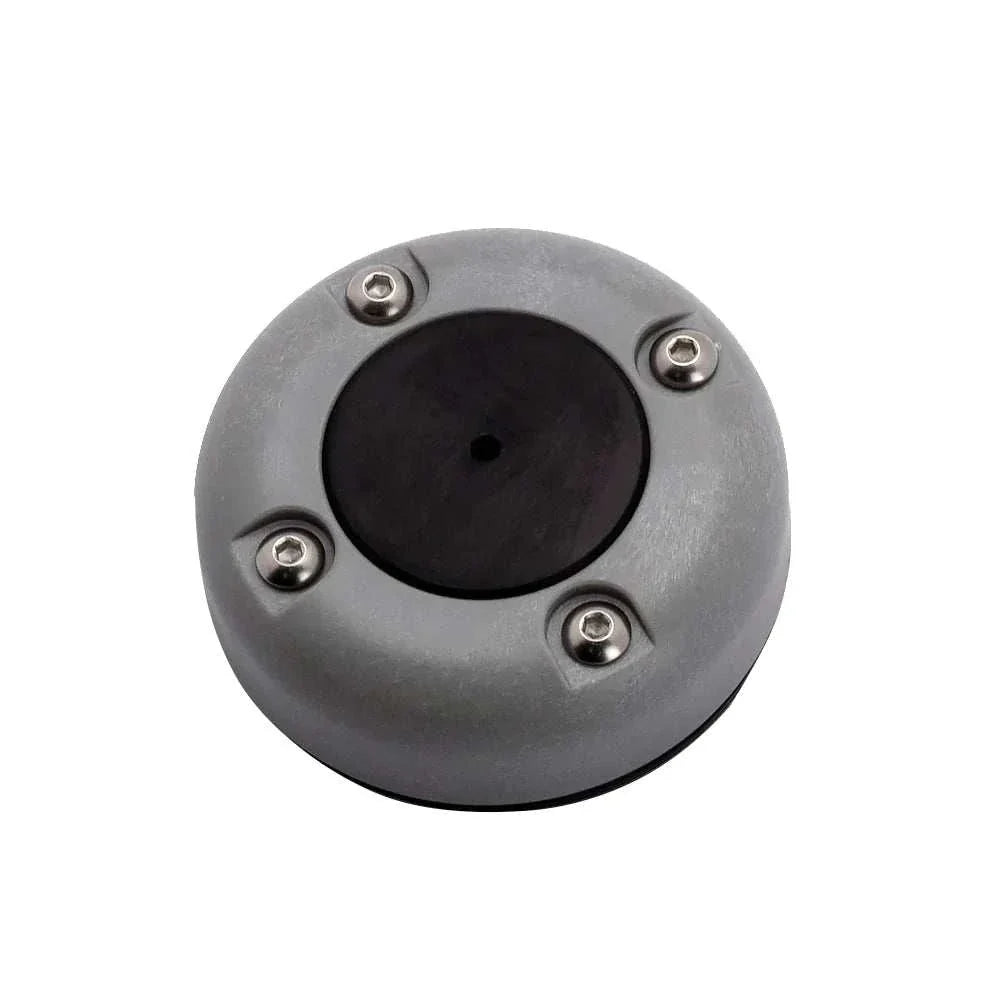

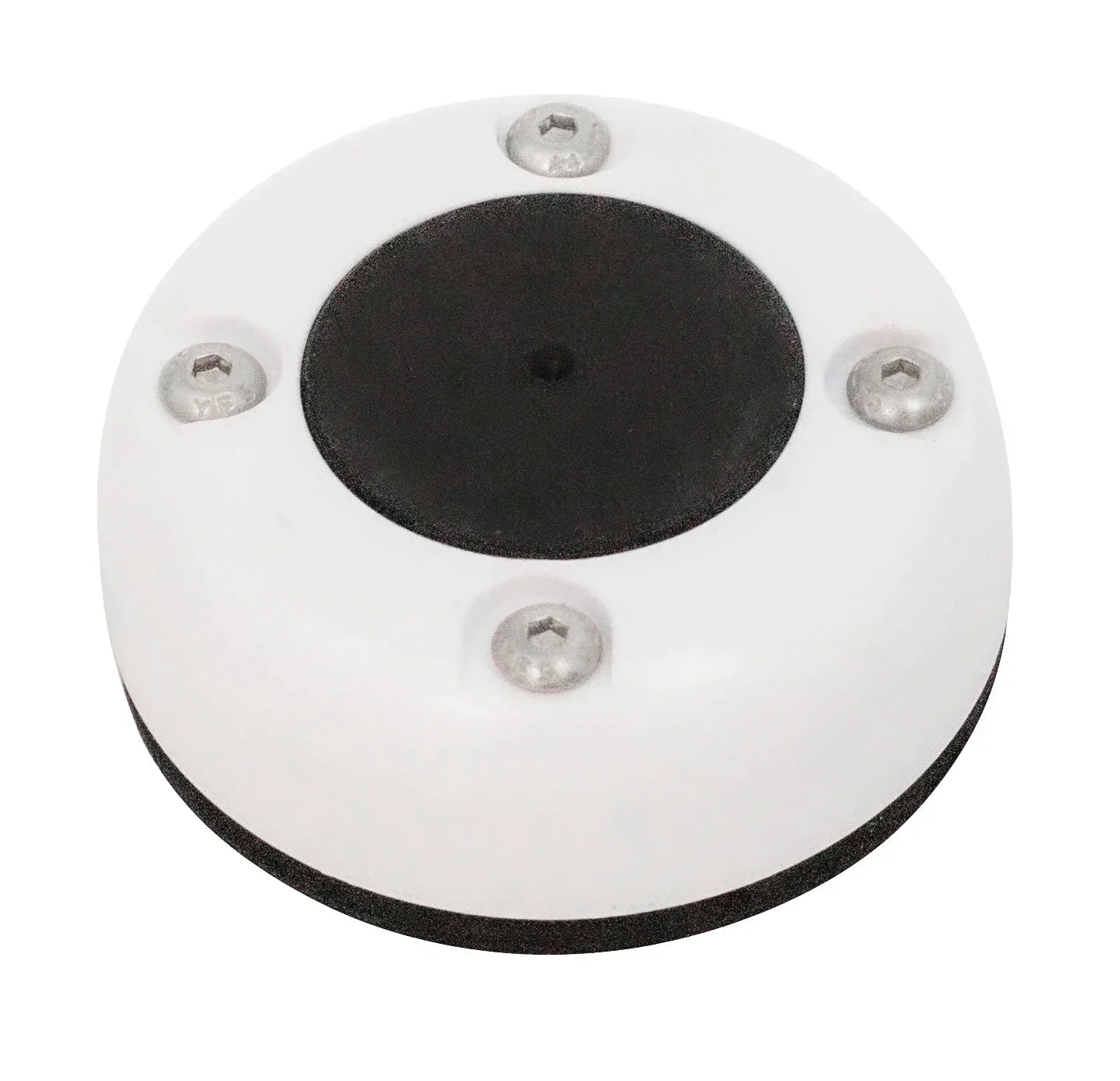

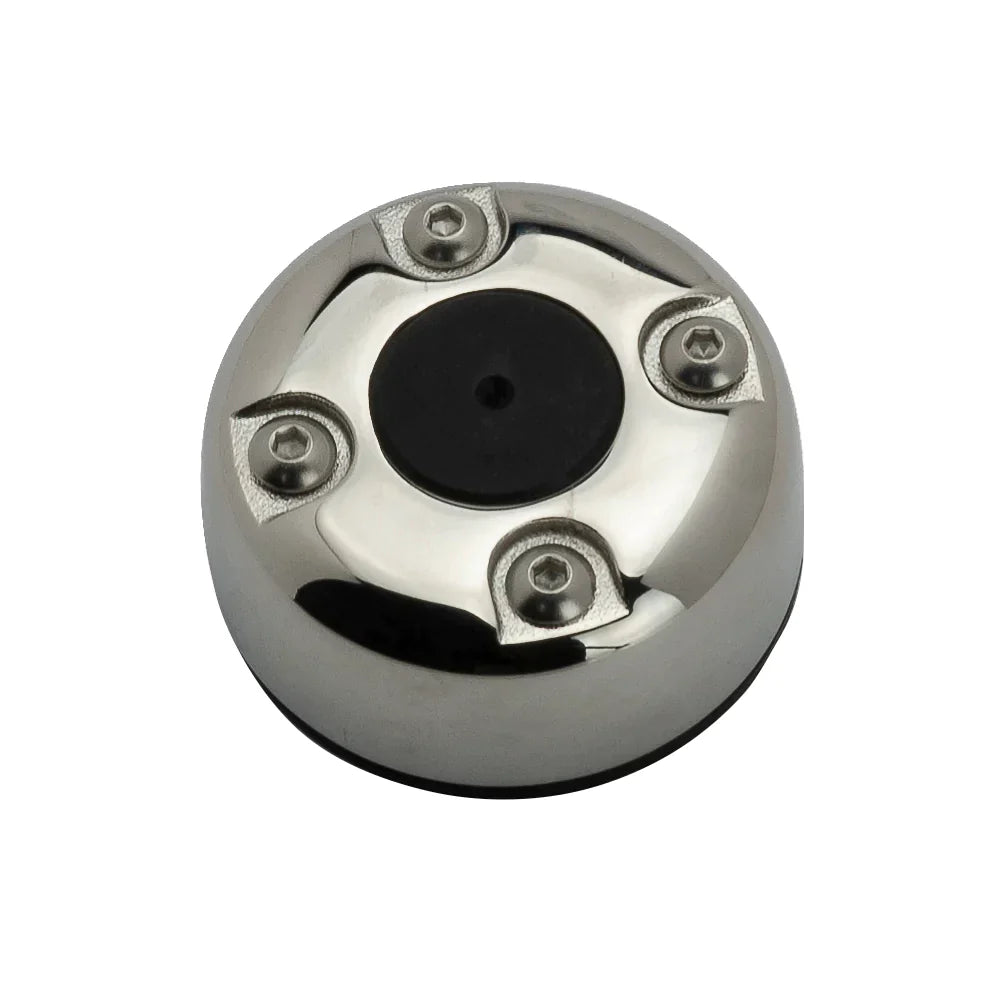

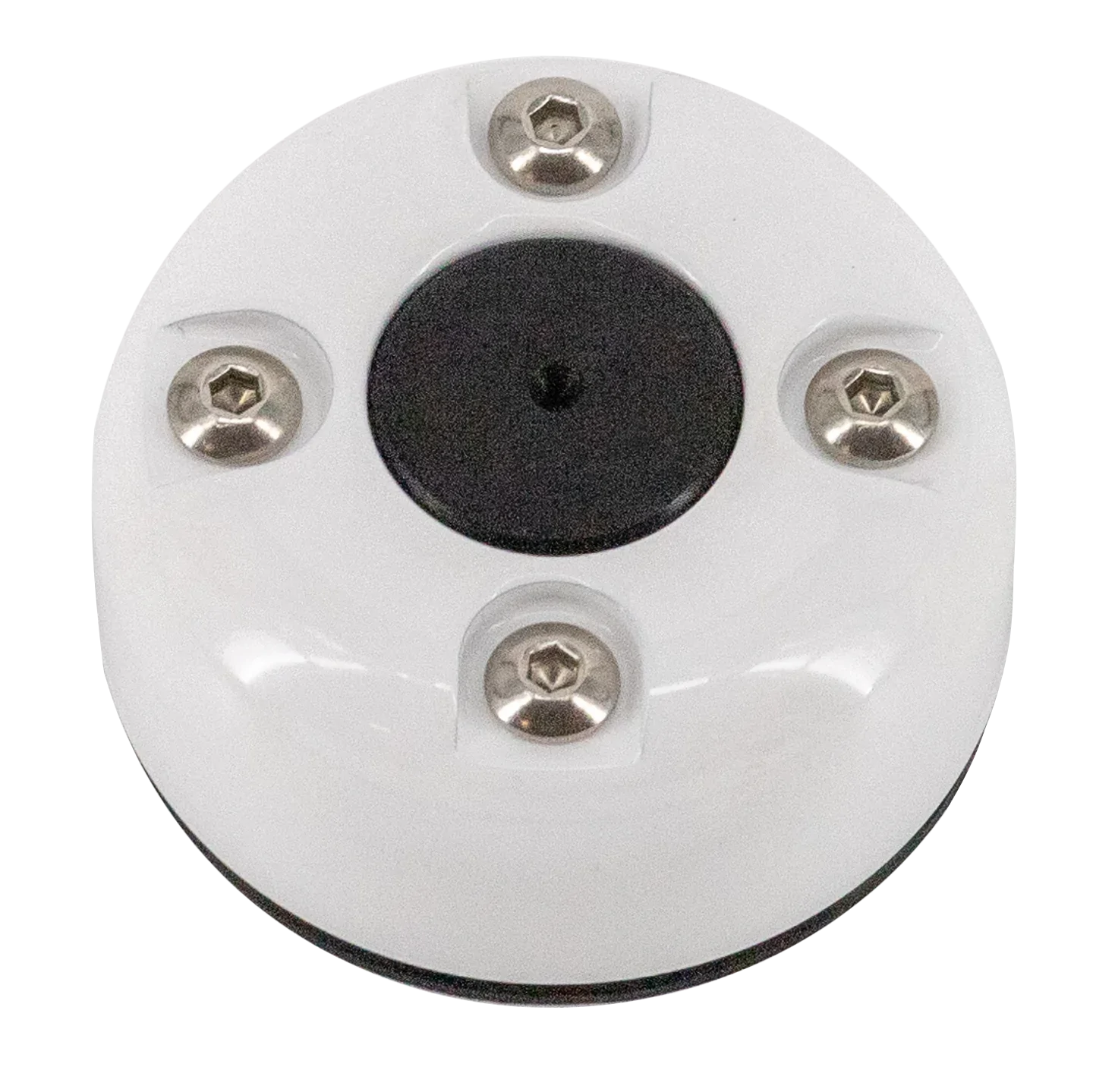

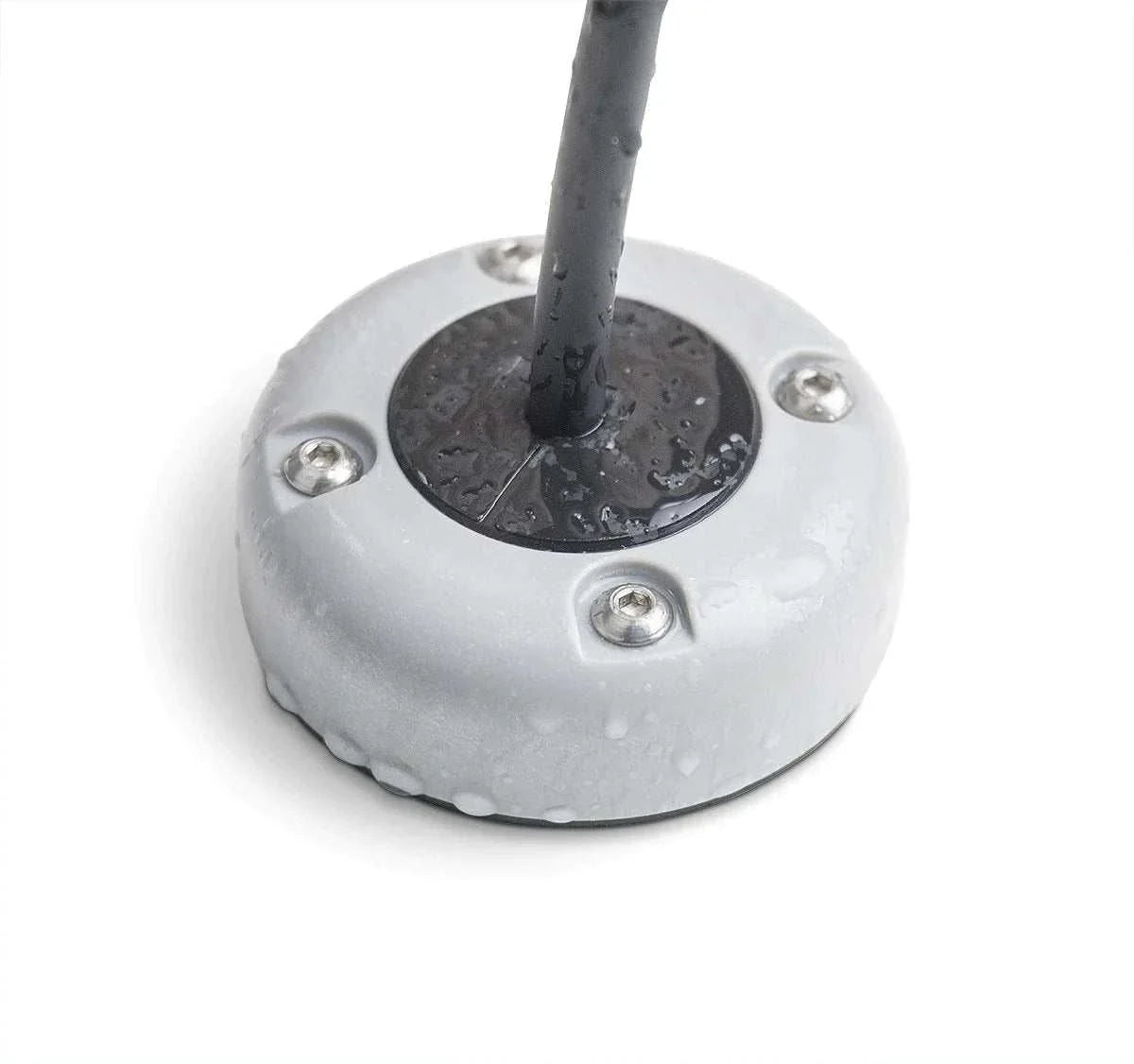

    Seaview standard vertical cable seals (also called cable glands, cable clams, or deck seals) provide a watertight pass-through for marine electronics, power, and other cables. Their low-profile design features a tapered rubber plug and base gasket. Choose impact-resistant plastic or marine-grade 316 stainless steel in available finishes. Tested to IPX6/IPX7.

    Choose the Right Size

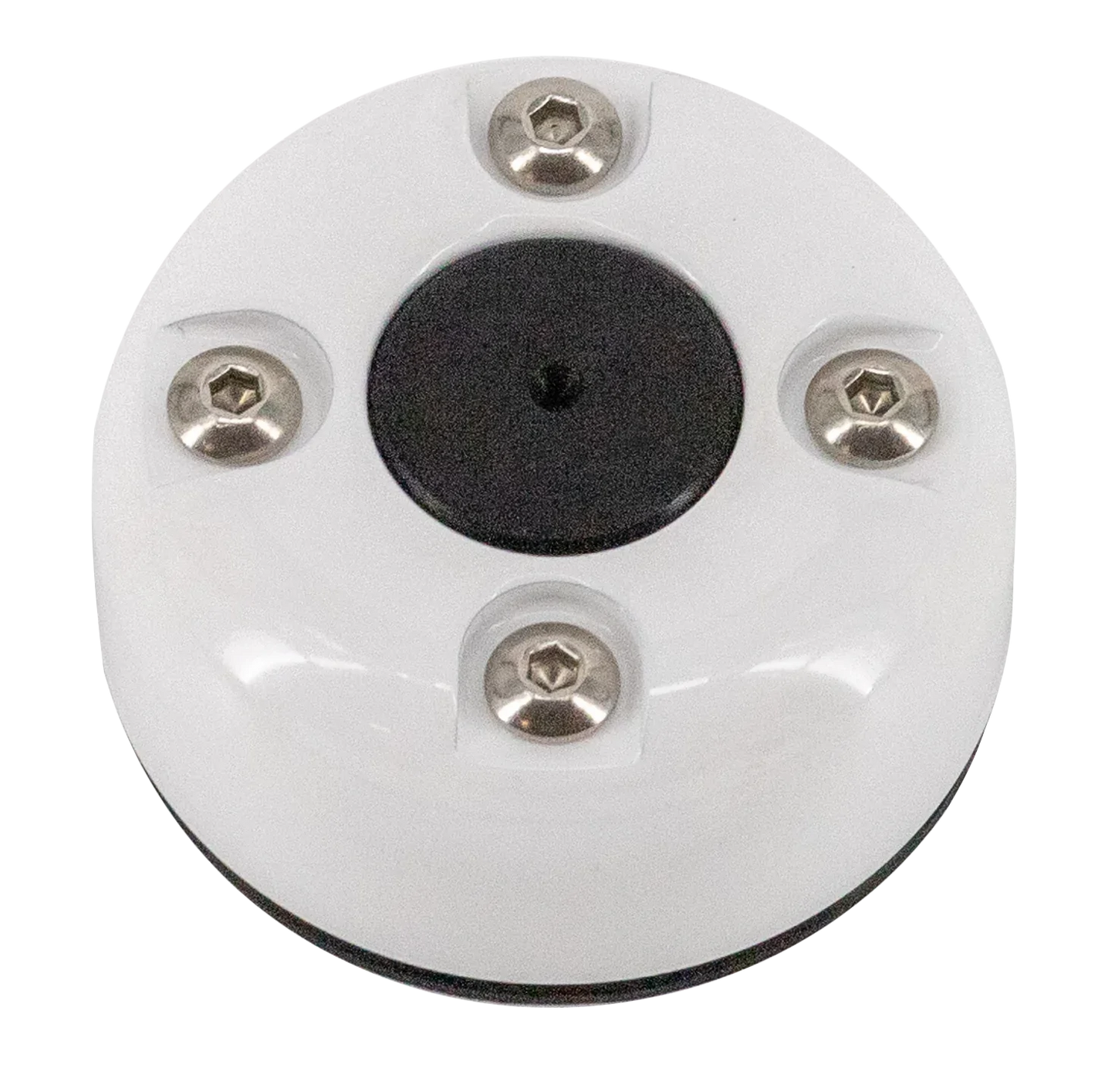

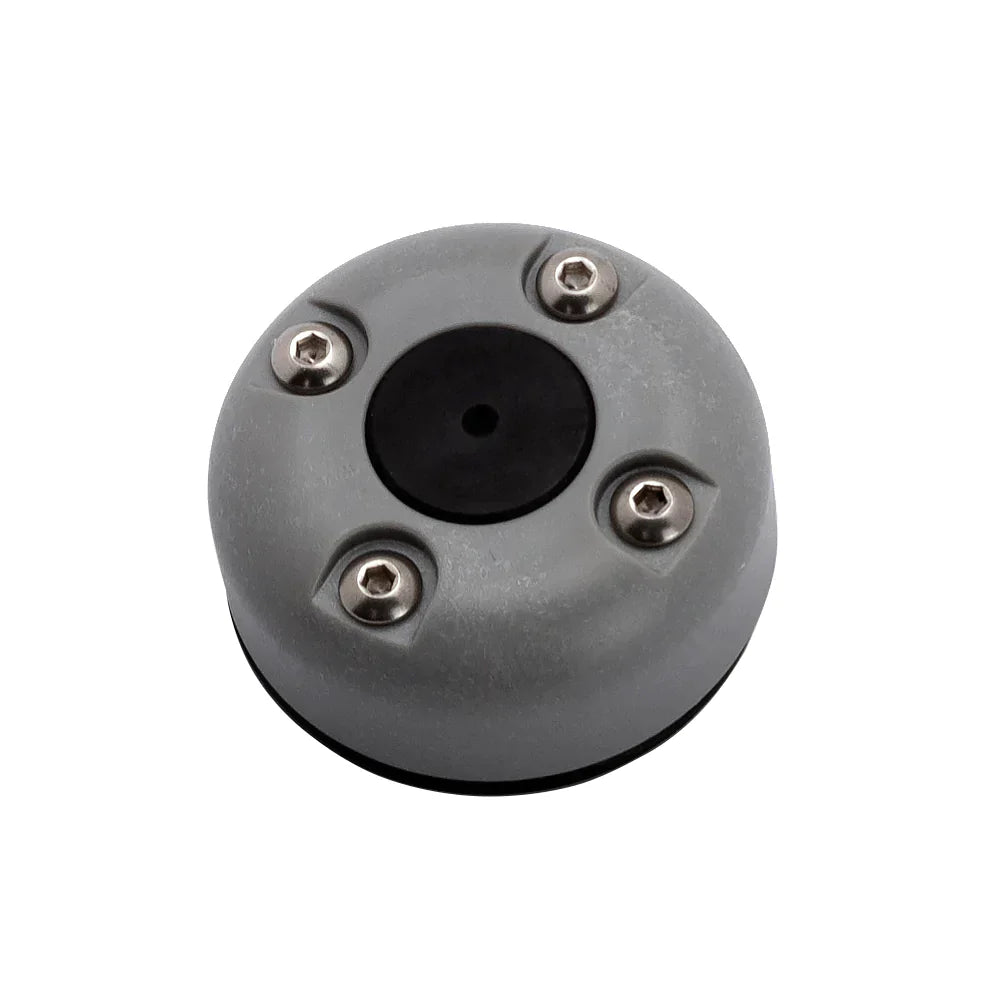

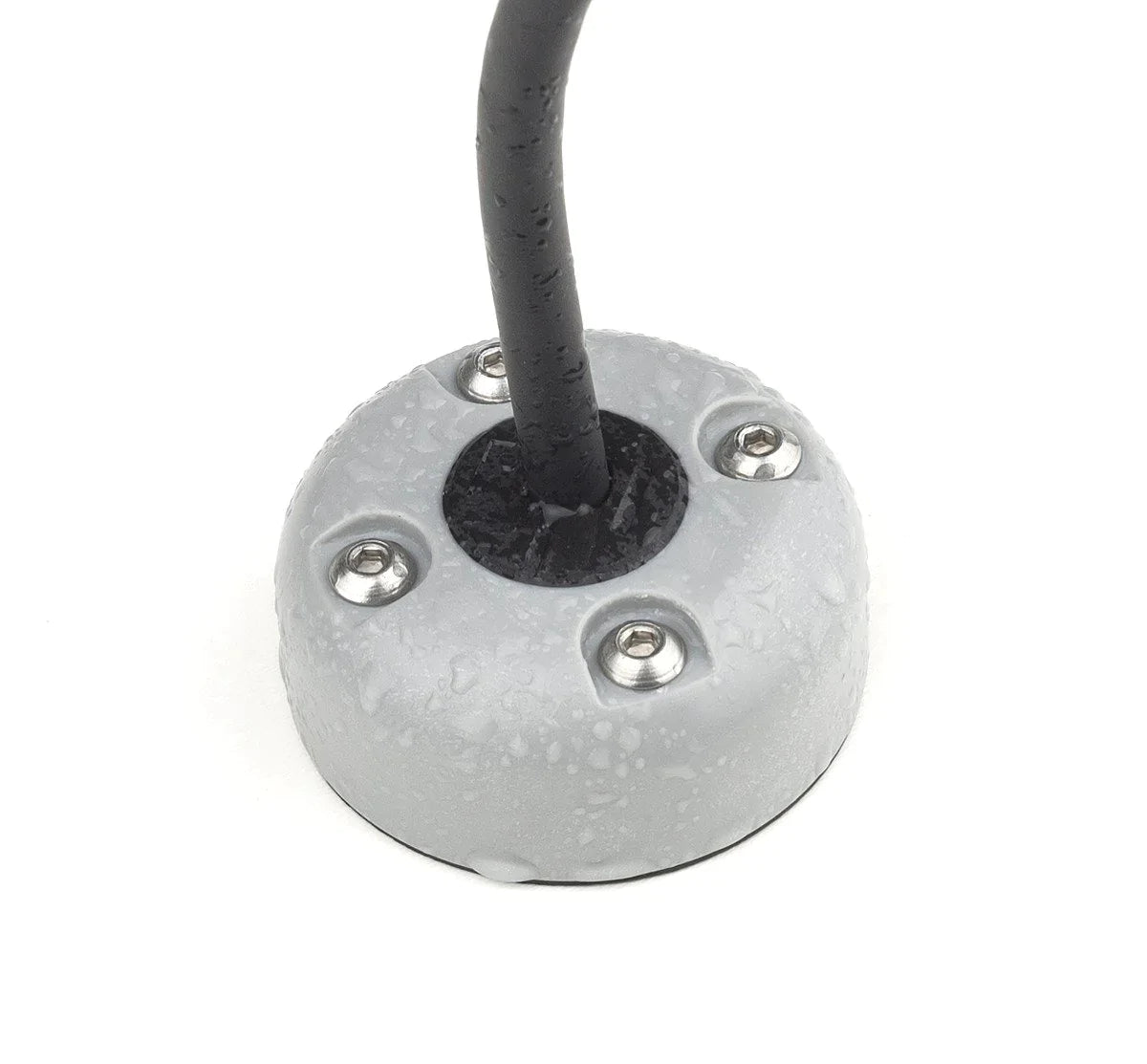

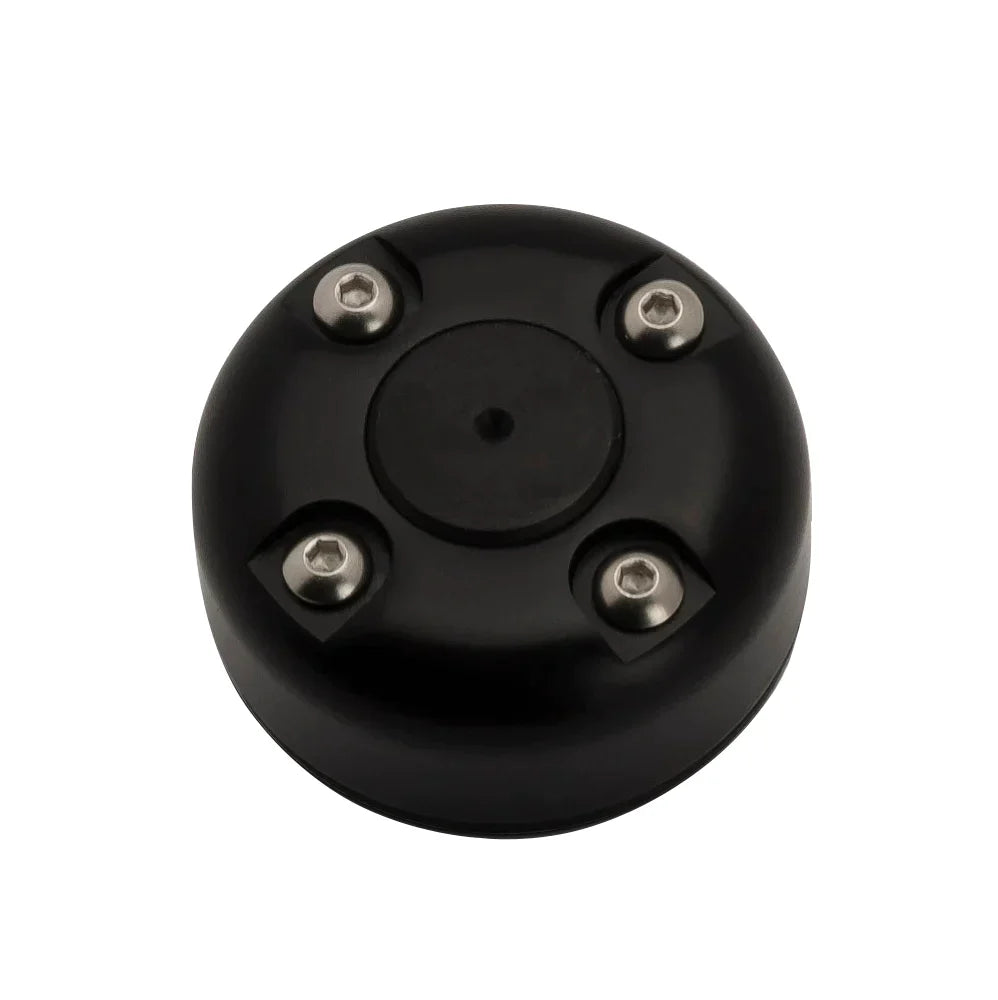

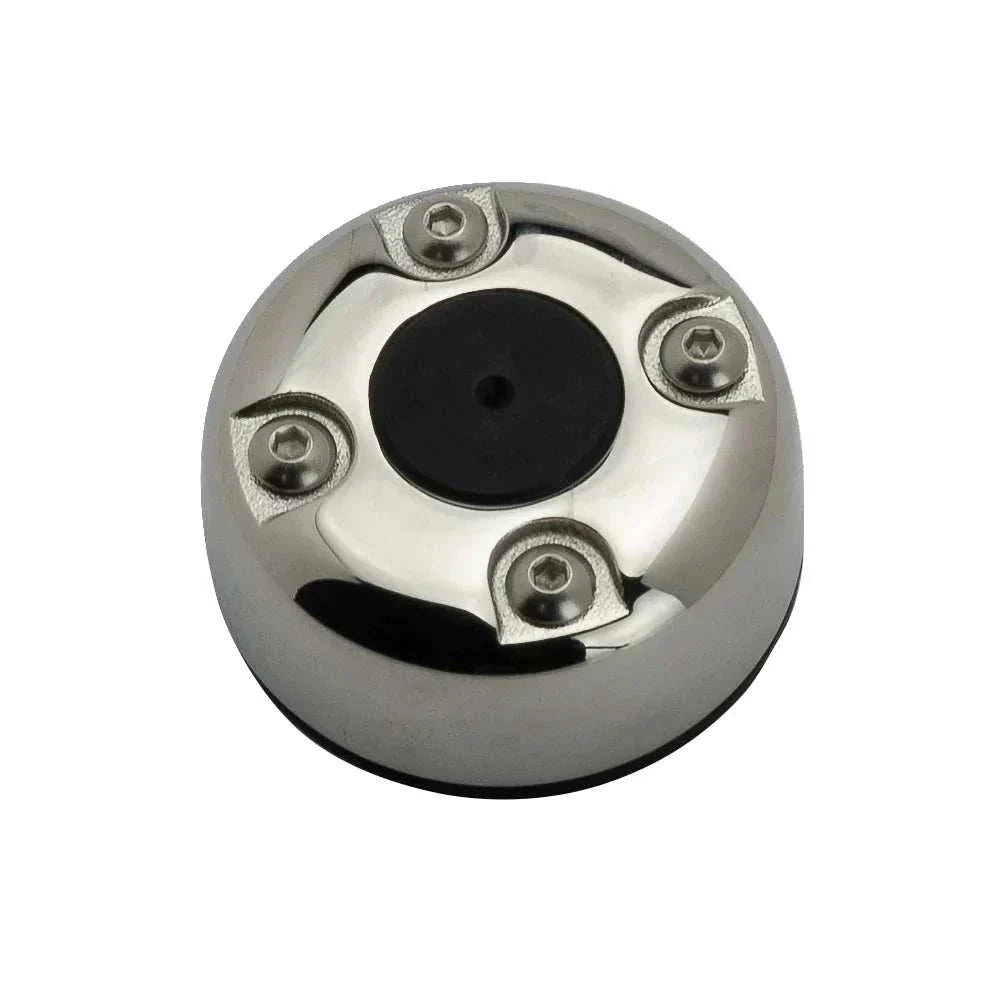

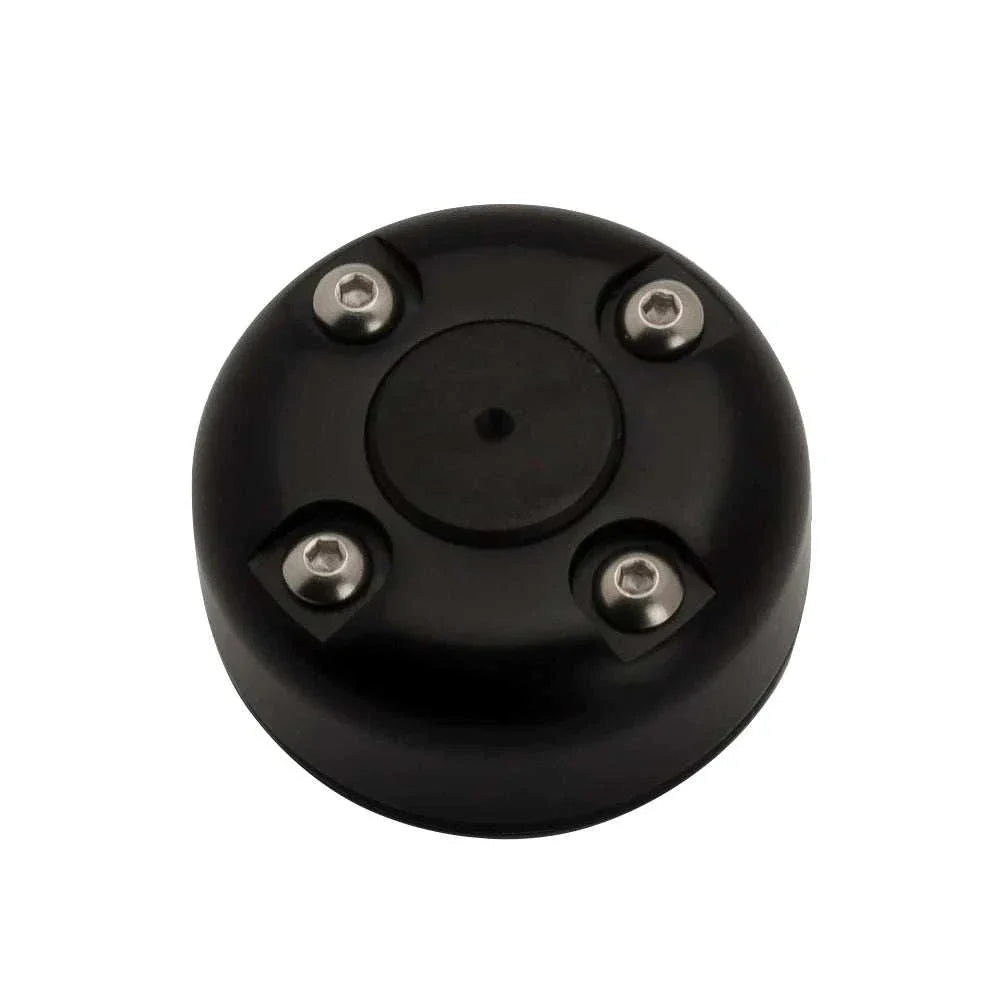

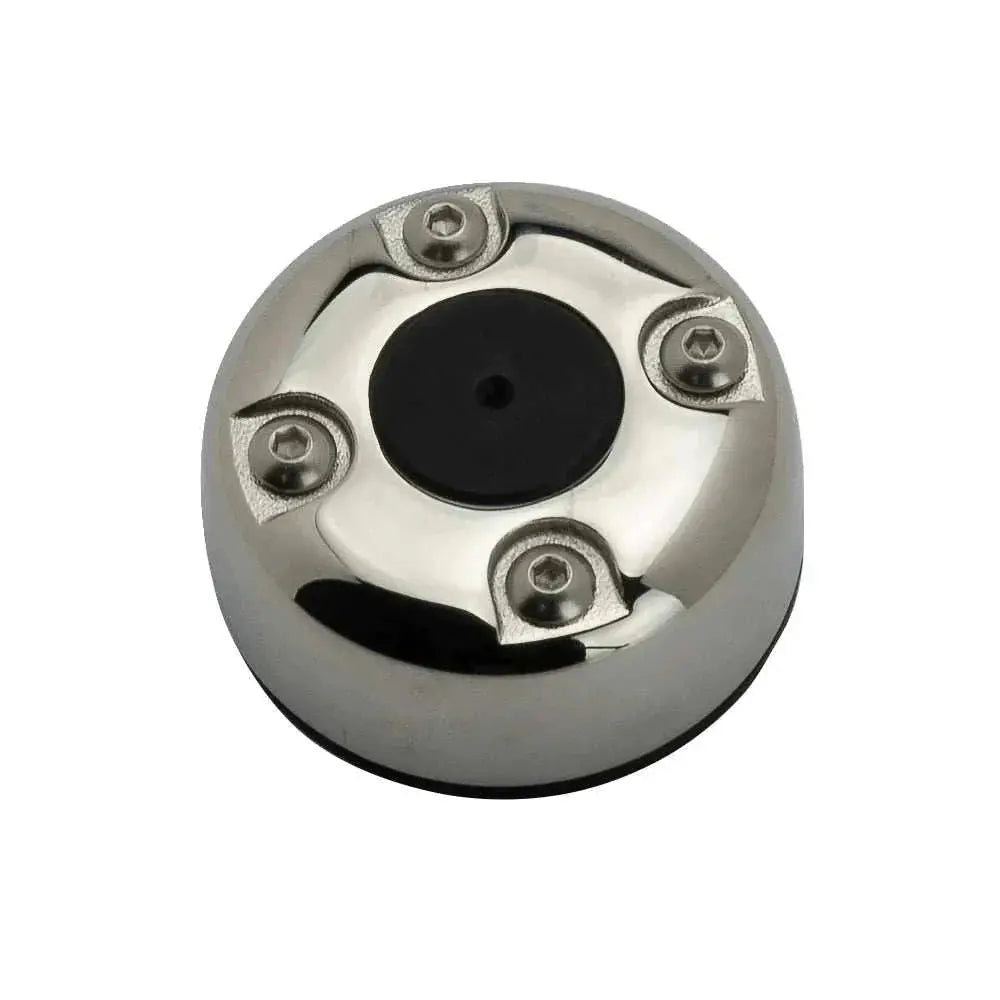

    • CG20 series: Cables up to 13.5 mm (0.53"); connectors up to 20 mm.

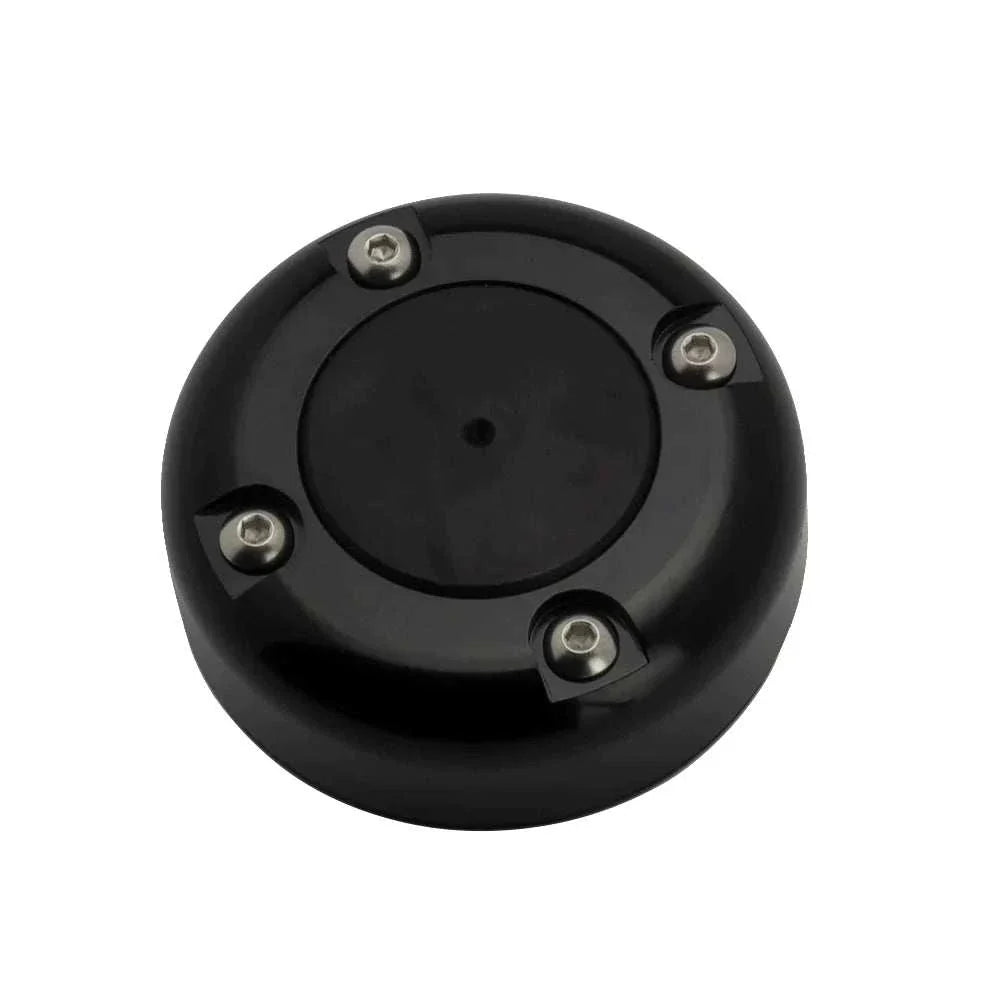

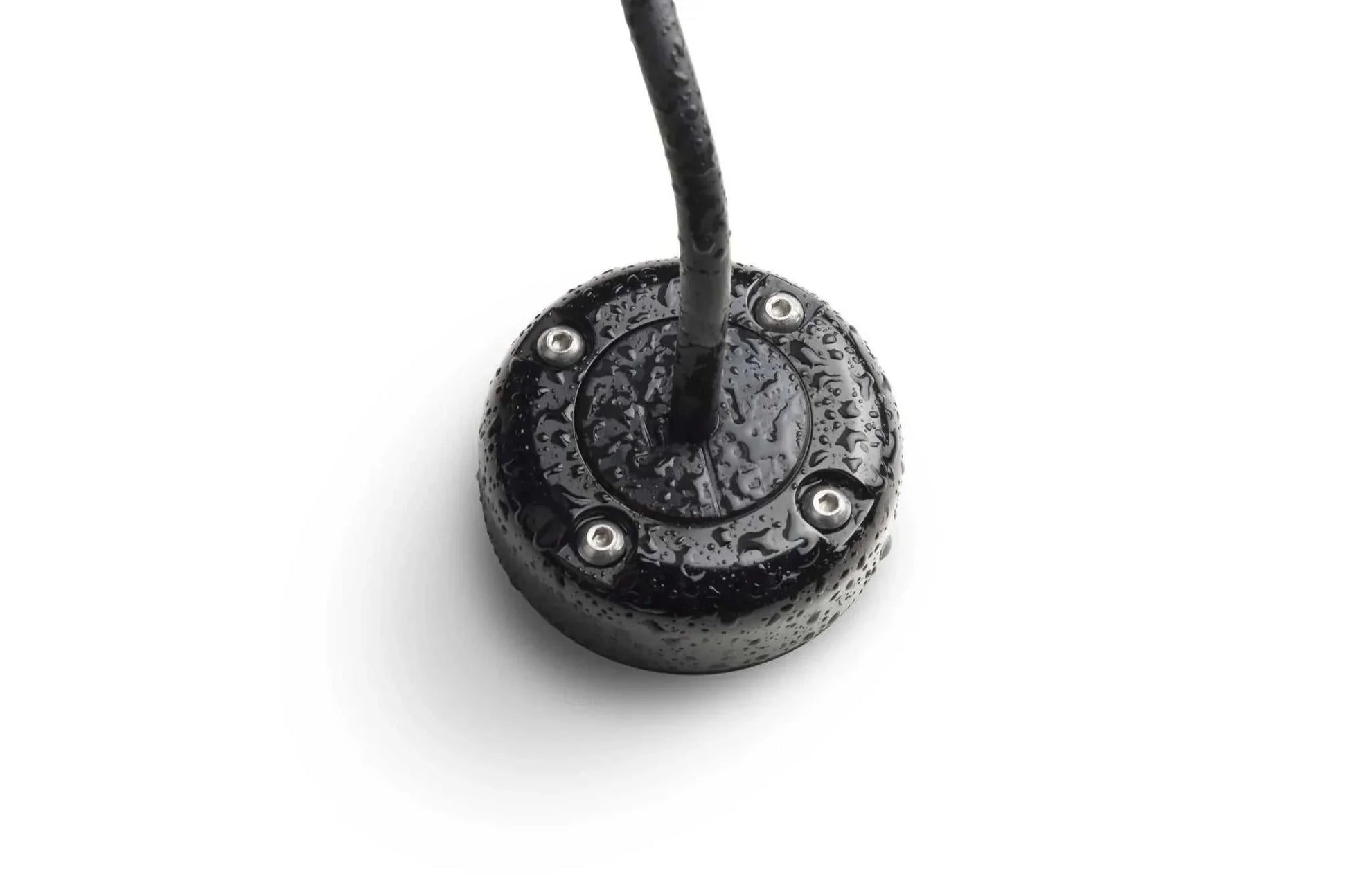

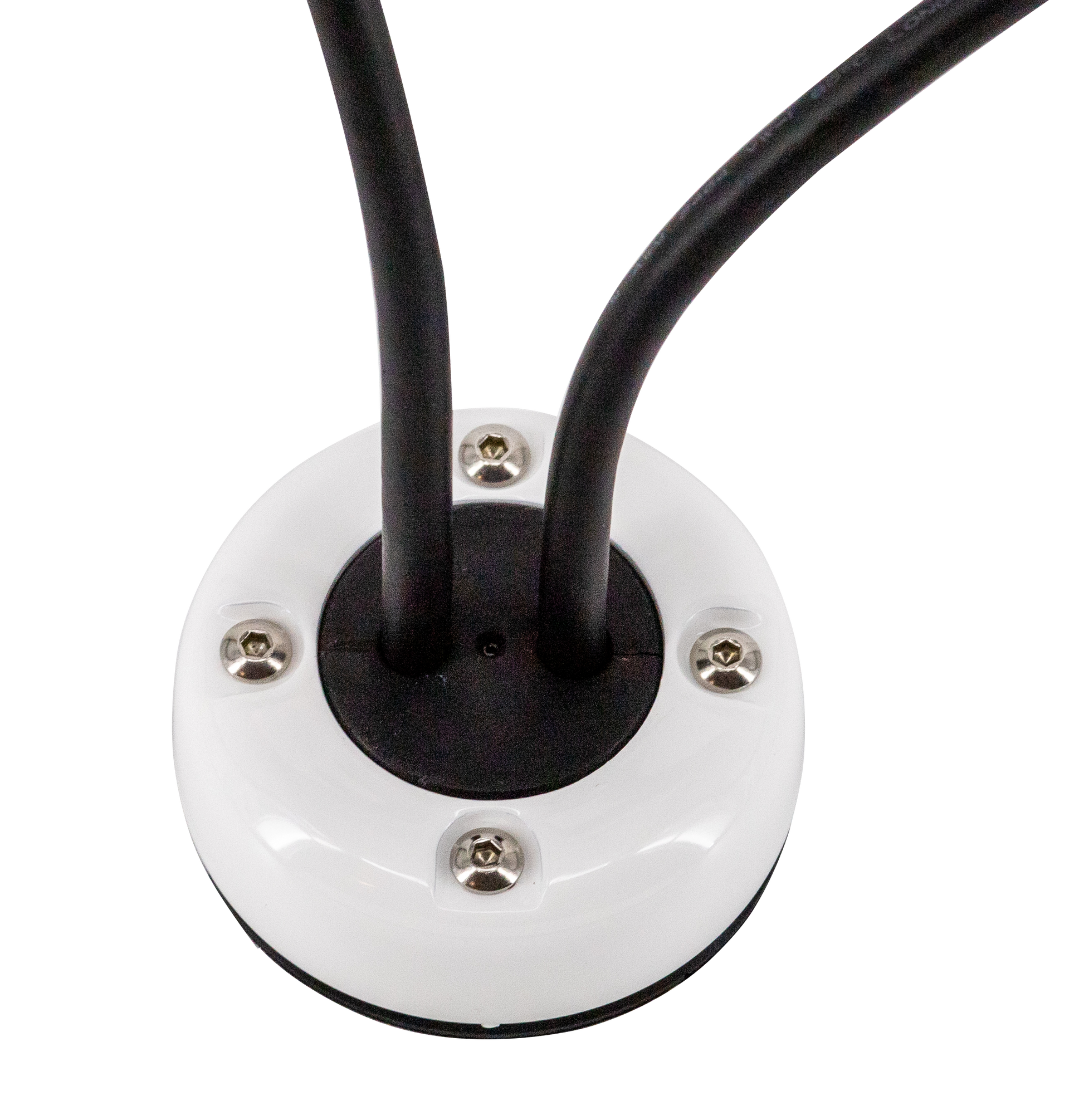

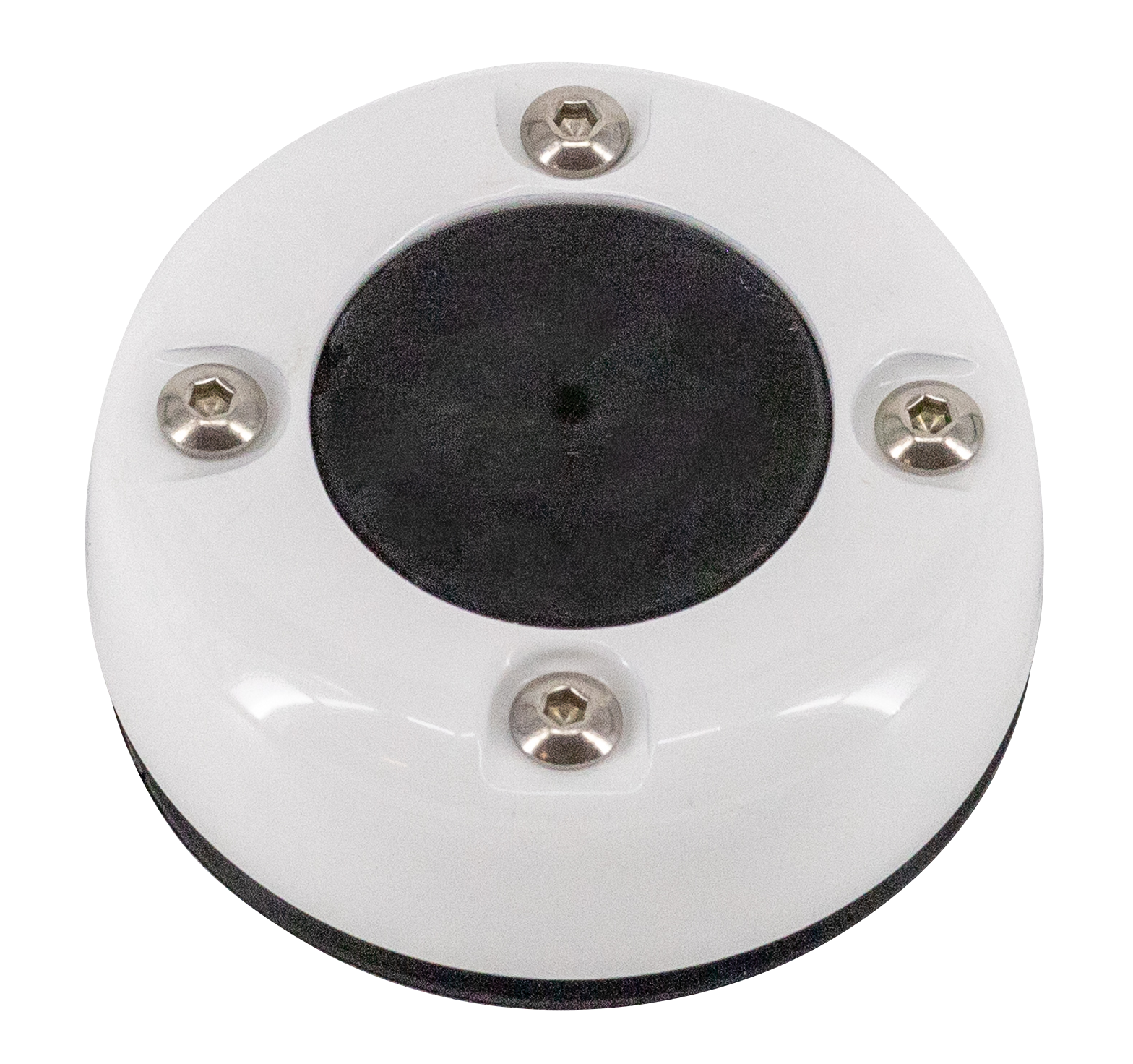

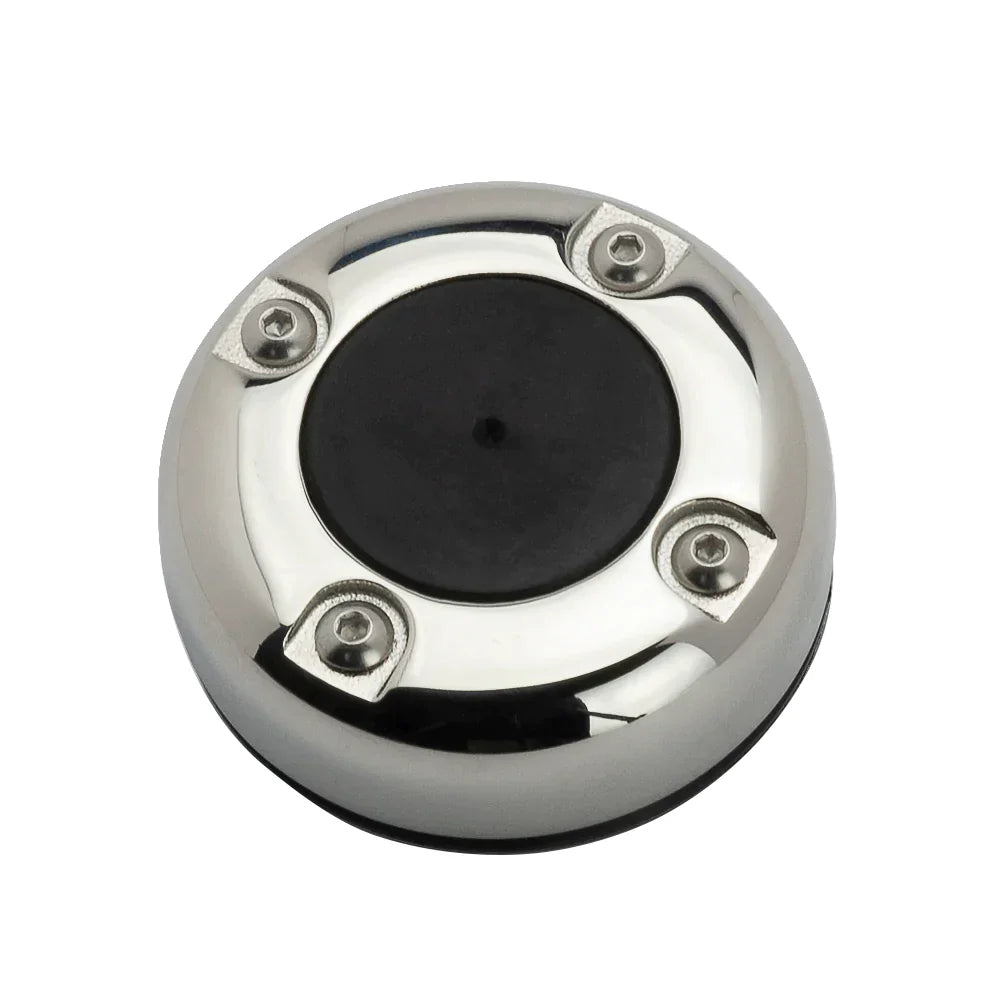

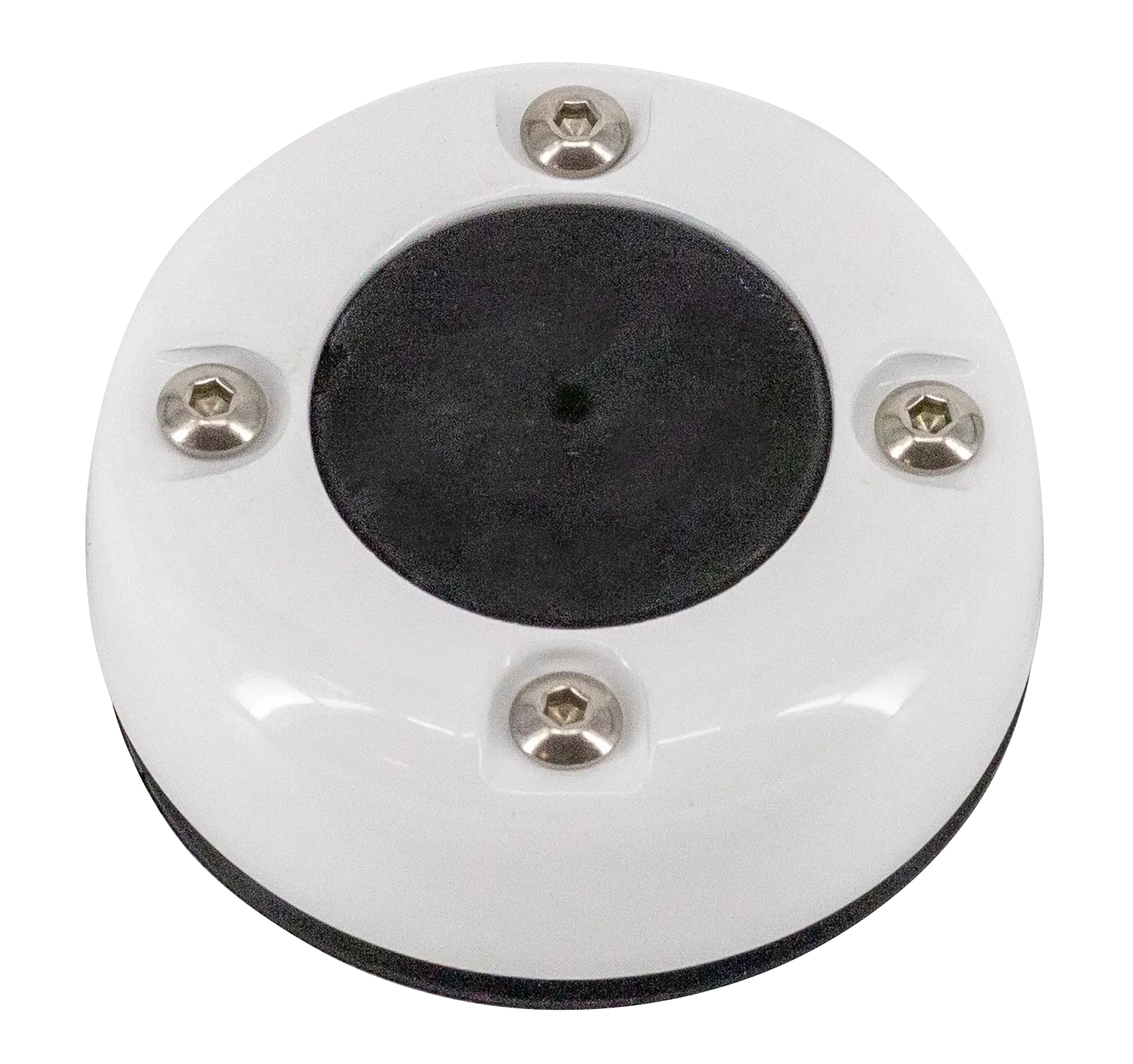

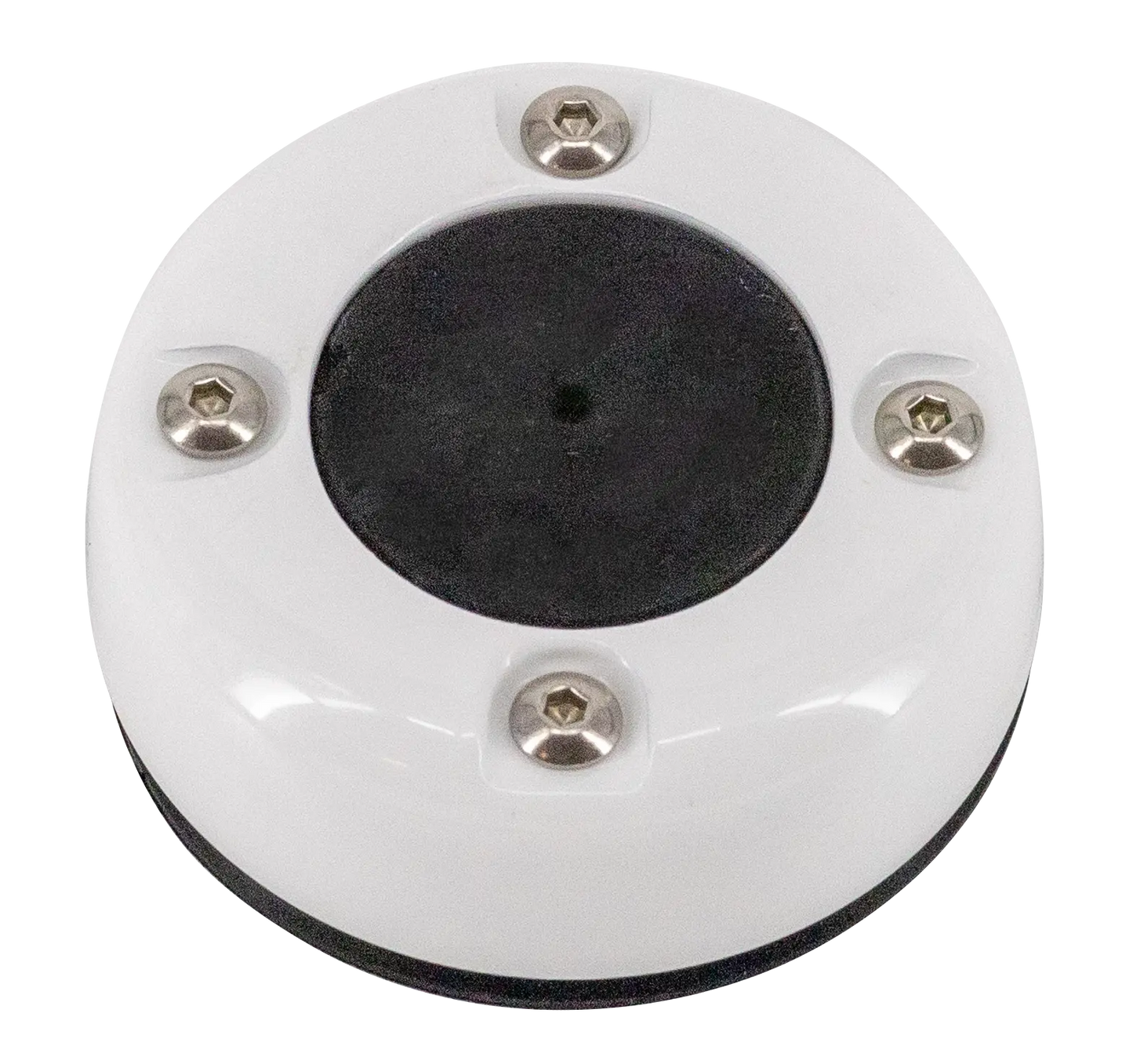

    • CG30 series: Cables up to 27.5 mm (1.08"); connectors up to 34 mm.

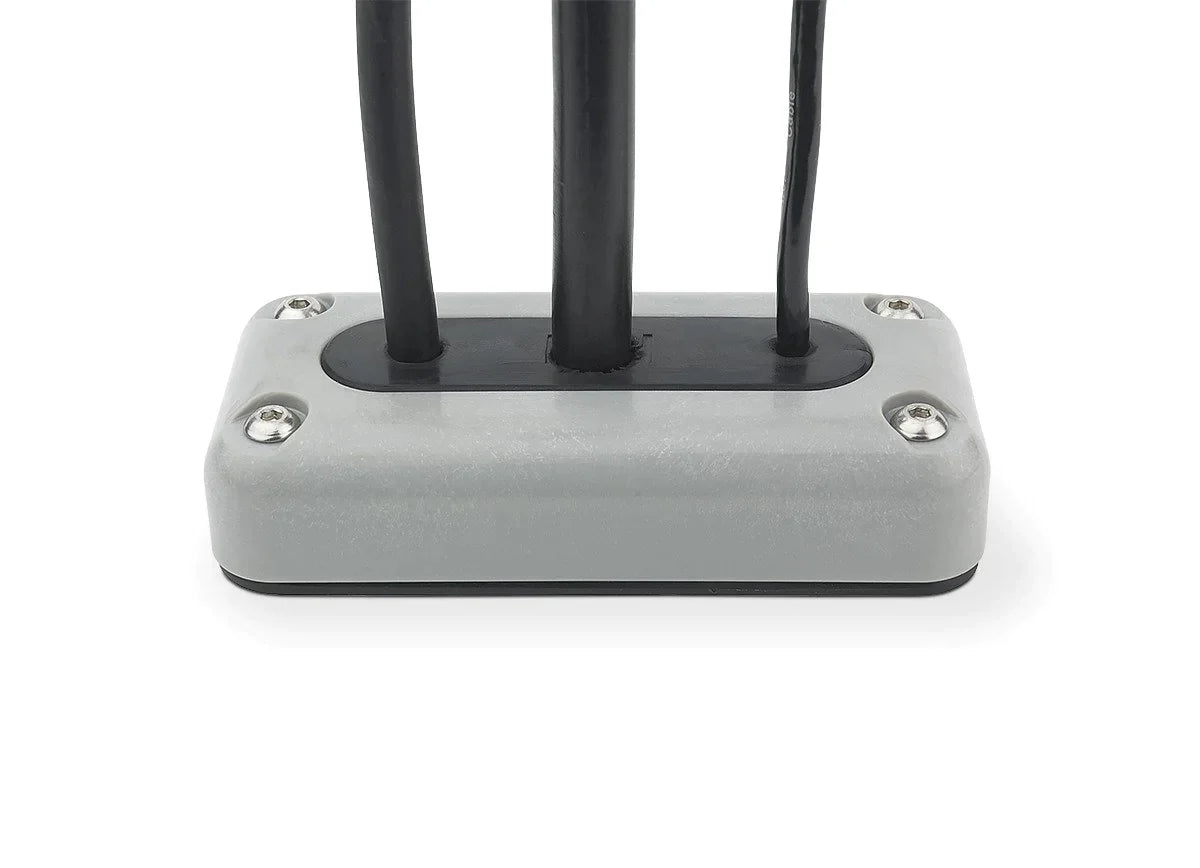

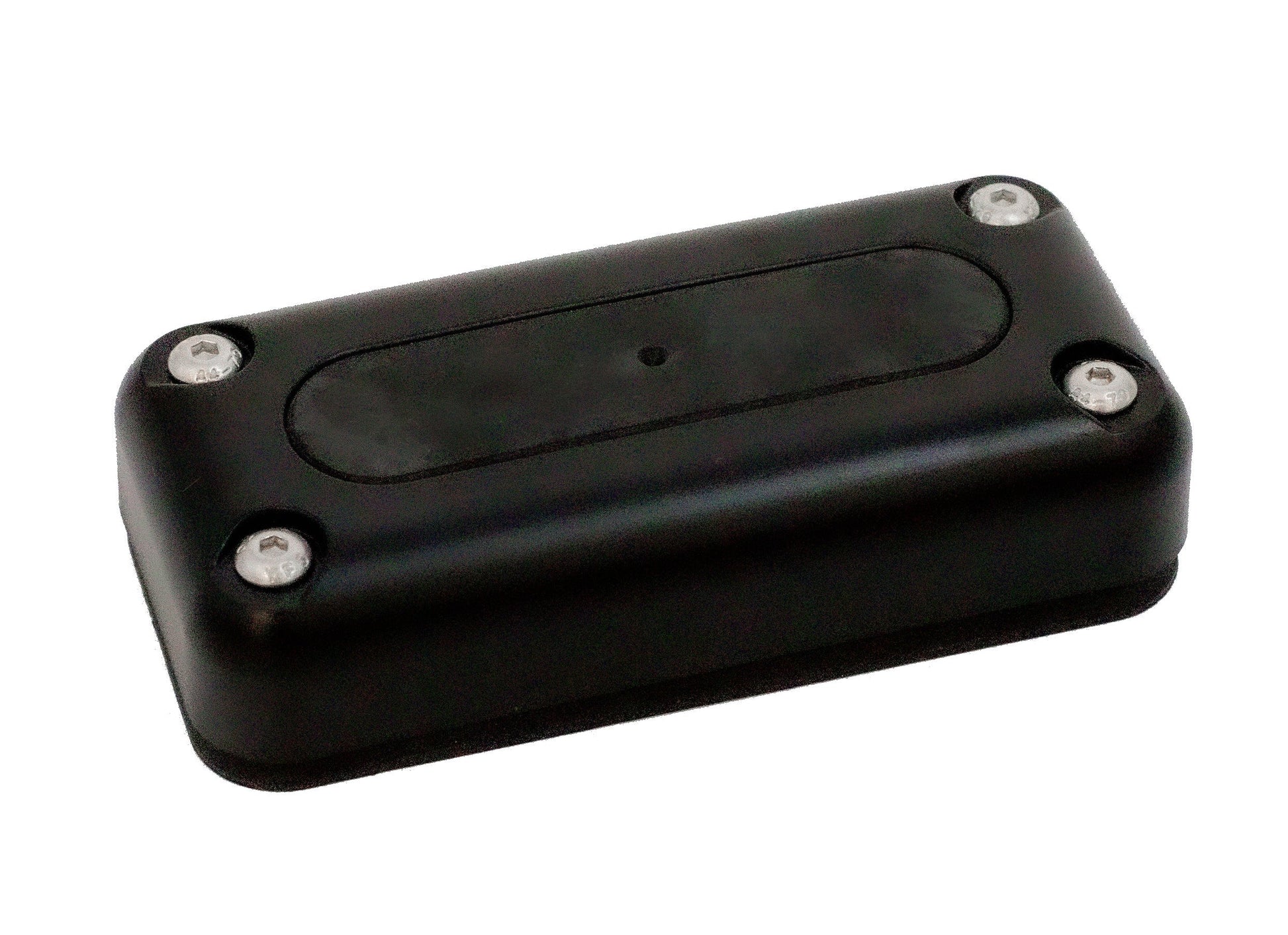

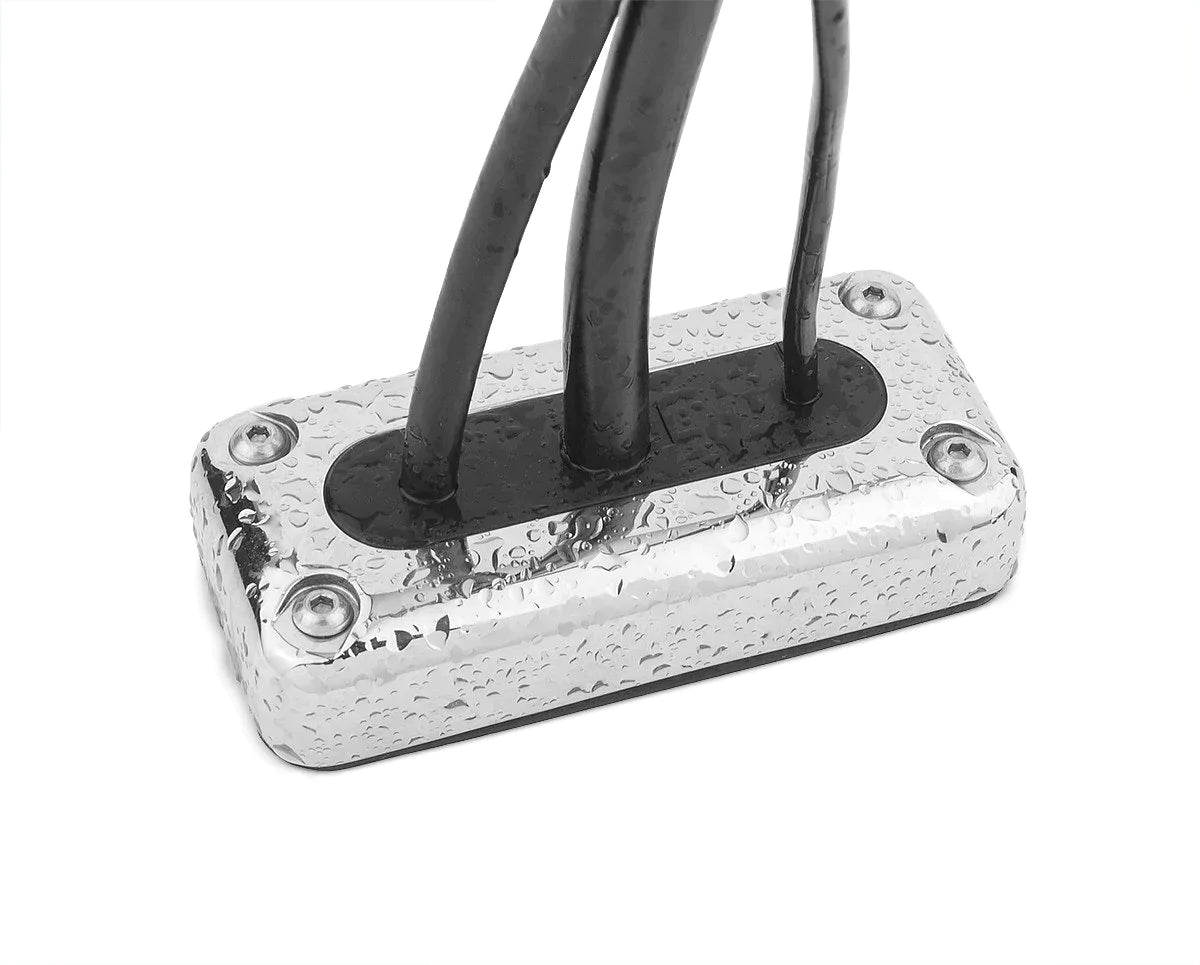

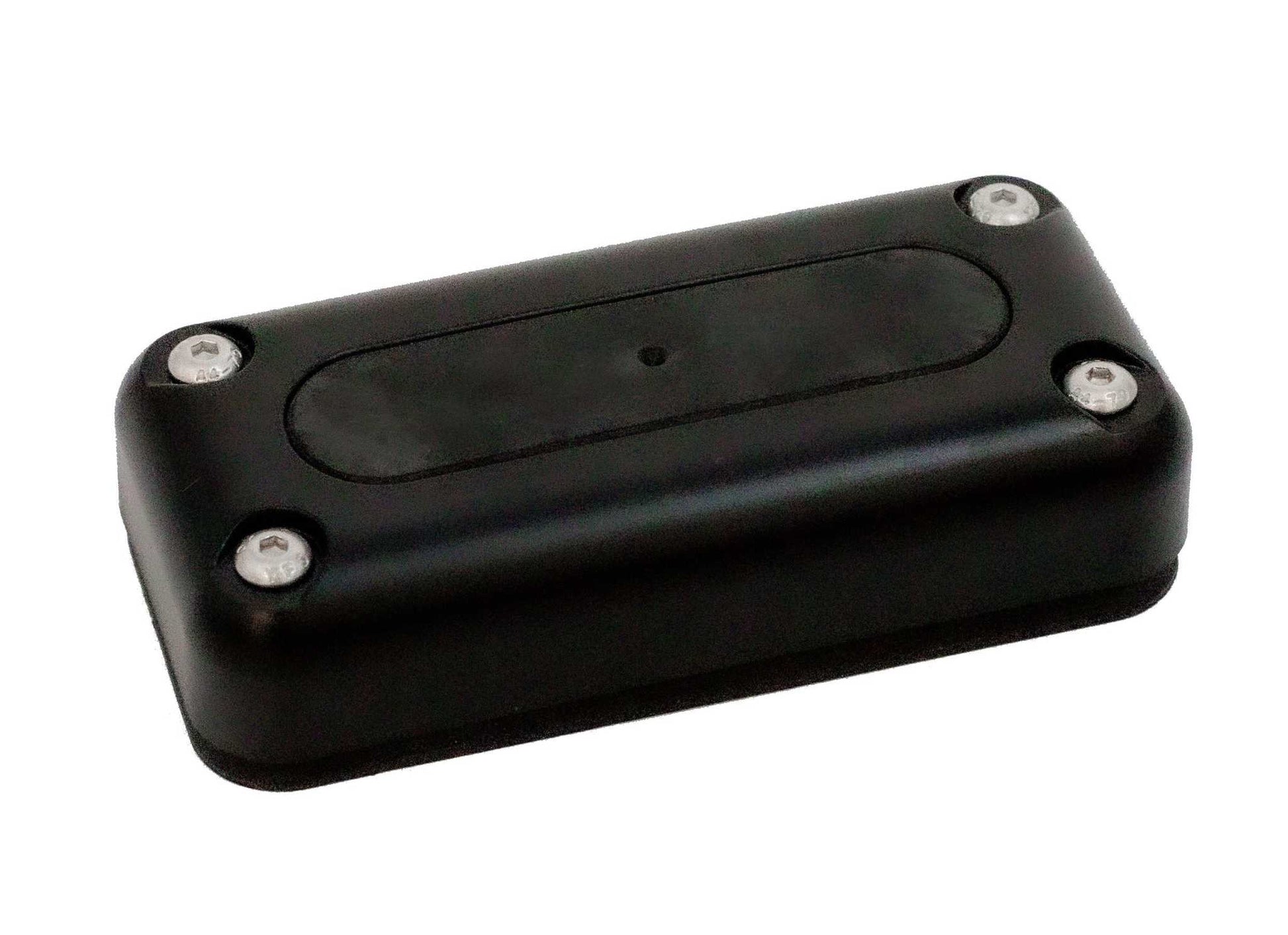

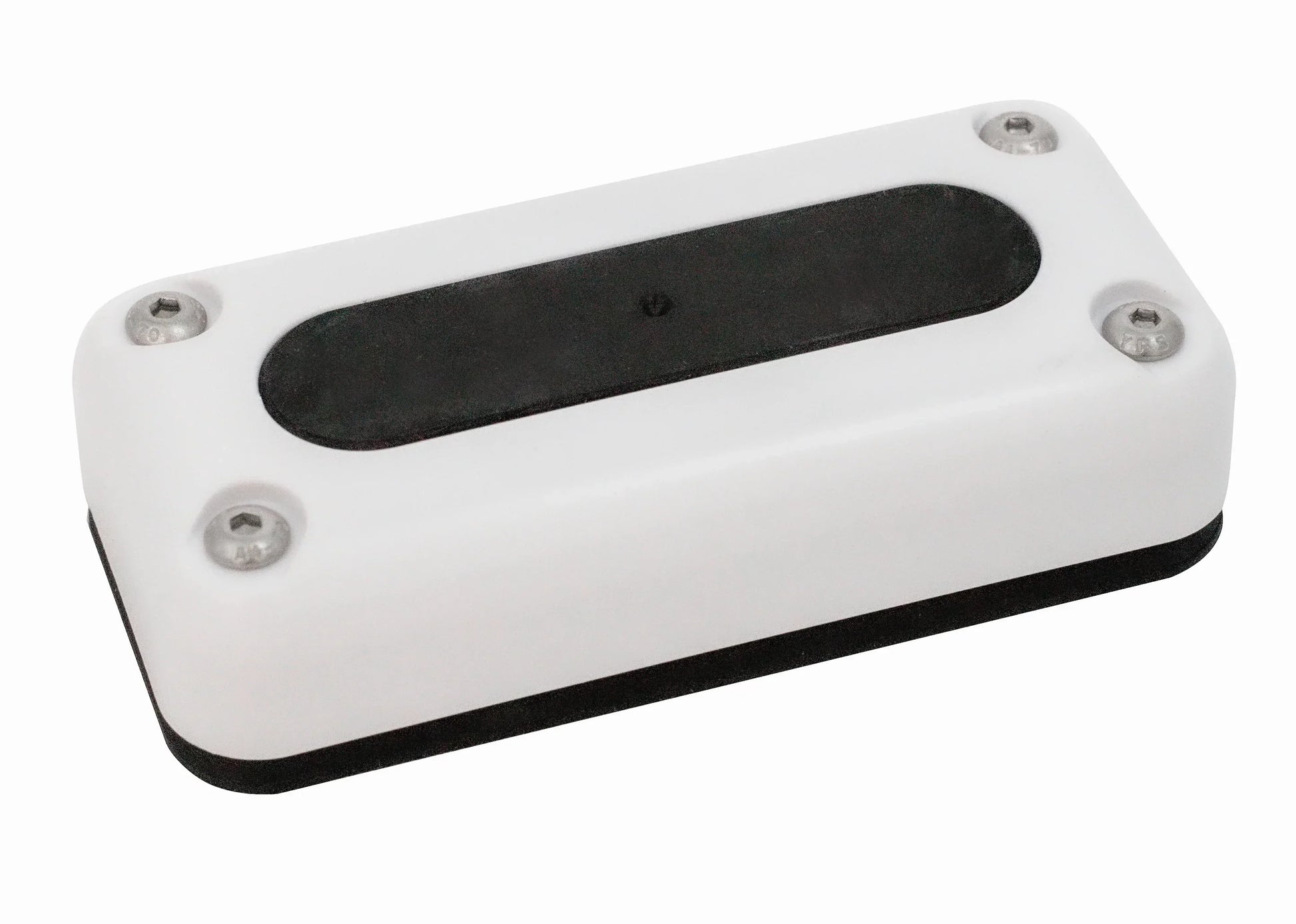

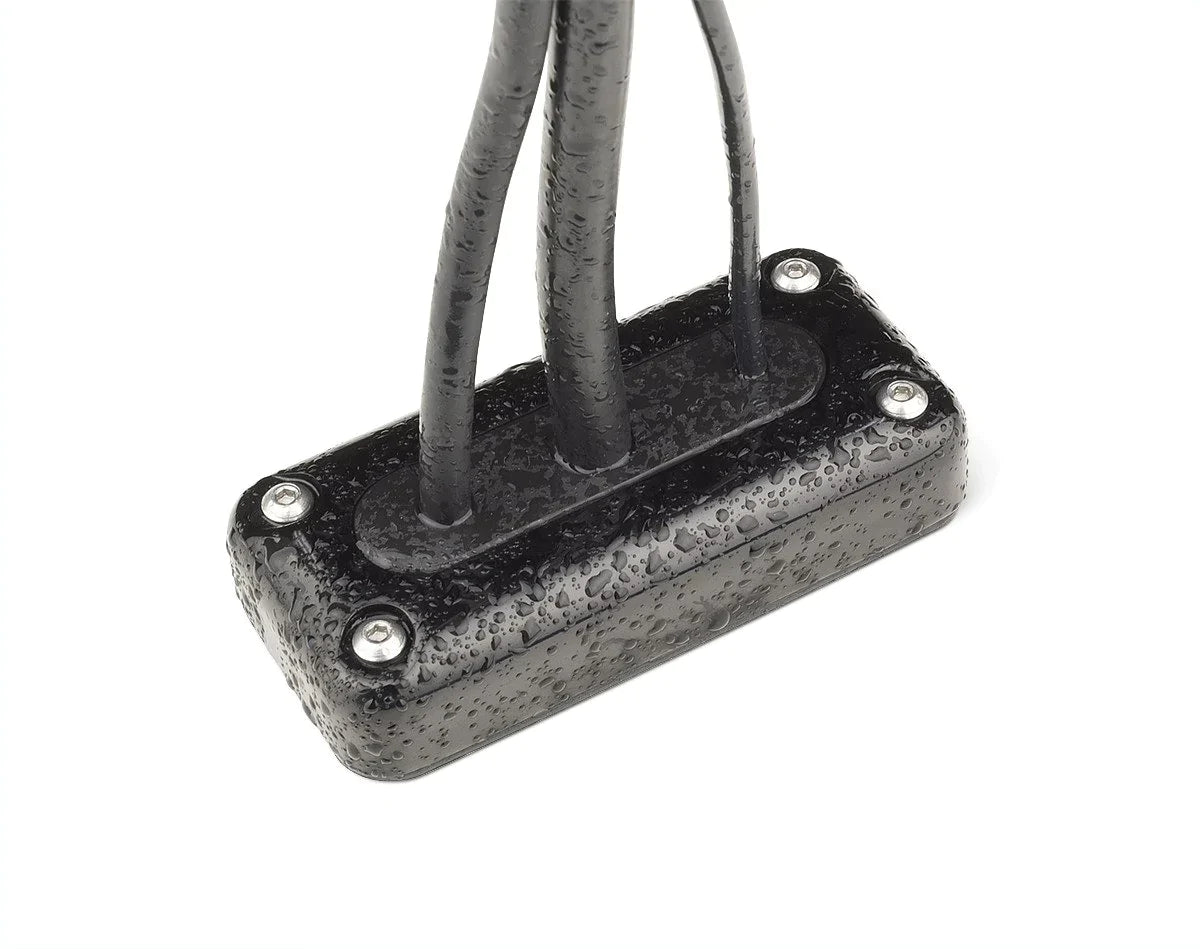

    • CGM17 series: Multiple cables up to 12.7 mm (0.50") each; connectors up to 17 mm.

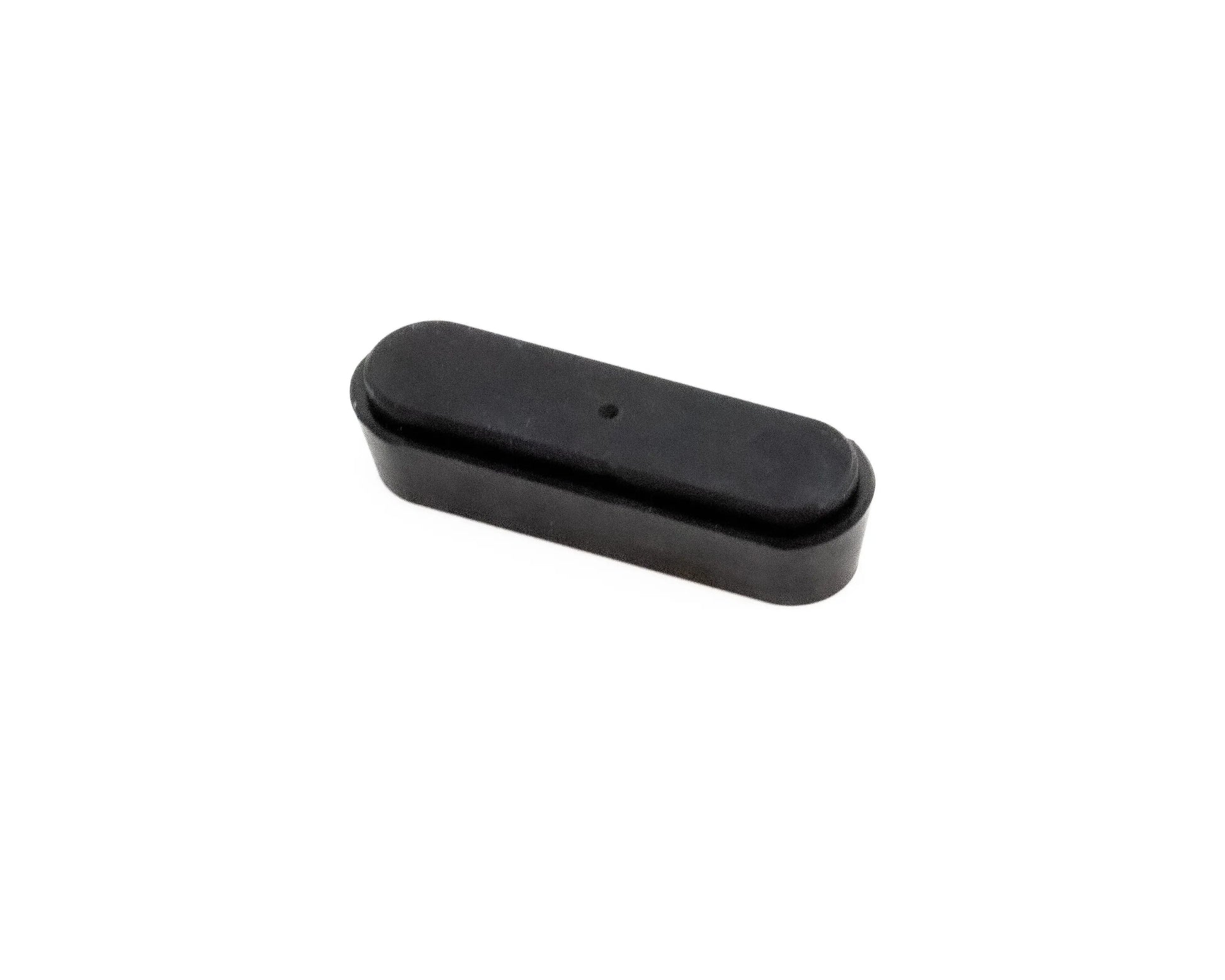

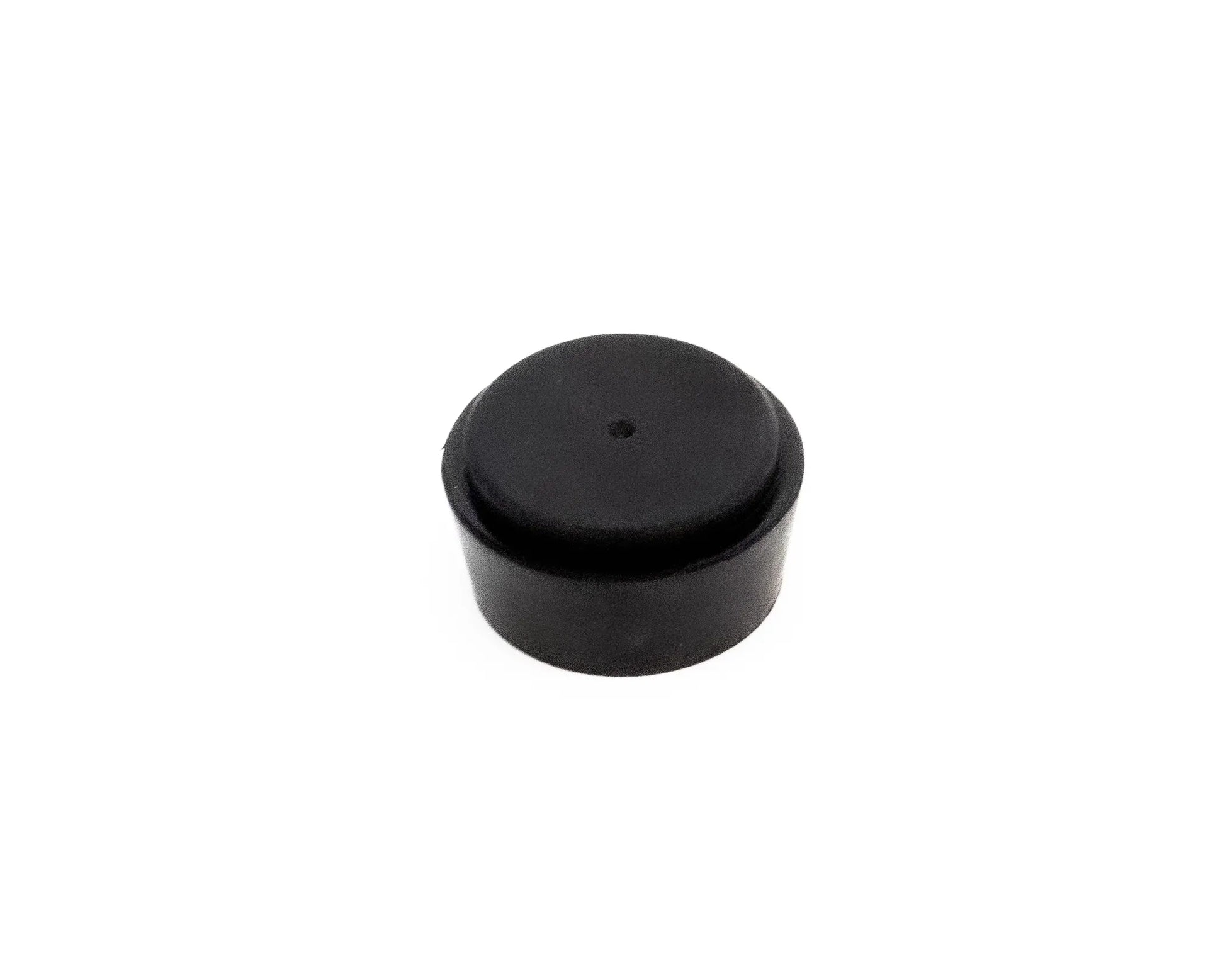

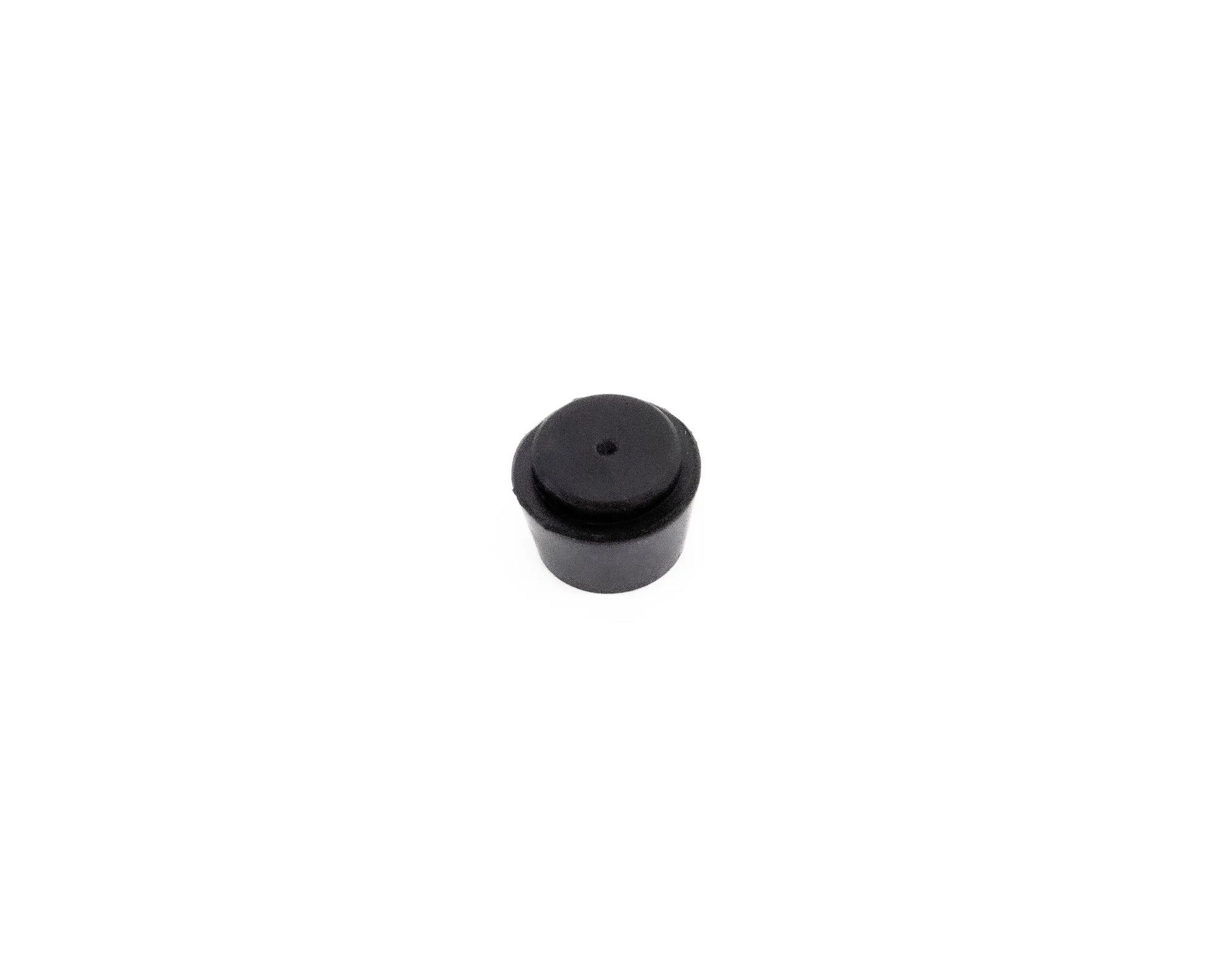

    Easy installation: No need to remove factory-fitted connectors. Cable seal kits include 6, 8, 10, and 12 mm drill tubes for custom-fitting the rubber plug; replacement rubber inserts are also sold separately.

    Drill-tube sizing: Use a tube within ±0.02" (0.508 mm) of the cable diameter. For multiple cables, drill a separate hole for each and leave at least 1/8" (3.175 mm) of rubber between holes and at the plug edge. See Installation Instructions for details.

  • Seaview Part Number Dimensions
    All Seaview Cable Seals Download
  • Installation Instructions

    Download the installation instructions in the chart below.

    Seaview Part Number Installation Instructions
    All Cable Seals Download
