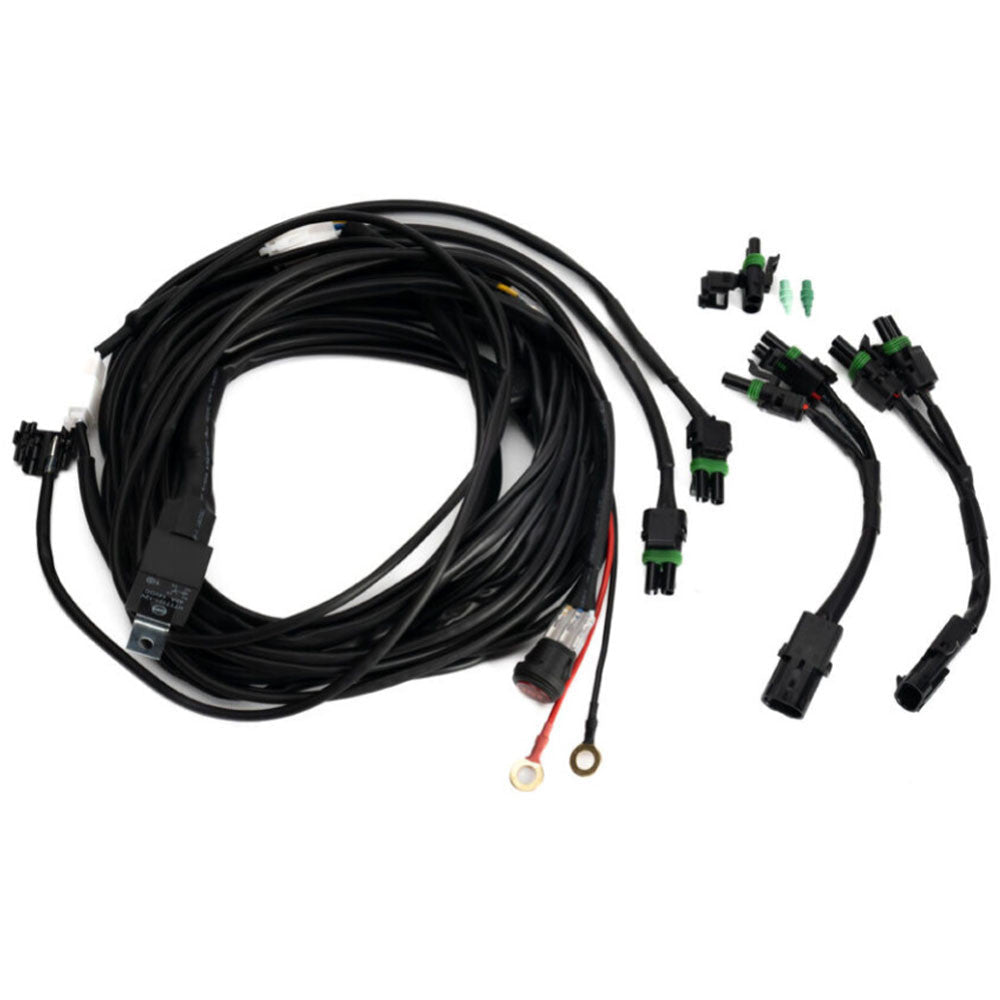

Baja Designs Squadron S2 S1 3-Light Splitter Wiring Harness

Running three Baja Designs Squadron, S2 or S1 lights separately can mean routing multiple power feeds. A splitter harness lets the lights share one harness instead. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The splitter wiring harness powers up to three lights through three two-pin connections. Splice connectors allow the lights to be triggered through the high beam.

Key Features

• One harness powers up to three Squadron, S2 or S1 series lights
• Three two-pin terminal connections for the lights
• Splice connectors allow a high-beam trigger
• Switch kit controls the lights
• Rated for a maximum of 325 watts

Built To Solve: UTV Electrical Wiring for Three Lights

• Run three compatible Baja Designs lights from one harness instead of separate feeds.
• Connect the lights through three two-pin terminals.
• Use the splice connectors to trigger the lights from the high beam if desired.
• Keep the connected lights within the stated 325-watt maximum.

Best For: Riders Wiring Baja Designs Light Pods

• Owners connecting up to three Squadron, S2 or S1 series lights.
• UTV builders routing one harness to multiple compatible lights.
• Drivers who want to trigger their lights through the high beam.
• Buyers working within a 325-watt light load.

Specifications

• Compatible light series: Squadron, S2 and S1
• Maximum lights and power: 3 lights; 325 watts
• Terminal connections: 3 two-pin connections
• Application type: Universal
• Manufacturer part numbers: 613600

What's in the Box

• ON/OFF/ON switch kit
• Splice connectors

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Does the harness come with mounting hardware?

No. Mounting hardware is not supplied.

Can the lights be triggered from the high beam?

Yes. The splice connectors allow the lights to be triggered through the high beam.

How many lights and how much power can the harness handle?

The stated maximum is three lights and 325 watts.

Is this harness specific to one vehicle?

No.

Which Baja Designs light series can this harness power?

Choose this harness for Squadron, S2 or S1 series lights.

Why Baja Designs

Baja Designs specifies this splitter harness for its Squadron, S2 and S1 series lights, with three two-pin connections for powering multiple lights from one harness.

Wire Three Baja Designs Lights

Order the Baja Designs Squadron, S2 and S1 splitter wiring harness from Dunes 2 Dezert SXS.
