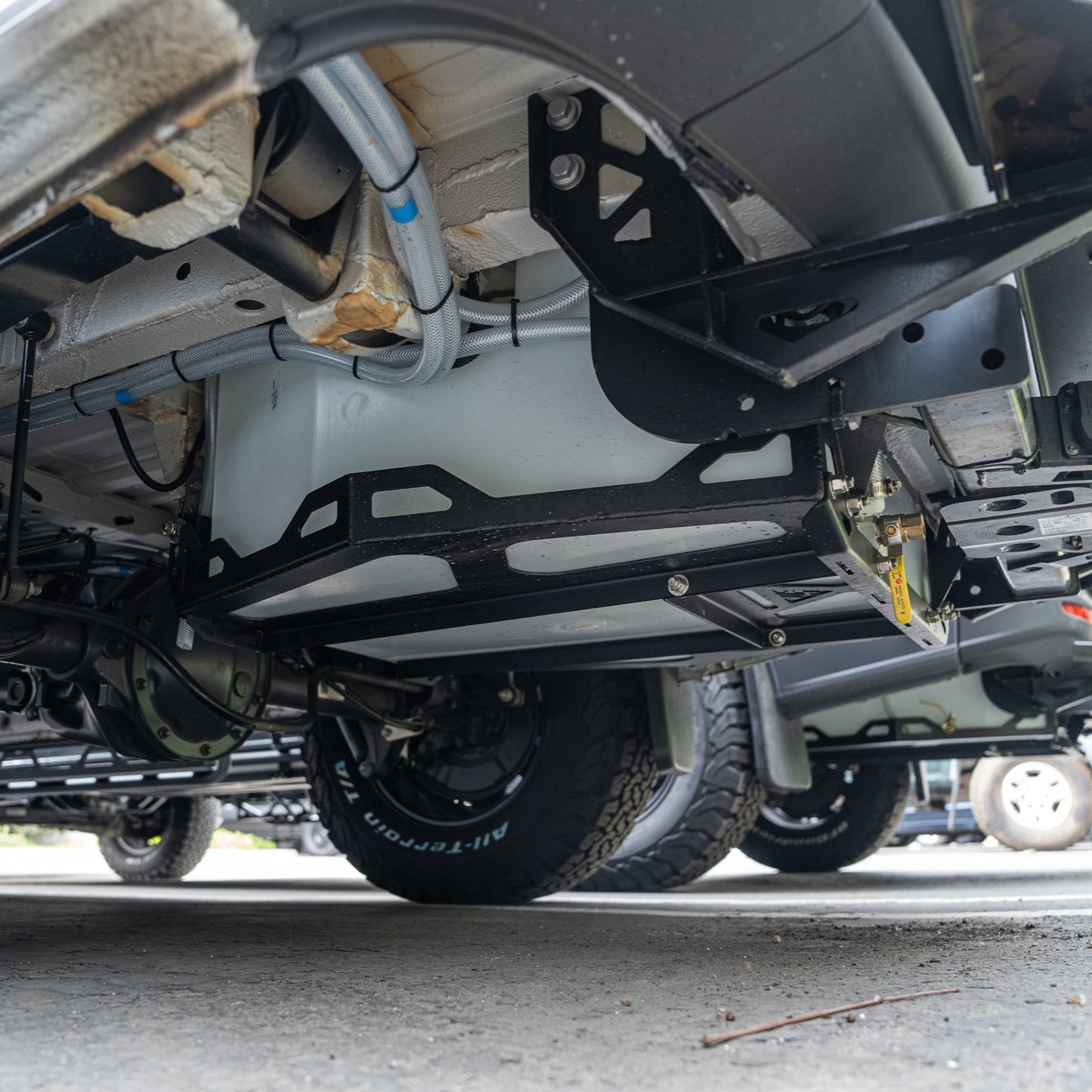

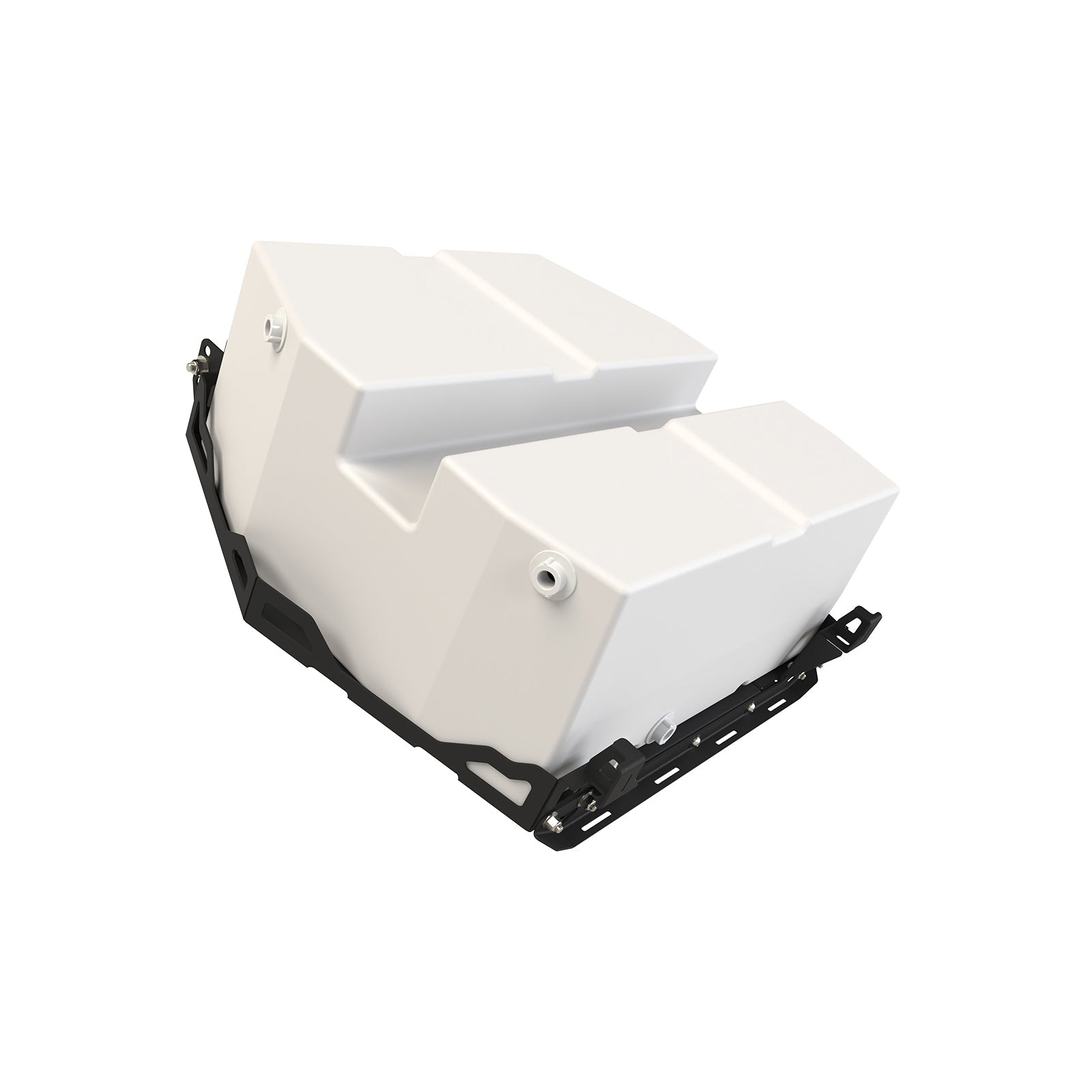

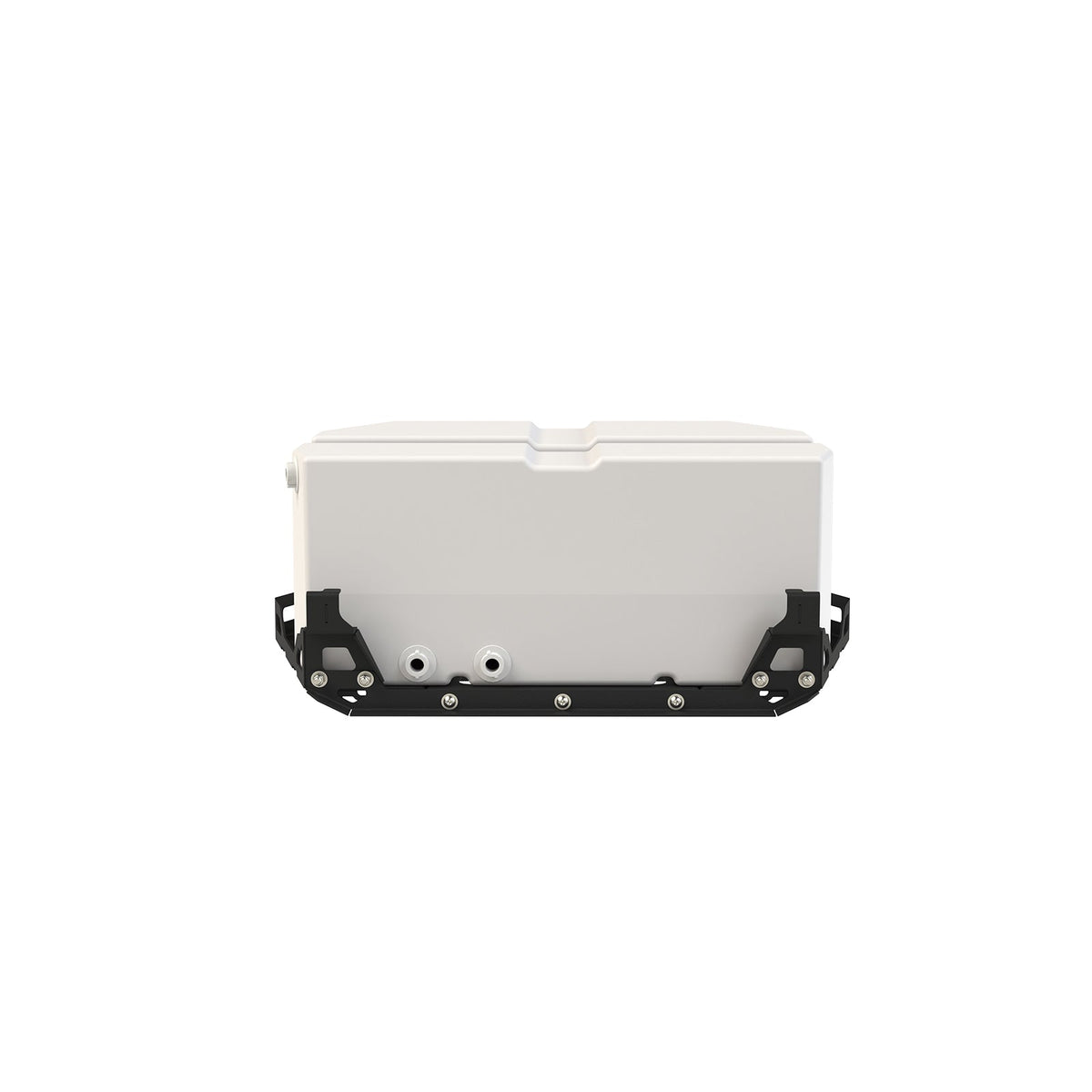

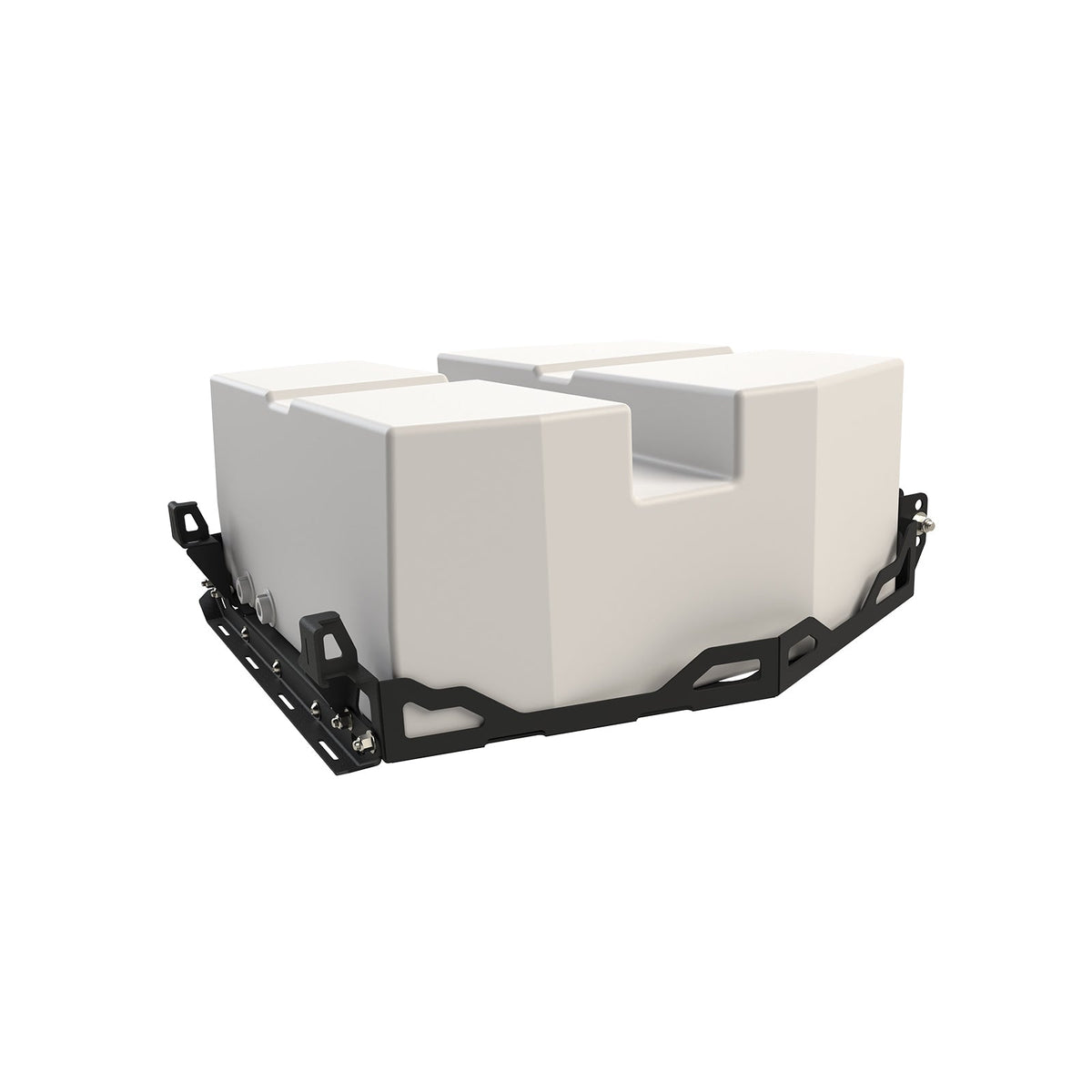

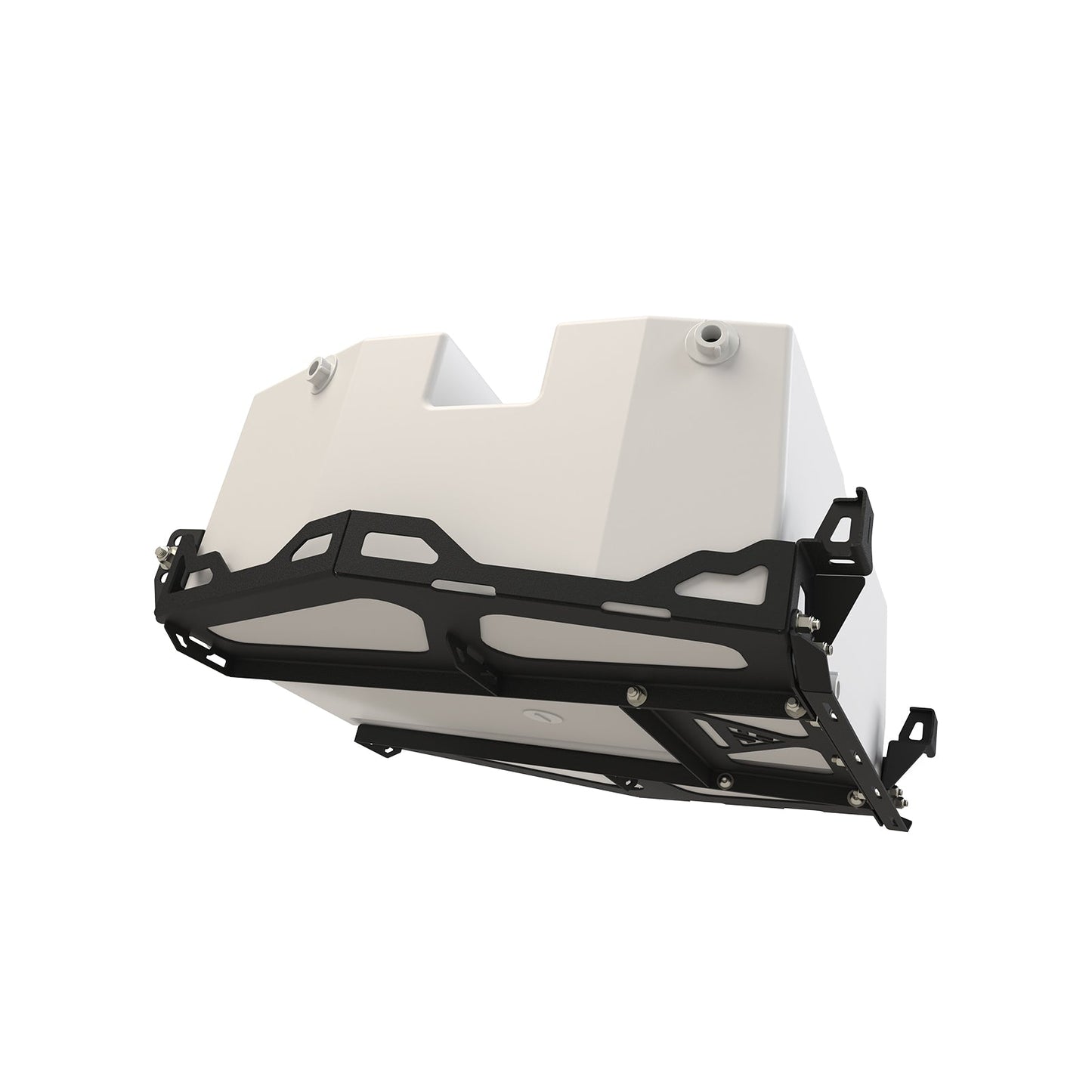

This product provides a chassis-specific underbody mounting solution for the 40 gallon water tank included with the kit. Included with your purchase of the Sprinter 40 Gal Water Tank Kit is the tank itself, the preassembled Underbody Rear Carrier, as well as all of the hardware necessary to secure the product into place underneath your vehicle.
Fitment: Sprinter 144"
**SOLD SEPARATELY : ½” Fittings & Lines
Product Features :
Underbody Carrier reuses factory mounting points for seamless installation
Underbody Carrier mounting location was designed to retain ground clearance
Tank features x4 female inlets for ½” fittings running to and from the tank
Tank is rotomolded from a non-corrosive linear polyethylene
Tank tray is constructed from ⅛” sheet steel w/ a textured black powder-coat finish
Tray is CNC cut, bent, and welded for precise fitment
Manufactured in Huntington Beach, CA
Dimensions :
Tank dimensions are approximately 33.0”L x 30.0”W x 12.3”H
Total assembly dimensions are approximately 34.6”W x 13.6”H x 35.1”D
