RETROFIT VERTICAL CABLE ENTRY
RETROFIT VERTICAL CABLE ENTRY
Couldn't load pickup availability
-
Description

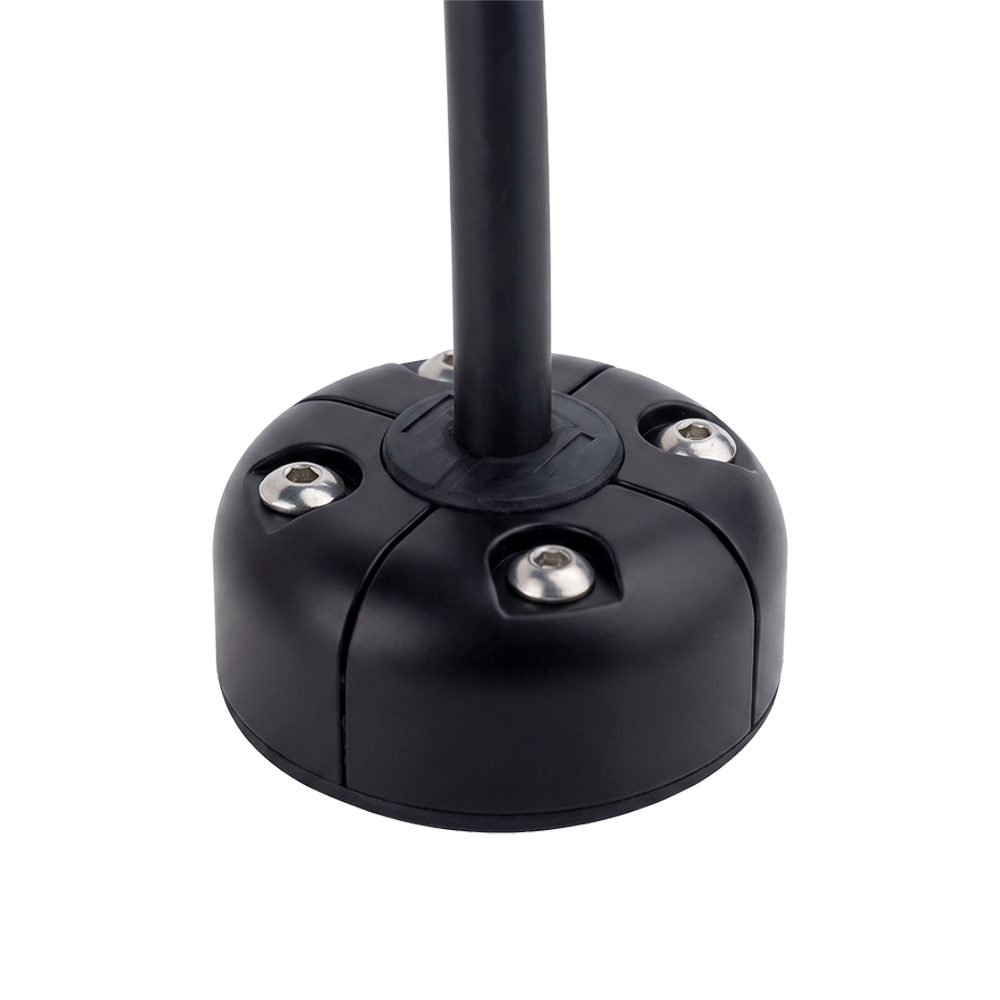

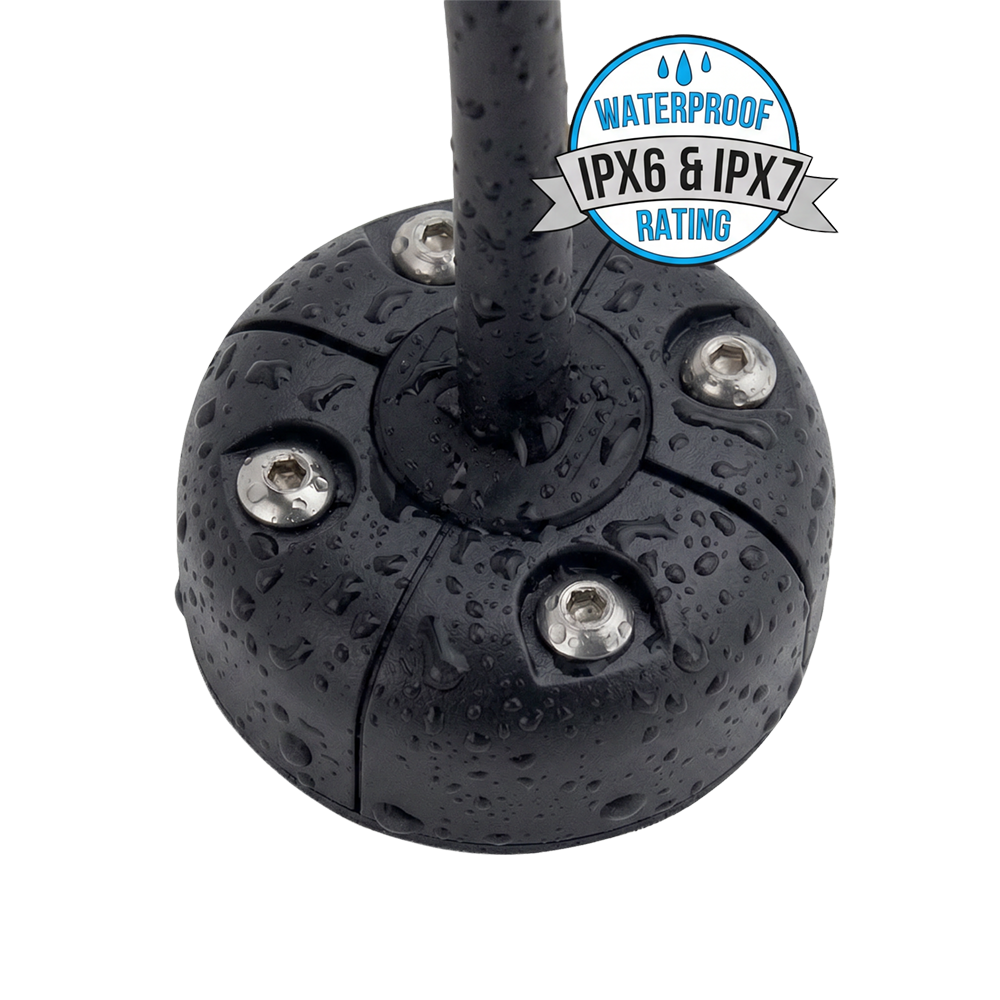

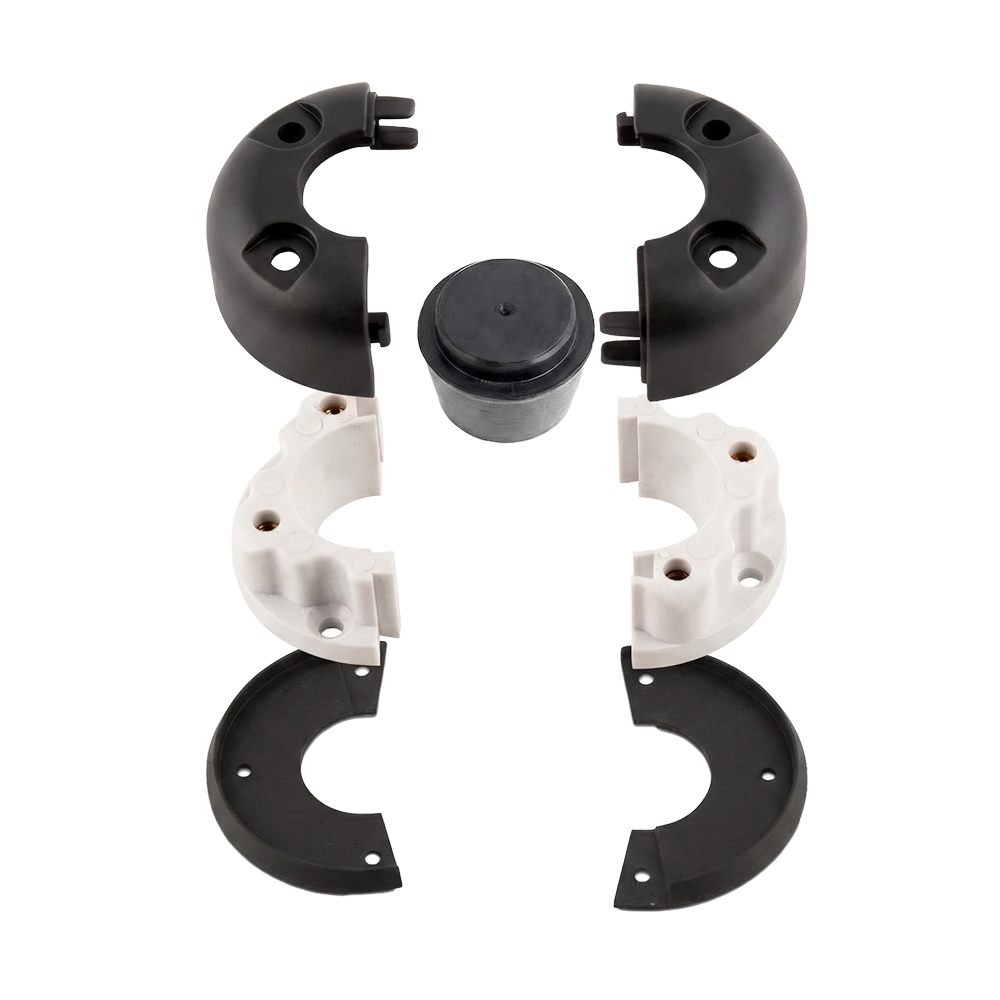

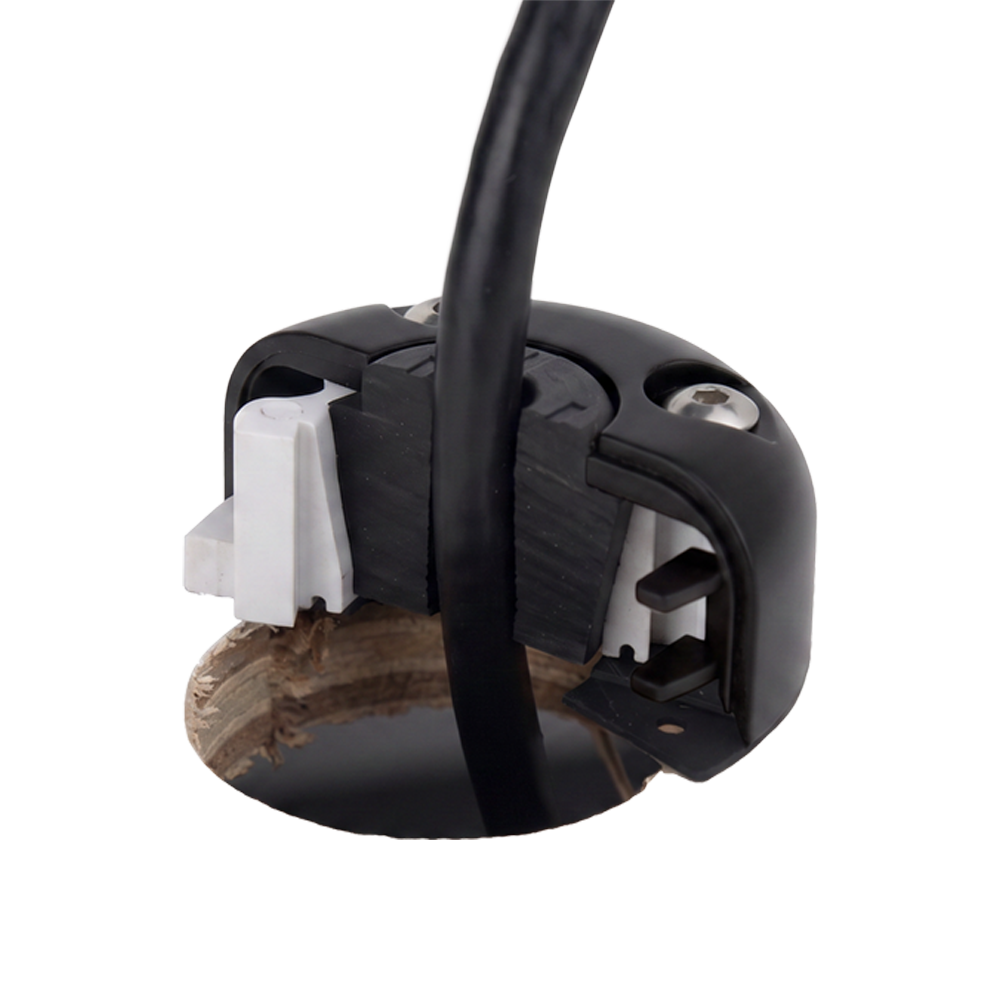

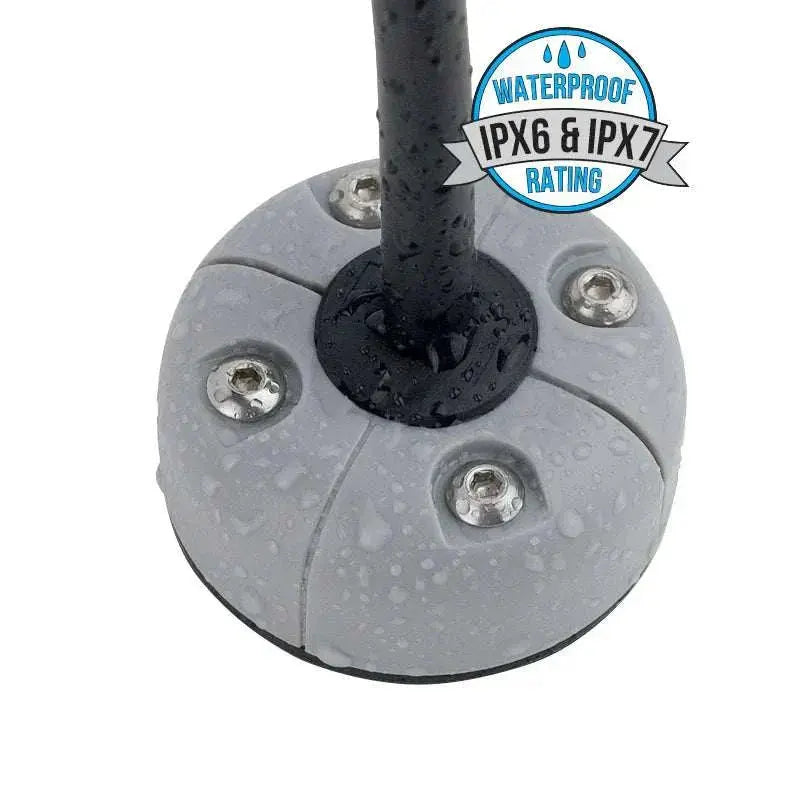

Seaview retrofit vertical cable seals provide a watertight pass-through for cables that are already installed. Their split design fits around existing cables, so you can seal antenna, transducer, lighting, or power cable entries without disconnecting or removing factory-fitted connectors. Available in black or gray impact-resistant plastic.
Choose the Right Size

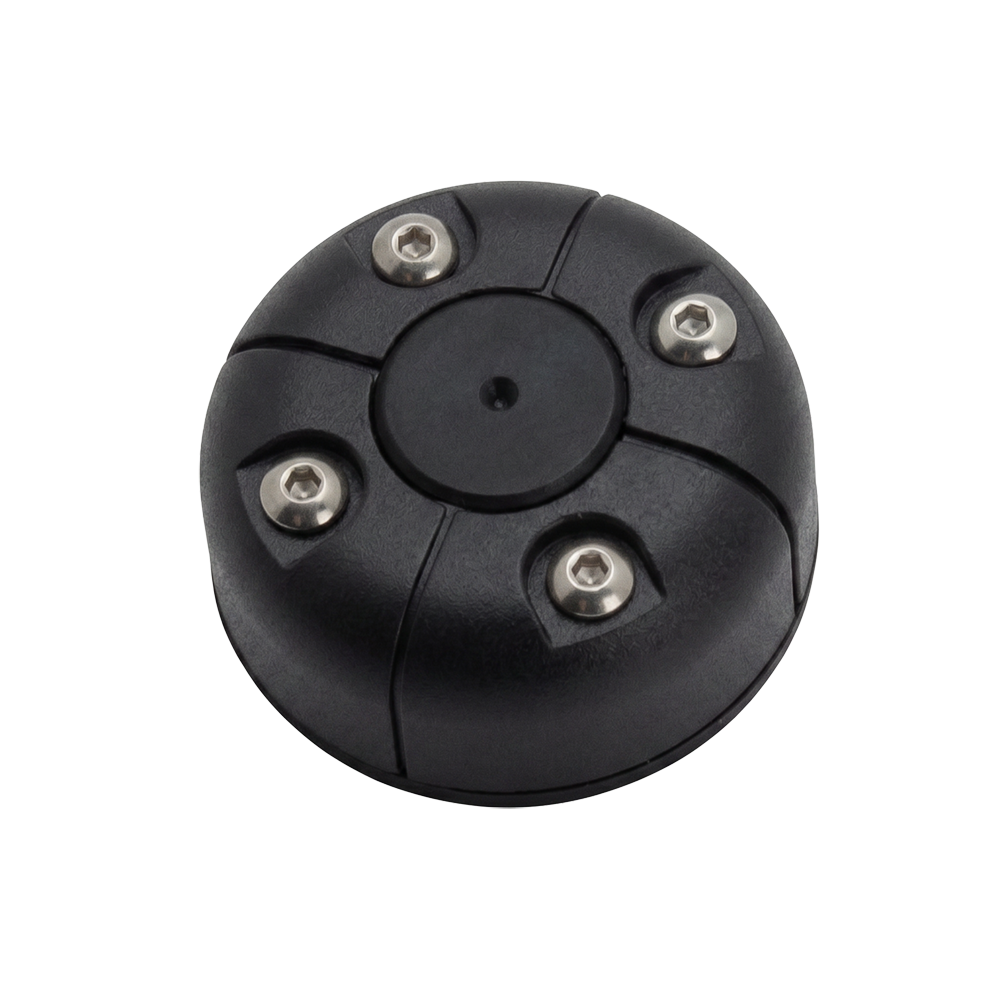

- CG20PB2 / CG20PG2: Cables up to 13.5 mm (0.53"); connectors up to 20 mm.

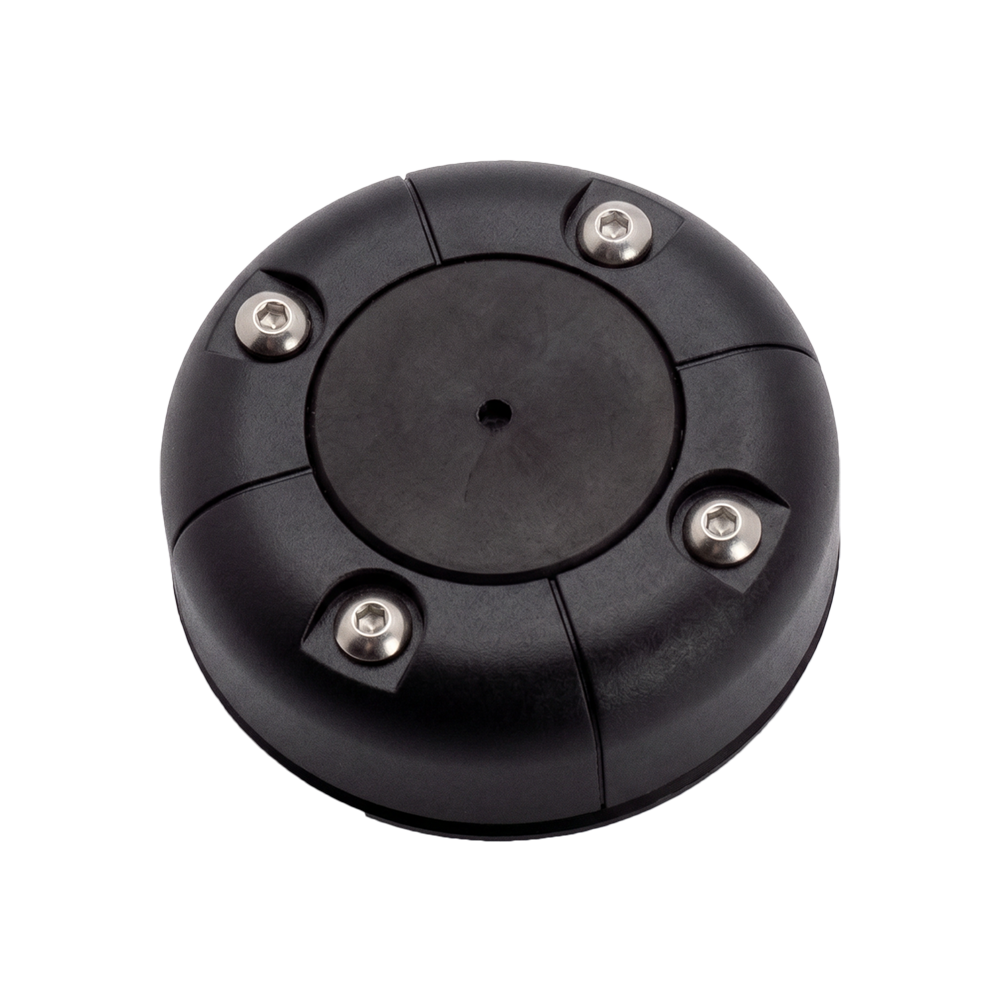

- CG30PB2 / CG30PG2: Cables up to 27.5 mm (1.08"); connectors up to 34 mm.
Custom-fit seal: Drill each cable opening to suit the cable diameter. Choose a drill tube within ±0.02" (0.508 mm) of the measured cable. For multiple cables, use separate holes and leave at least 1/8" (3.175 mm) of rubber between holes and at the plug edge.

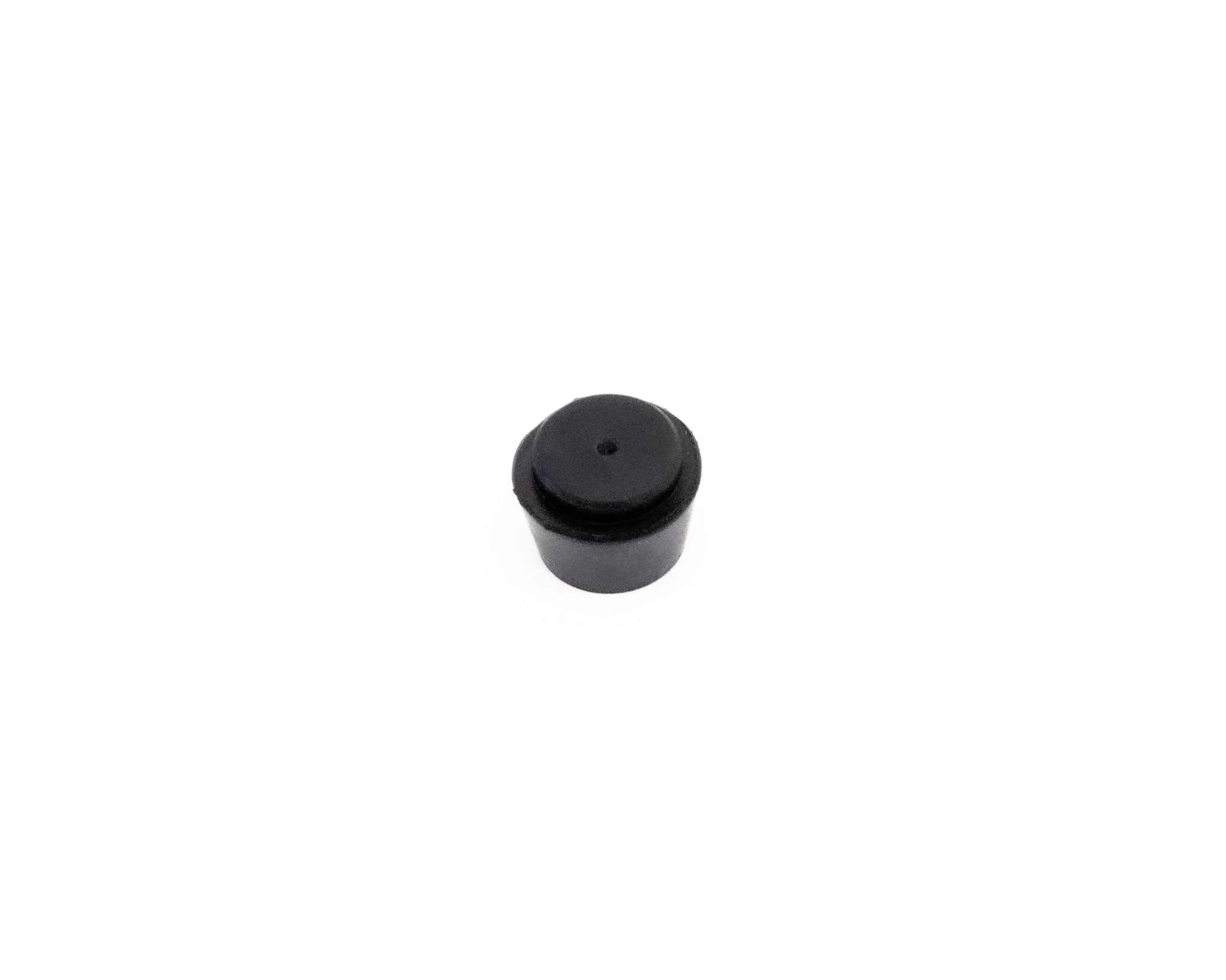

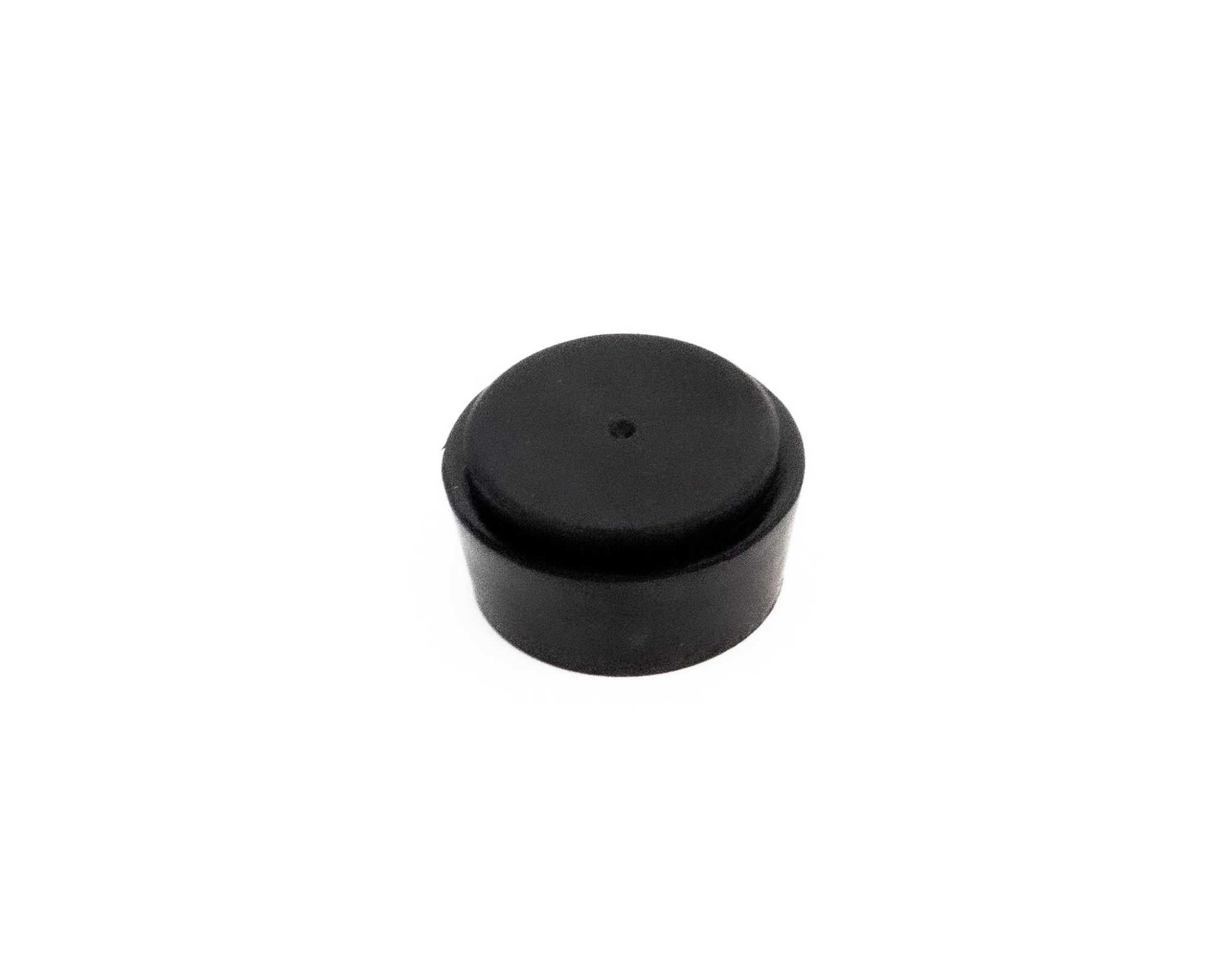

Replacement rubber inserts are sold separately. See Installation Instructions for full fitting details.
-
Seaview Part Number Dimensions CG20PG2 / CG20PB2 (small round) Download CG30PG2 / CG30PB2 (large round) Download -
Installation Instructions
Download the installation instructions in the chart below.
Seaview Part Number Installation Instructions All Retrofit Cable Seals Download
