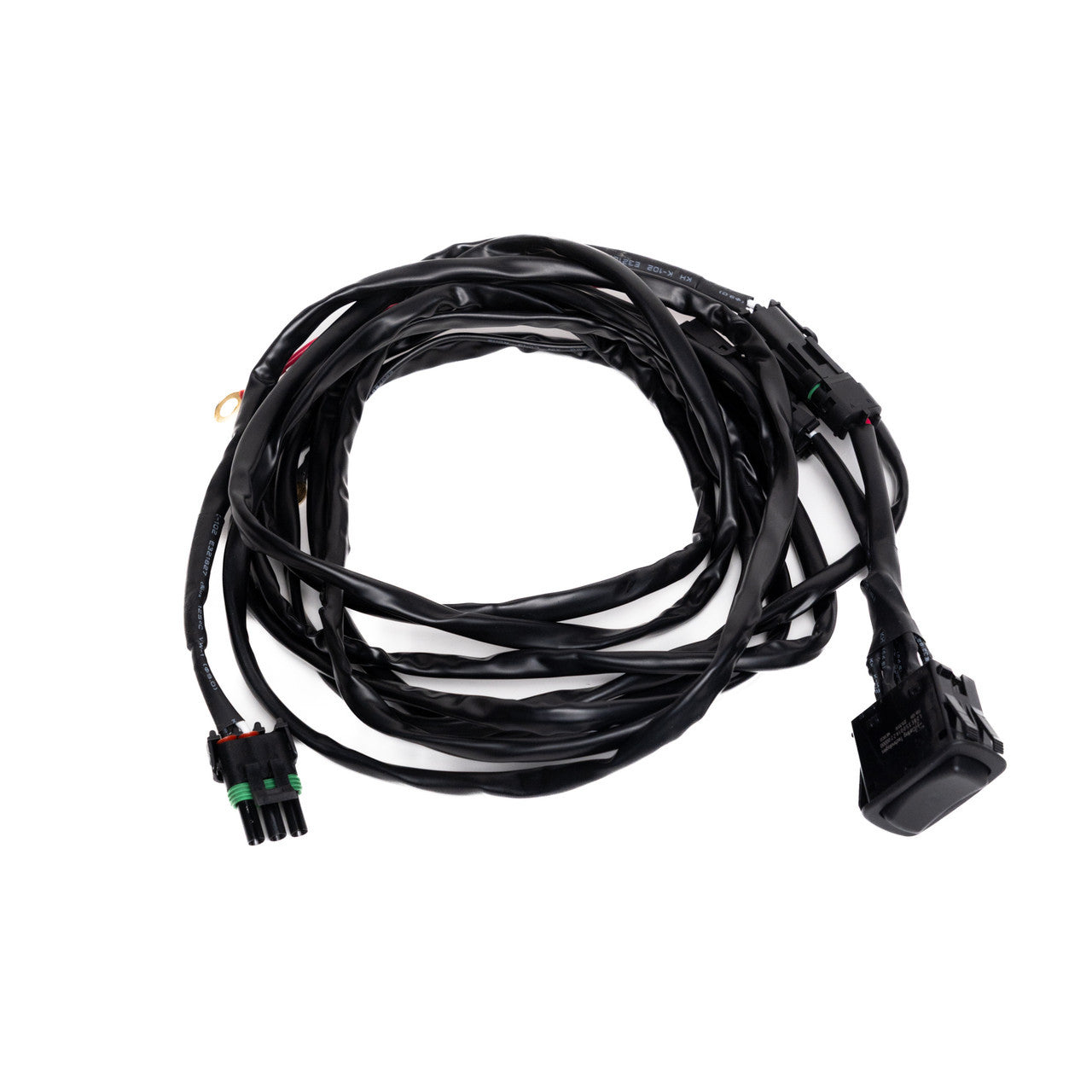

Baja Designs REFLEX Light Actuator Harness

Adjusting a REFLEX light actuator up or down requires a way to control its movement, and multiple actuators need a way to move together. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs rocker switch harness controls actuator movement at the touch of a button. Choose a single lead for use with an actuator linking harness or a pair harness to power two actuators in sync.

Key Features

• Rocker switch controls up-and-down actuator movement

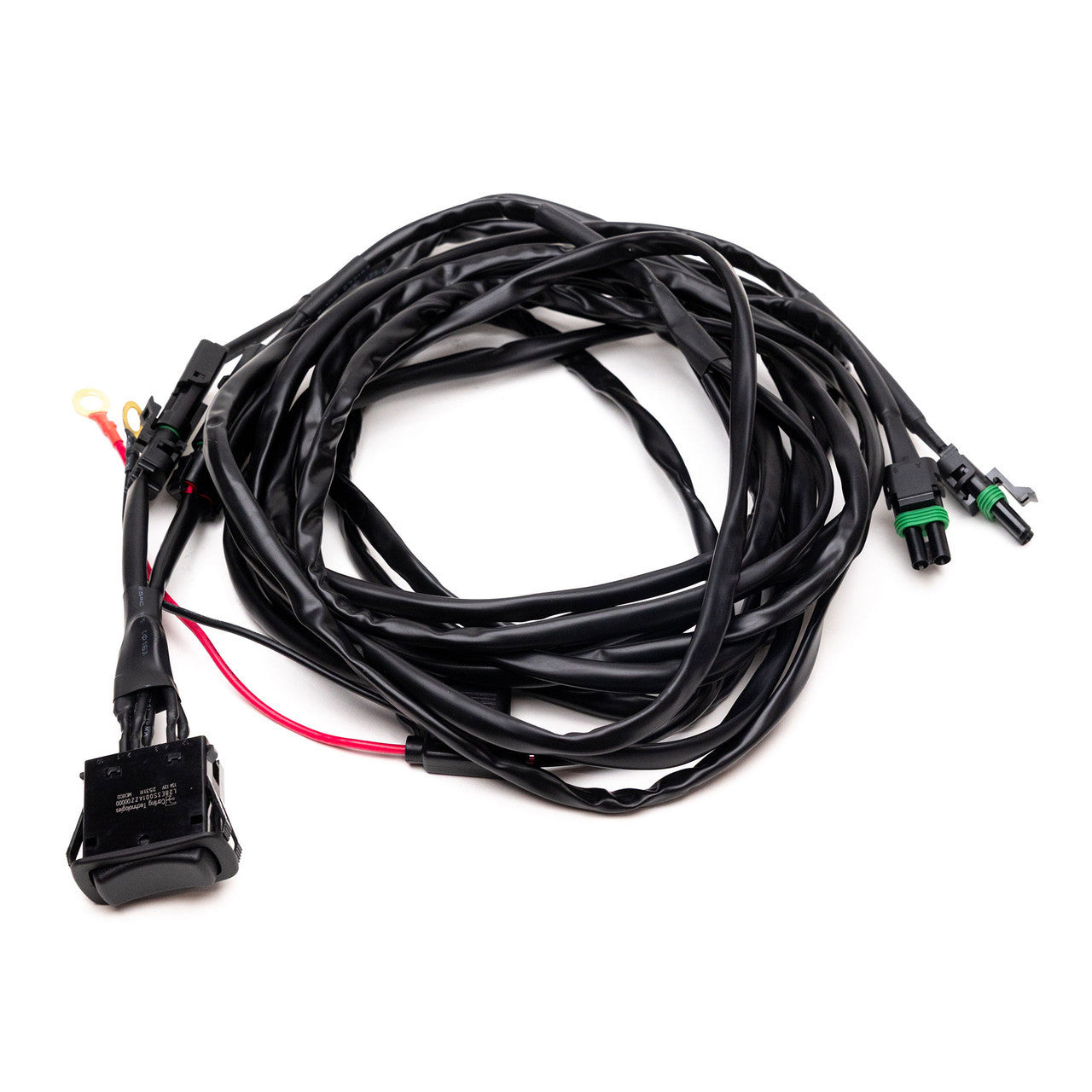

• Pair harness powers two actuators in sync
• Single-lead, 3-pin harness works with actuator linking harnesses
• Pair harness works with single and pair lighting setups
• Extra pair-harness lead can be tucked away on a 10-inch light bar using one actuator
• Actuator linking harnesses provide power between individual light actuators

Built To Solve: REFLEX Light Actuator Control

• Move a REFLEX light actuator up or down with a button.
• Control two actuators in sync with the pair harness.
• Use the single-lead harness with an actuator linking harness to control multiple actuators.
• Keep the unused lead tucked away on a 10-inch light bar with one actuator.

Best For: Riders Adjusting REFLEX Light Actuators

• Builders controlling two light actuators together.
• Owners using a single or pair light setup with a pair actuator harness.
• Builders connecting a single-lead rocker switch harness to an actuator linking harness.
• Owners of a 10-inch light bar using a single actuator.

Specifications

• Switch harness connection: Single lead, 3-pin
• Pair harness actuator control: Two actuators in sync
• Manufacturer part numbers: 646306 (3+ Multi Light), 646307 (Single/Pair)

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Does the actuator linking harness power the lights?

No. The linking harness carries power between light actuators; the lights require a separate power harness.

What happens to the extra lead on a 10-inch light bar with one actuator?

The extra lead on the pair harness can be tucked away.

How many pins does the single-lead rocker switch harness have?

It is a 3-pin harness.

Can the actuators be used with XL Linkable light bars?

No. The actuators are not compatible with XL Linkable light bars.

Which harness configuration controls two actuators in sync?

Choose the pair harness to power two actuators in sync. The single-lead harness can be paired with an actuator linking harness to control multiple actuators.

Why Baja Designs

Baja Designs offers the REFLEX actuator harness in single and pair configurations.

Choose a REFLEX Actuator Harness

Select the single or pair harness for your REFLEX actuator setup.
