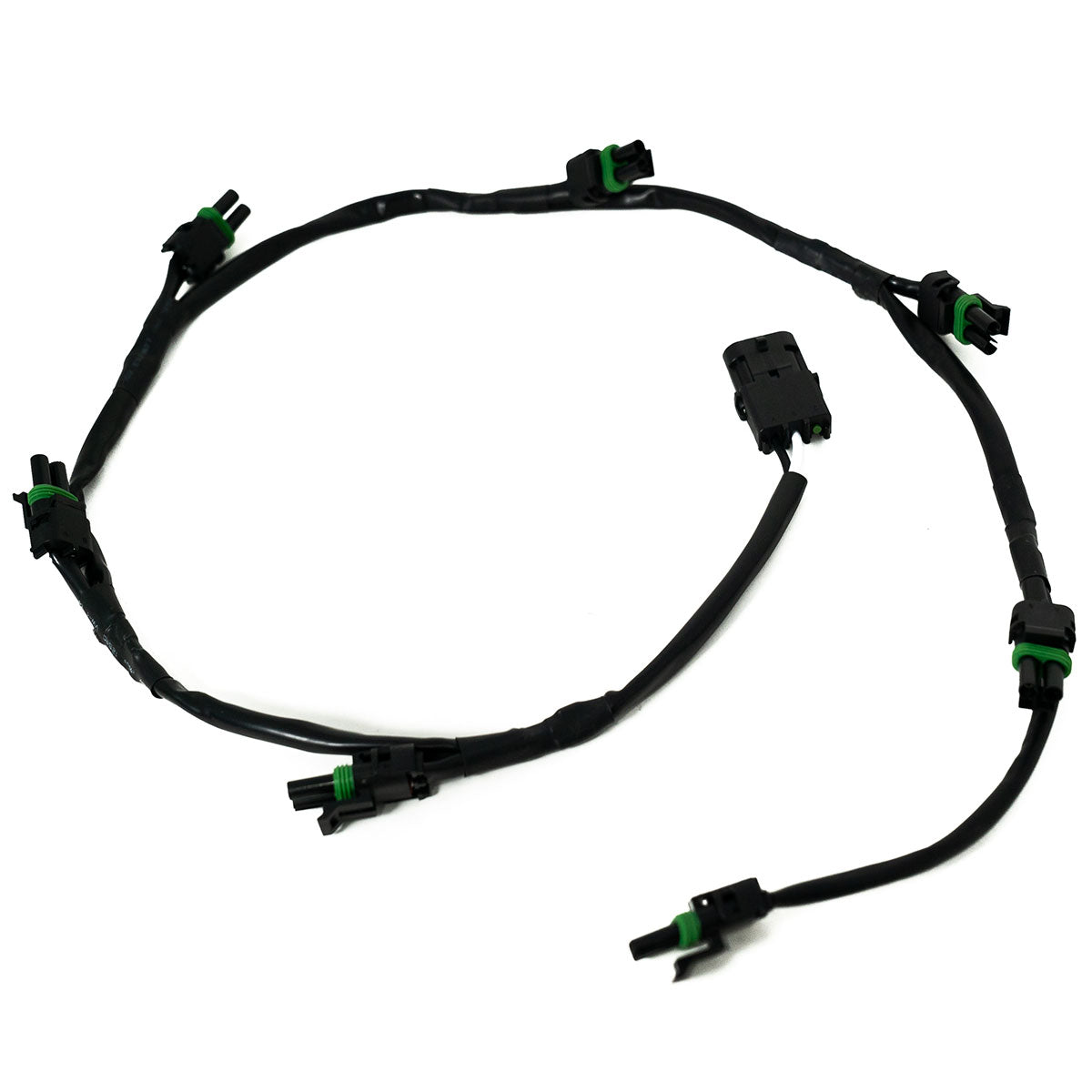

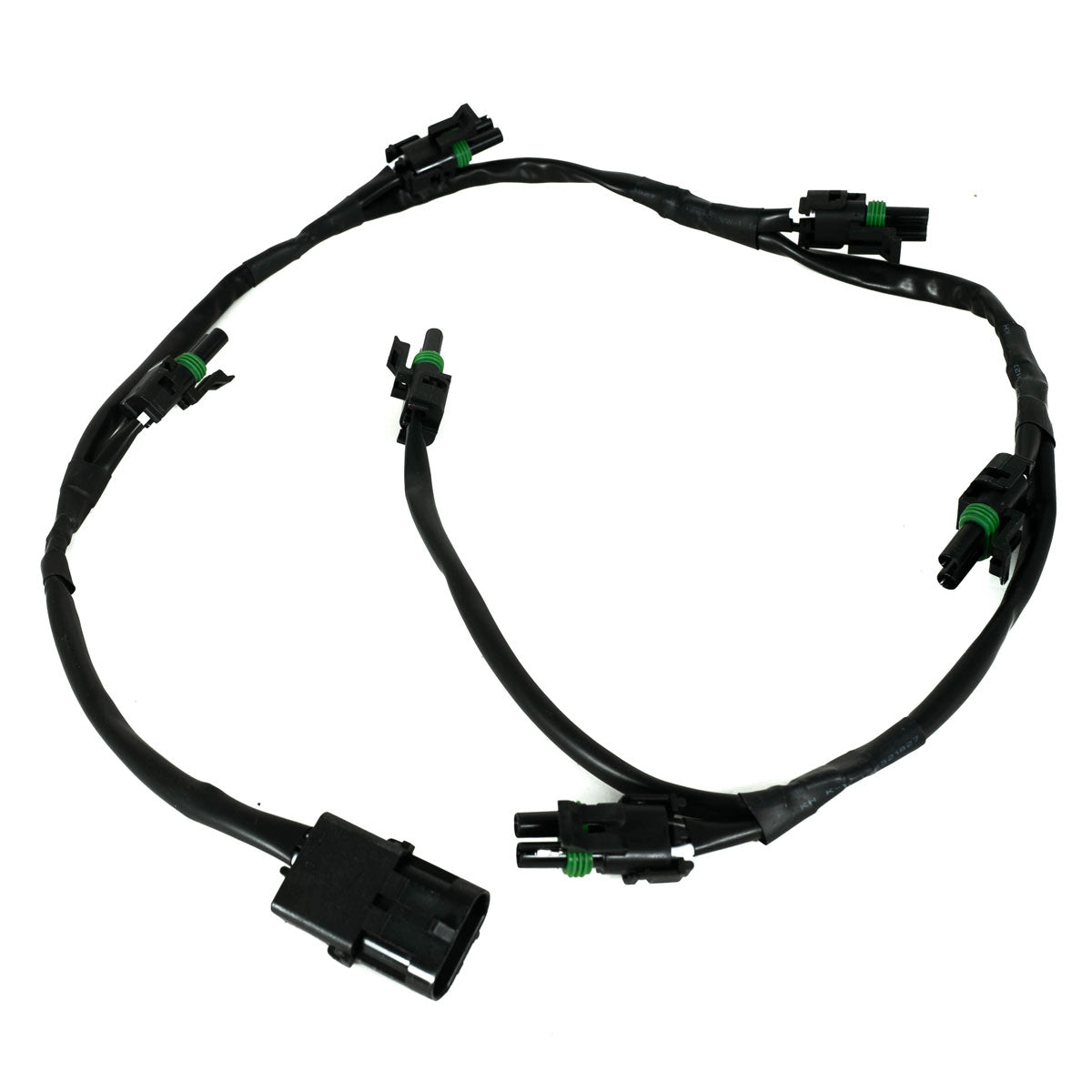

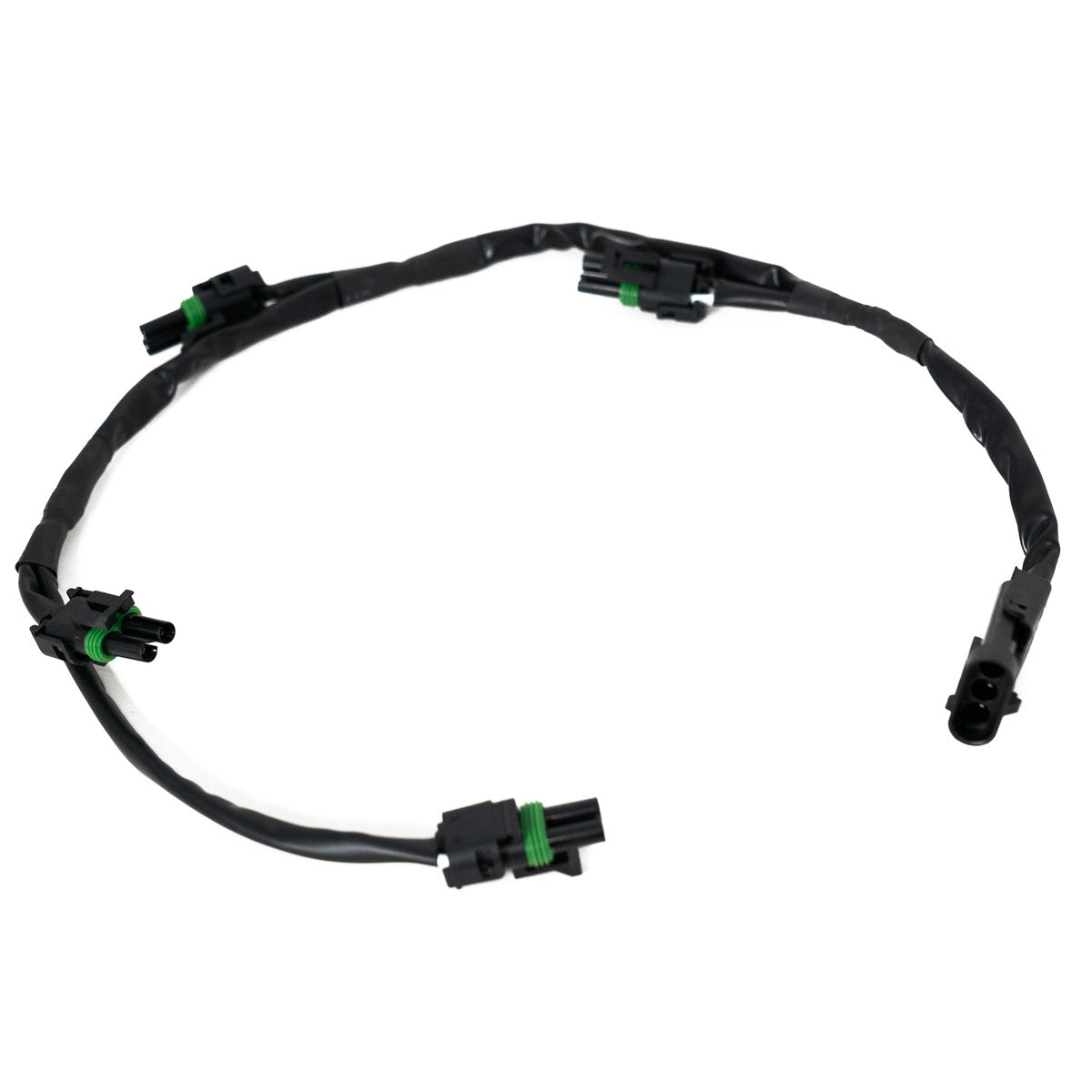

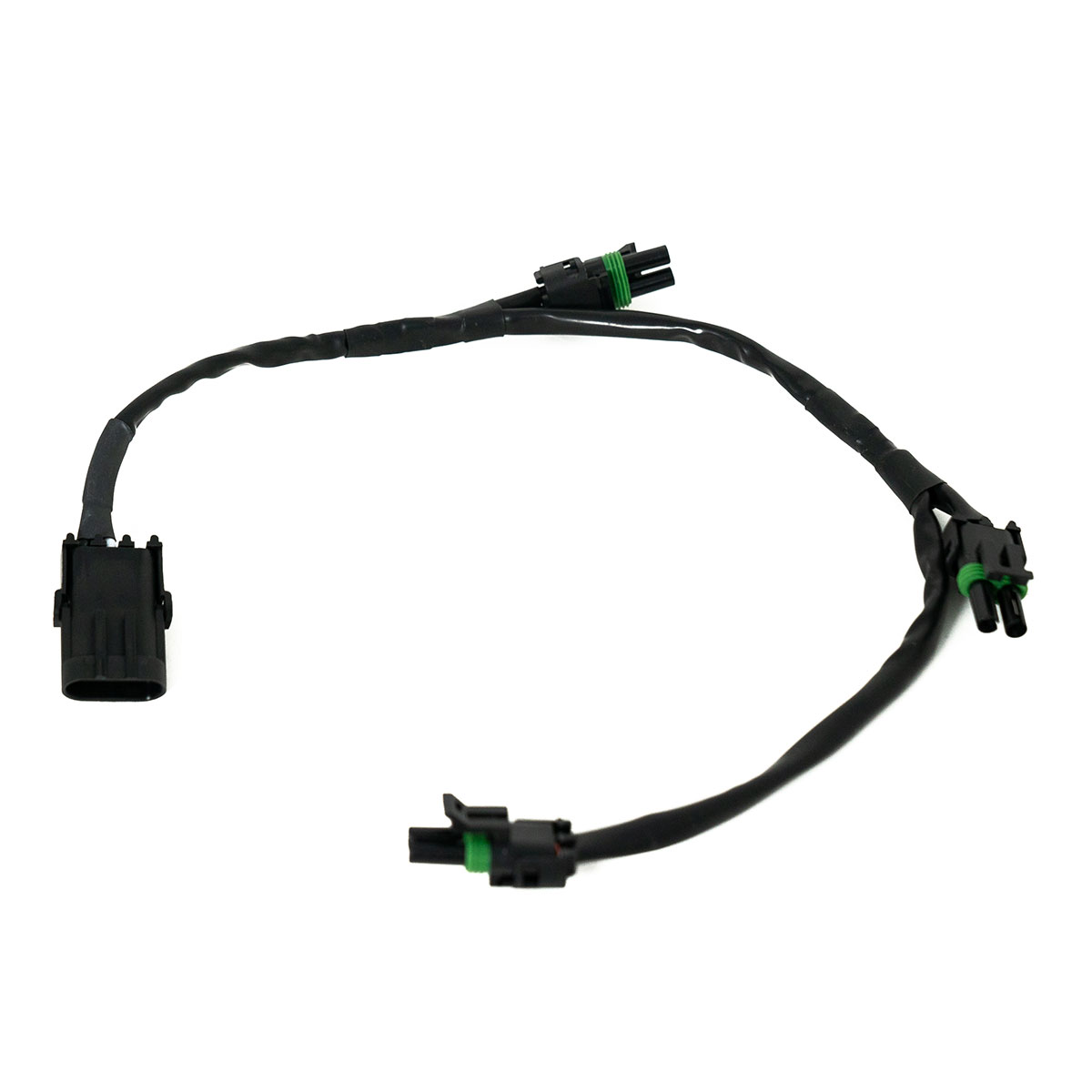

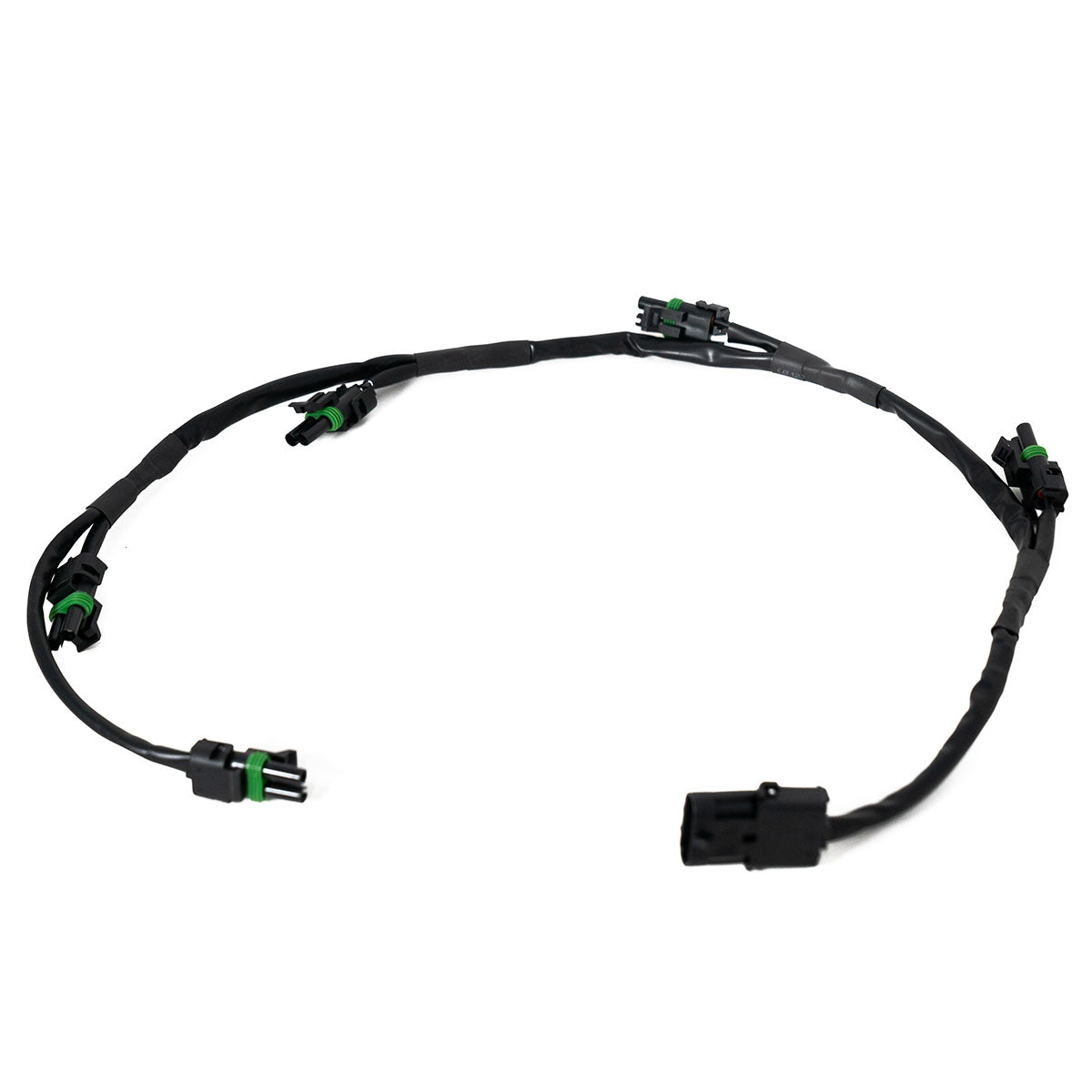

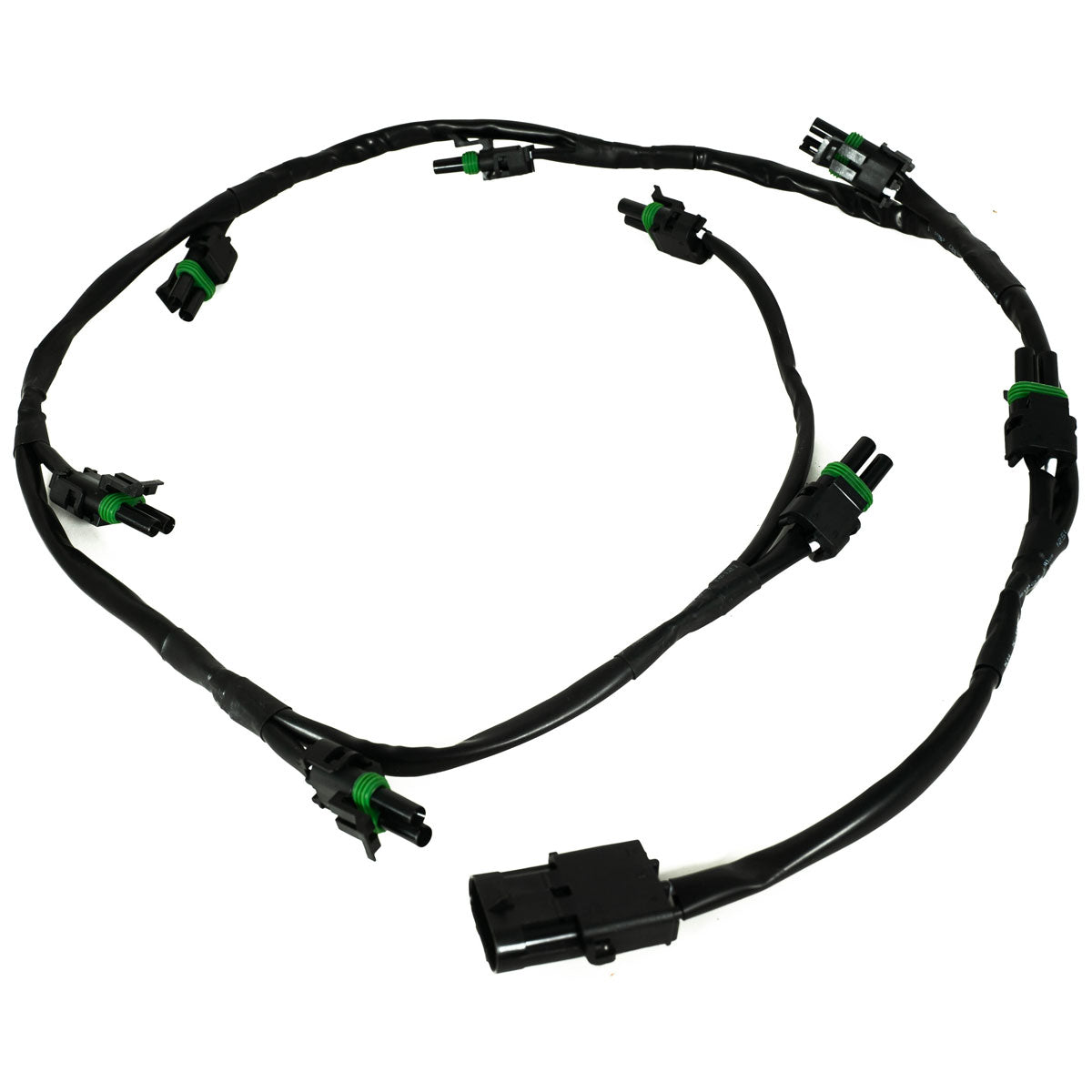

Baja Designs XL Linkable Wire Harness

Adding lights to an XL Linkable setup means choosing a harness with enough plugs for the intended light bar length. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs XL Linkable wire harness lets you add lights and customize an XL Sport or XL Pro Linkable light bar up to nine lights.

Key Features

• Adds lights to an XL Linkable setup
• Supports XL Sport and XL Pro Linkable light bars
• Harnesses with three through six plugs are shared by XL Sport and XL Pro
• Harnesses with seven through nine plugs are specific to XL Sport or XL Pro
• Supports a light bar length of up to nine lights

Built To Solve: XL Linkable Light Bar Expansion

• Choose a plug count for the intended XL Linkable light bar length.
• Add lights to an existing XL Linkable setup.
• Use the same harness for XL Sport and XL Pro at three through six plugs.
• Select the XL Sport or XL Pro-specific harness at seven through nine plugs.

Best For: XL Linkable Light Bar Builders

• XL Sport owners adding lights to a Linkable bar.
• XL Pro owners adjusting their Linkable bar length.
• UTV electrical builders choosing a harness by plug count.
• XL Linkable users planning a bar of up to nine lights.

Specifications

• Harness plug range: 3 to 9 plugs
• Maximum light bar length: Up to 9 lights
• Manufacturer part numbers: 640193 (3 Actuators), 640194 (4 Actuators), 640195 (5 Actuators), 640190 (6 Actuators), 640191 (7 Actuators), 640192 (8 Actuators)

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

How many lights can the harness support?

The XL Linkable light bar can be customized to a length of up to nine lights.

Does the three- through six-plug harness differ between XL Sport and XL Pro?

No. The three- through six-plug harness is shared by XL Sport and XL Pro.

How do I select a harness with seven or more plugs?

Choose the version specific to your XL Sport or XL Pro light bar.

Will this fit my machine?

Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

What is the manufacturer part number?

The manufacturer part number is 640193 (3 Actuators), 640194 (4 Actuators), 640195 (5 Actuators), 640190 (6 Actuators), 640191 (7 Actuators), 640192 (8 Actuators).

Why Baja Designs

Baja Designs offers XL Linkable harnesses with different plug counts for XL Sport and XL Pro light bars.

Choose an XL Linkable Harness

Select the plug count, where applicable, the XL Sport or XL Pro version for your light bar.
