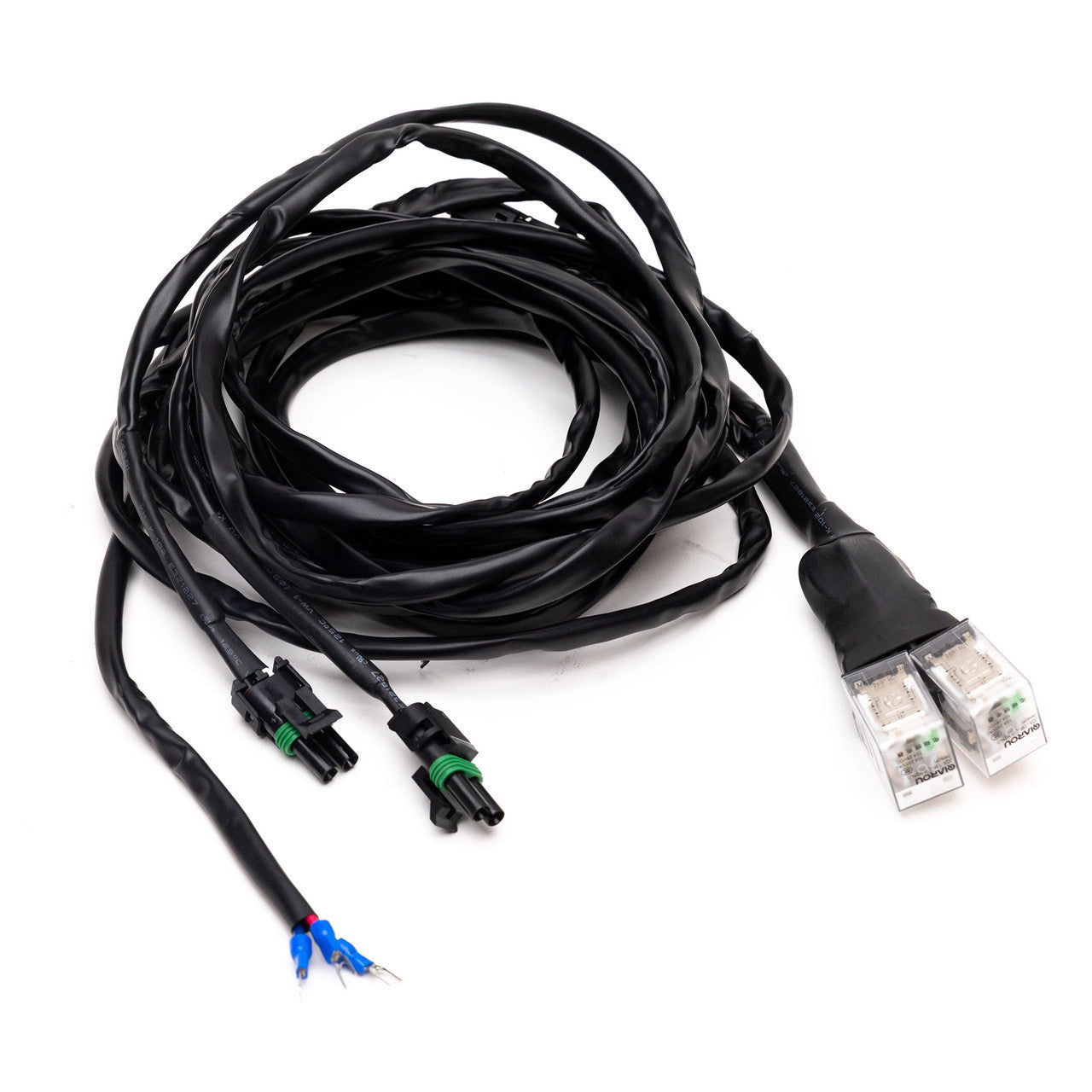

Baja Designs REFLEX Actuator Wiring Harness

Controlling REFLEX light actuators through a power management module requires a connection between the module and the actuators. The number of actuators also determines which harness arrangement to use. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs REFLEX actuator wiring harness connects actuators to a power management system so its control module can operate their up-and-down movement.

Key Features

• Control actuator movement through power management systems such as sPOD and Switch Pros
• Single-lead harness pairs with an actuator linking harness to control three to eight actuators
• Pair harness powers one or two actuators in sync
• Pair harness works with single and pair light setups, including light bars and A-pillar kits
• Extra pair-harness lead can be tucked away on a 10-inch light bar using one actuator

Built To Solve: REFLEX Light Actuator Control

• Route up-and-down actuator control through a power management module.
• Operate three to eight actuators together with the single lead and a separate linking harness.
• Power one or two actuators in sync with the pair harness.
• Tuck away the extra lead when a 10-inch light bar uses one actuator.

Best For: Riders Wiring REFLEX Light Actuators

• Builders using sPOD or Switch Pros for actuator control
• Owners wiring a single or pair light setup with one or two actuators
• Builders connecting three to eight actuators through a linking harness
• Owners setting up light bars or A-pillar lights with the pair harness

Specifications

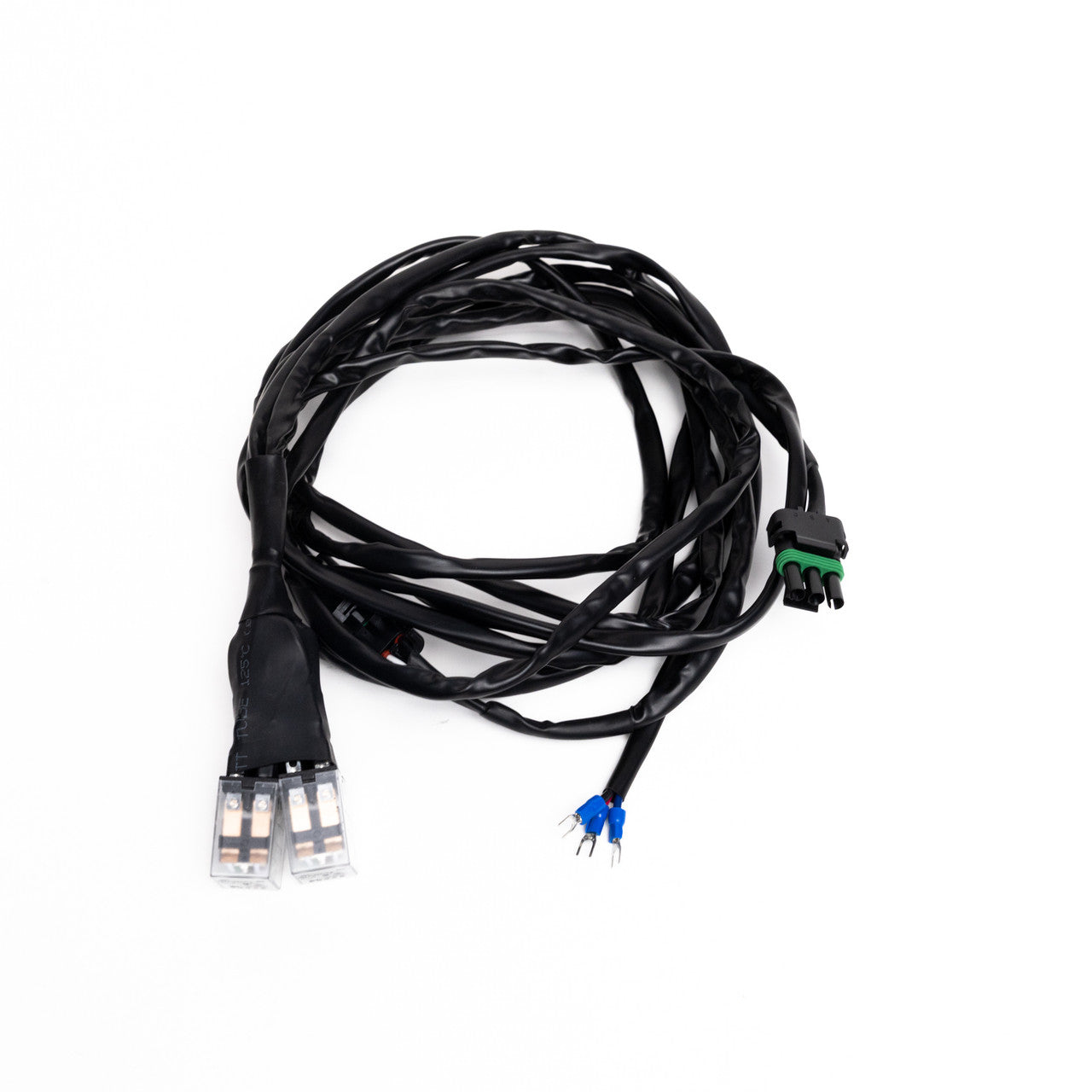

• Single harness connection: Single-lead, 3-pin
• Single harness actuator capacity: Three to eight actuators with an actuator linking harness
• Pair harness actuator capacity: One to two actuators in sync
• Manufacturer part numbers: 646304 (3+ Multi Light), 646305 (Single/Pair)

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Is the actuator linking harness sold separately?

The harnesses are sold separately. The single lead must be paired with an actuator linking harness to operate multiple actuators.

How does the single lead connect multiple actuators?

Pair the single lead with an actuator linking harness to power multiple actuators at the same time.

How many pins does the single-lead harness have?

The single-lead power management actuator harness has three pins.

What happens to the extra pair-harness lead on a 10-inch light bar?

When the light bar uses one actuator, the extra lead can be tucked away.

Which harness should I select for my actuator count?

Choose the single harness with a linking harness for three to eight actuators. Choose the pair harness for one or two actuators in sync.

Why Baja Designs

Baja Designs offers single-lead and pair REFLEX actuator harness configurations for different actuator counts.
