PV Solar Connectors for Solar Panel Extension Cable Wire
PV Solar Connectors for Solar Panel Extension Cable Wire
Regular price
$7.99 USD
Regular price
Sale price
$7.99 USD
Unit price
/
per
Couldn't load pickup availability
Solar Connectors are the industry standard for connecting photovoltaic panels for safe operation. The connectors are specially designed with a watertight seal (if installed with the correct cable) and coated with a UV resistant coating. Our solar connectors feature a 'male' and 'female' end for straightforward installation.

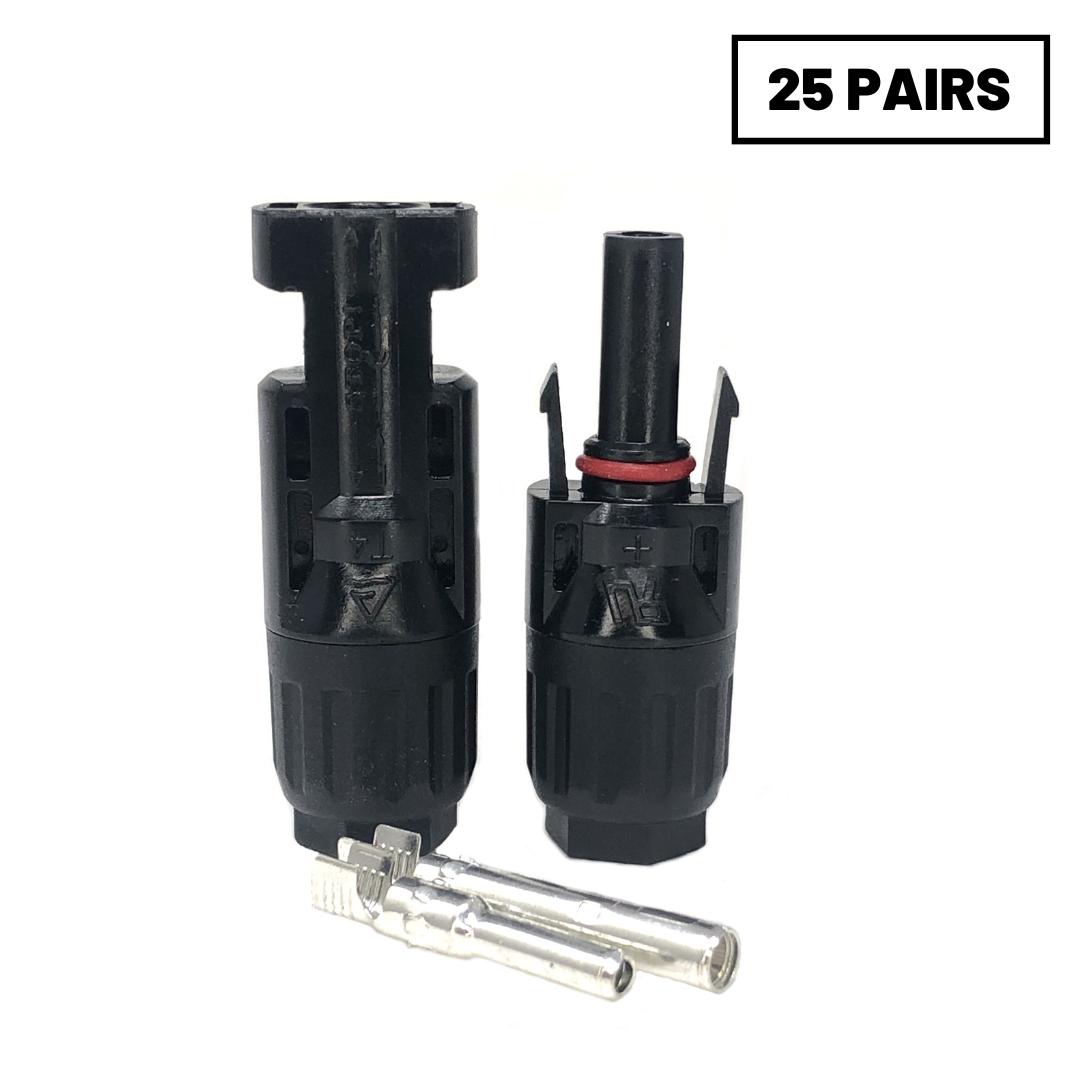

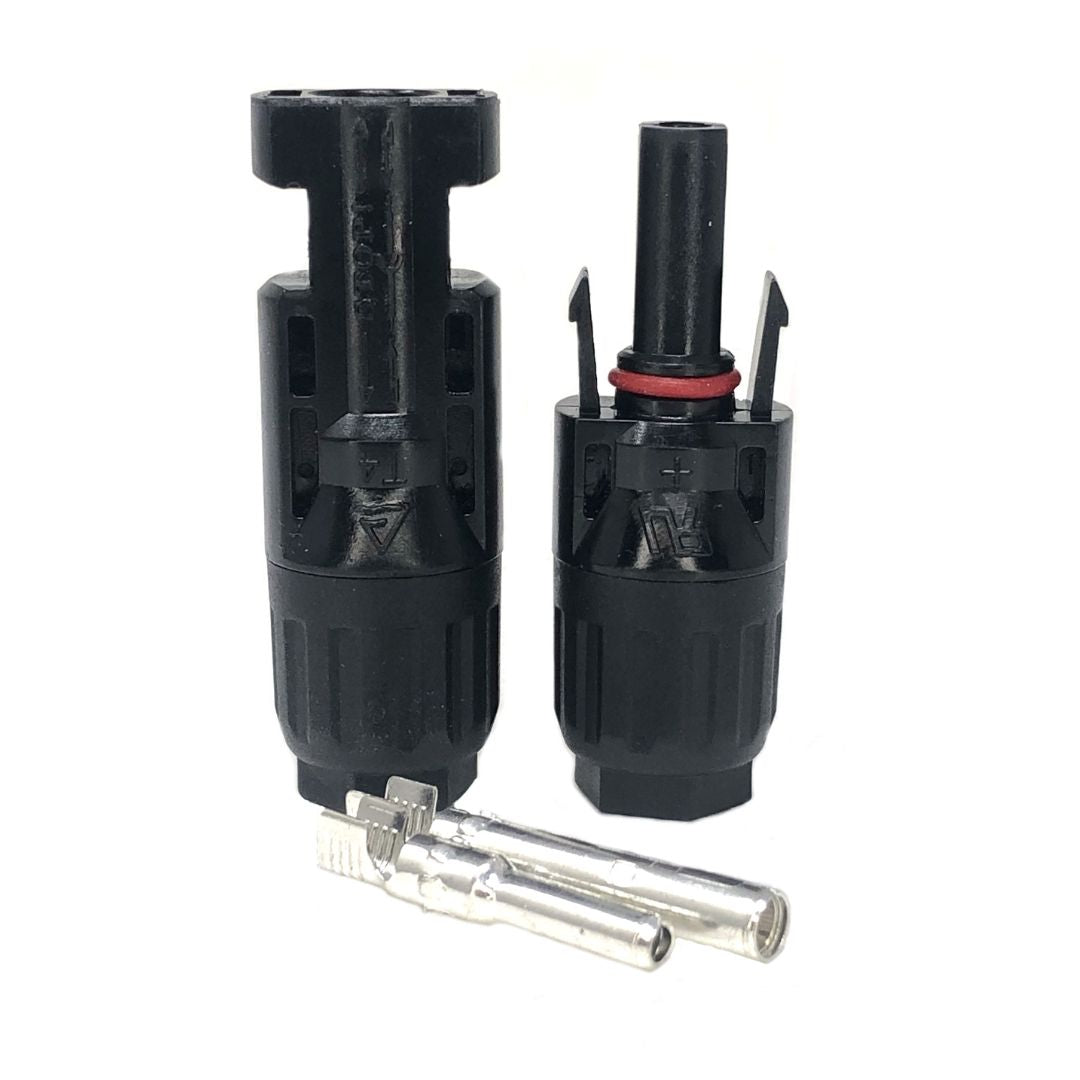

- Includes 1 piece male solar connector and 1 piece female solar connector
- Compatible with all solar connectors
- Designed for outdoor use on solar panel systems
- Waterproof and dustproof
Technical Specifications
| Rated Current | 30A |
| Maximum Voltage | 1000 VDC (600 VDC UL) |
| Protection Class | Class II |
| Contact Resistance | < 0.5 milli ohms |
| Temperature Range | - 40?C to +90?C |
| Protection Degree | IP67 IP2X (unmated) |
| Wire Size Range | 10, 12, and 14 AWG (6 mm2, 4 mm2, and 2.5 mm2) |
| Insulation Material | PA/PC |
| Flame Class | UL94-VO, UL94-VA |
| Contact Material | Silver Plated Copper |
| Certifications | TUV |
