Puck Lights Kit

The same puck lights we use in our custom builds, packaged for your own installation. Aluminum housings snap into a standard 2.125"/54mm cutout and connect to the included 6-port distributor via Dupont connector.

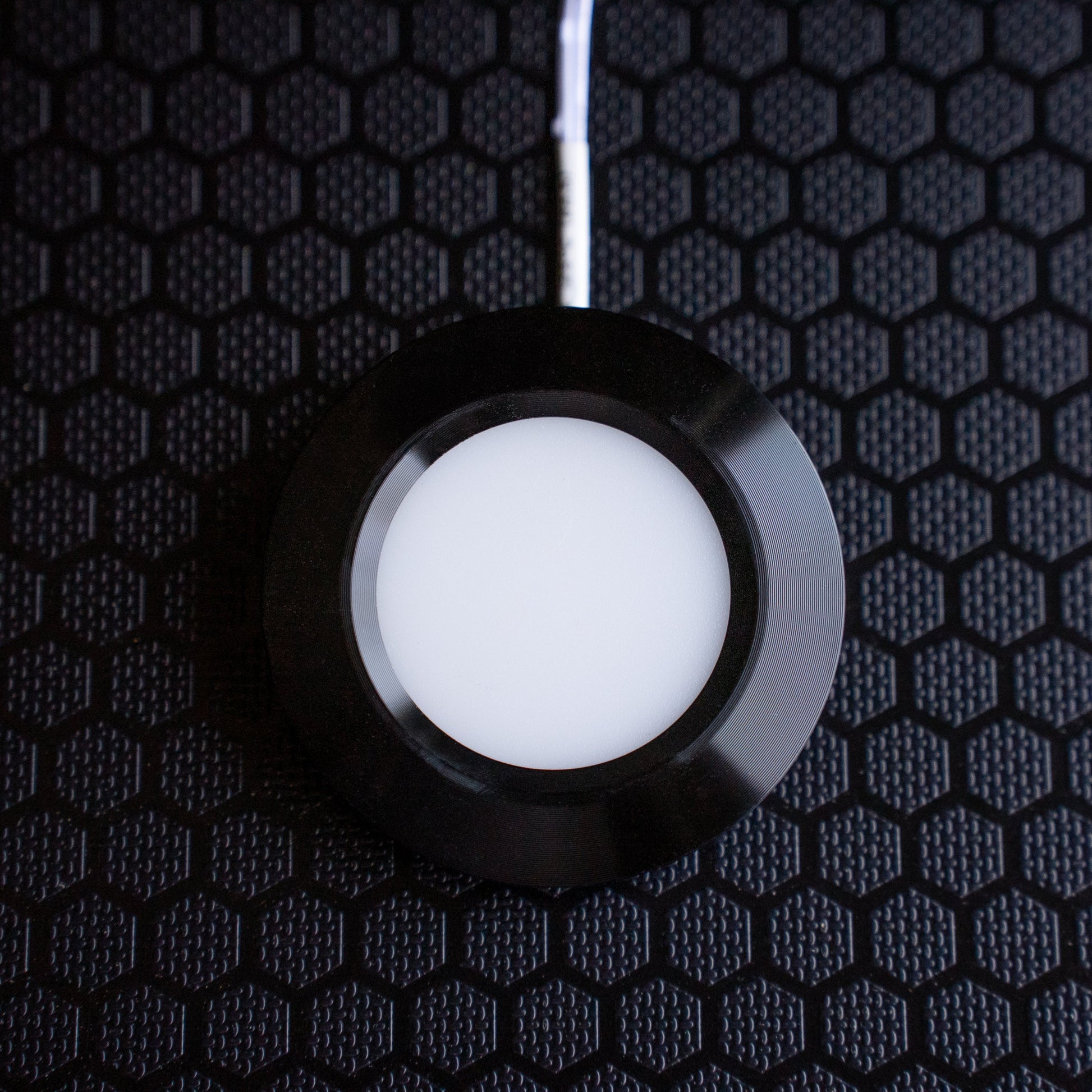

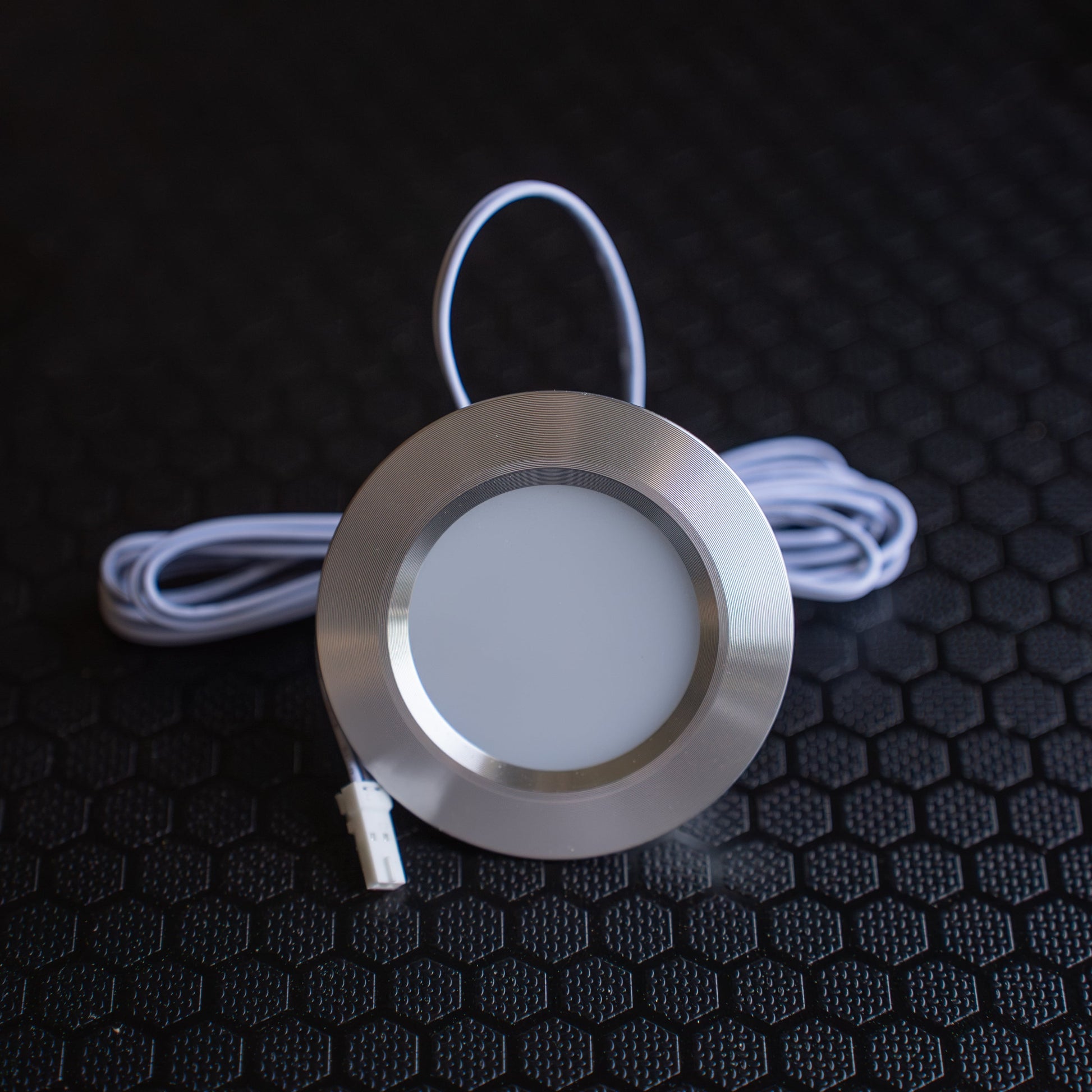

Available in brushed aluminum or black aluminum.

Specs

Puck Lights:

• Color temperature: 4000K natural white
• Lumen output: 200LM per puck

• Power: DC 12V, 3W per puck (~0.25A)

• Puck dimensions: 70mm diameter (casing) × 13mm depth

• Cutout (slotting) size: 2.125"/54mm
• Wire length: 5.5 ft per puck

• Material compatibility: clips into panels 0.08" - 1" thick

• Connector: Dupont

• IP rating: IP20 (interior use only)

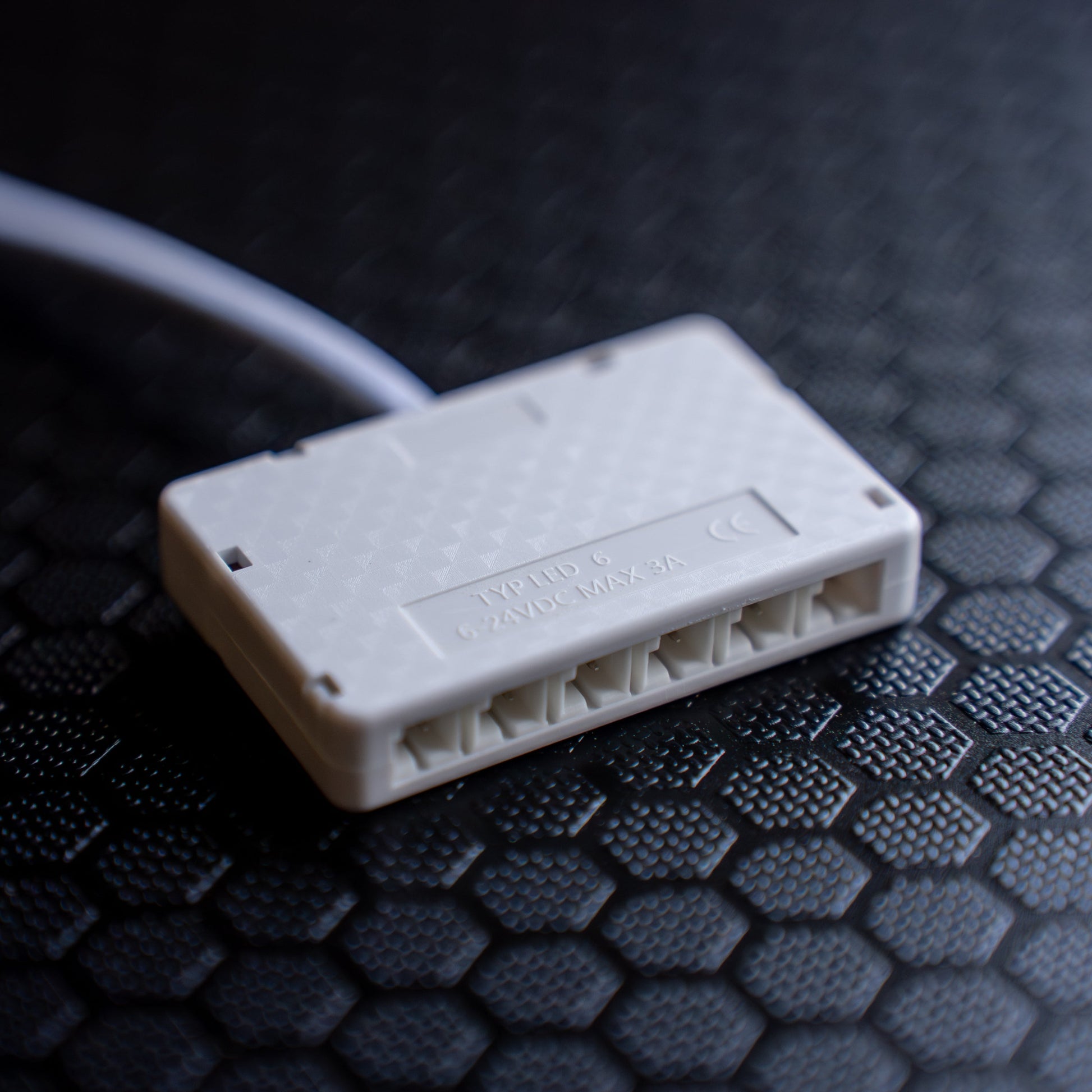

Distributor:

• Drives up to 6 pucks from a single connection point

• Dimensions: 60×38×11mm

• Lead wire: 14cm

• Connector: Dupont

• Material: PC + Electronic Components

• Two ballasts can be spliced to share a single switch

• Wago lever nuts included for splicing

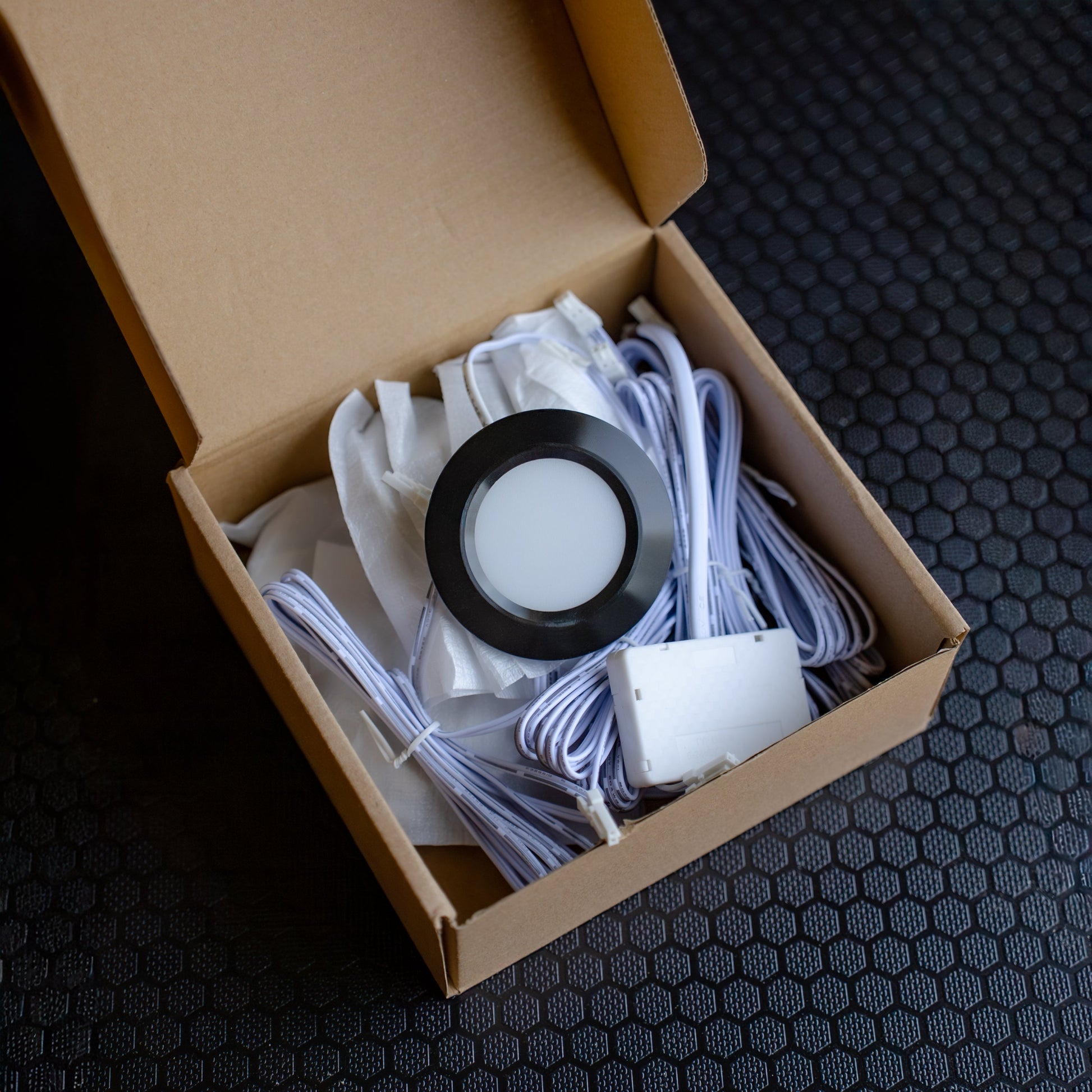

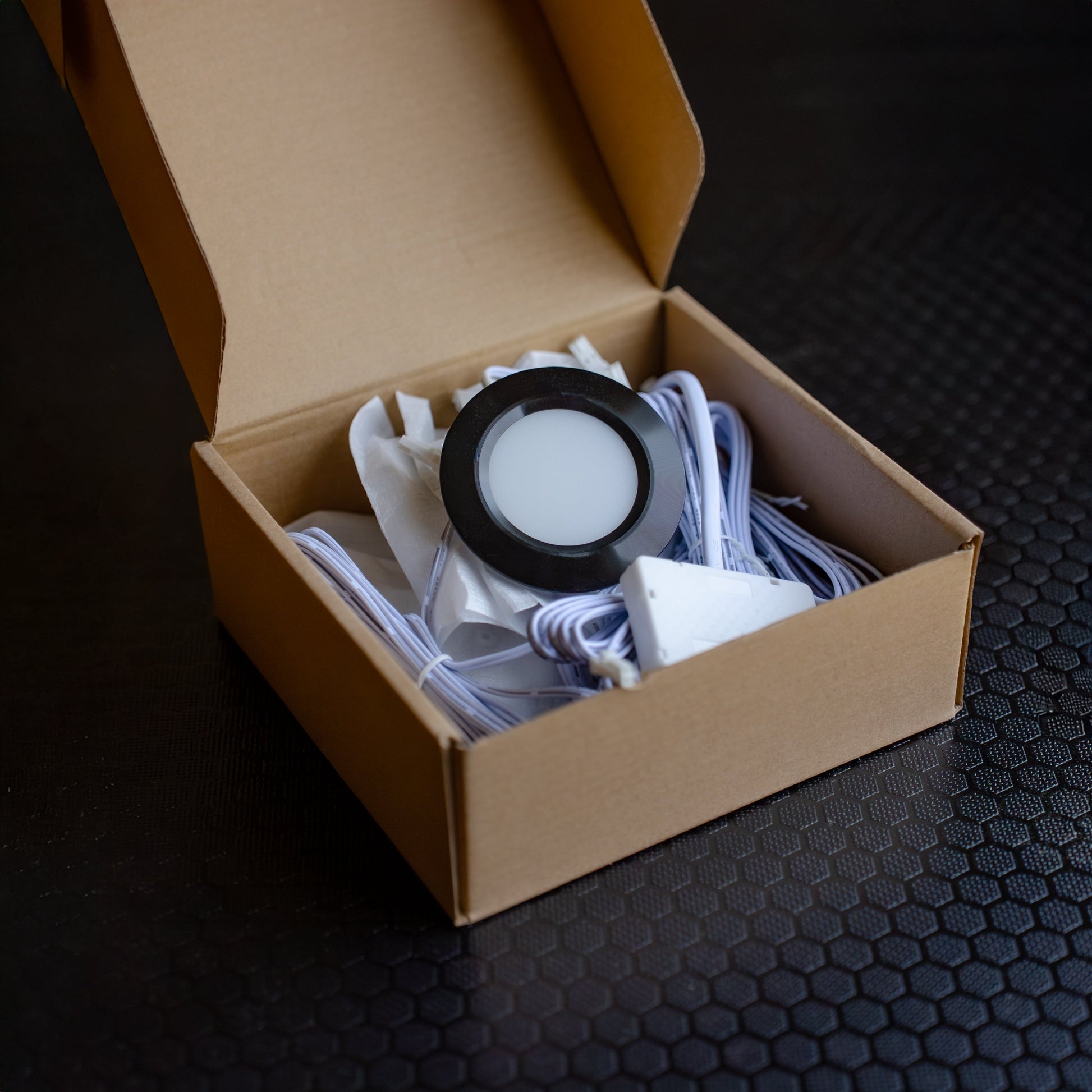

What's included

• 6 puck lights
• 1 six-port distributor

Note: Dimmers not included - sold separately in our Dimmer Kit.
