DRT Motorsports Polaris RZR XP 1000 Radius Rods (2014–2023)

The factory radius rods on a Polaris RZR XP 1000 lack the hex-bar wrench surface this kit uses for rear suspension adjustment. Listed for: Polaris RZR XP 1000 2014 - 2023; Polaris RZR XP 4 1000 2014 - 2023; Polaris RZR XP 4 Turbo 2014 - 2023; Polaris RZR XP Turbo 2014 - 2023. Fitment is not guaranteed on unlisted applications. These DRT Motorsports UTV suspension parts replace the factory rear radius rods with adjustable hex bars. Left- and right-hand rod ends allow camber and link adjustments, while the center section gives a wrench a flat surface for adjustment and lockup.

Key Features

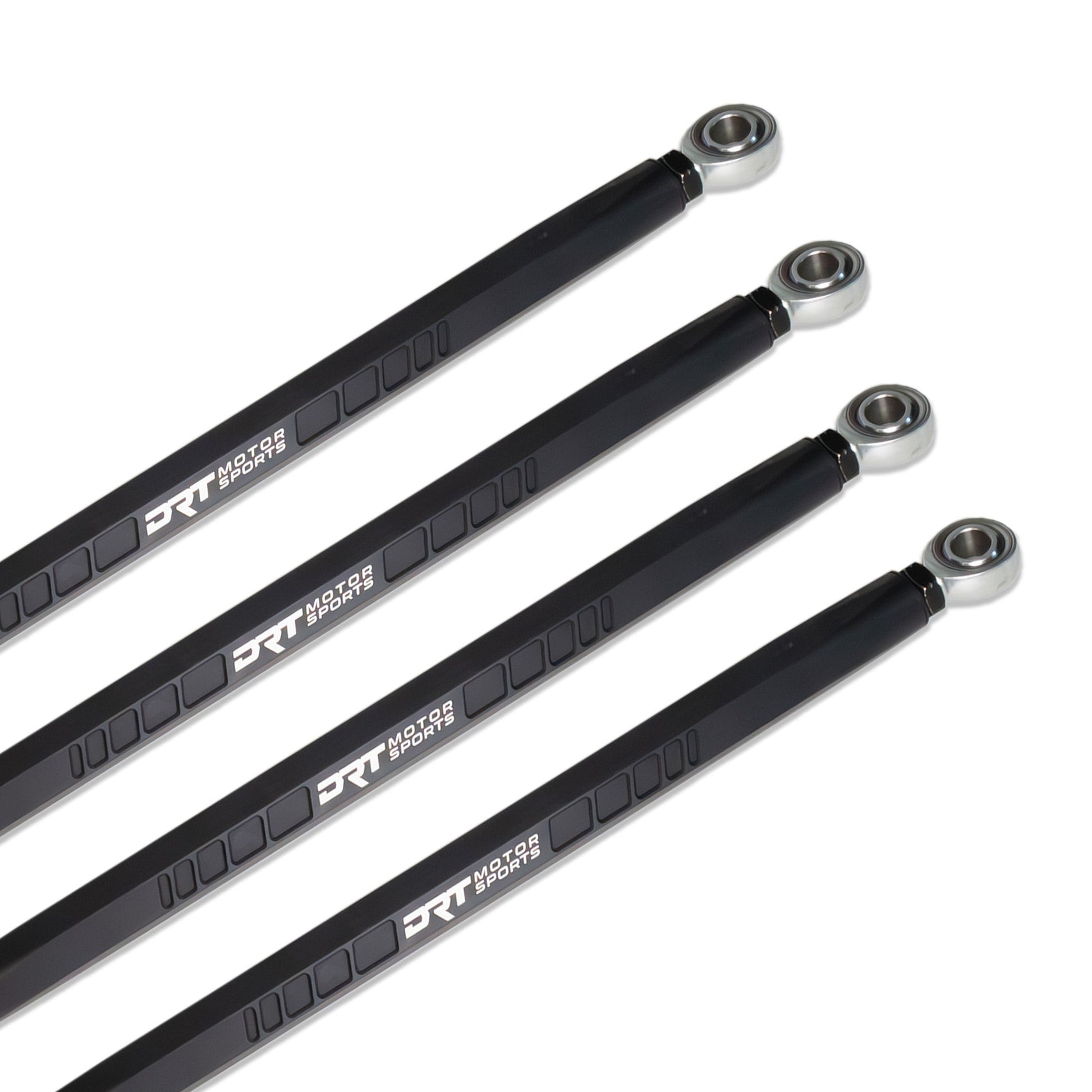

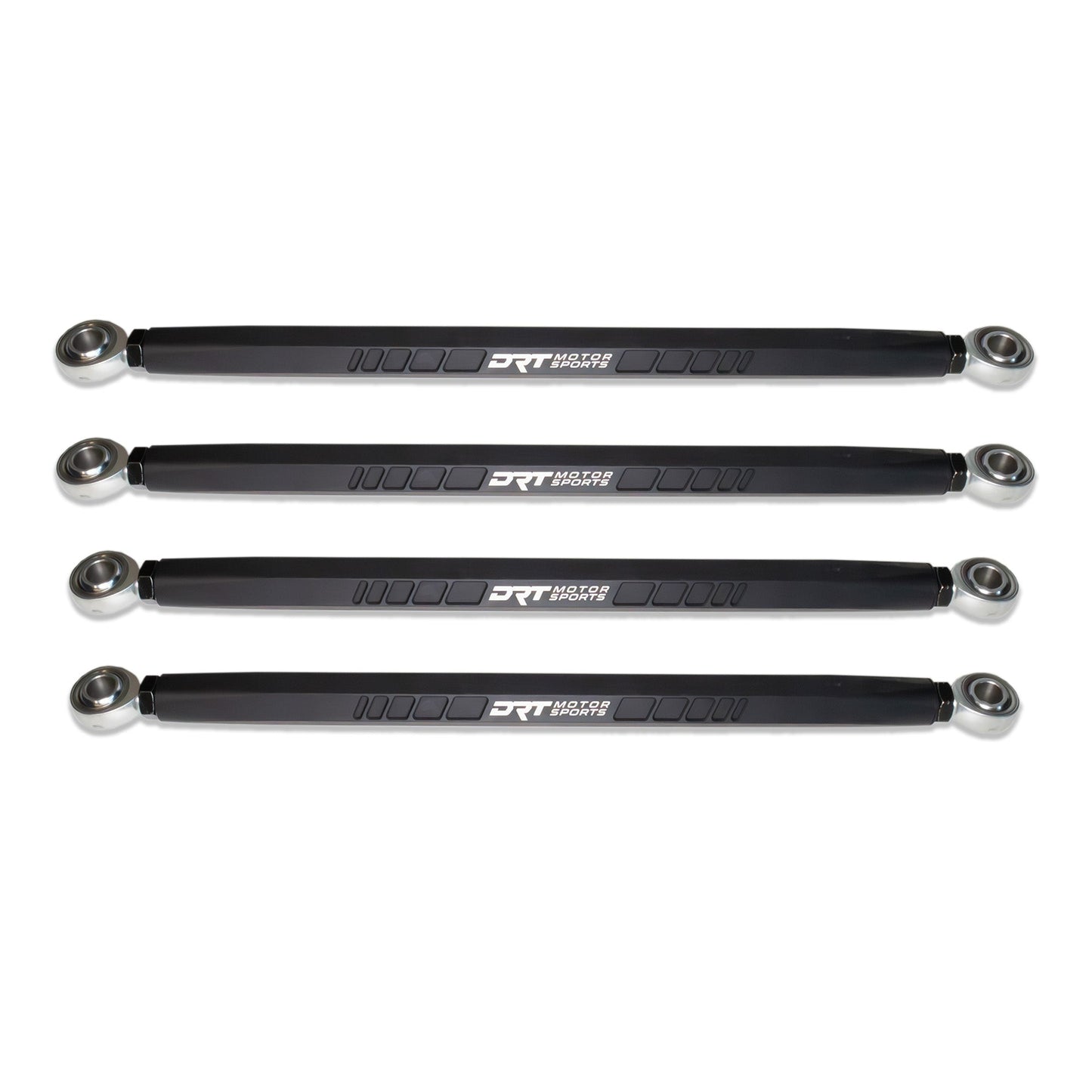

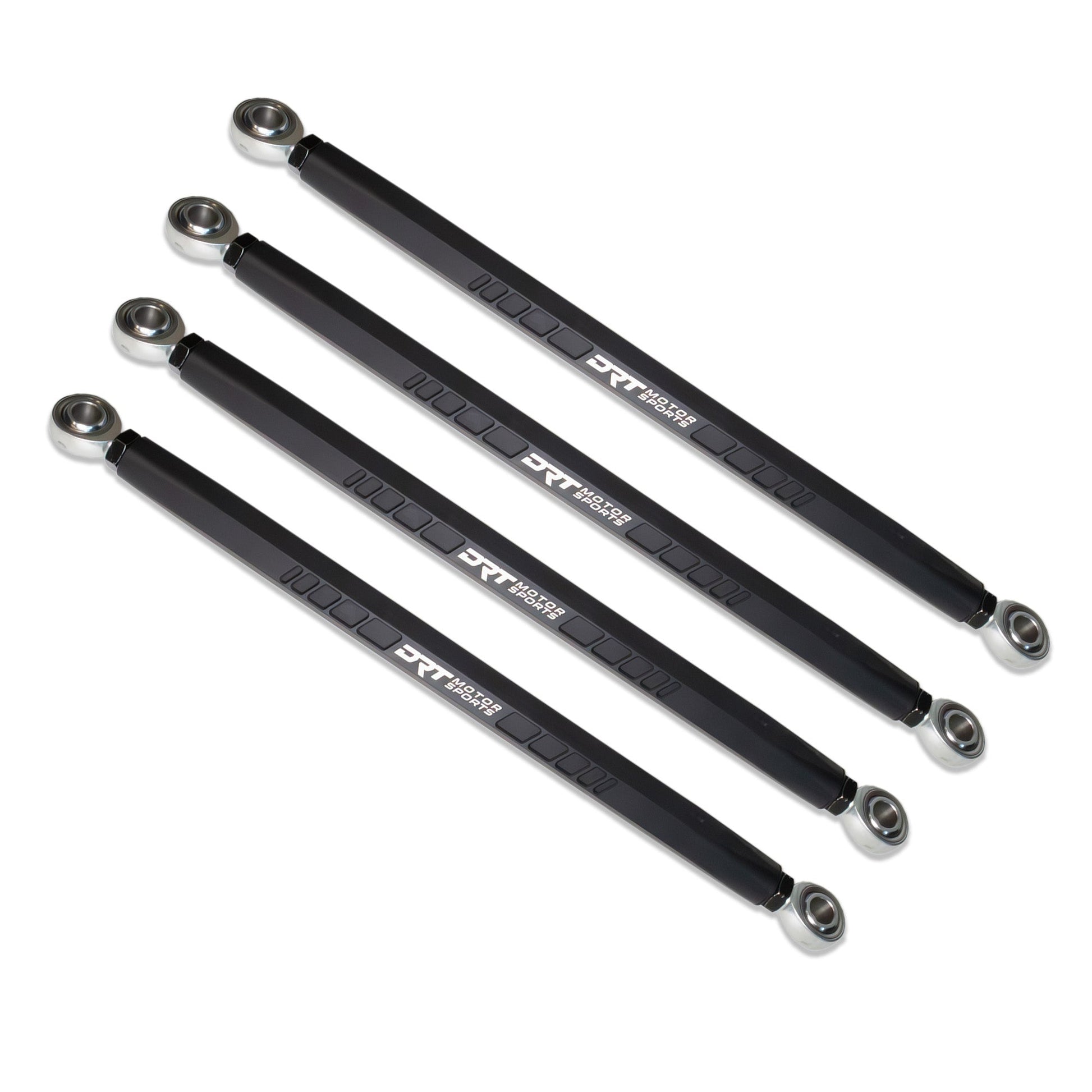

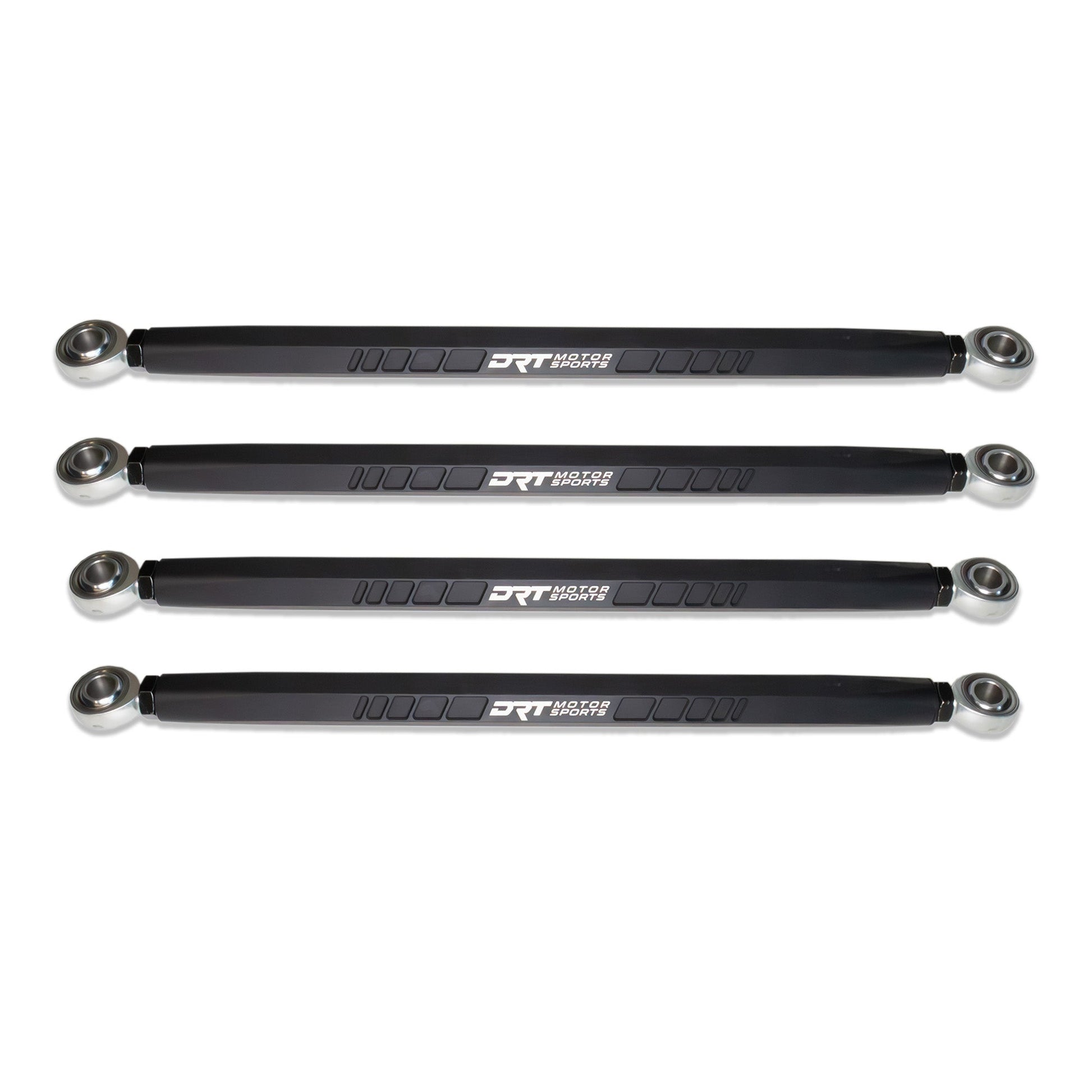

• CNC-machined 6061-T6 aluminum radius rods
• Left- and right-hand rod ends for camber and link adjustment
• Hex-bar center section provides a wrench surface
• PTFE-lined 5/8-inch rod ends
• 303 stainless steel spacers
• Anodized finish with machined pockets and laser engraving

Built To Solve: RZR XP 1000 Rear Suspension Adjustment

• Use the hex-bar center section as a wrench surface for adjustment and lockup.
• Fine-tune camber and links with left- and right-hand rod ends.
• Replace the factory rear radius rods with CNC-machined aluminum rods.
• Use M10 or M12 hardware according to the vehicle setup.

Best For: Polaris RZR XP 1000 Riders Adjusting Rear Suspension

• RZR XP 1000 owners replacing factory rear radius rods.
• 64-inch XP1K and Turbo riders who want a hex-bar wrench surface.
• Owners who adjust camber and rear suspension links.
• Riders maintaining jam nuts and checking their position before each ride.

Specifications

• Rod material: CNC-machined 6061-T6 aluminum
• Rod end size: 5/8 inch
• Spacer material: 303 stainless steel
• Finish: Military specification anodized coating
• Hardware sizes: M10 and M12
• Manufacturer part numbers: 20010RR03201

What's in the Box

• Adjustable hex-bar radius rods
• PTFE-lined 5/8-inch rod ends

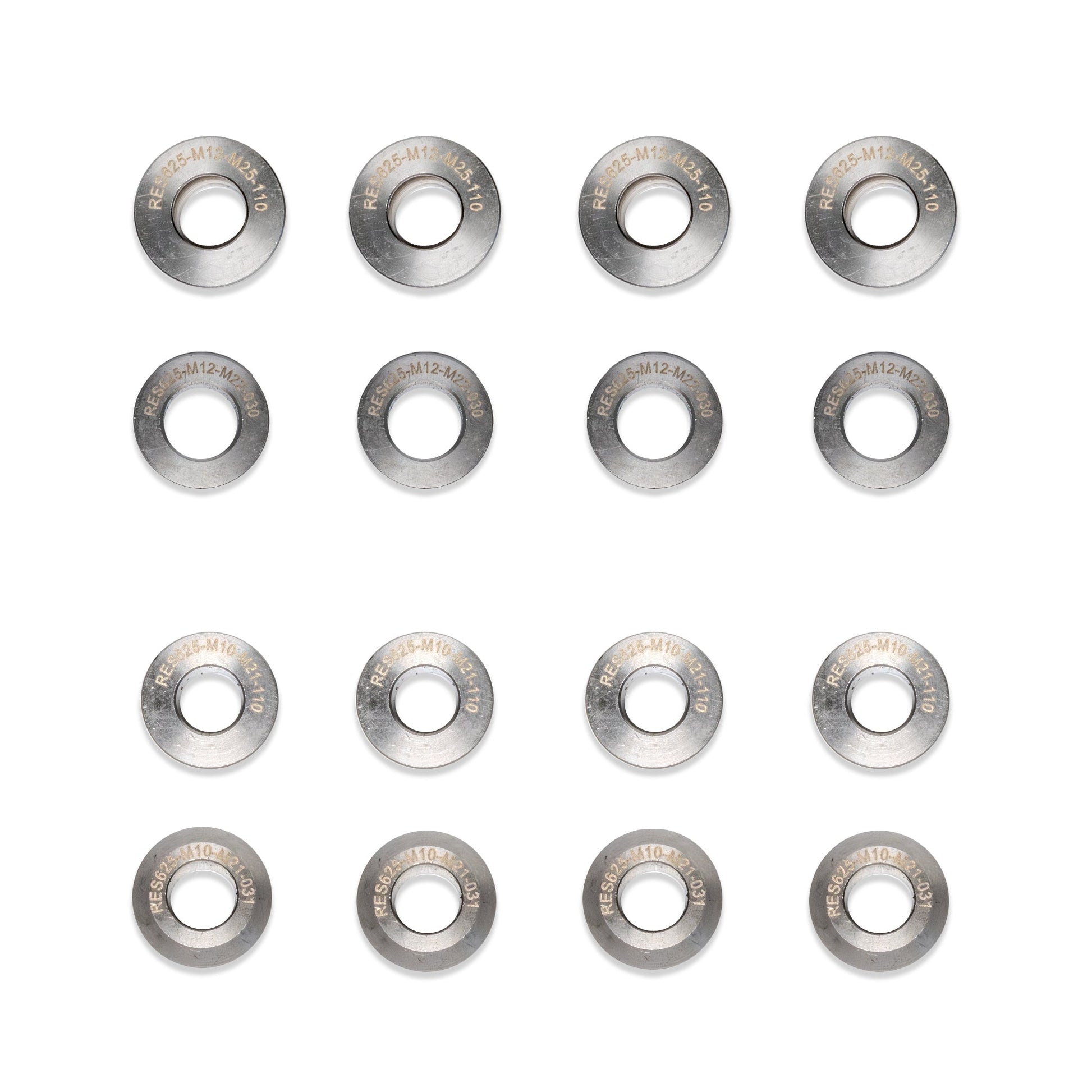

• 303 stainless steel spacers
• M10 and M12 hardware sets

Fitment

• Polaris RZR XP 1000 2014 - 2023
• Polaris RZR XP 4 1000 2014 - 2023
• Polaris RZR XP 4 Turbo 2014 - 2023
• Polaris RZR XP Turbo 2014 - 2023

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

What is required to use the M12 spacer on an M10 vehicle?

The chassis-side conversion requires drilling and purchasing new hardware.

How should the jam nuts be installed?

Use thread locker on the jam nuts. Paint marking them is also recommended so movement is easier to spot.

How do I choose between the M10 and M12 hardware sets?

Check the hardware size on your vehicle before selecting a set. The kit addresses M10 and M12 applications on early and later vehicles.

What size are the rod ends?

The rod ends are 5/8 inch and PTFE-lined.

What maintenance do the jam nuts require?

Check them regularly and inspect them before each ride.

Why DRT Motorsports

DRT Motorsports uses a hex-bar center section and left- and right-hand rod ends on this radius rod kit to make rear suspension adjustment accessible.

Replace RZR XP 1000 Rear Radius Rods

Order DRT Motorsports radius rods for your 64-inch Polaris RZR XP setup from Dunes 2 Dezert SXS.
