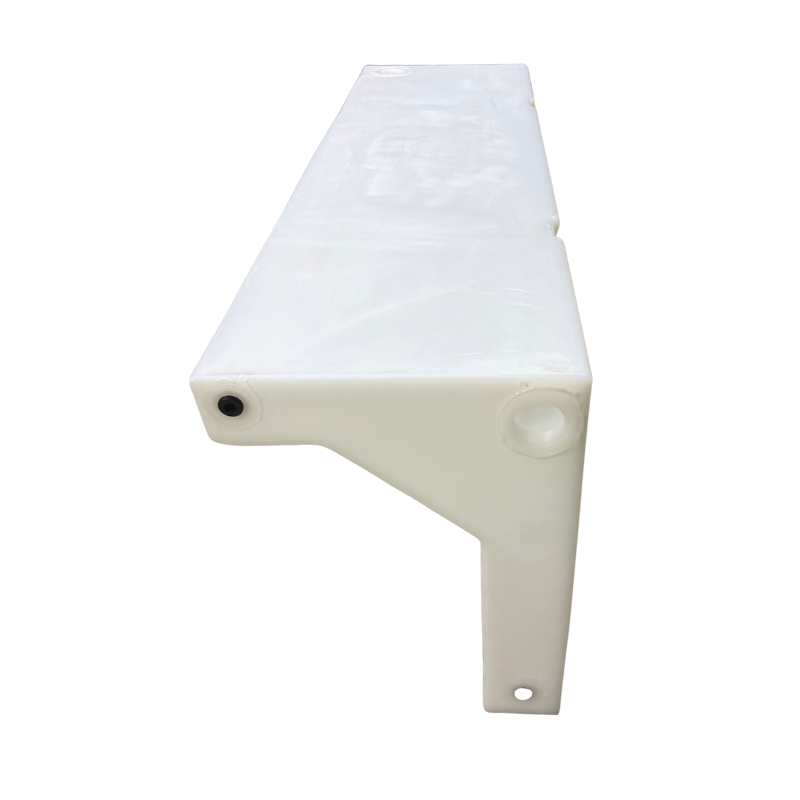

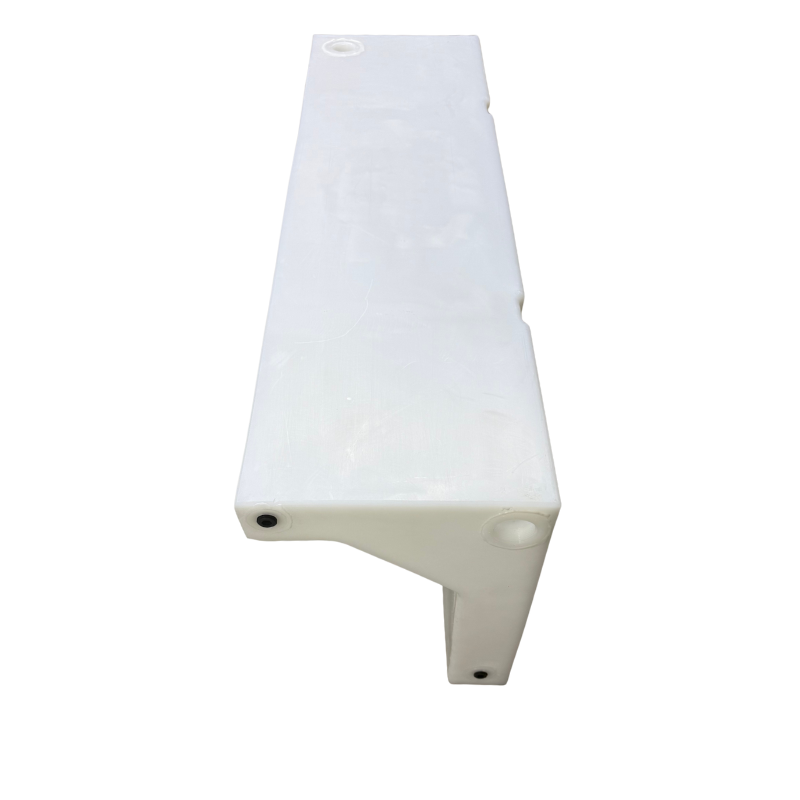

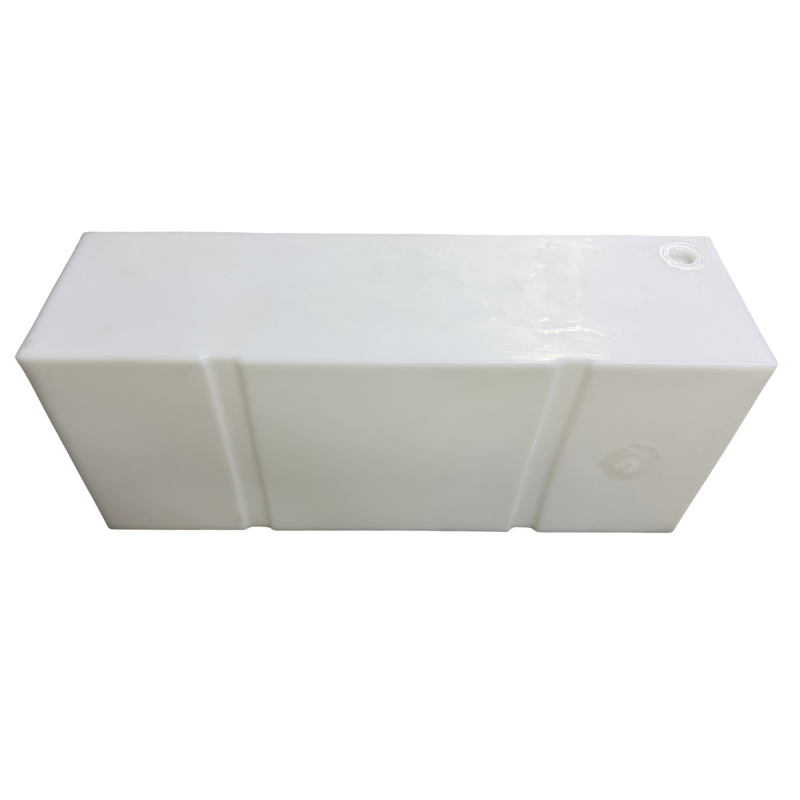

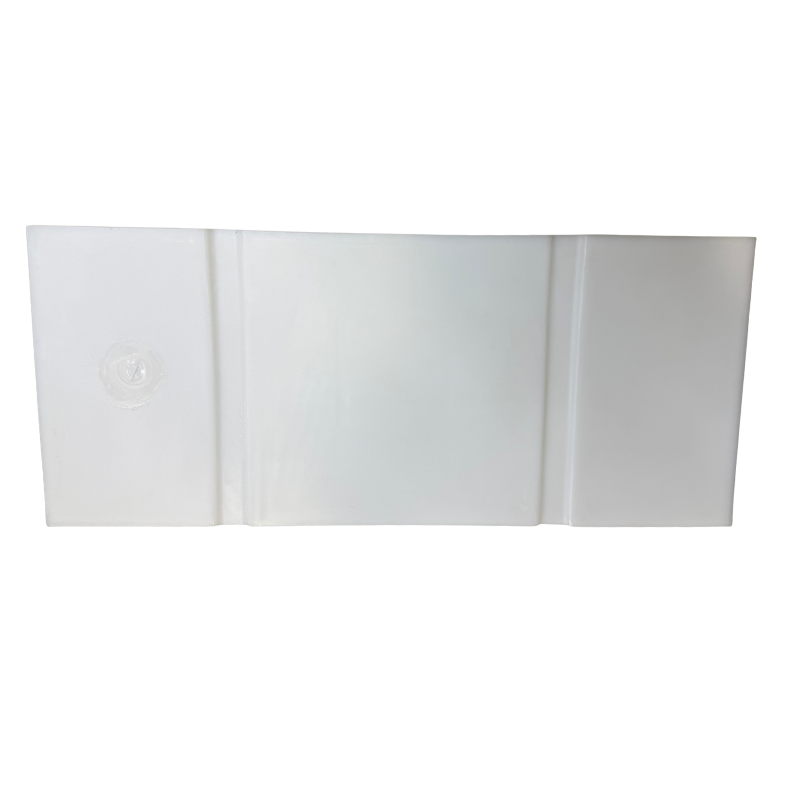

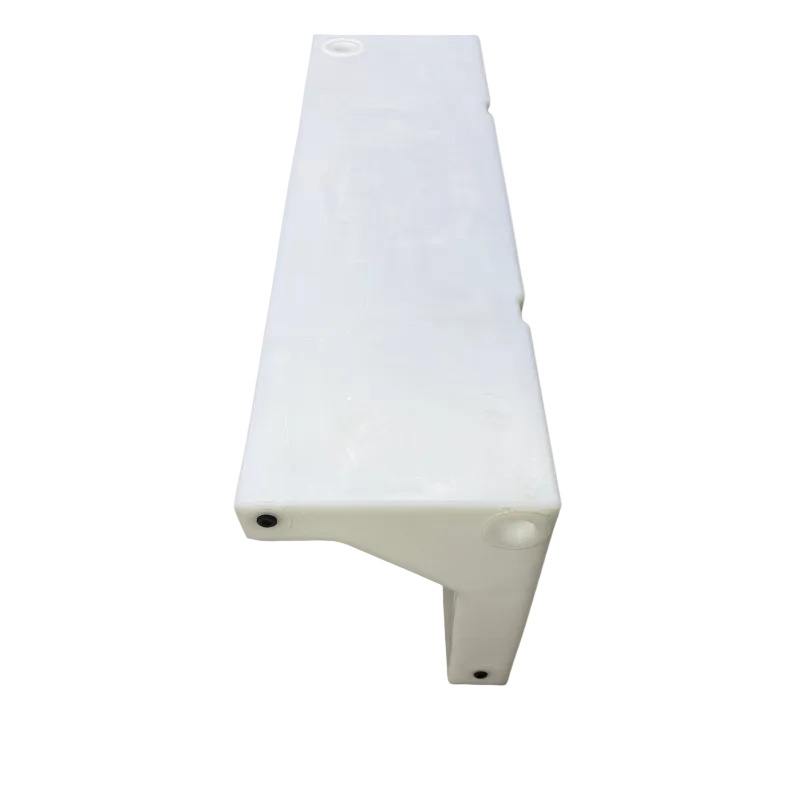

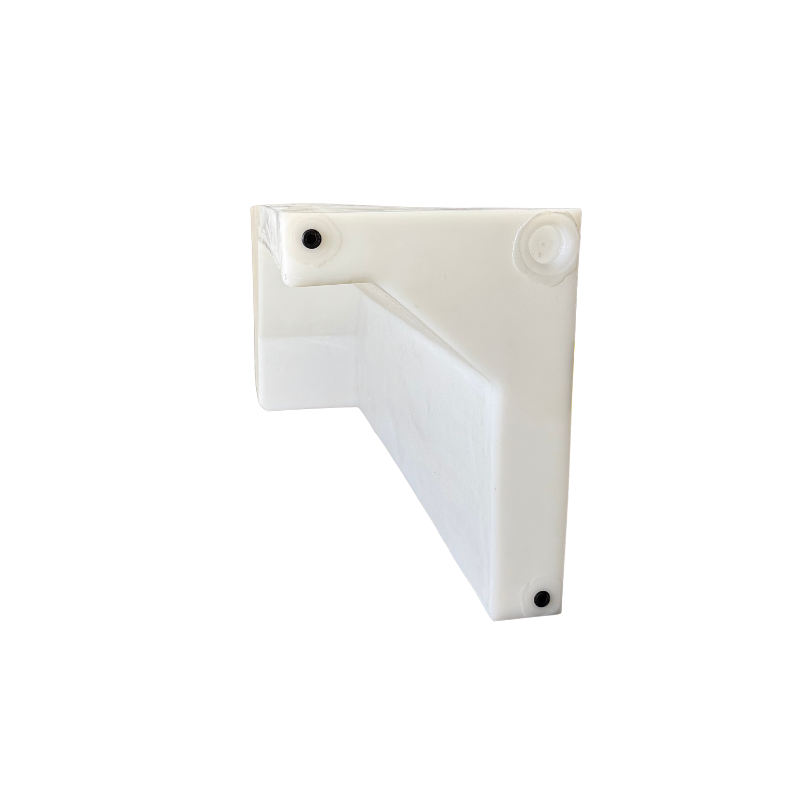

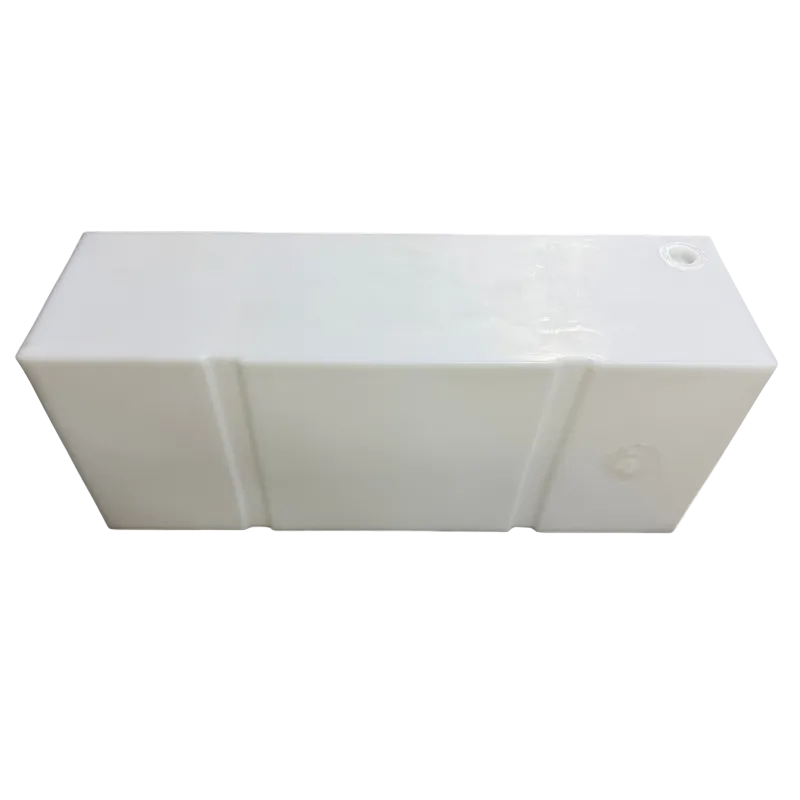

Designed specifically for the passenger side of the Ram ProMaster, this tank contours directly over the right-side wheel housing, making it ideal for builds with galley or cabinet systems on the passenger side.
Features
Specifications

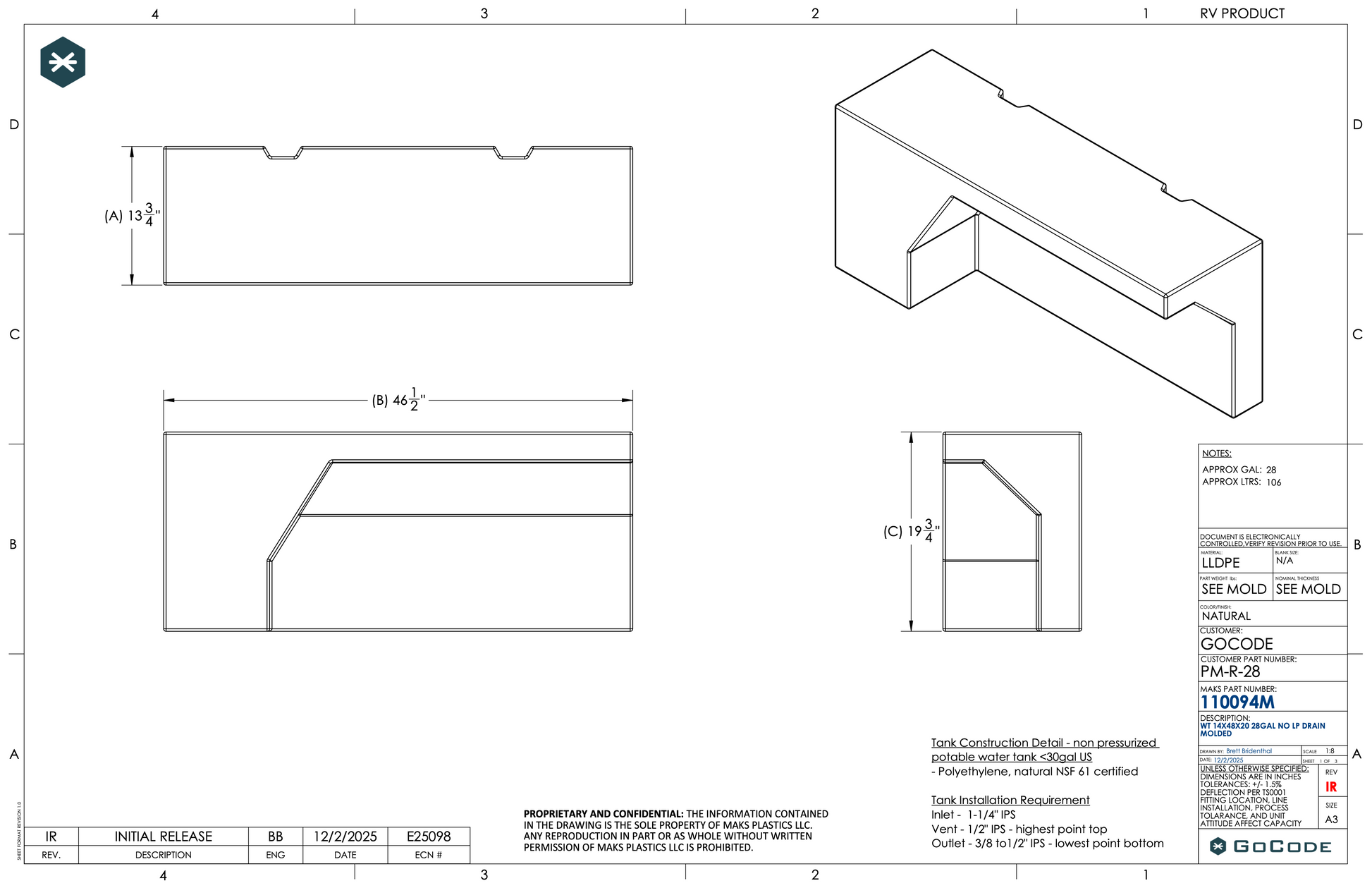

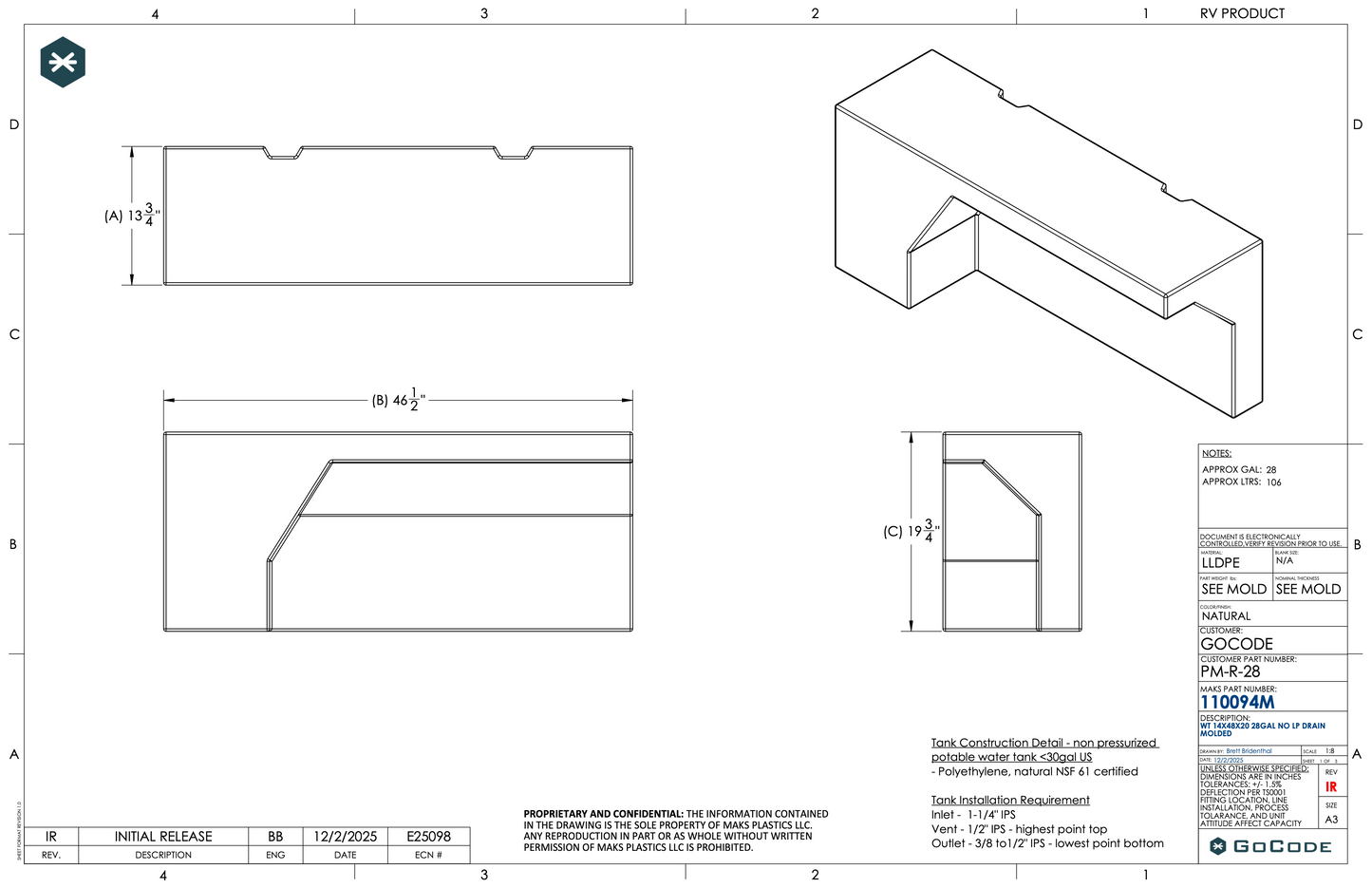

48" L x 14" W x 20" H
Capacity: 28 gallons
Weight: 32 lbs
Materials & Certifications
BPA-free, food-grade plastic
Made in the USA

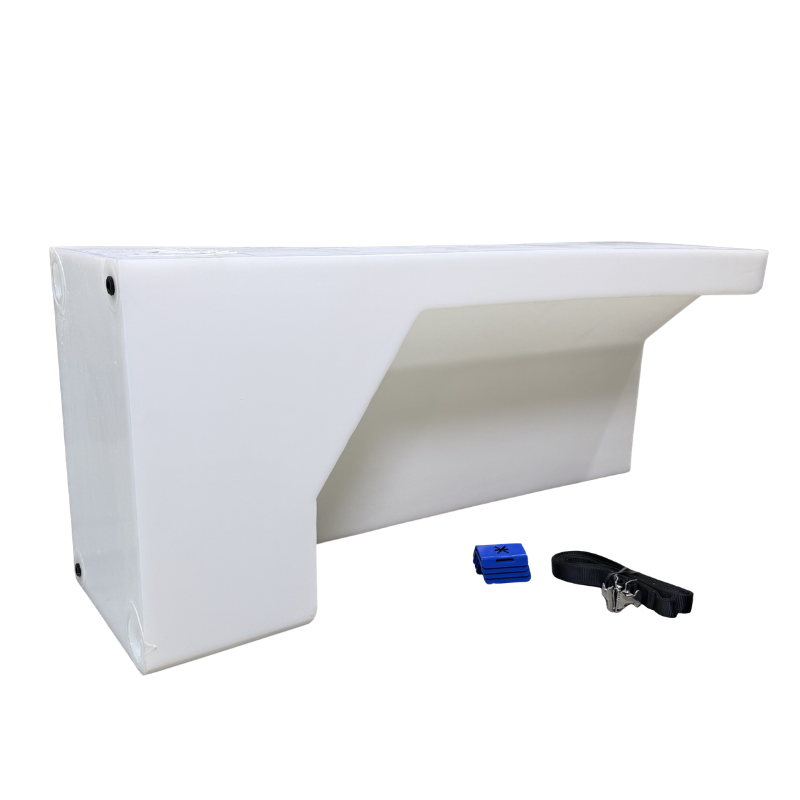

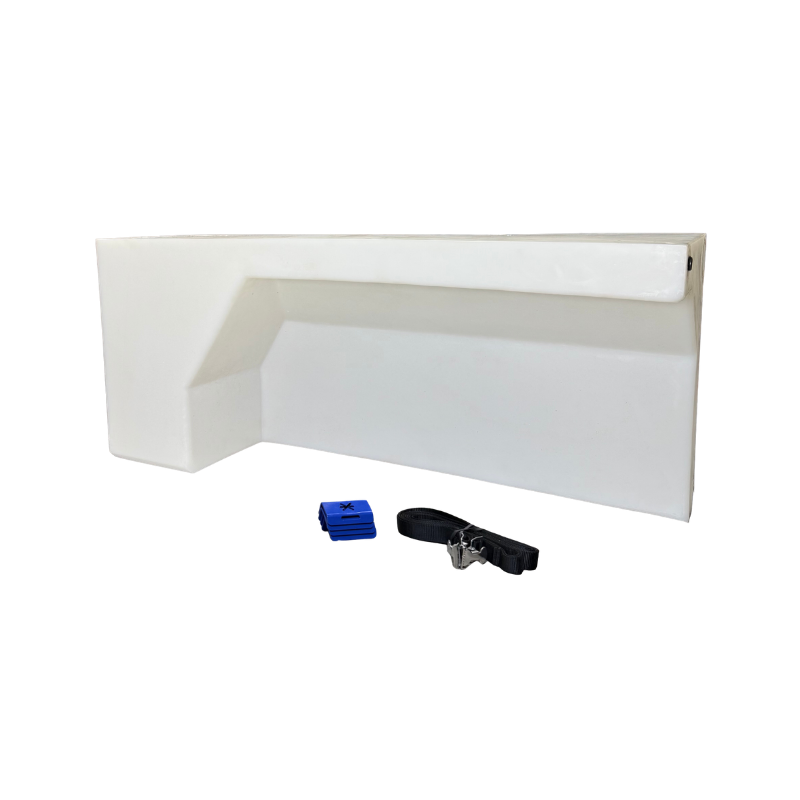

What's Included
Water Tank

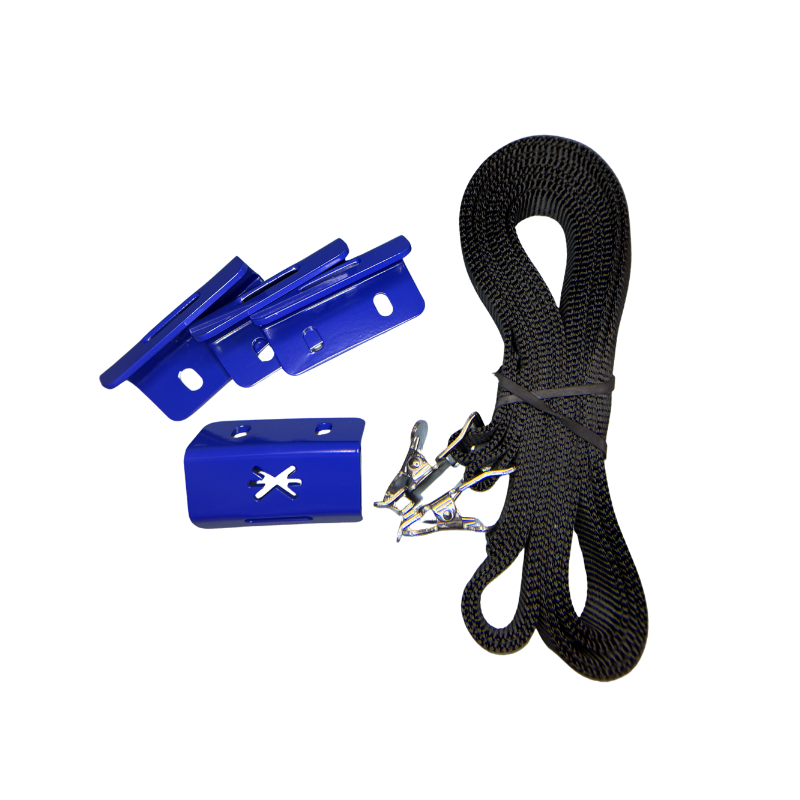

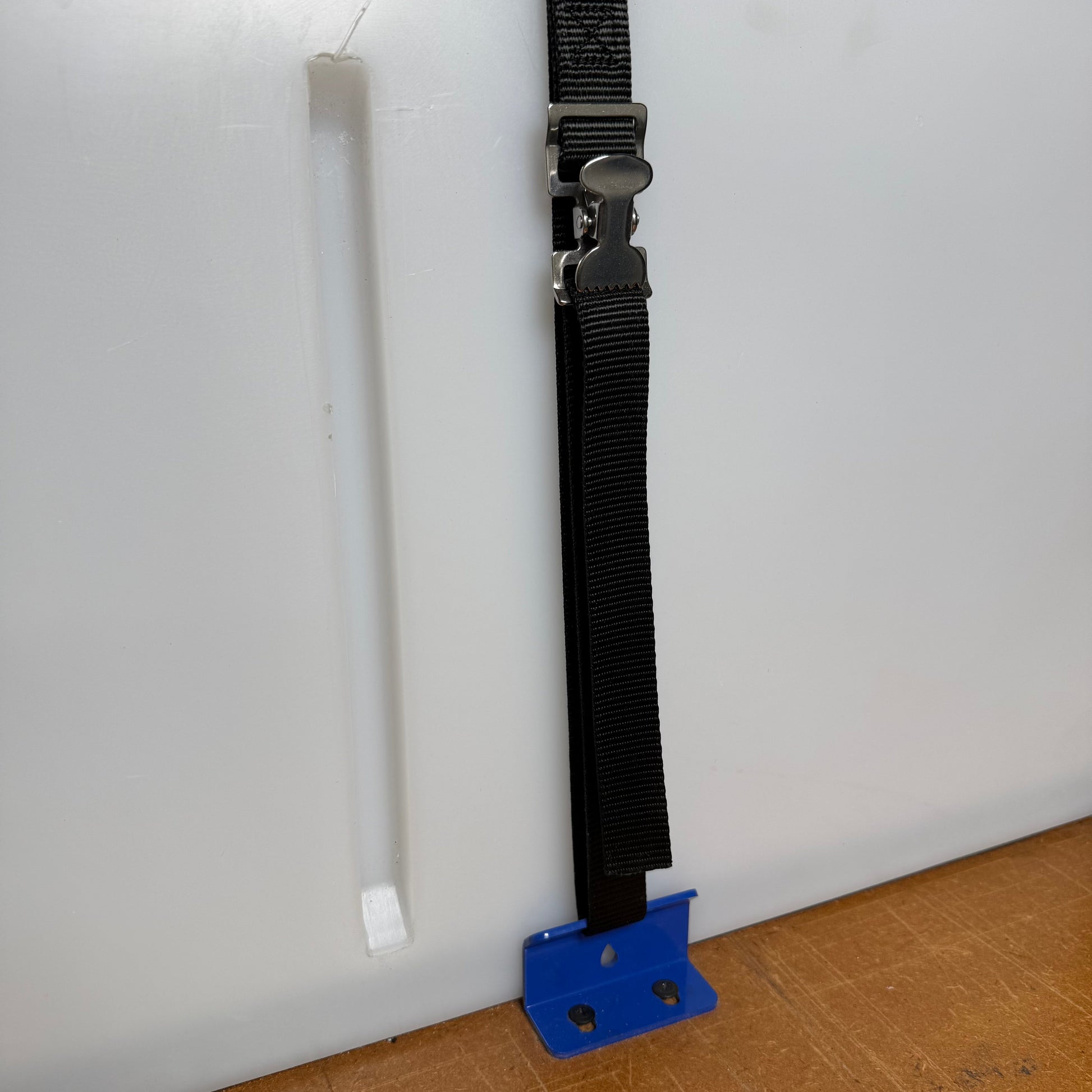

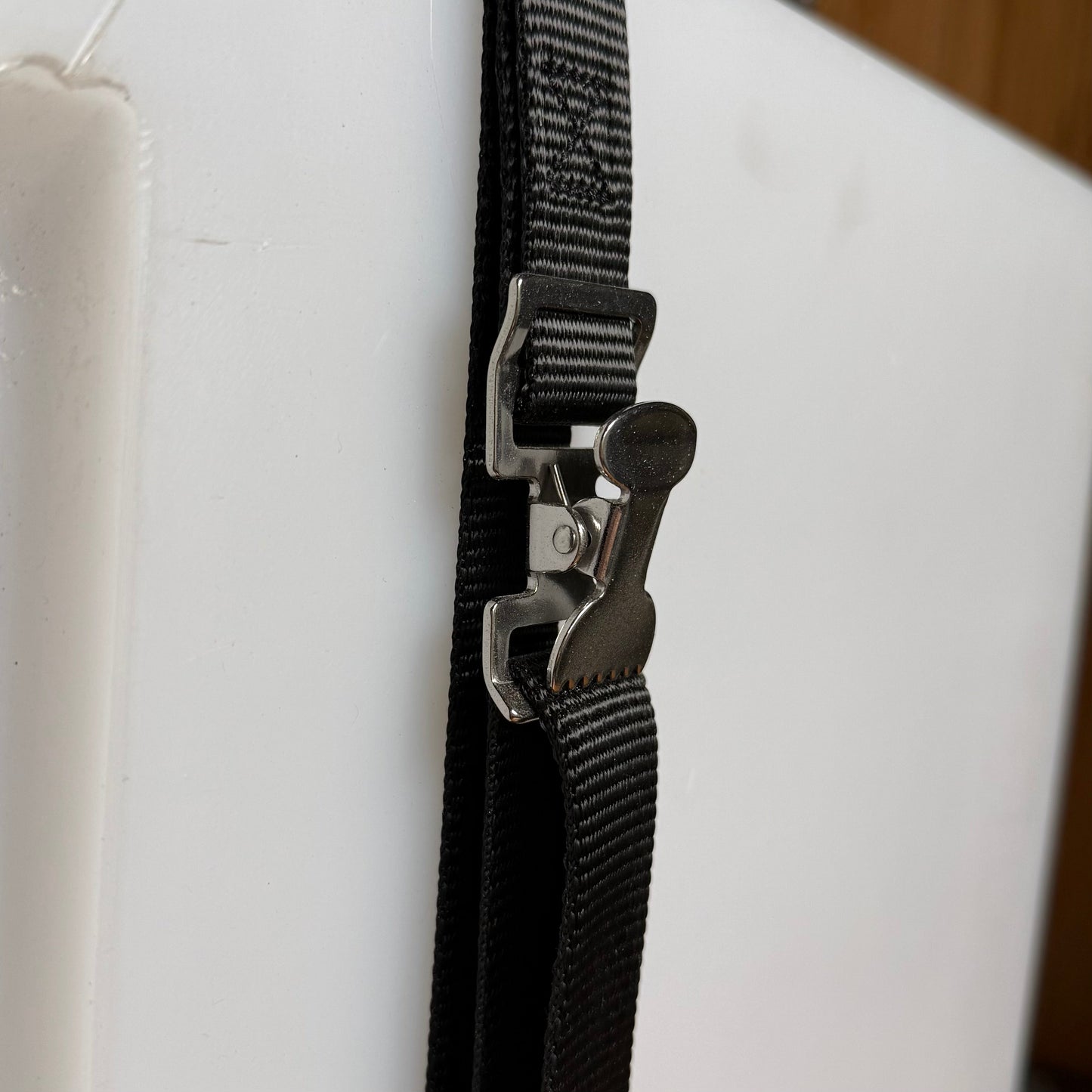

(x2) Adjustable straps

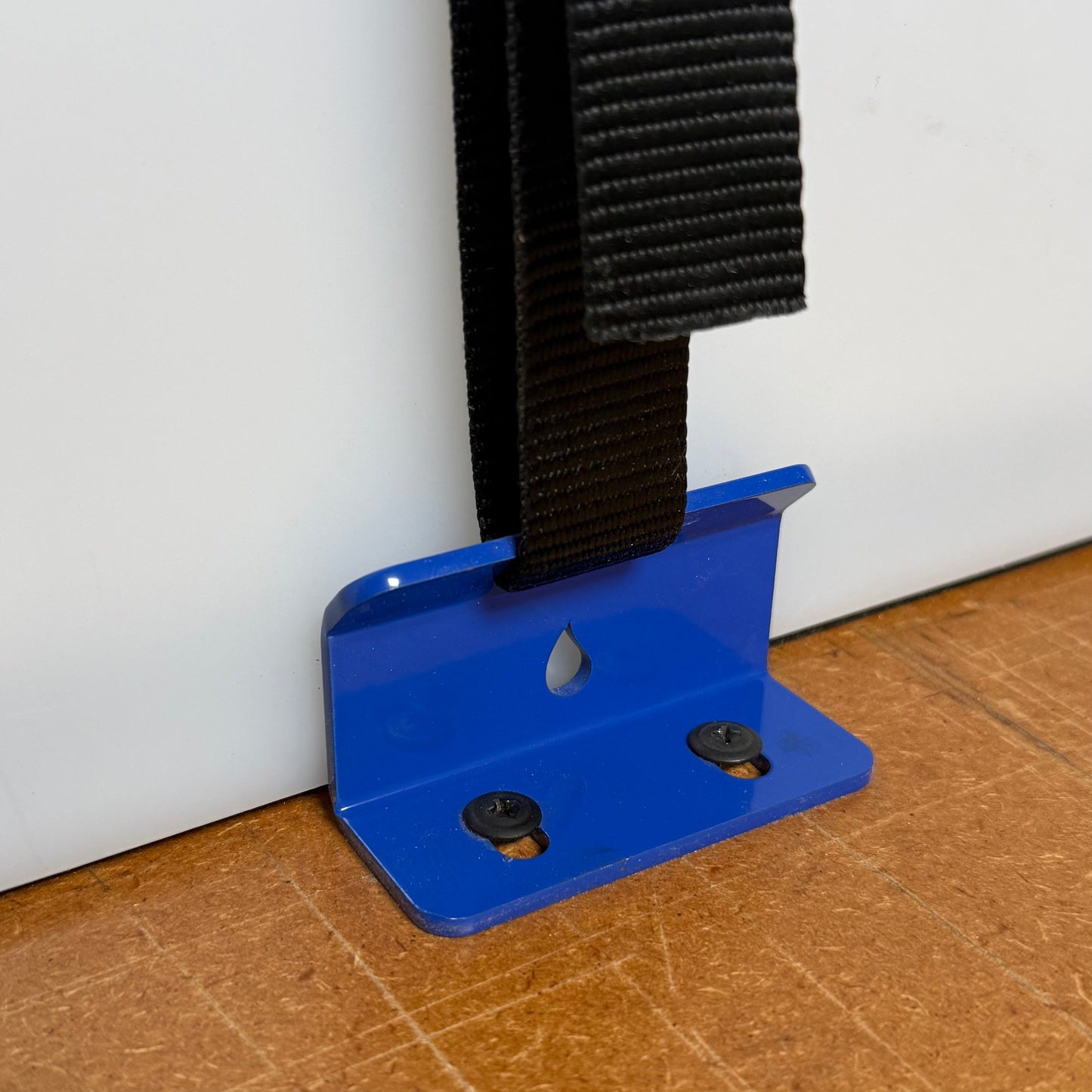

(x4) Mounting brackets

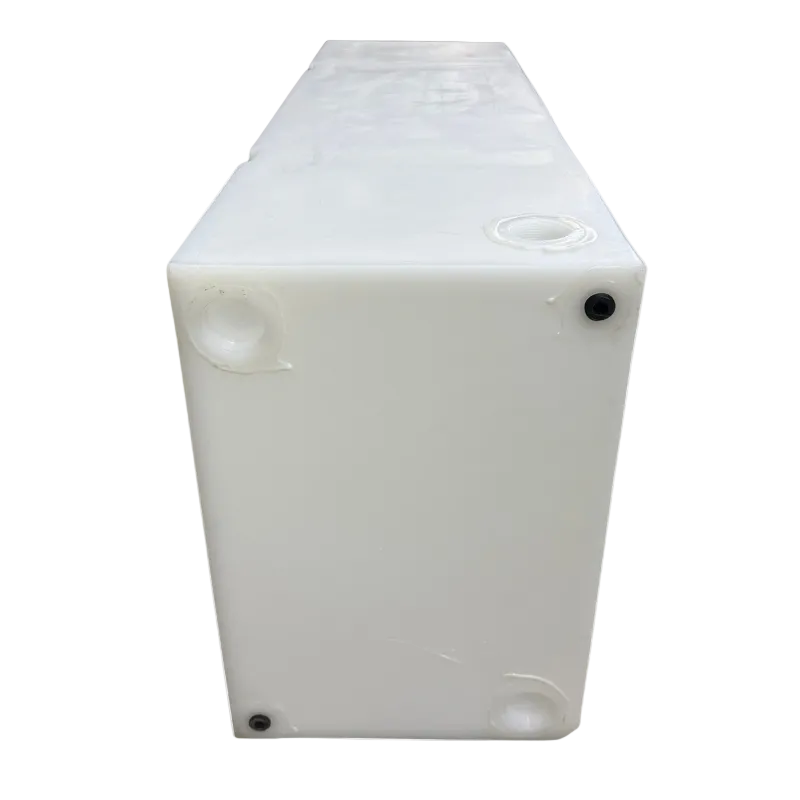

Ports & Plumbing

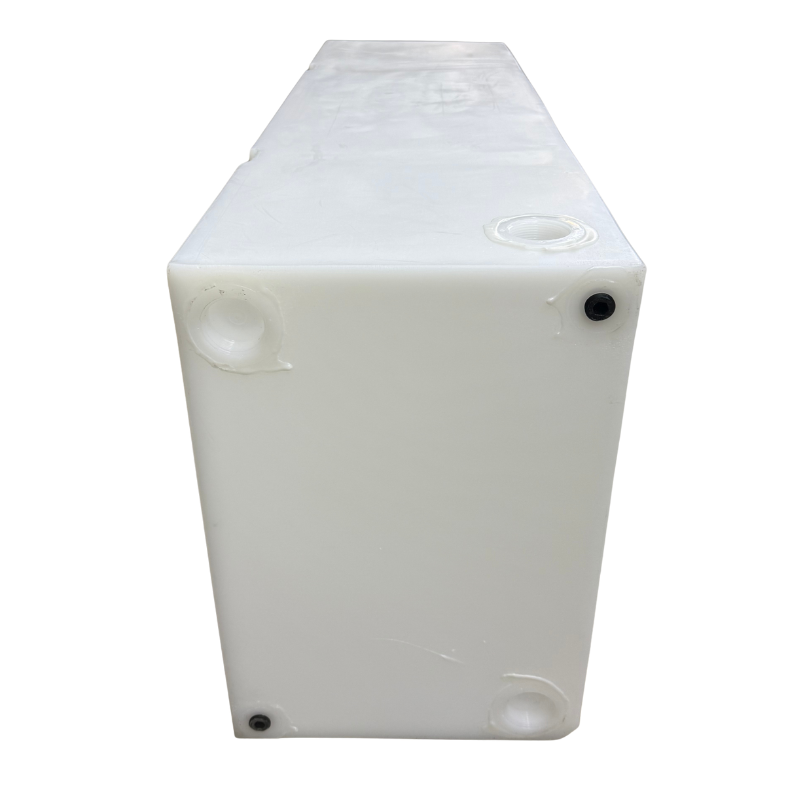

(2) 1.5" NPT ports on either end, pre-marked, drill out to use
(2) 1/2" NPT ports on either end, open and ready to use
(1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Not designed for pressurized systems, must be vented
Shipping & Lead Time
Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility
ProMaster optimized for the passenger side wheel well
Sprinter & Transit compatible with the passenger side wheel well with a gap at the top of the well, ideal for insulation or sound deadening
Compatible with other vehicles such as box trucks, trailers, and tiny homes where dimensions allow
