About the Product

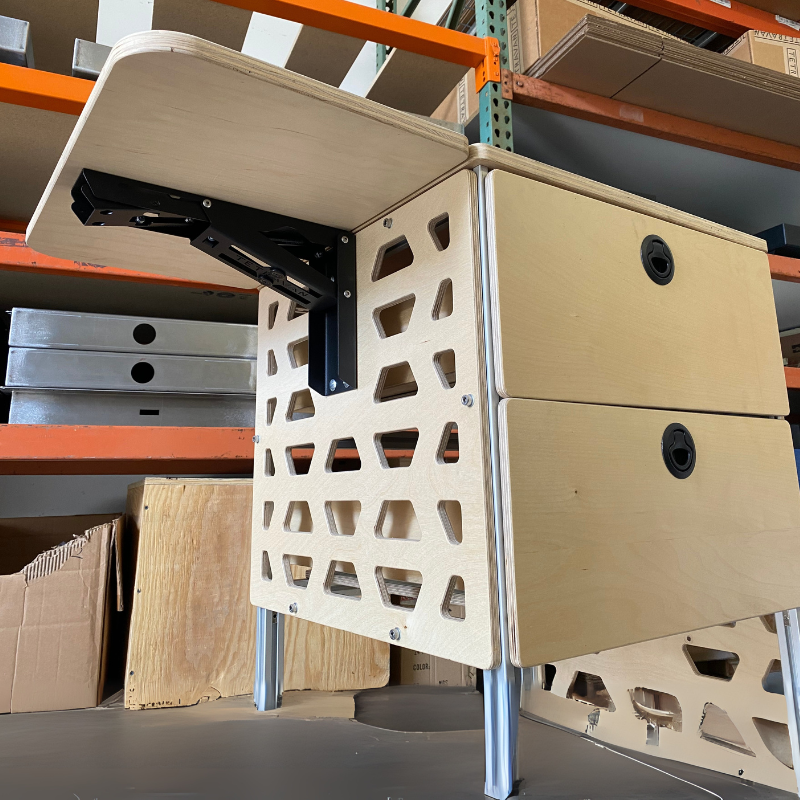

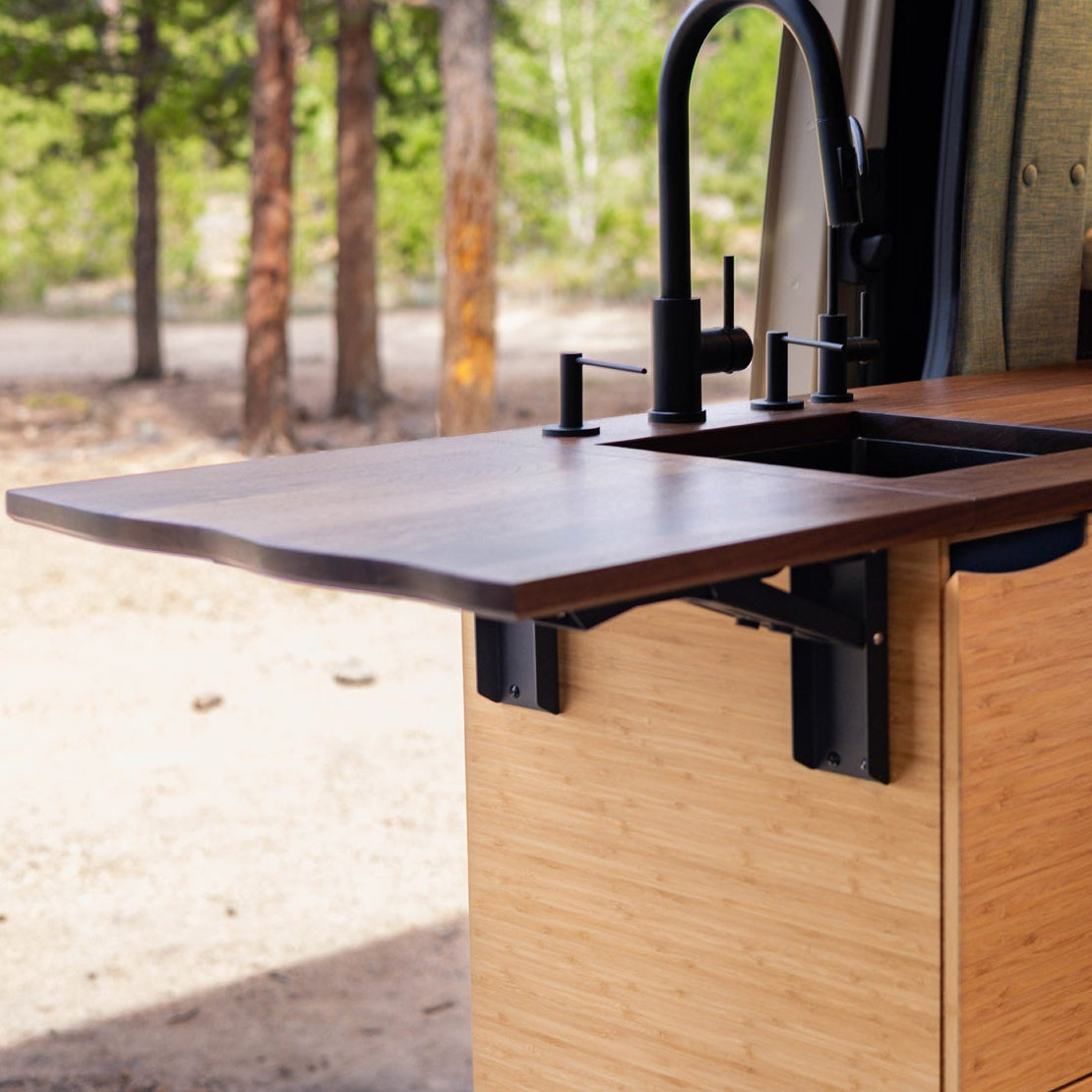

The MOAB (Mother of All Brackets) Bracket is a heavy-duty fold-down bracket built for van countertop extensions that need to stay put on the road. Gas-strut reinforced, magnetically latched, and rated to 95 lb — everything cheap fold-down brackets aren't.

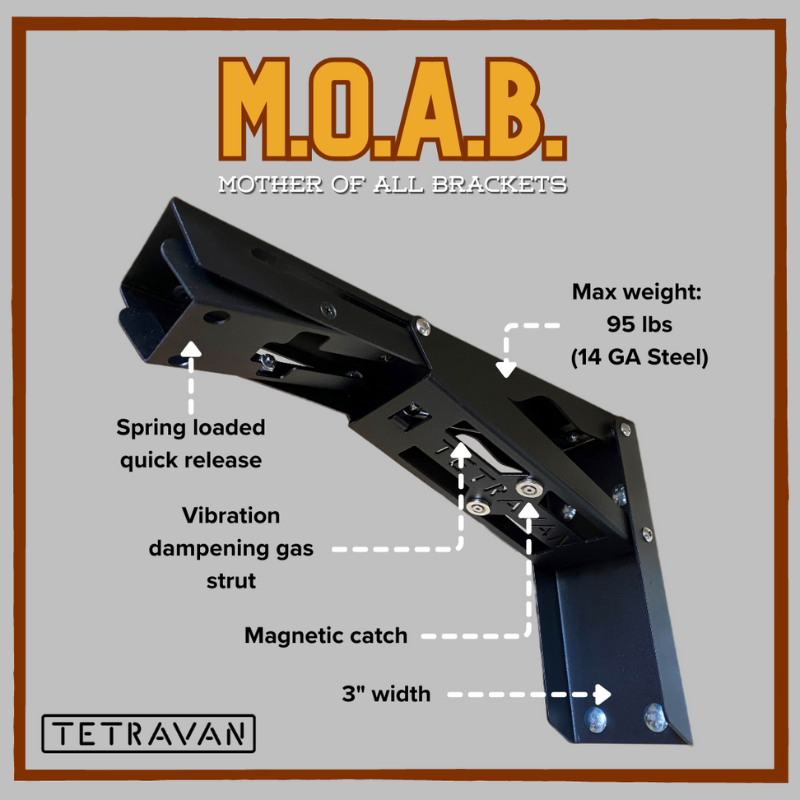

Features

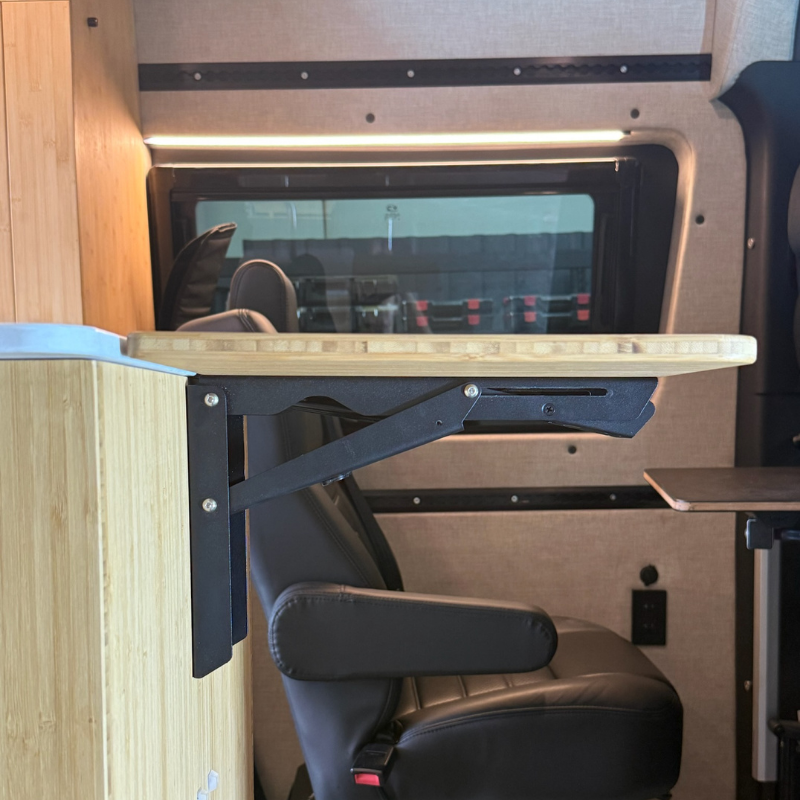

- 3" wide bracket supports up to a 20" wide countertop extension on its own — no doubling up required

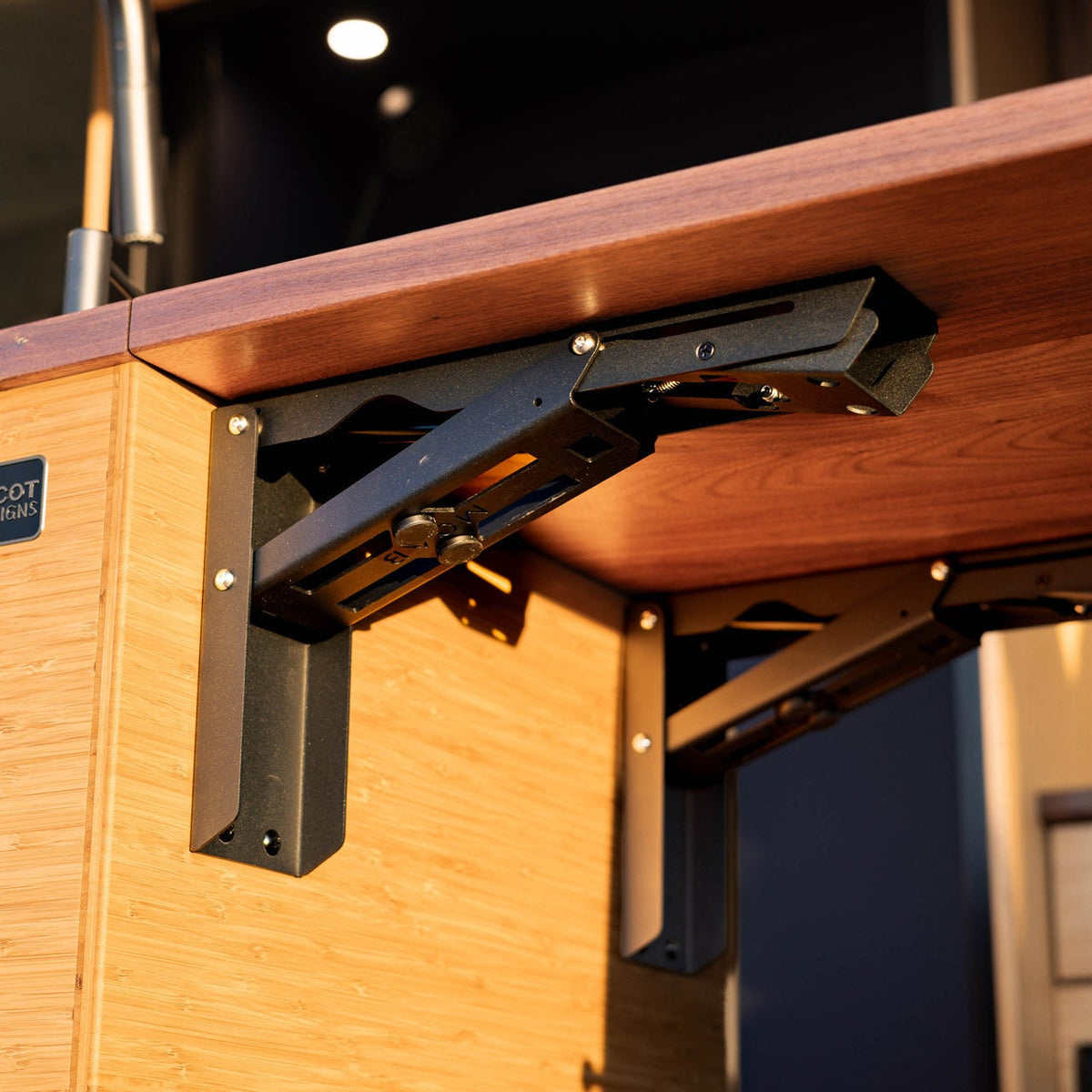

- Gas strut keeps the extension locked down while traveling — no bounce, no wiggle
- Dual magnetic latching system eliminates rattle and vibration on the road
- Spring-loaded release handle for effortless one-handed deployment and stowing
- Rated to 95 lb working load, stress-tested to 270 lb
- Complete hardware kit included — no hardware store run needed
🔧 Building a bench seat or an extension wider than 20"? You'll want two — grab the MOAB Bracket Pair and save over $30 vs. buying two singles.

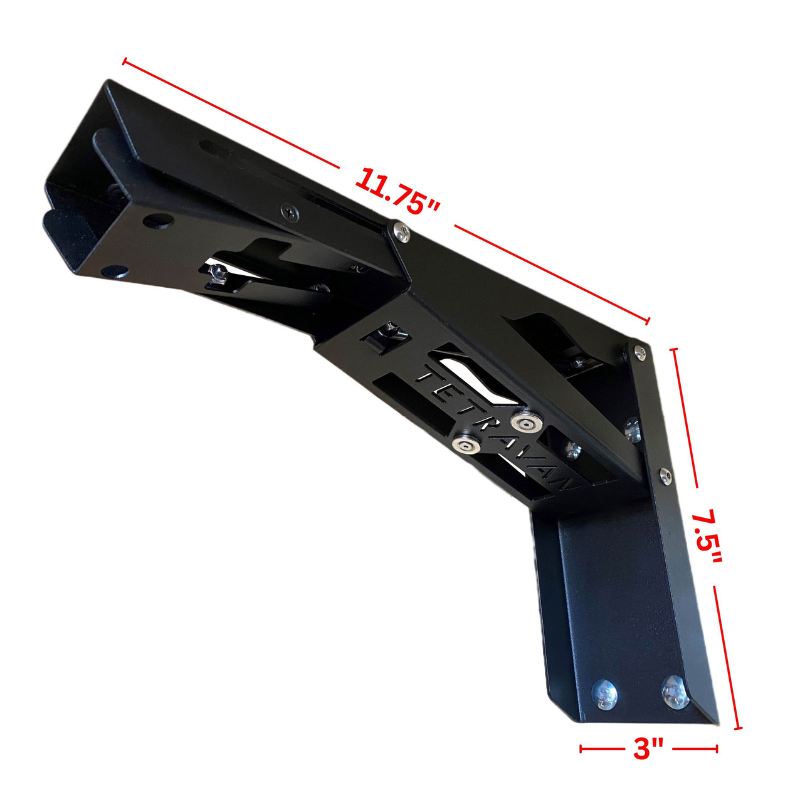

Dimensions
- Length: 11.75"
- Wall Mount Height: 7.5"
- Width: 3"
What's Included
- MOAB Bracket
- x4 carriage bolts
- x4 washers
- x4 nyloc nuts
- x6 black 3/4" wood screws
Compatibility
-
Universal fit — compatible with any van, RV, or camper build
- Supports countertop extensions up to 20" wide per bracket
Shipping & Lead Times
Resources
Need Help? Not sure about your configuration or want to discuss your build? Contact us, we're happy to help.
For UK orders please reach out to hello@projectyonder.co.uk
Photo Credits
Adventure Life Vans
Frequently Asked Questions
How much weight can the MOAB bracket hold?
Rated for 95 lb of continuous load per bracket, and stress-tested to 270 lb without failure. For long-term use, keep loads under the 95 lb rating.
How many brackets do I need?
One MOAB supports a countertop extension up to 20" wide. For wider extensions, workstations, or a fold-down bench/jump seat, use two — the MOAB Bracket Pair saves you over $30 vs. buying singles.
What are the dimensions?

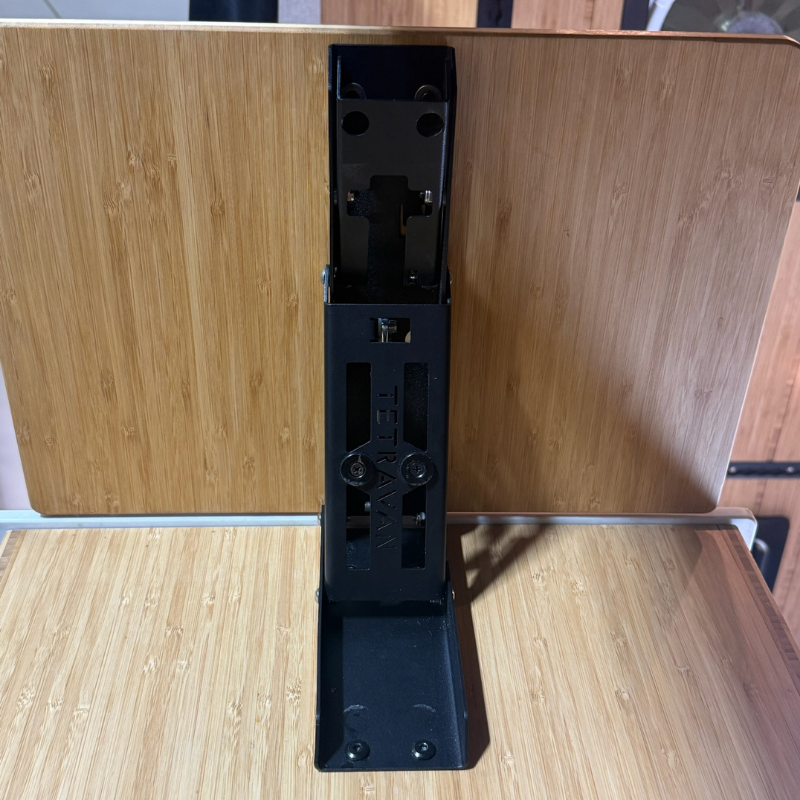

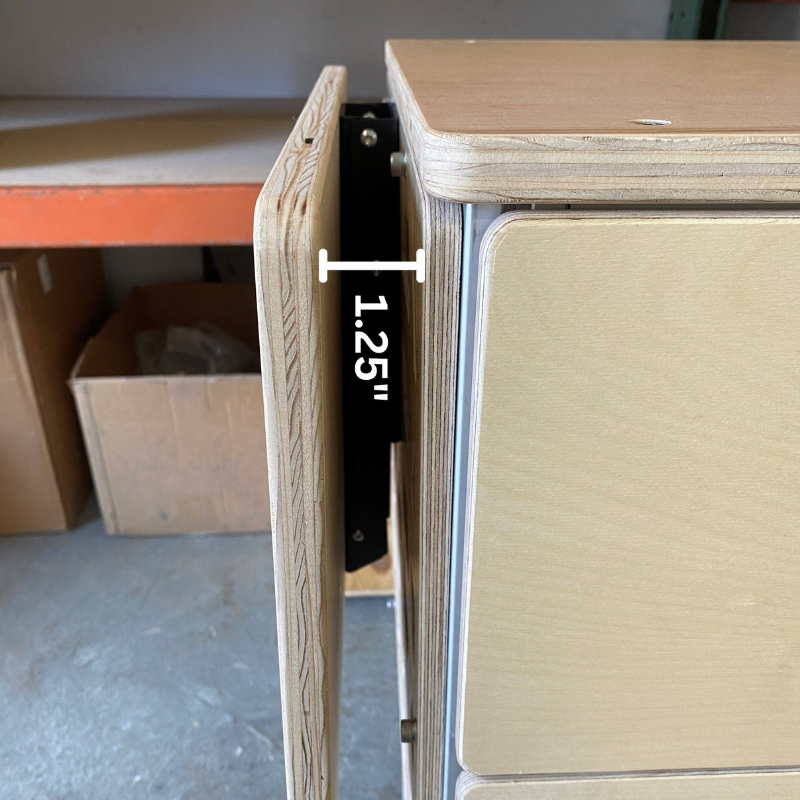

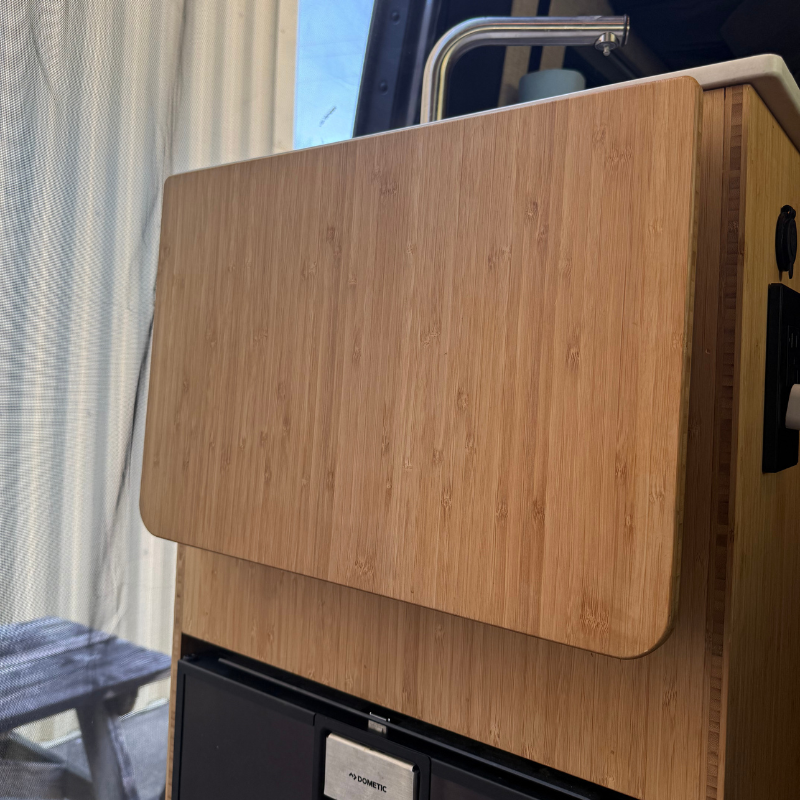

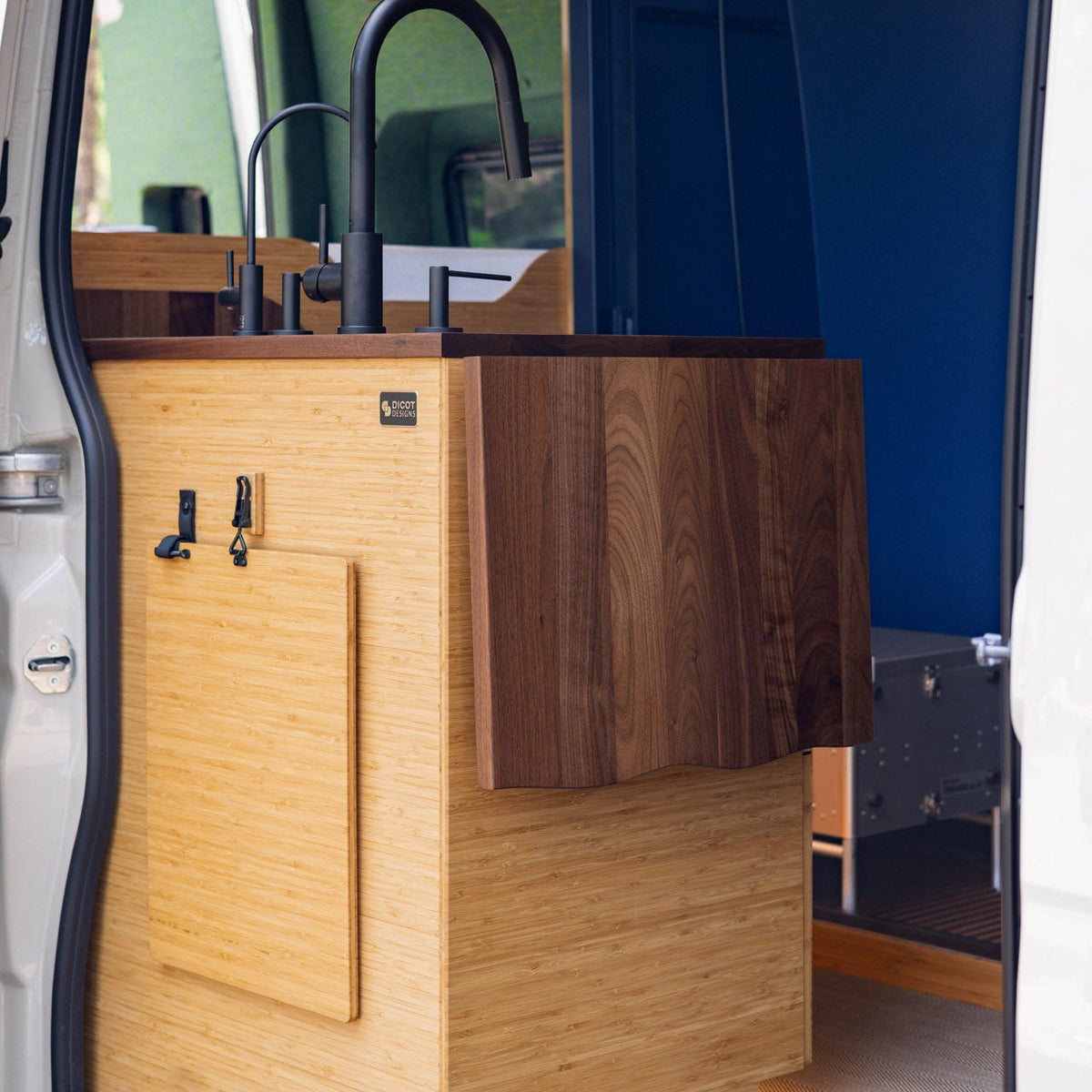

11.75" long, 7.5" wall-mount height, 3" wide. The bracket folds flat against the wall when stowed.
Will it rattle or bounce while driving?
No. A pressurized gas strut holds the folded extension locked down tight, and dual magnets add a second layer of security — no bounce, no vibration, no squeak on washboard roads.

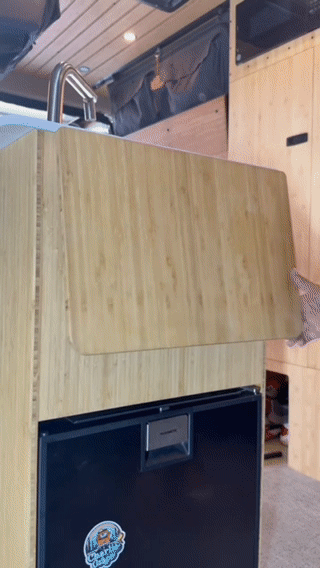

How does it fold down and lock?

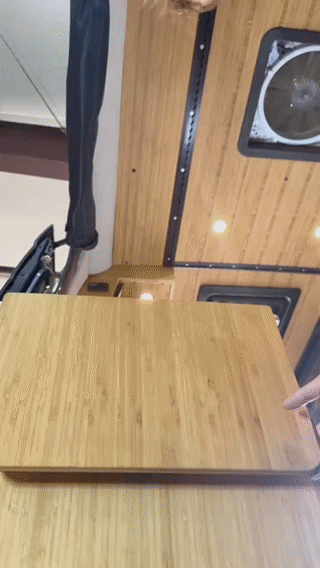

A large spring-loaded release handle operates smoothly even in tight spaces: lift to deploy until the bracket locks flat, pull the handle to fold it away. One-handed operation.
What can I build with it?

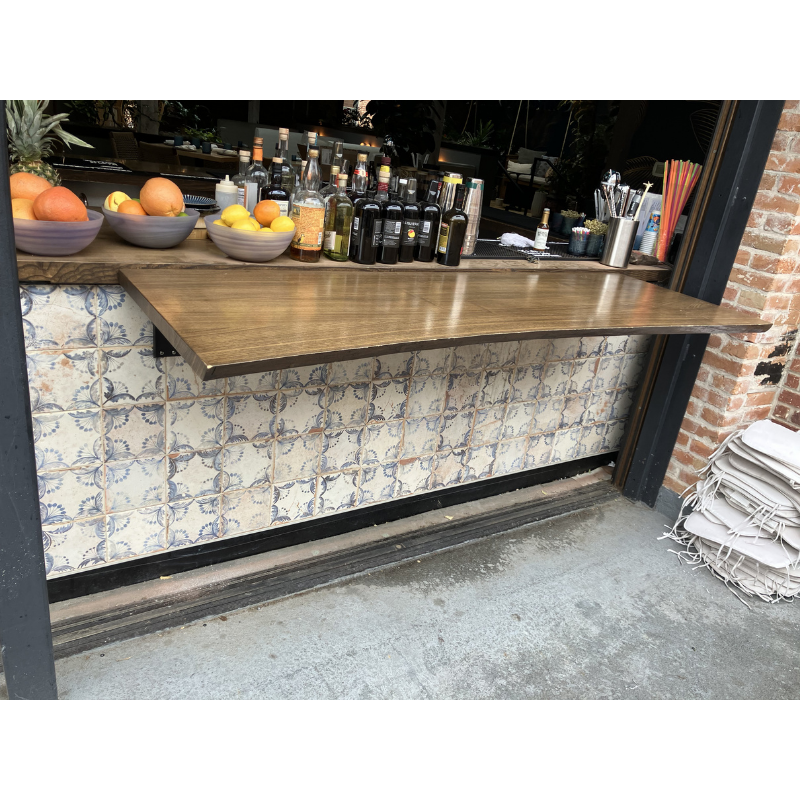

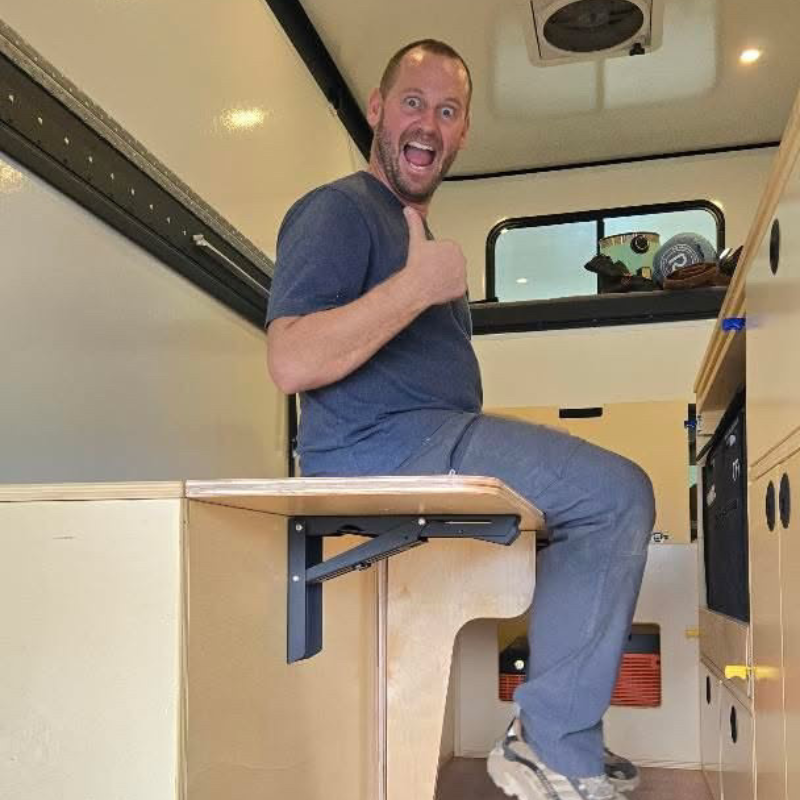

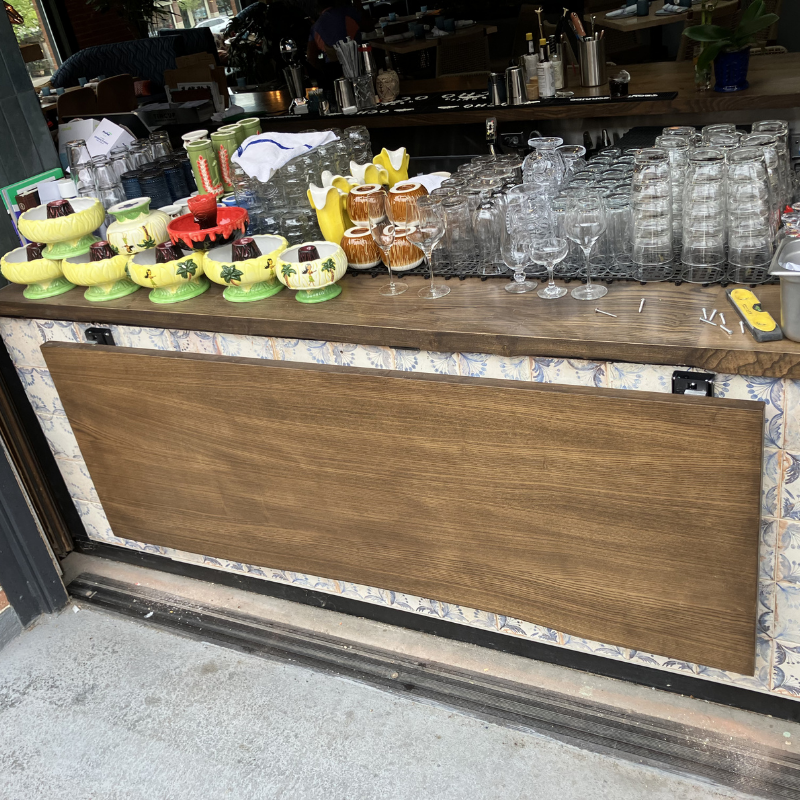

Countertop extensions, fold-down desks and workstations, galley extensions, tables, and — paired — fold-down bench seats. It works in vans, RVs, trailers, boats, garages, and tiny homes.
What hardware is included and how does it mount?
Each bracket ships with a complete install kit: 4 carriage bolts, 4 washers, 4 nyloc nuts, and 6 black 3/4" wood screws. Through-bolt it to panels and thin walls or screw it directly into wood framing and cabinetry.
How is this different from cheap folding brackets?
Typical marketplace brackets are thin steel with no locking system — they rattle, sag, and have vague weight ratings. The MOAB is 3" wide with a gas strut, magnetic latching, and a published, tested load rating. One MOAB replaces two flimsy brackets.
Do you ship internationally?
We ship to the contiguous US, Canada, and select European countries. For other countries, email contact@pundmann.de for a shipping quote. International orders may owe customs/duties on delivery.
