Seaview Global
HORIZONTAL CABLE ENTRY
HORIZONTAL CABLE ENTRY
Regular price
$29.00 USD
Regular price
Sale price
$29.00 USD
Unit price
/
per
Couldn't load pickup availability
-
Description

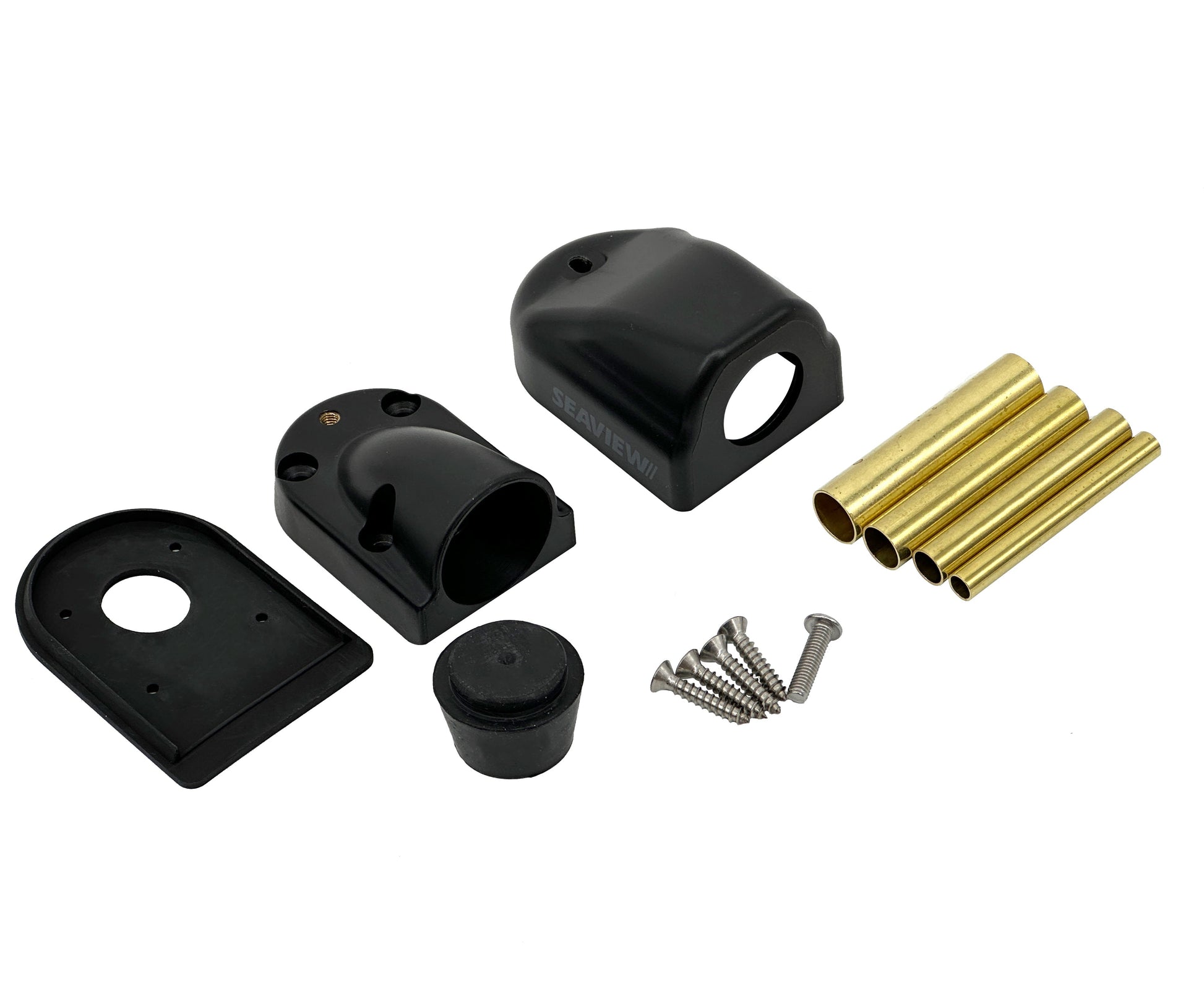

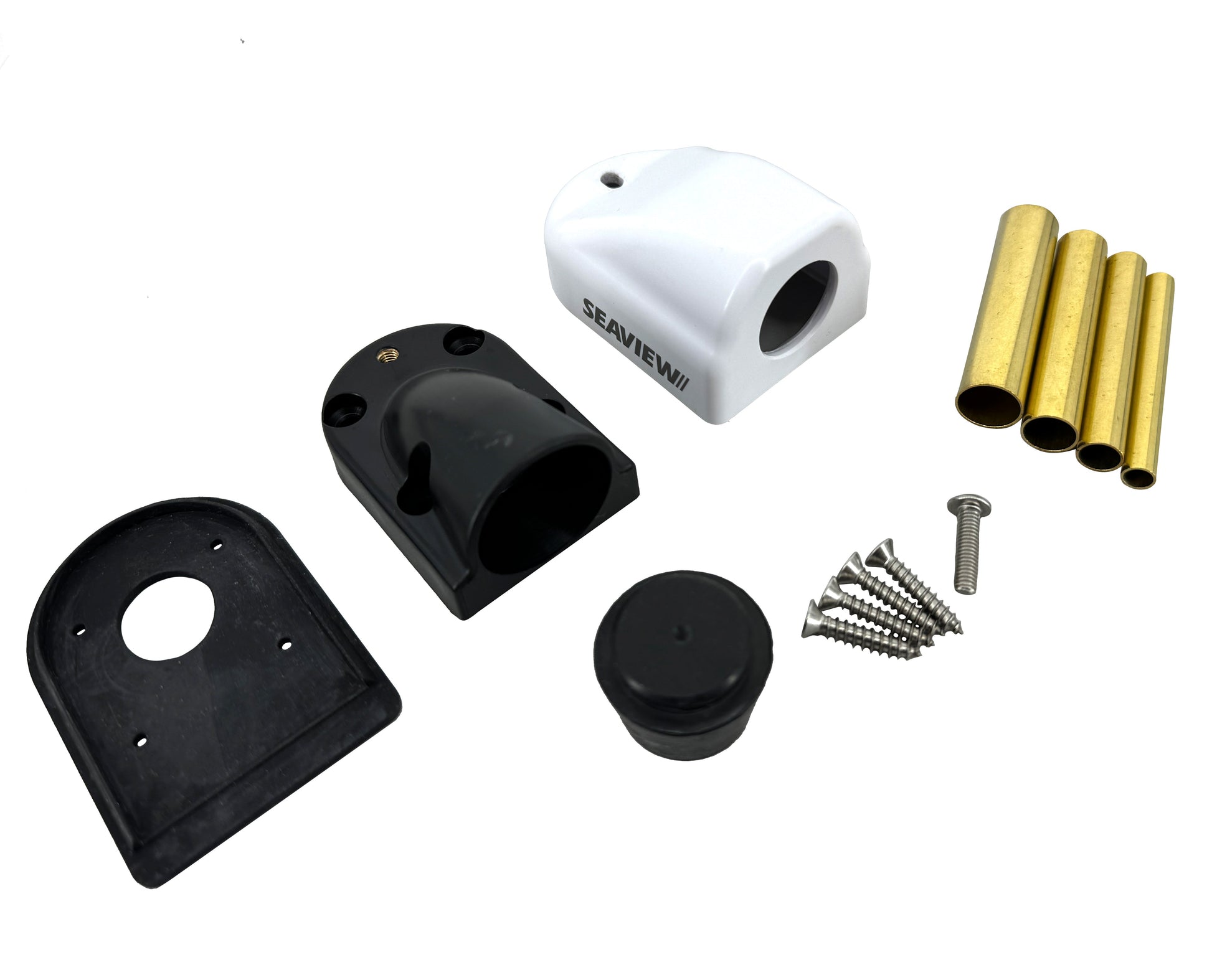

Seaview 90-degree horizontal cable seals provide a low-profile, watertight cable entry for marine installations. Each features an impact-resistant housing in black or white, a tapered rubber plug, and a base gasket. IPX6/IPX8 tested.
Choose the Right Size

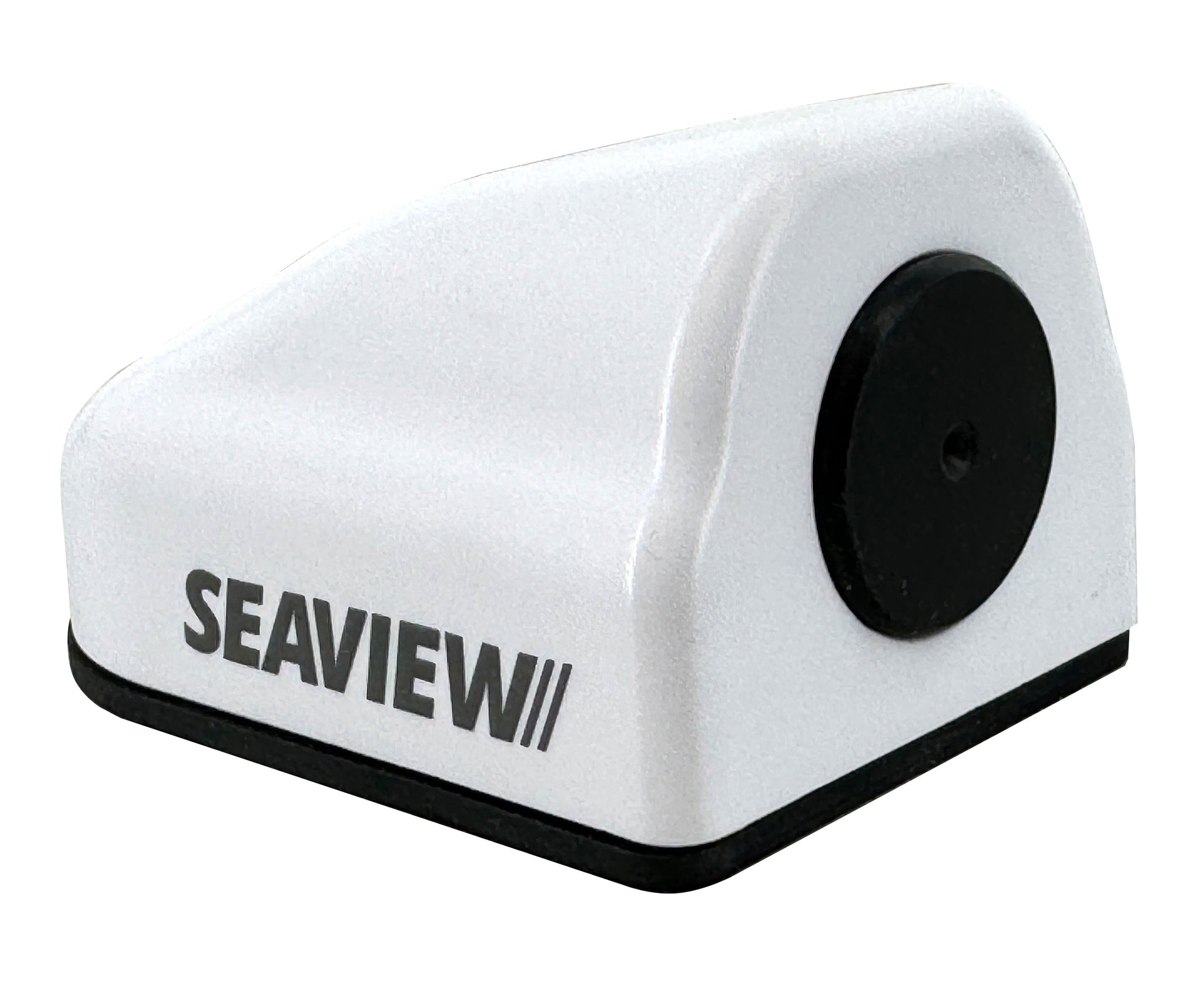

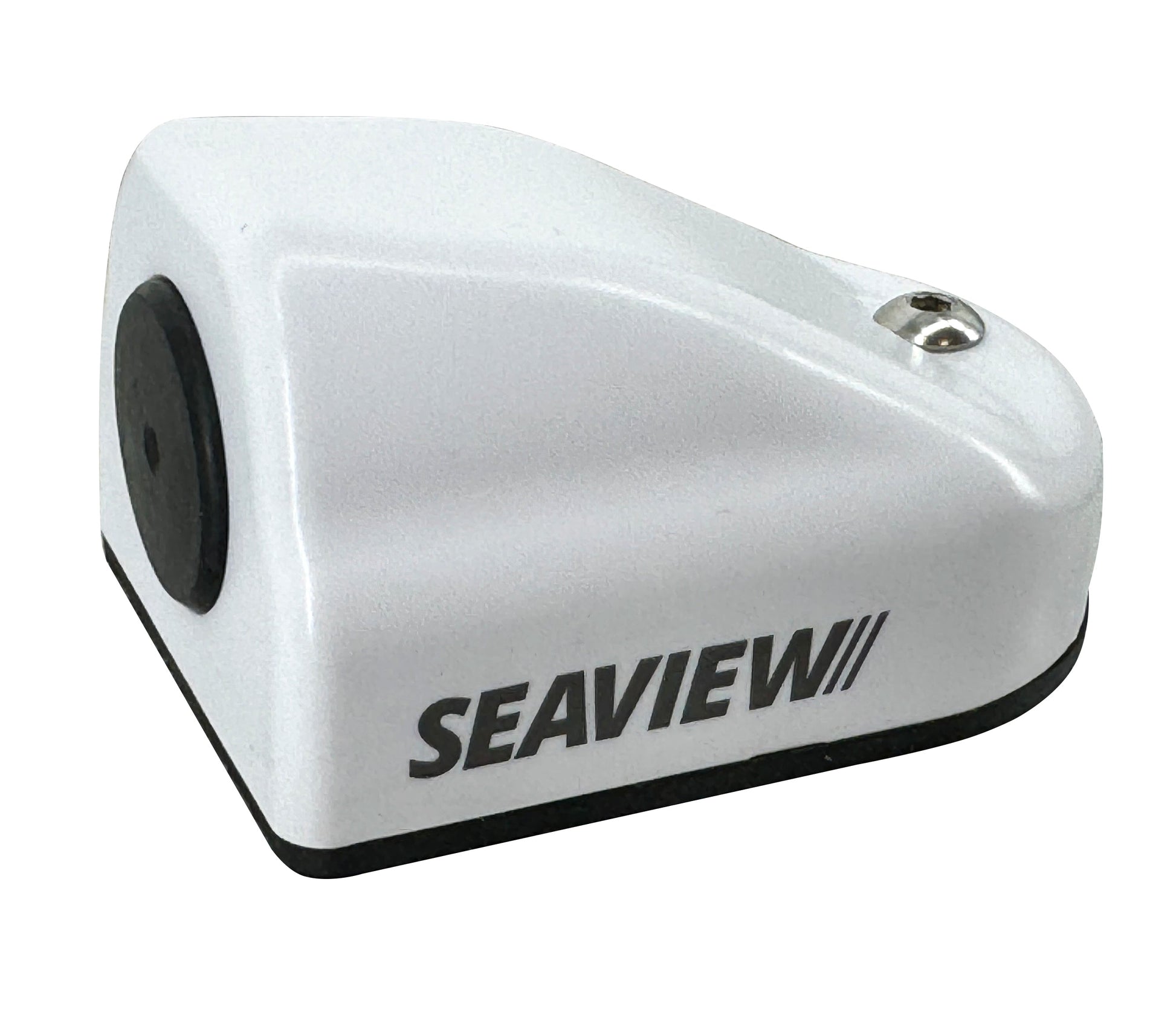

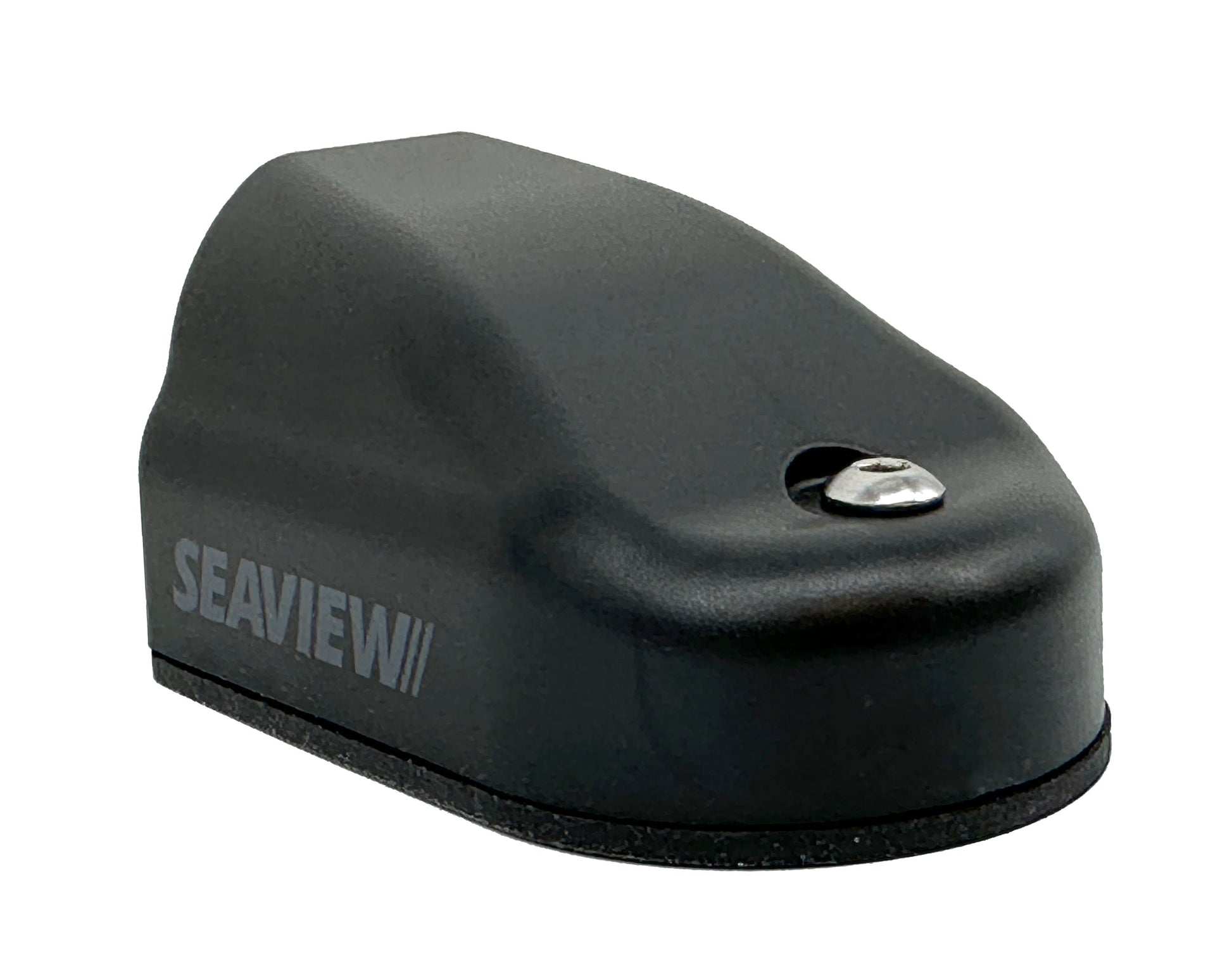

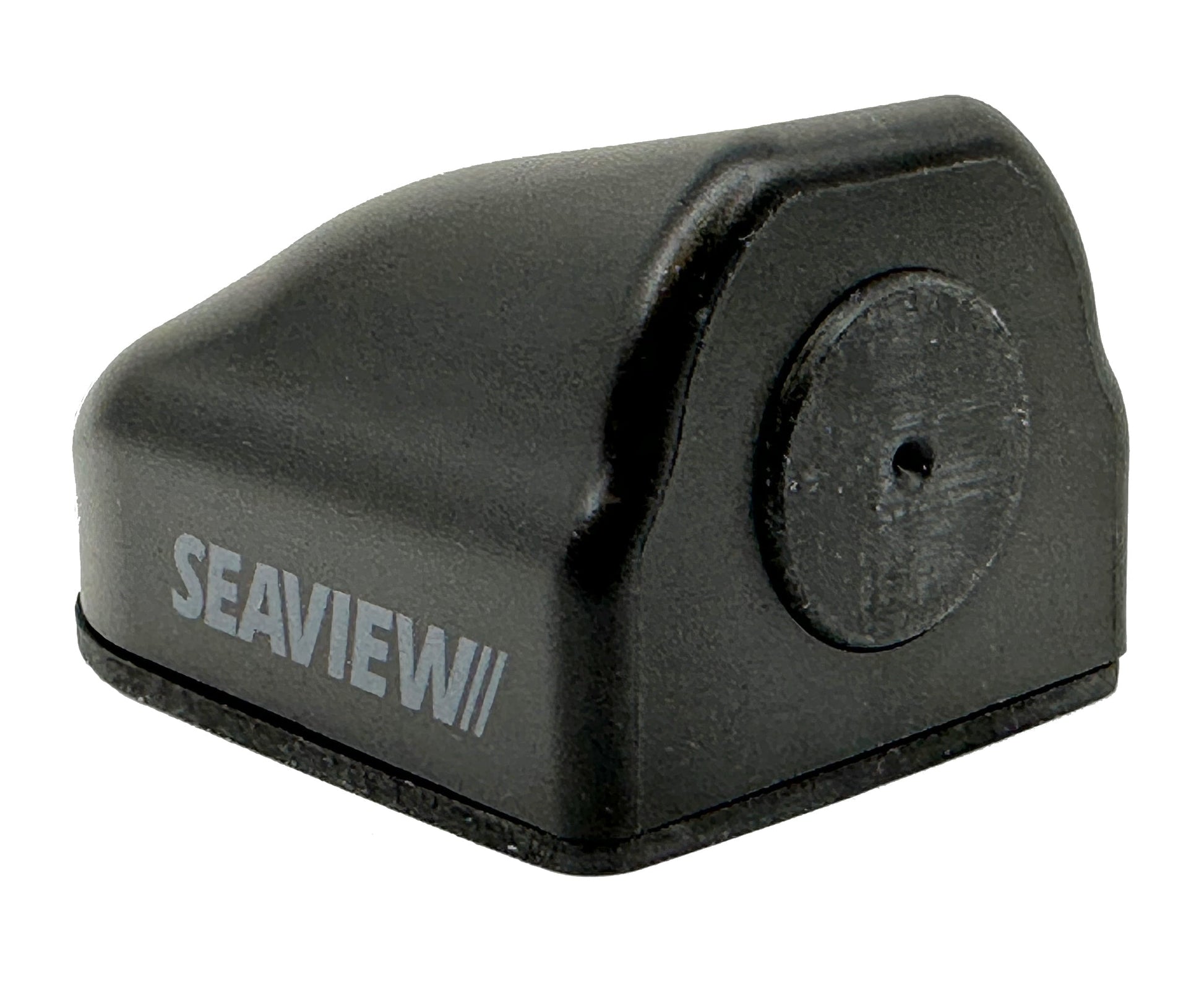

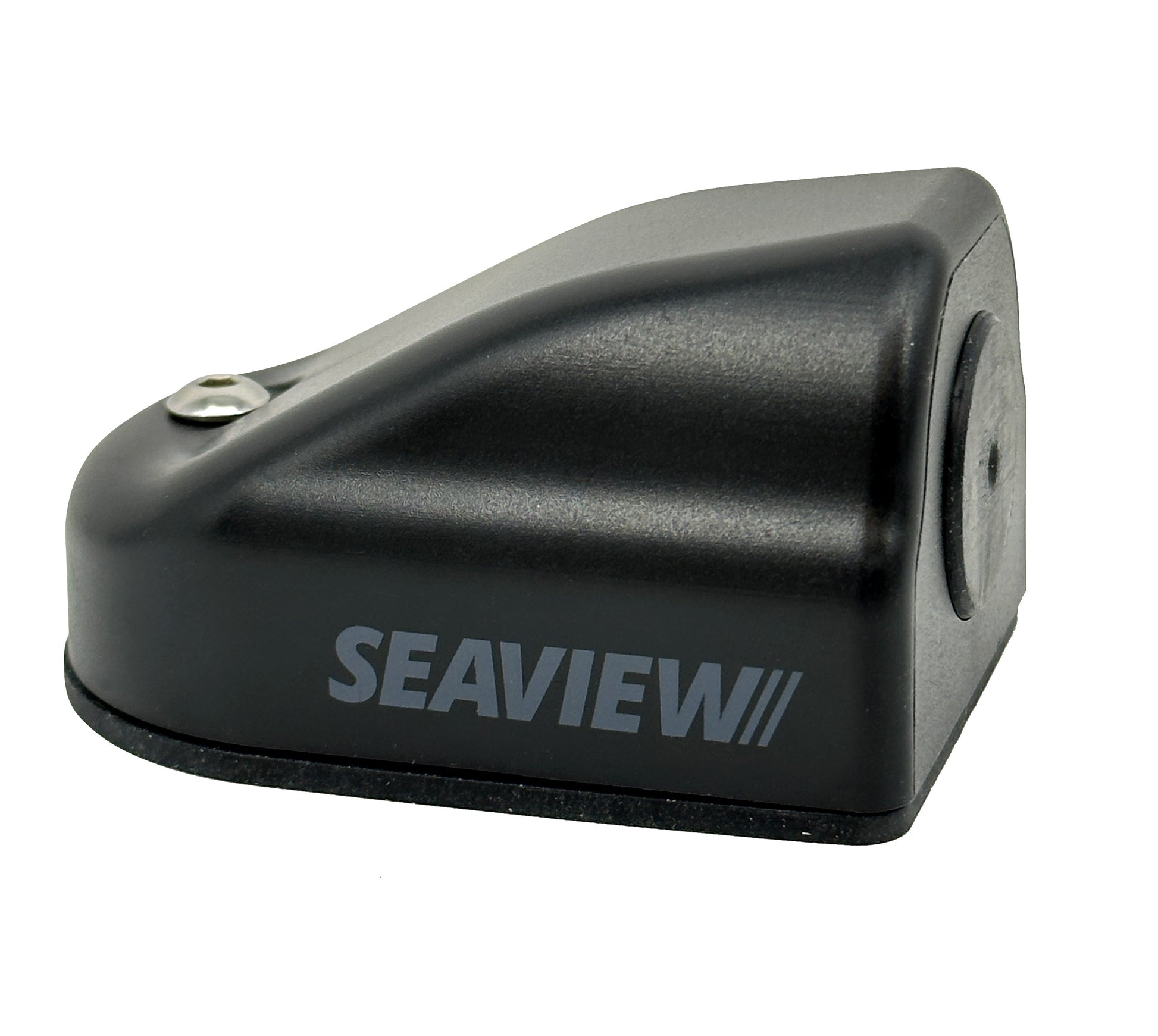

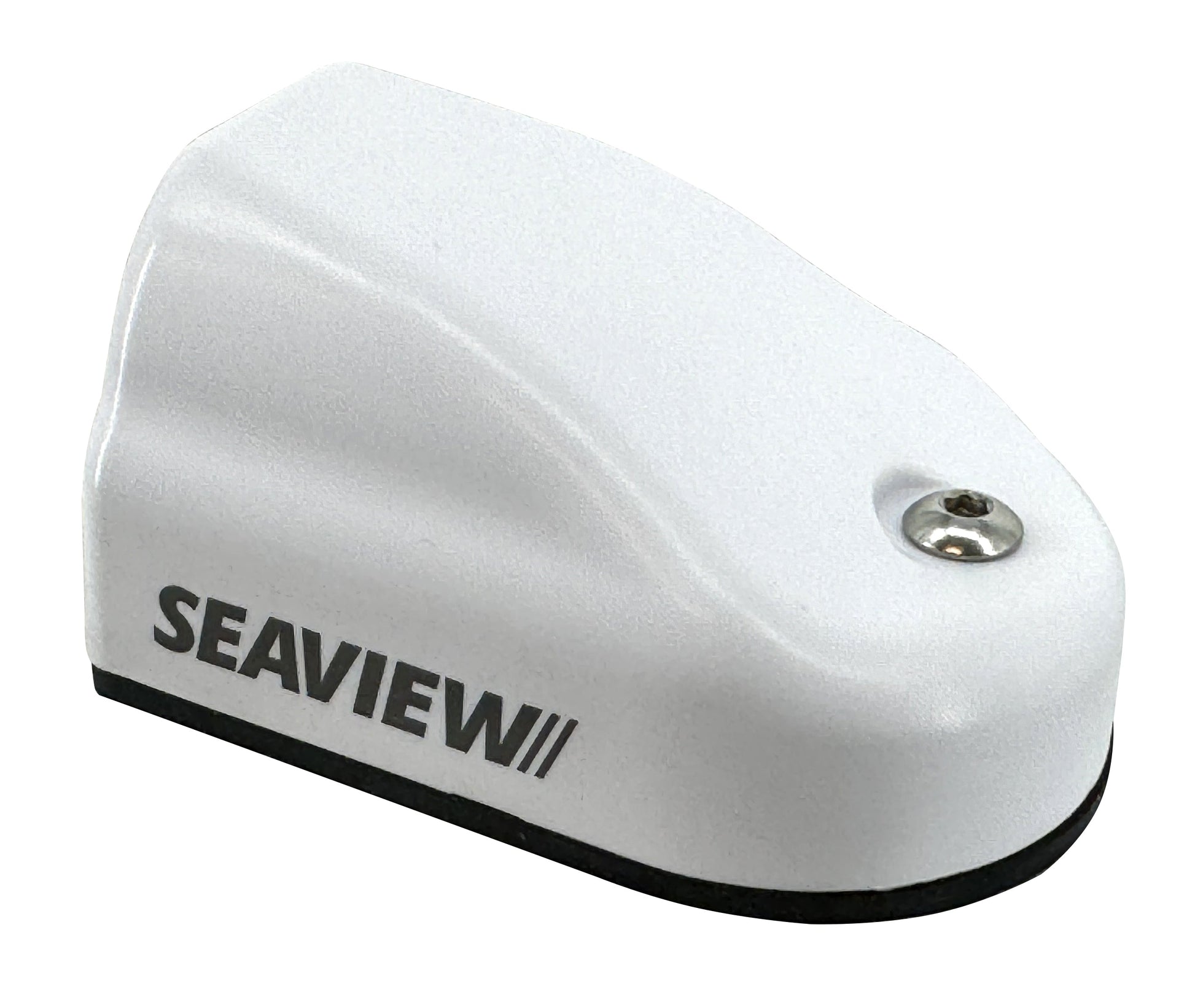

- CG2090 / CG2090W: Cables up to 13.5 mm (0.53"). Connector clearance approximately 9.5–12.7 mm (0.375–0.5"), depending on connector shape and length.

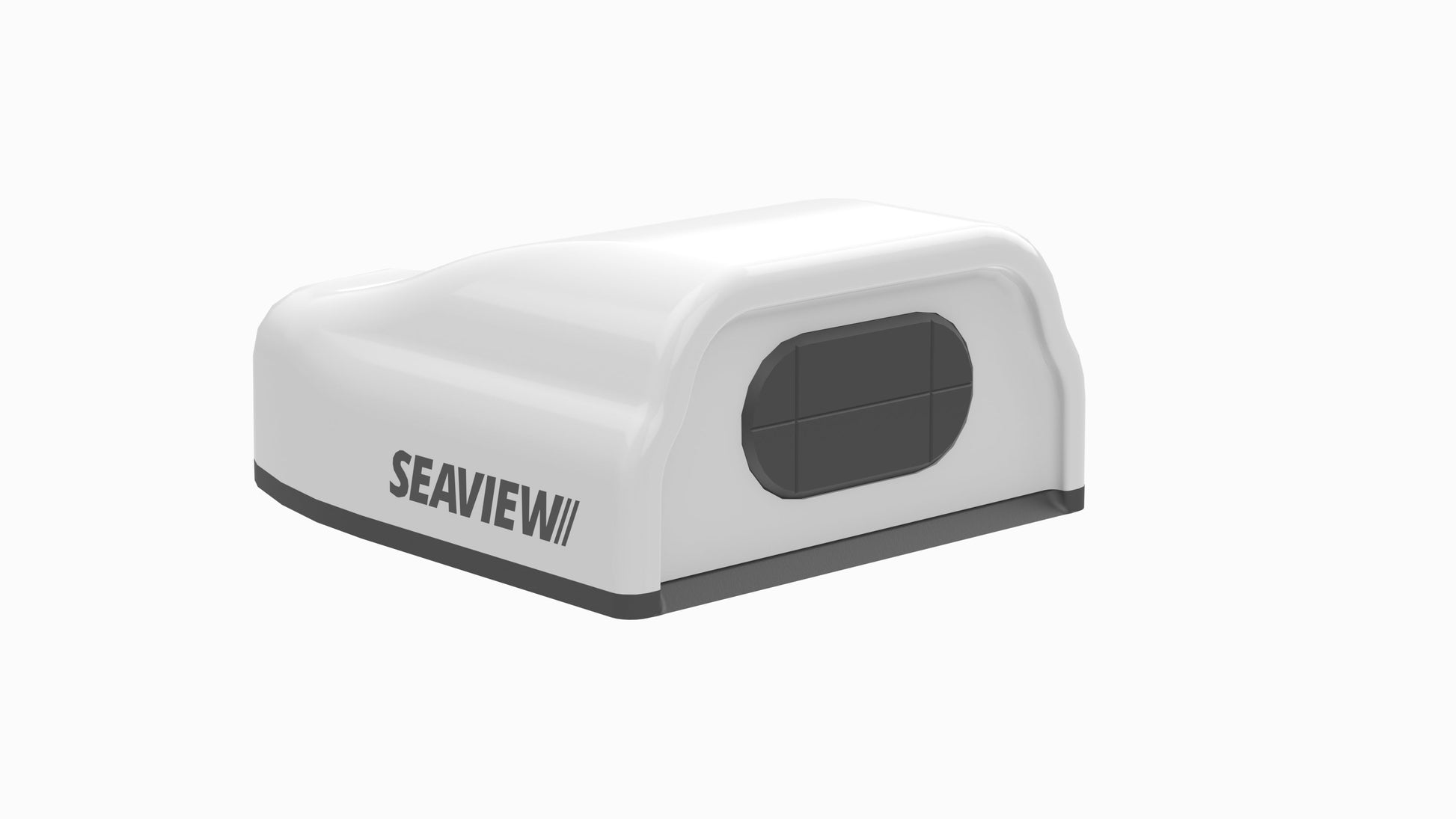

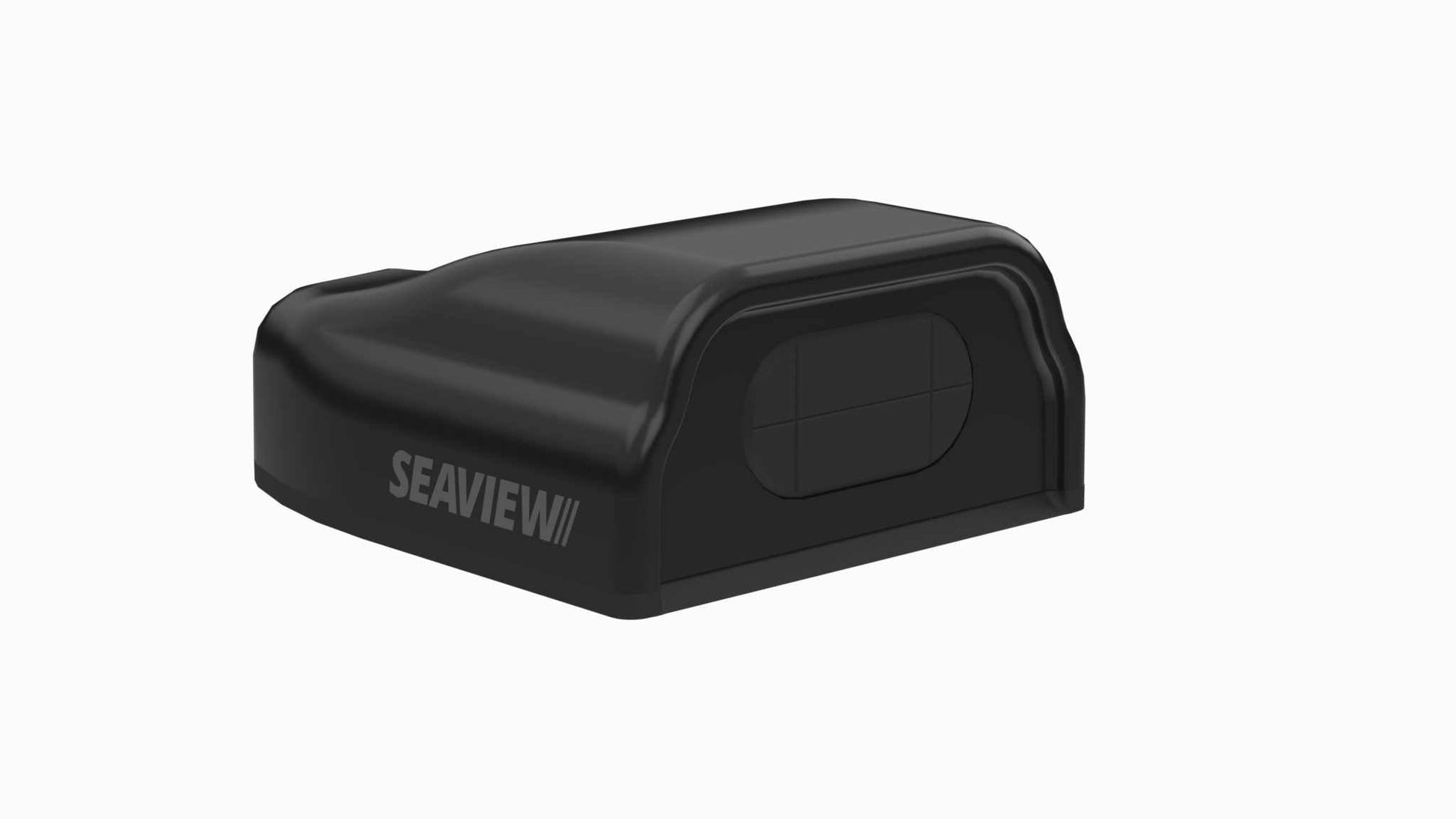

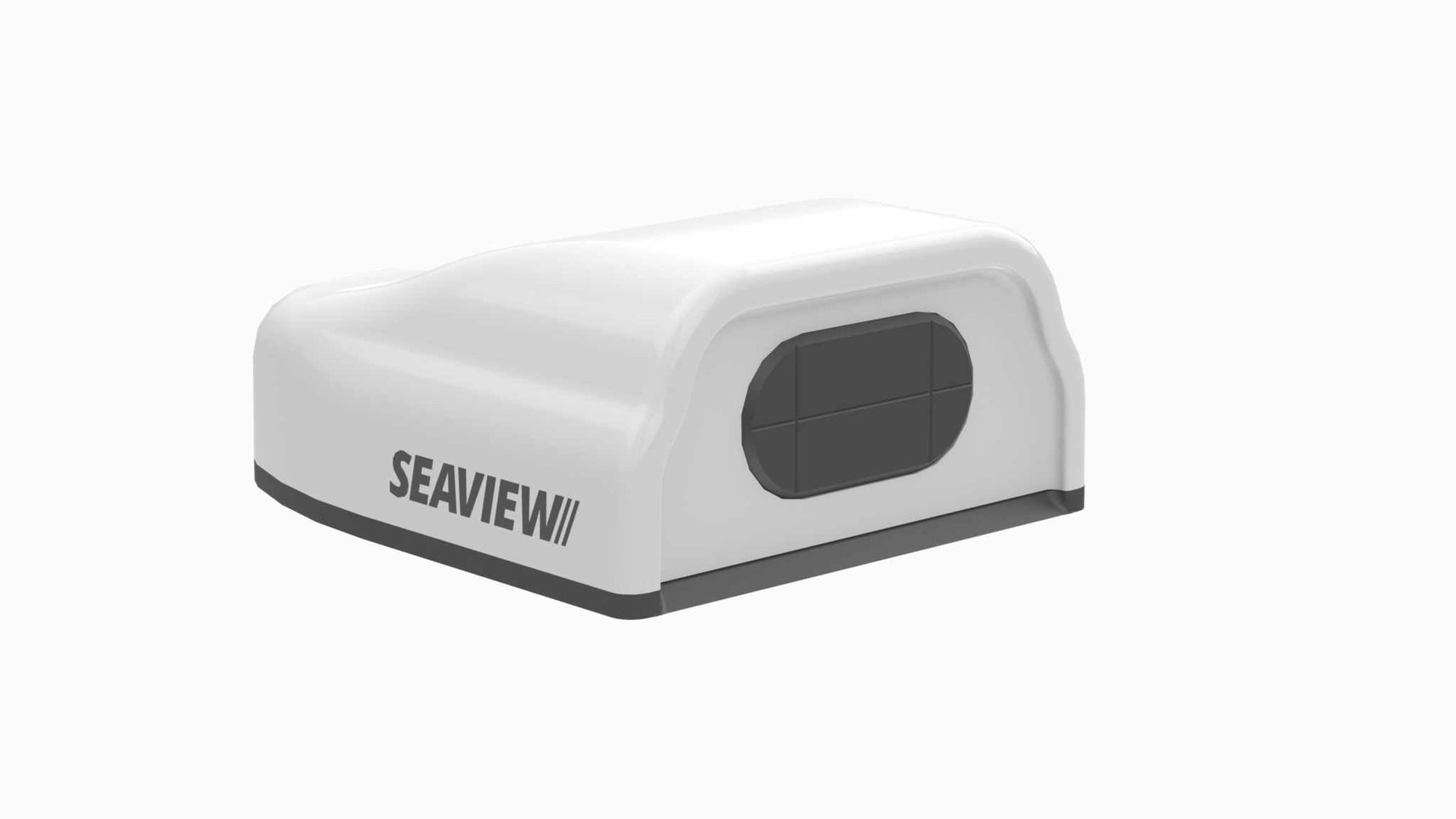

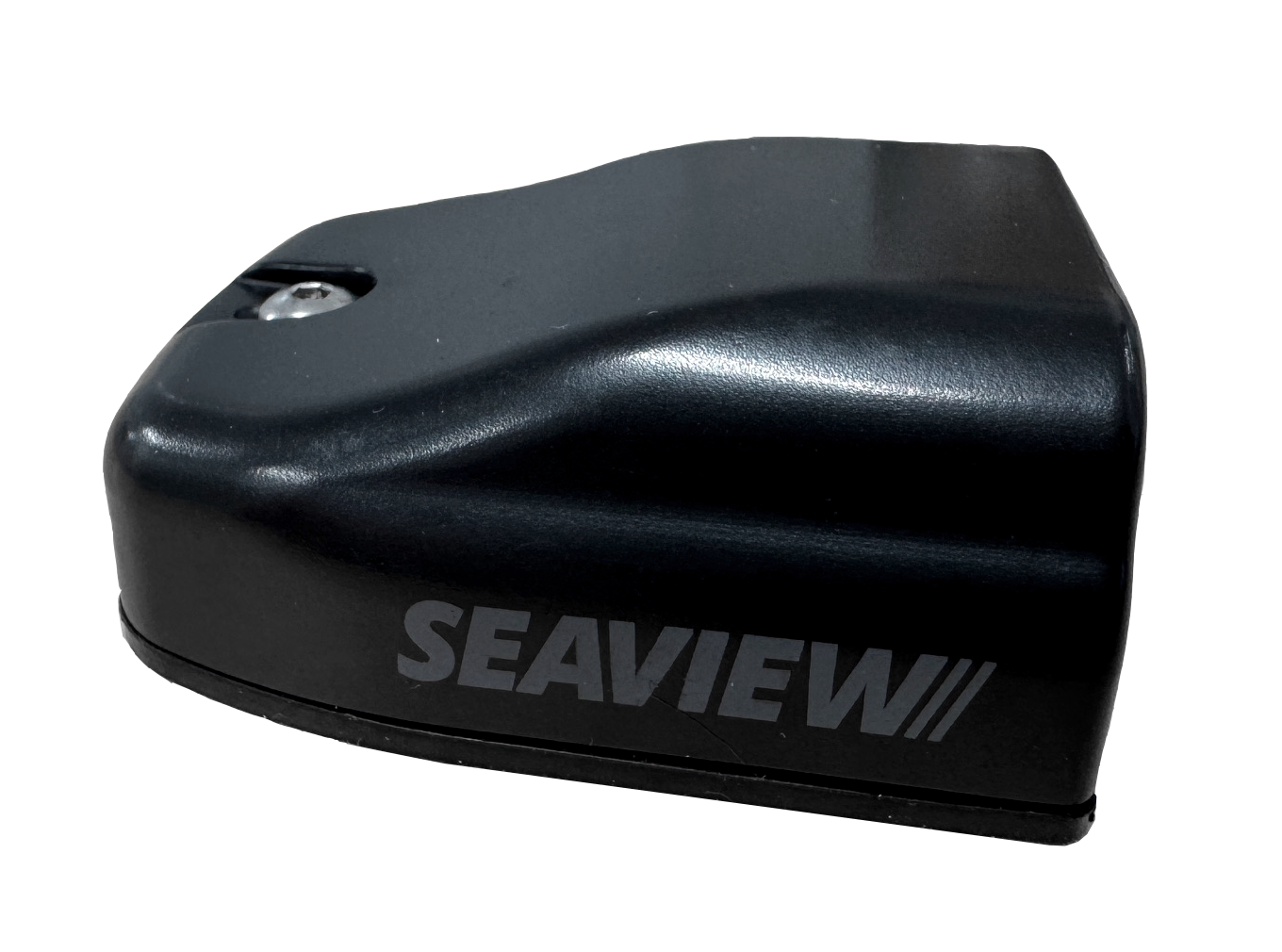

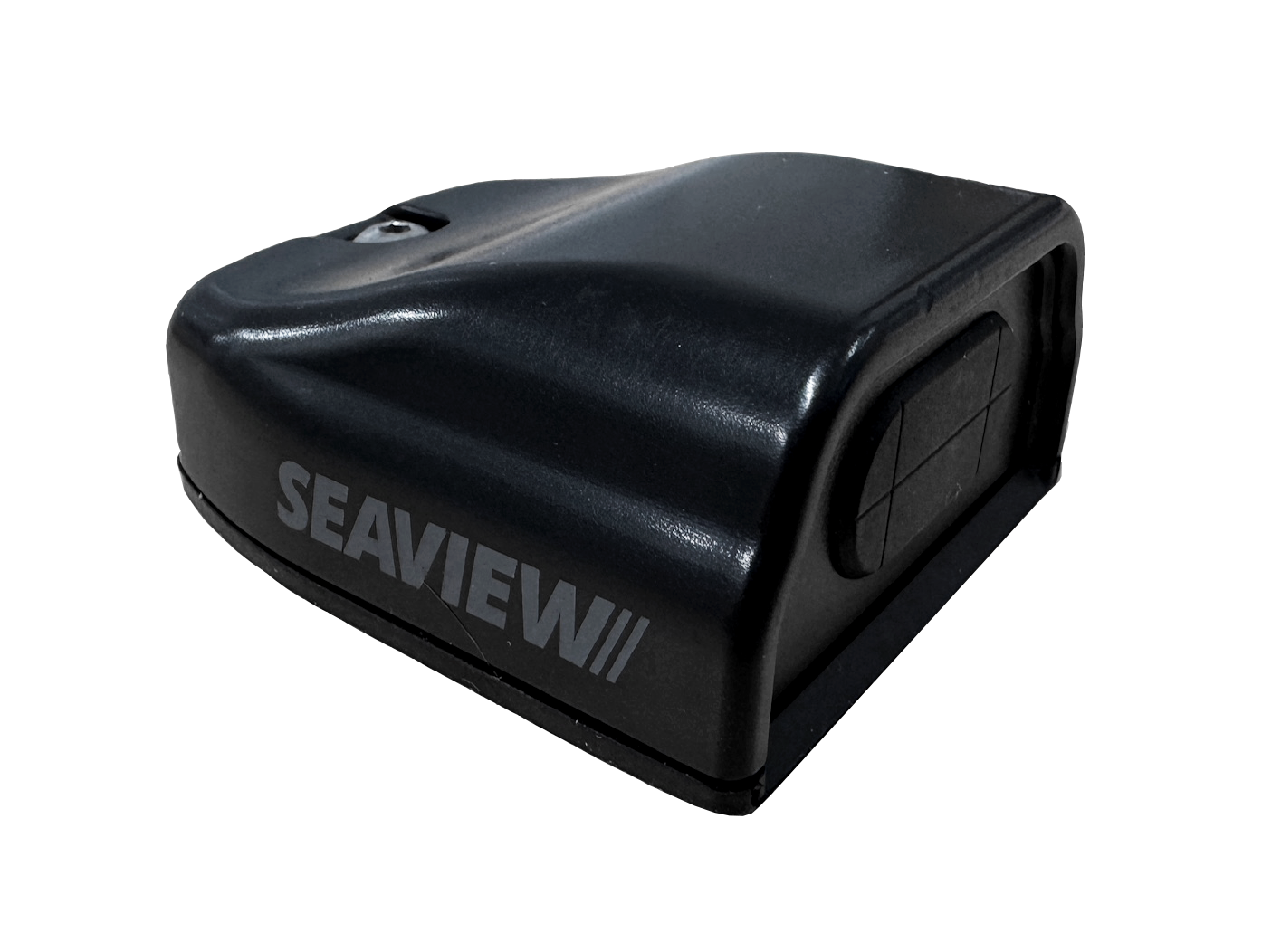

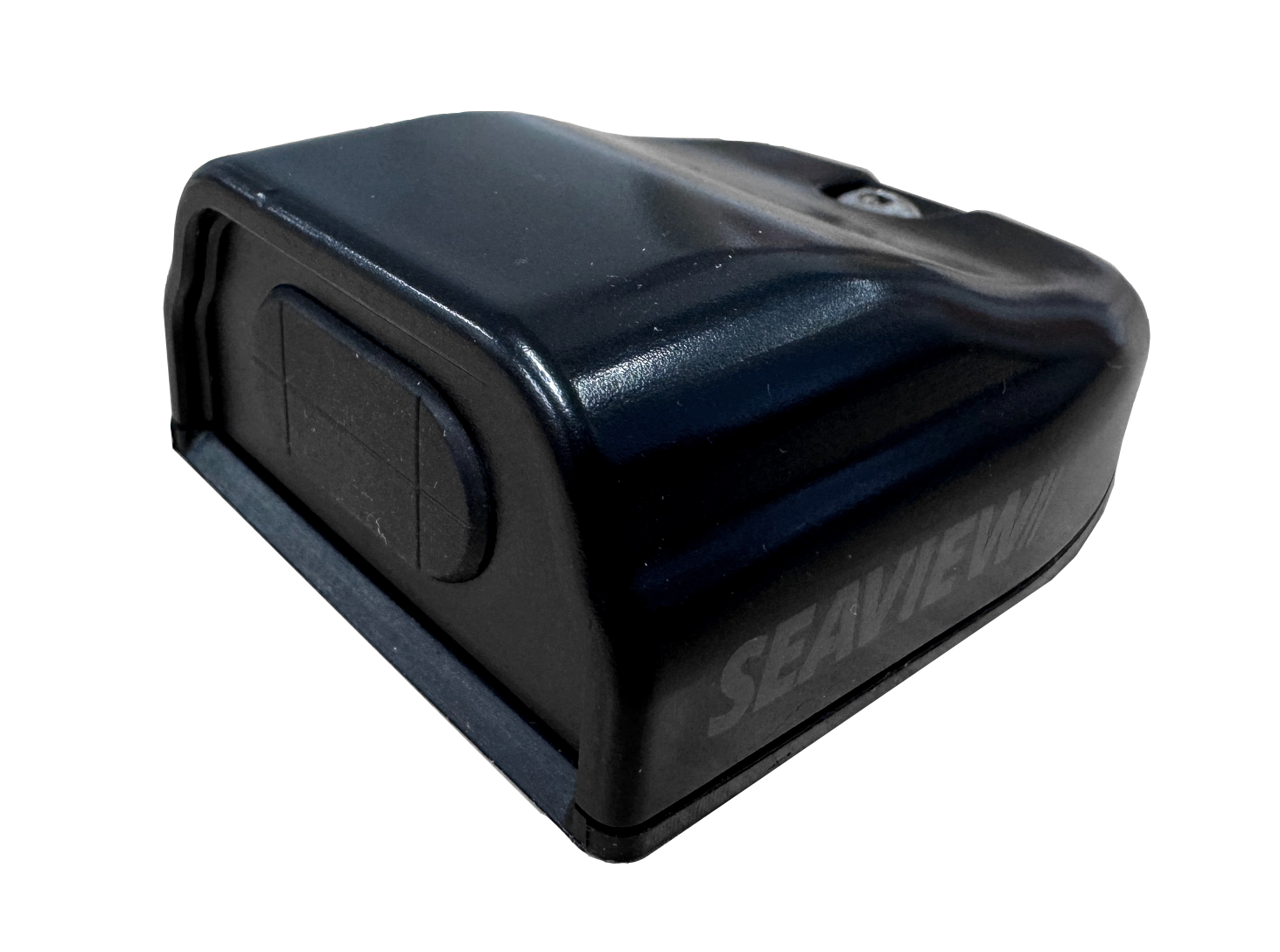

- CGM90 / CGM90W: Multiple cables up to 6.35 mm (0.25") each. Connector clearance approximately 7.94–9.53 mm (0.3125–0.375").
- CGM1790B / CGM1790W: Multiple cables up to 12.7 mm (0.5") each; connectors up to 17 mm (0.67"). Includes 6, 8, 10, and 12 mm drill tubes.
Installation tip: Select a drill tube within ±0.02" (0.508 mm) of the cable diameter. Leave at least 1/8" (3.175 mm) of rubber between holes and from each hole to the plug edge. See the Installation Instructions tab for details.
CGM1790B / CGM1790W: Available now.
-
Seaview Part Number Dimensions CG2090 & CG2090W Download CGM90 & CGM90W Download CGM1790B & CGM1790W 4.09" W × 3.44" D × 1.89" H -
Installation Instructions
Download the installation instructions in the chart below.
Seaview Part Number Installation Instructions CG2090 & CG2090W Download CGM90 & CGM90W Download CGM1790B & CGM1790W Download
