Flat Triplex Cable by the Foot
Flat Triplex Cable by the Foot
Rugged, long-lasting Marine Grade wiring ensures your AC electrical system will withstand the harshest marine environments.

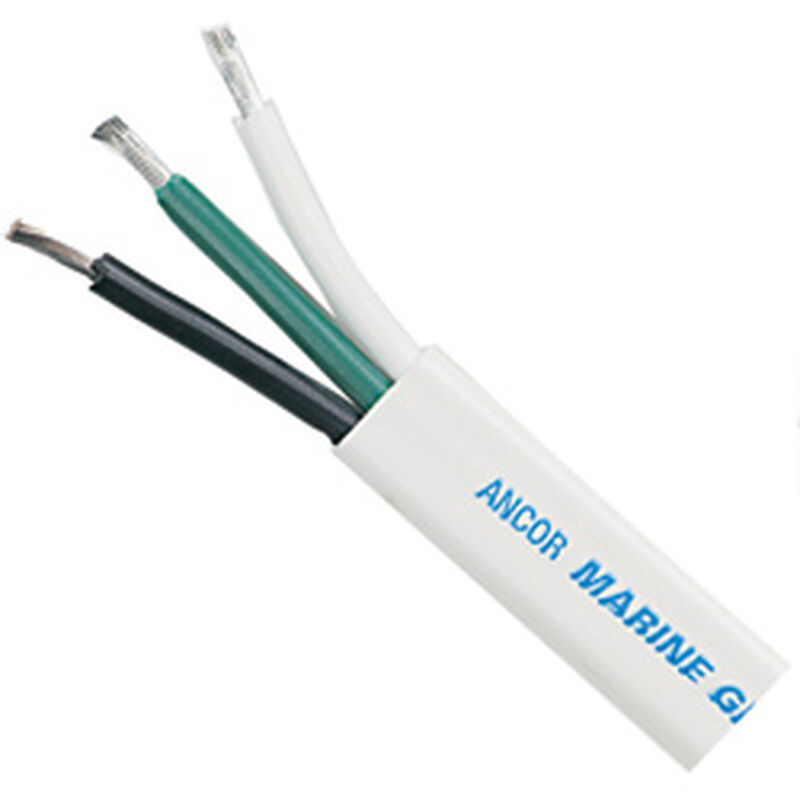

Ancor Marine Grade Triplex Cable resists saltwater, battery acid, oil, gasoline, heat, cold, abrasion and ultra-violet radiation so you can depend on your electrical system when you're far from shore. Conductors are white, black and green with a flat white jacket that's made for easy removal, while providing excellent abrasion resistance.
These cables exceed UL 1426, ABYC and USCG Charter Boat (CRF Title 46) standards and are made from the highest quality, ultra flexible (Type 3) tinned copper stranding for maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
The premium vinyl insulation is rated at 600 volts, 221°F (105°C) dry and 167°F (75°C) wet, and stays flexible even in extreme cold (-40°F/C).
Specifications
- Wire Type: Triplex
- Construction: Tinned Copper
- Conductors: One White, One Black, One Green
- Color of Exterior Insulation: White
- Voltage Rating: 600V
- Dry Rating: 221°F (105°C)
- Wet Rating: 167°F (75°C)
- Cold Rating: -40°F/C
- Approvals: UL 1426, ABYC, USCG Charter Boat (CFR Title 46), CSA
