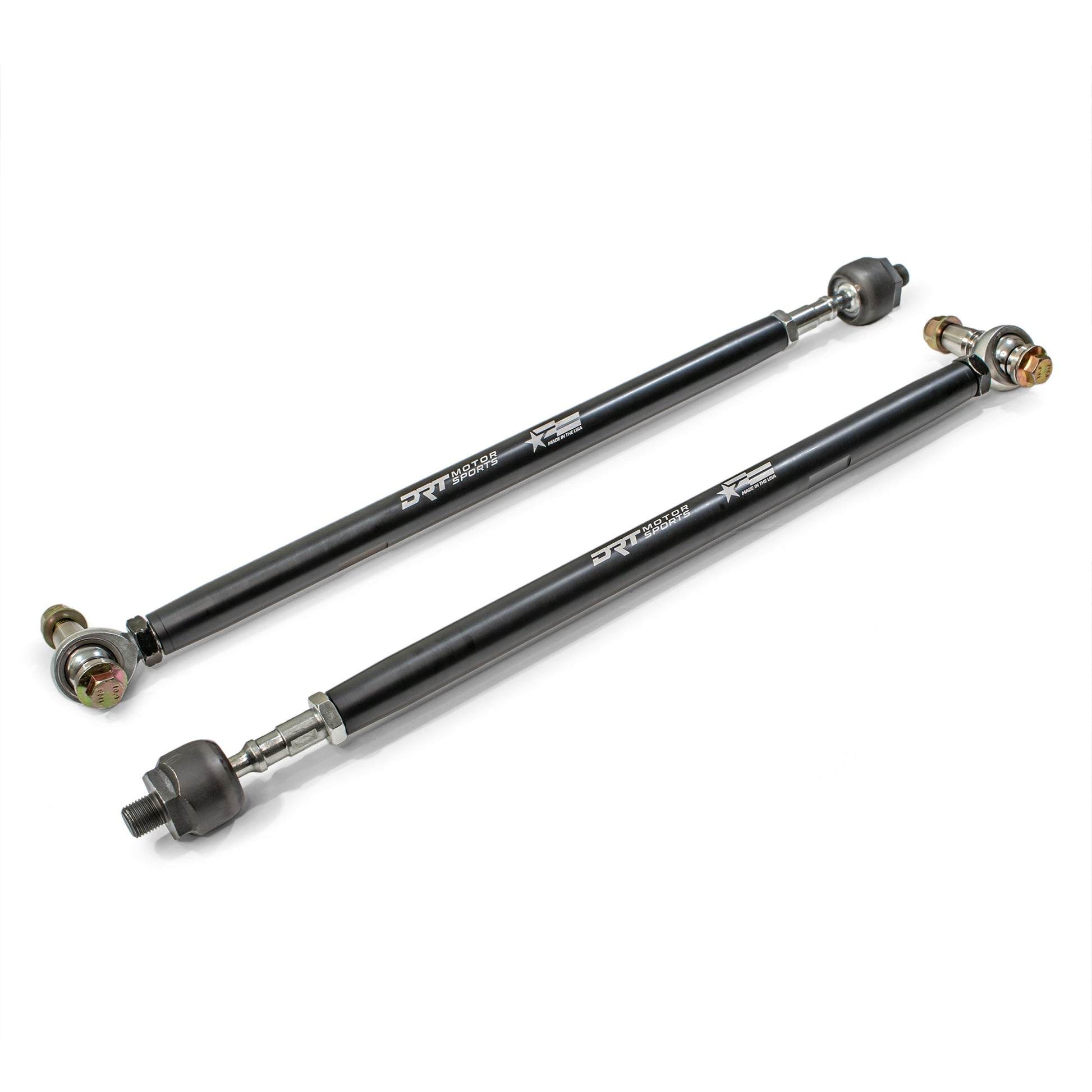

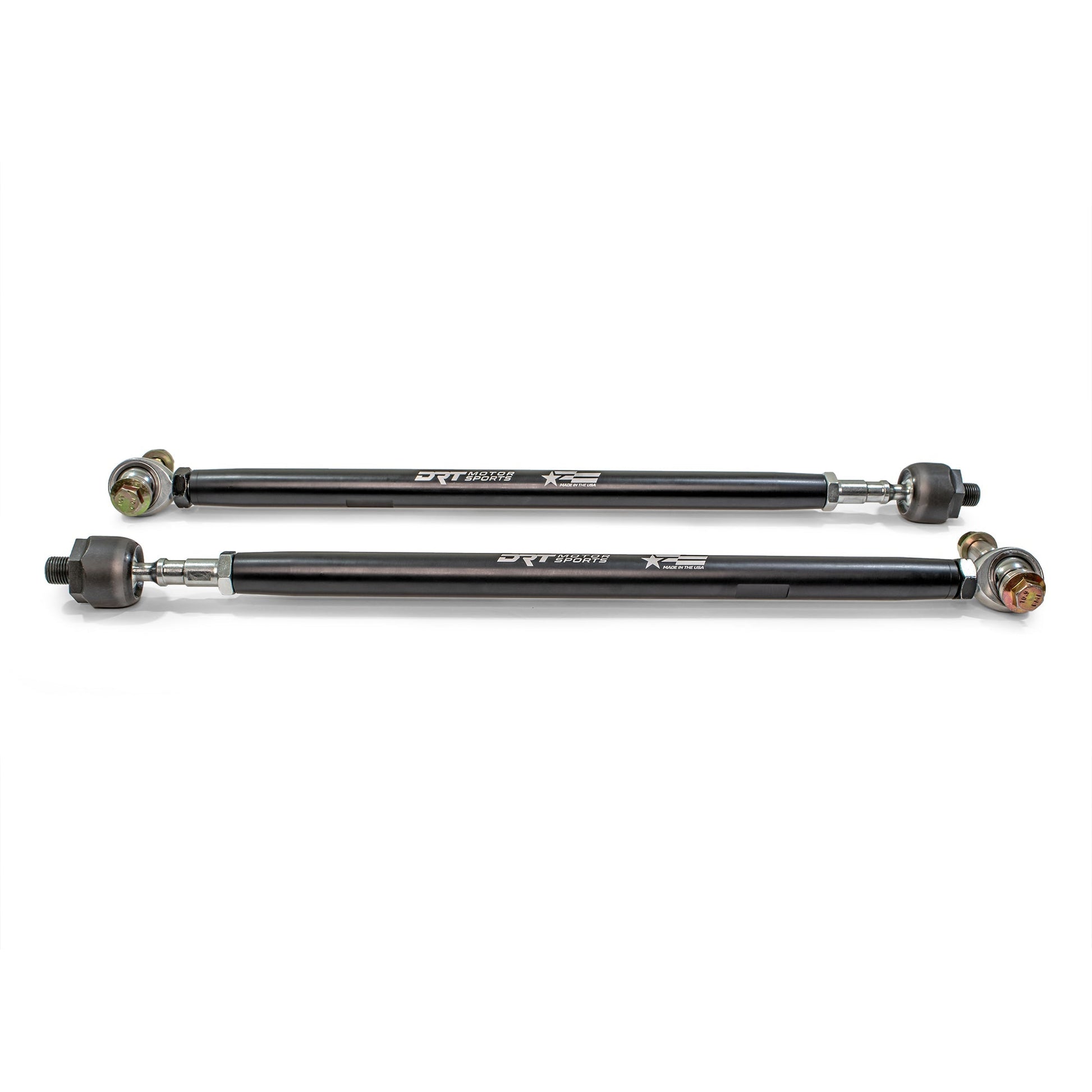

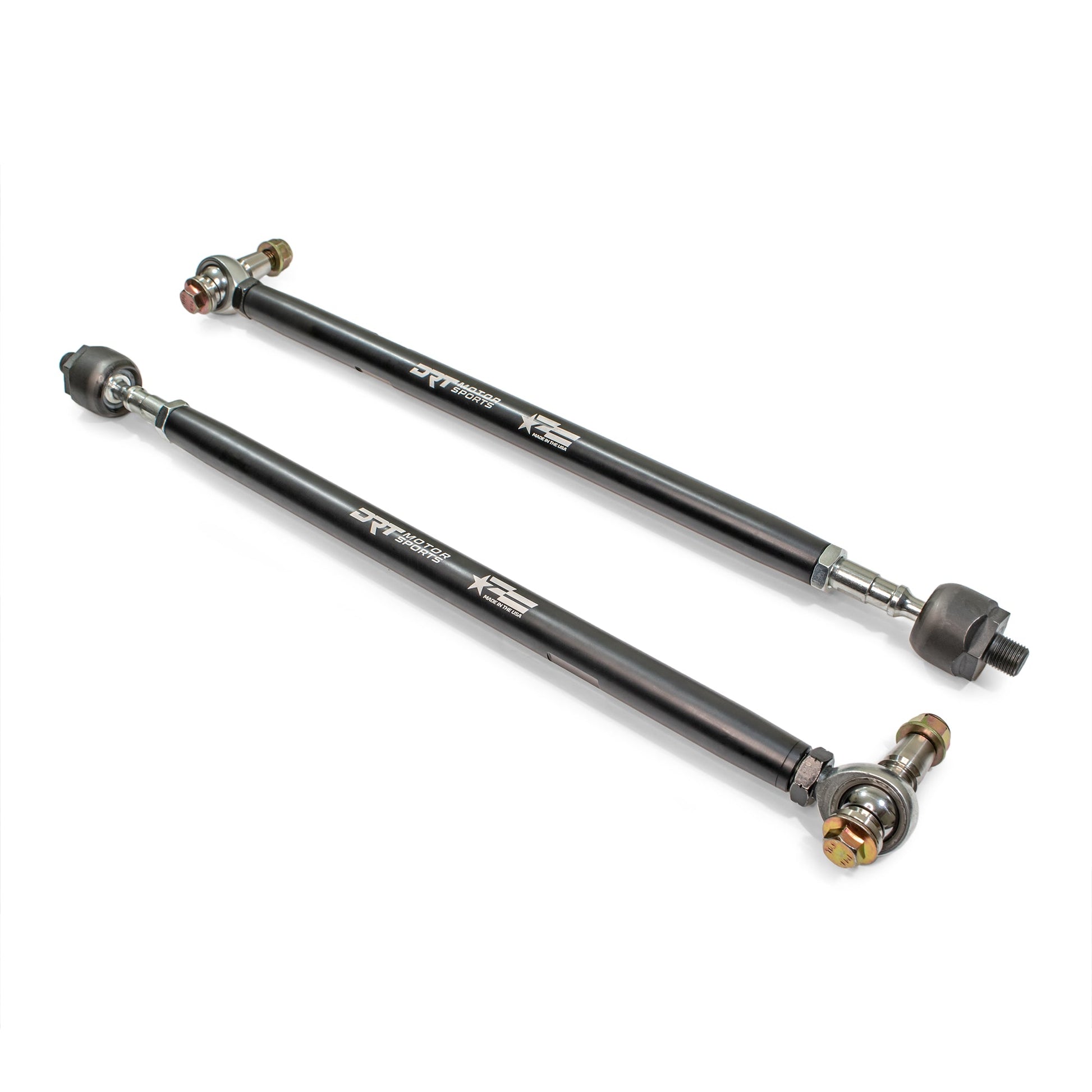

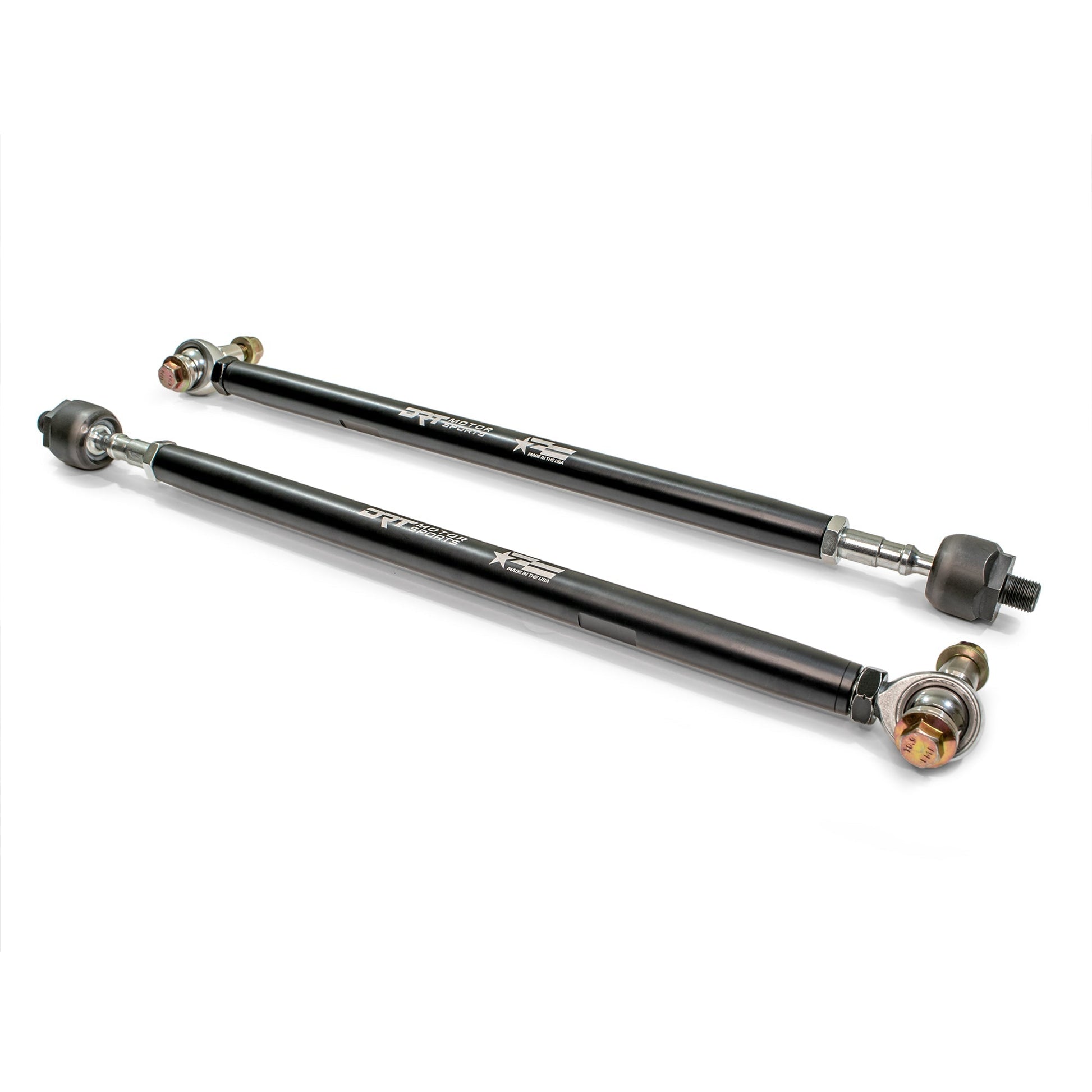

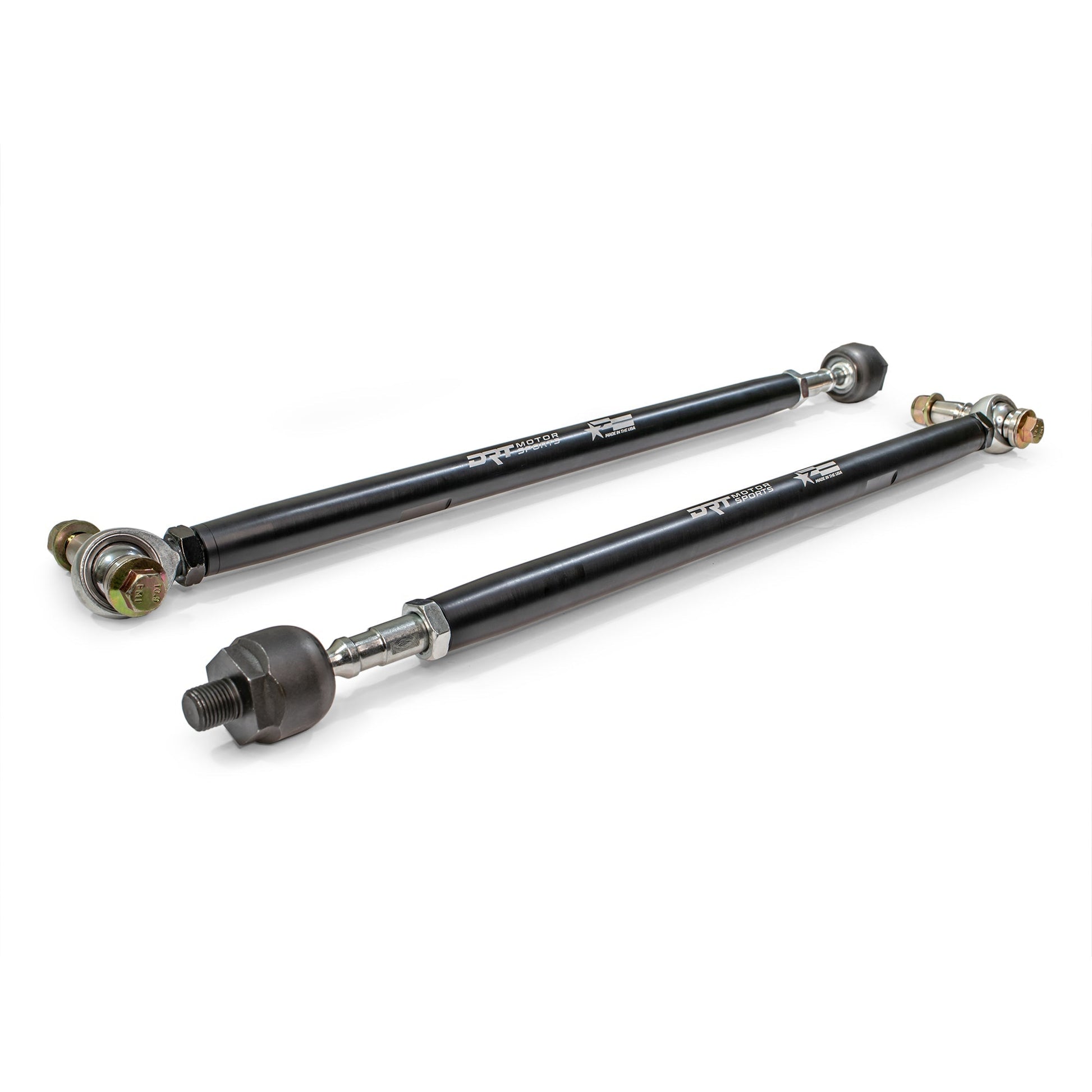

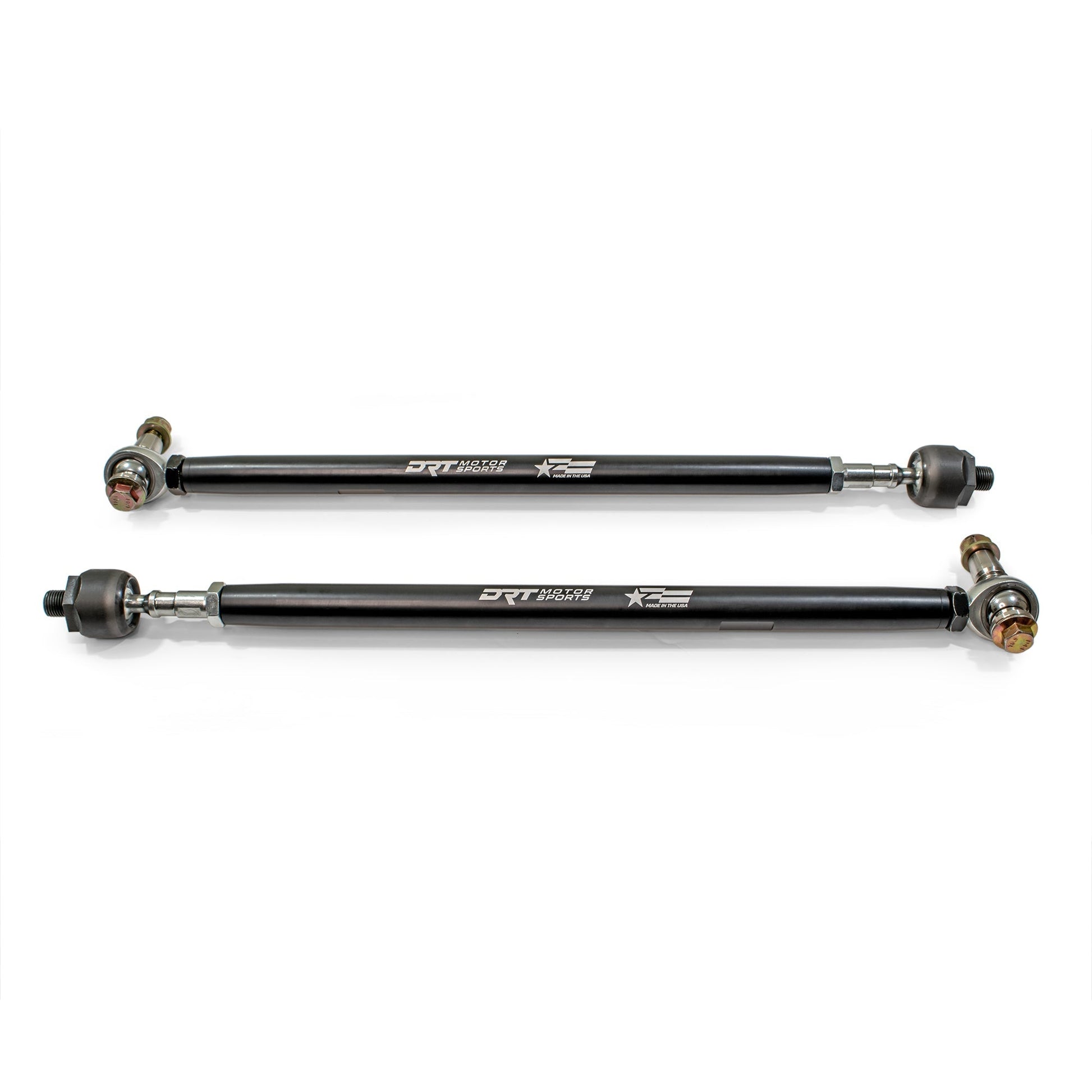

Polaris RZR Pro XP UHD 7075 Tie Rod Kit (64")

The DRT Motorsports Polaris RZR Pro XP UHD 7075 Tie Rod Kit (64") is designed to strengthen and add reliability to the 2020+ Pro XP platform. This Pro XP tie rod kit is built from 7-Series Ultra Heavy Duty (UHD) 7075 billet bar stock for maximum strength.

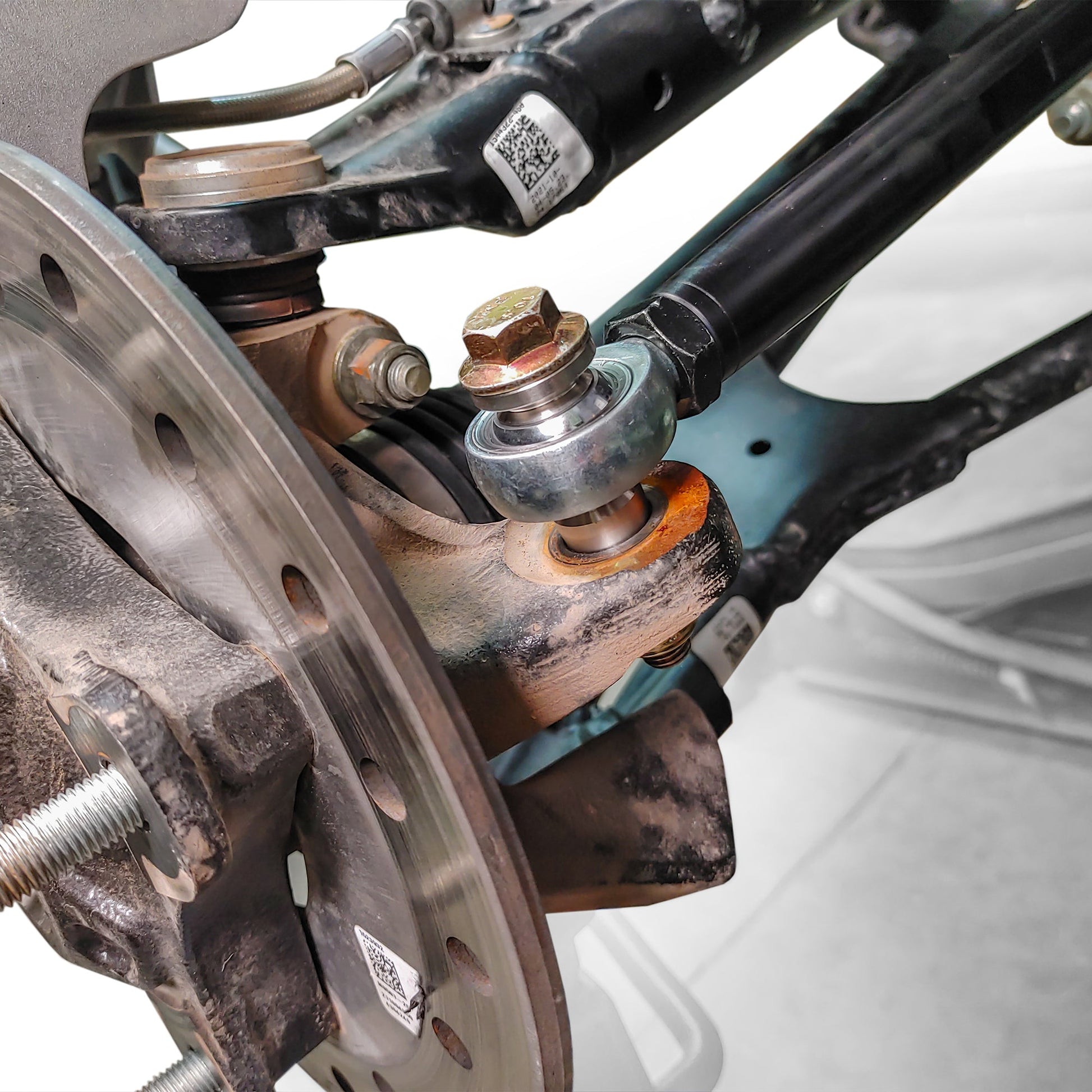

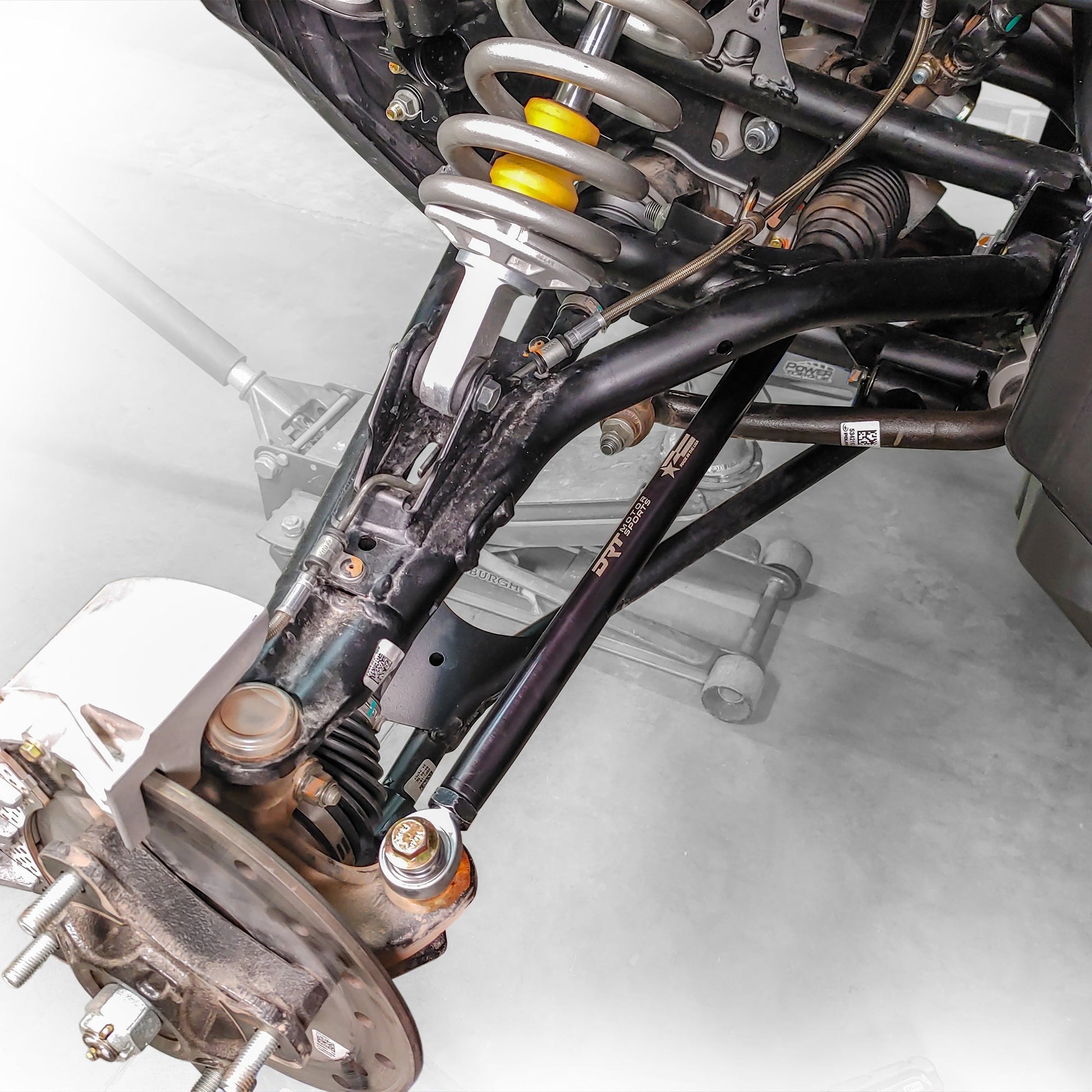

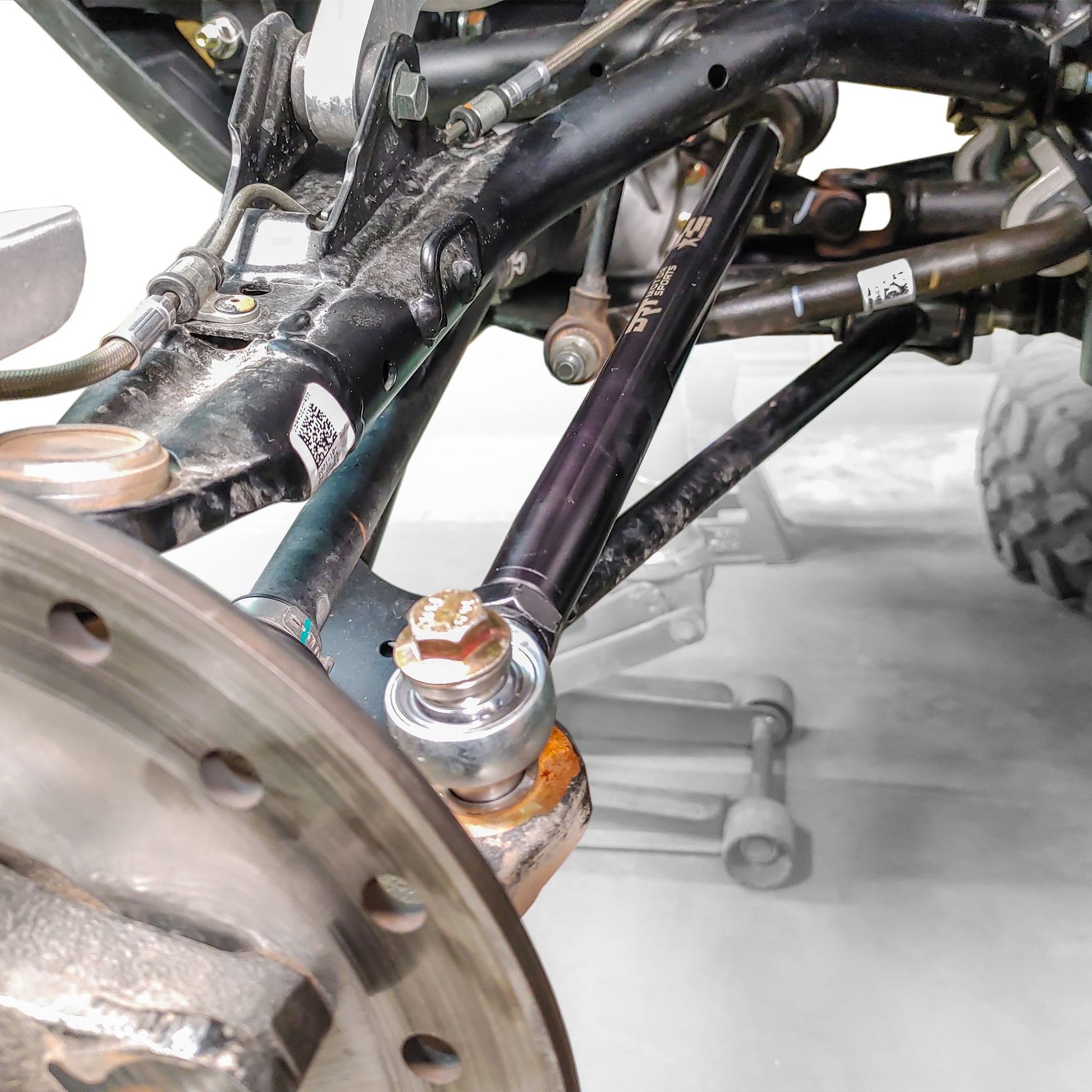

The 7075 billet tie rod kit is much stronger than standard 6061, lighter in weight, and able to be machined to a smaller diameter without sacrificing strength to clear all components through the entire range of motion. Even at full droop or compression, this tie rod set clears all suspension and steering components at any point in the steering range so you can ride with confidence. Finished in military-grade black anodize and proudly made in the USA.

Key Features

• Vehicle-specific fit — 2020+ Polaris RZR Pro XP / Pro XP 4 (64")
• Machined from aerospace-grade 7-Series 7075-T6 billet aluminum (UHD)
• Much stronger than standard 6061, lighter weight
• 3-piece PTFE-lined left/right 5/8" chromoly rod ends
• Proprietary inner ball joint seals OEM bellow against water, dirt, and sand
• 303 stainless steel misalignment spacers
• Class 10.9 hardware for required clamping force
• Machined wrench-notch areas for adjustability
• Military-specification black anodized finish with laser-engraved DRT branding
• Made in the USA

Specifications

• Application: 2020+ Polaris RZR Pro XP / Pro XP 4 (64")
• Material: Aerospace-grade 7-Series 7075-T6 billet aluminum
• Rod ends: 3-piece PTFE-lined 5/8" chromoly, left/right hand
• Spacers: 303 stainless steel misalignment spacers
• Hardware: Class 10.9
• OEM reference: Works with OEM steering rack P/N 1824946; replaces OEM rod ends P/N 7061257 and 7061258
• Finish: Military-grade black anodize
• Origin: Made in the USA

Fitment

Polaris

• 2020+ Polaris RZR Pro XP (2-door, 64")
• 2020+ Polaris RZR Pro XP 4 (4-door, 64")

Frequently Asked Questions

What makes 7075 better than 6061?

7-Series 7075 (UHD) billet is much stronger than standard 6061, allowing the rods to be machined to a smaller diameter for component clearance without sacrificing strength.

Which steering rack does it work with?

It works in conjunction with the OEM steering rack P/N 1824946 and replaces the OEM rod ends P/N 7061257 and 7061258.

Does it fit the 4-seat Pro XP?

Yes. It fits both the Pro XP (2-door) and Pro XP 4 (4-door) 64" models.

Will it clear my suspension at full droop and compression?

Yes. The tie rods are designed to clear all suspension and steering components through the entire range of motion, even at full droop or full compression.

Does it seal against water and dirt?

Yes. The proprietary inner ball joint seals the OEM bellow to protect the steering rack from water, dirt, and sand intrusion.

Is it adjustable?

Yes. Machined wrench-notch areas allow left/right adjustment. Verify jam nuts are tight and installed with thread locker, and inspect before each ride.

Why DRT Motorsports

DRT Motorsports engineers Polaris RZR Pro XP-specific steering components for riders who demand the most. From Ultra Heavy Duty 7075 billet construction to PTFE-lined chromoly rod ends, sealed inner ball joints, and made-in-the-USA manufacturing, every DRT tie rod kit delivers maximum strength, sealing, and adjustability.

Upgrade your Pro XP steering with UHD 7075 billet tie rods. Order the DRT Motorsports Pro XP UHD 7075 Tie Rod Kit (64") from Dunes 2 Dezert SXS — your authorized DRT Motorsports dealer.
