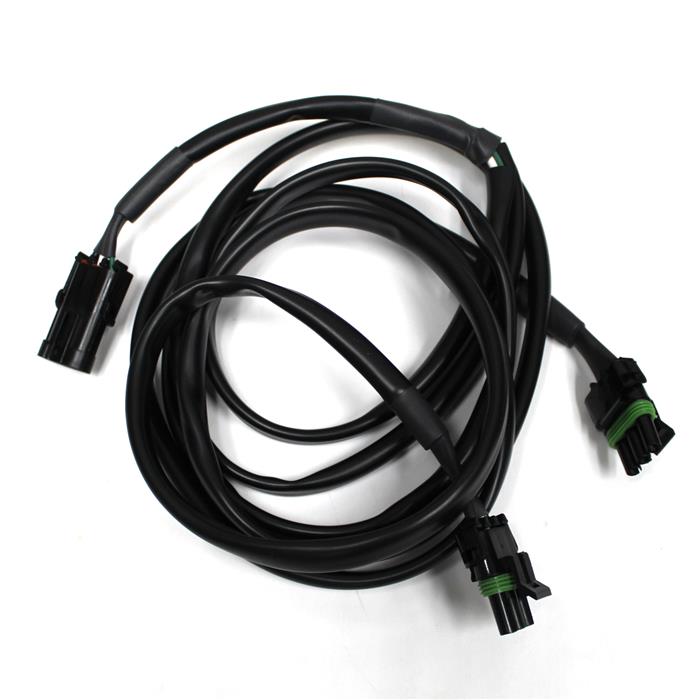

Baja Designs OnX6/S8/XL 55 Inch Splitter Wiring Harness

Connecting two compatible Baja Designs lights requires a wiring arrangement with connections for both lights. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. This 55-inch splitter wiring harness uses two three-pin connections and splice connectors for a two-light setup.

Key Features

• 55-inch universal splitter wiring harness
• Two three-pin connections for a two-light setup
• Splice connector terminal type
• Plug-and-play harness for listed Baja Designs LED lights
• Compatible with OnX, OnX6, XL Pro, XL Sport, XL-R Pro and XL-R Sport lights

Built To Solve: Two-Light Splitter Wiring

• Connect two lights through a splitter harness.
• Use the two three-pin connections for the light wiring.
• Route a harness measuring 55 inches.
• Use the plug-and-play harness with the listed Baja Designs LED lights.

Best For: Baja Designs Two-Light Installers

• Installers wiring two compatible Baja Designs LED lights.
• OnX or OnX6 owners choosing a universal splitter harness.
• XL Pro and XL Sport owners planning a two-light setup.
• XL-R Pro and XL-R Sport owners checking harness compatibility.

Specifications

• Harness length: 55 inches
• Harness description: 2 Light Splitter Harness
• Terminal connector: 2 Three-Pin Connections
• Terminal type: Splice Connectors
• Application: Universal
• Switch: Not included
• Manufacturer part numbers: 613609

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

Does this harness come with a switch?

No. The switch is not included.

How long is the splitter harness?

The harness measures 55 inches.

What connections does the harness use?

It uses two three-pin connections and splice connectors.

Which XL lights are listed as compatible?

XL Pro, XL Sport, XL-R Pro and XL-R Sport LED lights are listed.

Is this harness specific to one vehicle?

No. It is described as universal; vehicle-specific applications are not listed.

Why Baja Designs

Baja Designs specifies this splitter harness for its OnX, OnX6, XL and XL-R LED lights.

Wire a Baja Designs Two-Light Setup

Choose the Baja Designs 55-inch splitter harness for compatible LED lights.
