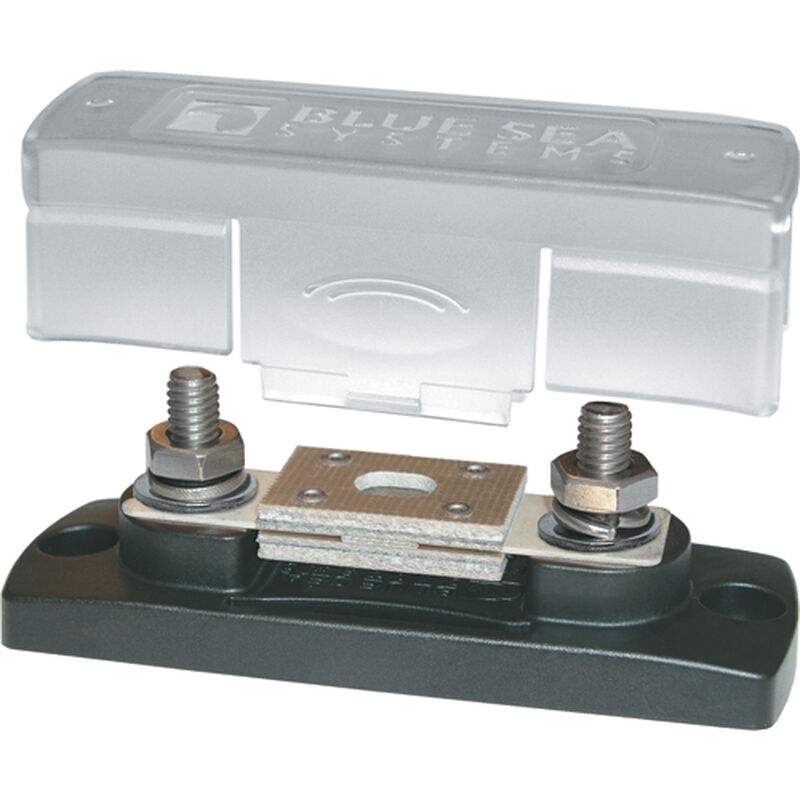

ANL Fuse Block for 35 to 300A Loads

Upgrade and protect your DC system with an ANL fuse block

Blue Sea Systems design their products to handle the marine environment while making installing and maintaining them simple. Appropriate for use on the DC main and other high amperage circuits, this fuse block has a swing-out design which allows fuse replacement without removal of the fasteners. Stainless steel terminal studs are molded into the heat resistant base and provide the strength to stand up to high torque loads required for the best possible contact. The included cover satisfies ABYC and USCG requirements and has knock-outs that allow cables to be run in almost any direction. A wide selection of compatible fuses makes this fuse block the right choice for your boat.

Key Features

• Stainless steel 5/16" terminals molded into base to stand up to high torque and provide excellent contact
• Includes cover to meet ABYC and USCG requirements
• Cover break-outs allow cables to be run in any direction
• Swing-out design allows fuse replacement without removal of fasteners
• Ignition protected when used with ANL Ignition protected fuses
• Compatible with fuses up to 300A

Specifications

• Voltage: 32V
• Amperage: 300A
• Cable Size: 2/0AWG
• Terminal Studs: (2) 5/16"-18
• Material: Reinforced polycarbonate base, stainless steel terminal studs, tin-plated copper mounting bocks
• Dimensions: 4 ½"L x 1 ½"W x 1 5/8"H
• Approvals: UL flammability of 94V-0 (base material), ABYC, USCG
